Commercial
Insulated
Pin Terminals

Filter

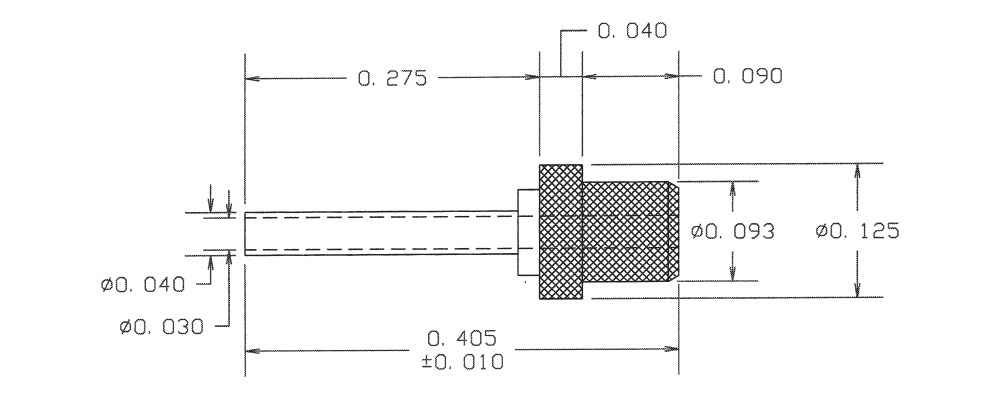

1114-07-08811
1114-07-08811
1114-07-08811
0.405" 0.040 - Press Fit 1/32 0.086 Brass Bright Tin-Lead - - PTFE Brown NO
1114-50-0117
1114-50-0117
1114-50-0117
0.270" 0.060 - Press Fit 1/16 0.136 Brass Silver - - PTFE Violet YES
1114-74-0413
1114-74-0413
1114-74-0413
0.367" - - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Orange NO
1114R-12-04419
1114R-12-04419
1114R-12-04419
0.247" 0.045 (+0.000/-0.005) - Press Fit 1/32 0.113 Brass Bright Tin - - PTFE White YES

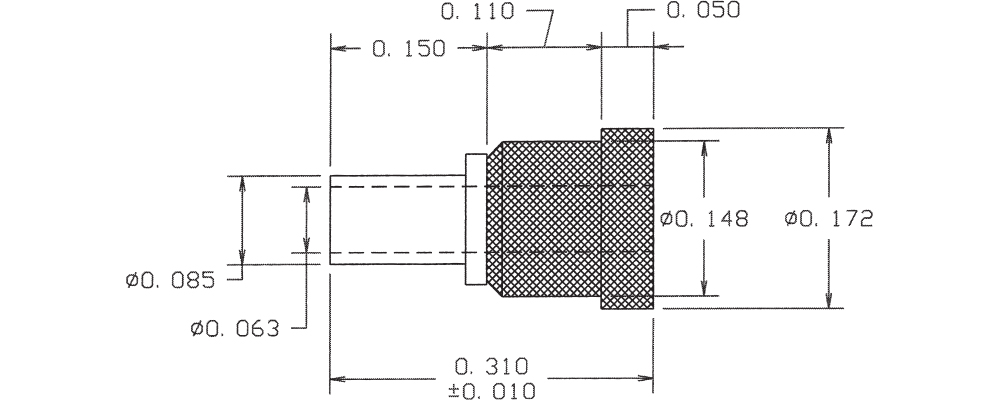

1114R-19-08815
1114R-19-08815
1114R-19-08815
0.310" 0.085 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Green NO
1114R-80-0311
1114R-80-0311
1114R-80-0311
0.380" 0.055 - Press Fit 1/32 0.136 Brass Gold - - PTFE Brown NO
1115-06-0417
1115-06-0417
1115-06-0417
0.367" 0.040 - Press Fit 1/16 0.187 Brass Electro-Tin - - PTFE Violet YES
1115-50-0513
1115-50-0513
1115-50-0513
0.353" - - Press Fit 3/32 0.187 Brass Electro Solder - - PTFE Orange NO

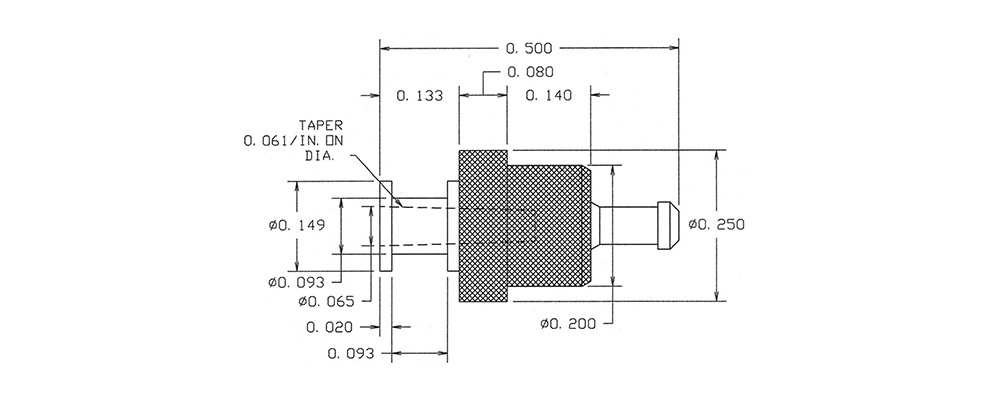

1115-54-08819
1115-54-08819
1115-54-08819
0.500" - Turret/Turret Press Fit 3/32 0.187 Brass Bright Tin-Lead - - PTFE White NO
1116-26-0315
1116-26-0315
1116-26-0315
0.281" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Gold - - PTFE Green YES
1117-15-04411
1117-15-04411
1117-15-04411
0.990" - Double Turret/Double Turret 10-32 Nut 1/8 0.196 Brass Bright Tin Nickel Brass PTFE Brown NO
1117-19-0517
1117-19-0517
1117-19-0517
1.000" - Double Turret/Double Turret 1/4-28 Nut 1/8 0.257 Brass Electro Solder Nickel Brass PTFE Violet NO
1117-54-0113
1117-54-0113
1117-54-0113
0.785" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Silver Nickel Brass PTFE Orange NO
1118-32-0319
1118-32-0319
1118-32-0319
0.346" - TURRET/SLOTTED Press Fit 3/32 0.093 Brass Gold - - PTFE White YES
1119-22-04415
1119-22-04415
1119-22-04415
1.500" 0.030 TURRET/PIN Press Fit 3/32 0.070 Brass Bright Tin - - PTFE Green YES
1119-32-08811
1119-32-08811
1119-32-08811
0.836" 0.050 TURRET/PIN Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Brown NO
1121-02-0117
1121-02-0117
1121-02-0117
0.350" 0.040 Turret/Tip Press Fit 1/32 0.113 Brass Silver - - PTFE Violet YES
1121-06-0413
1121-06-0413
1121-06-0413
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Orange NO
1121-11-04419
1121-11-04419
1121-11-04419
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Bright Tin - - PTFE White YES

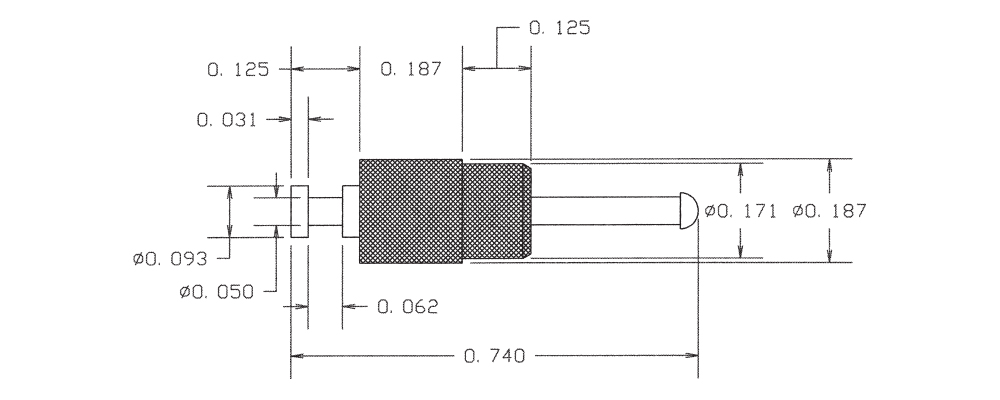

1121-15-08815
1121-15-08815
1121-15-08815
0.740" 0.050 Turret/Tip Press Fit 3/32 0.158 Brass Bright Tin-Lead - - PTFE Green NO
