Commercial
Insulated
Pin Terminals

Filter

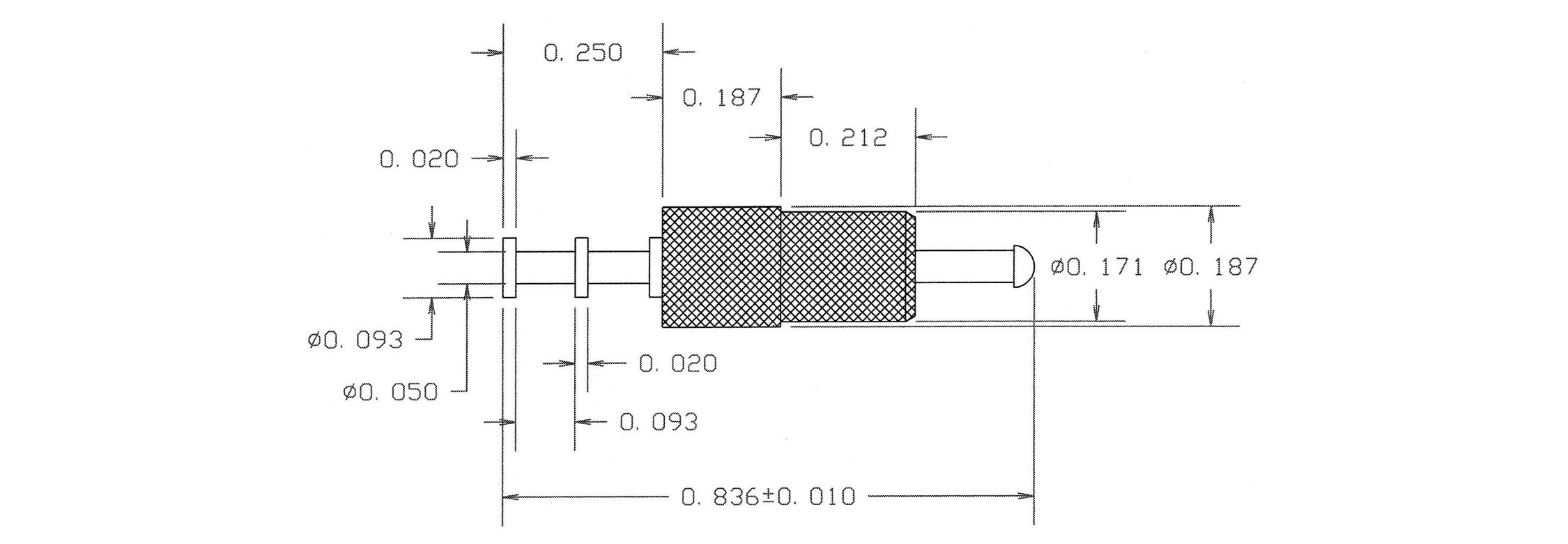

1156-14-04411
1156-14-04411
1156-14-04411
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Brown NO

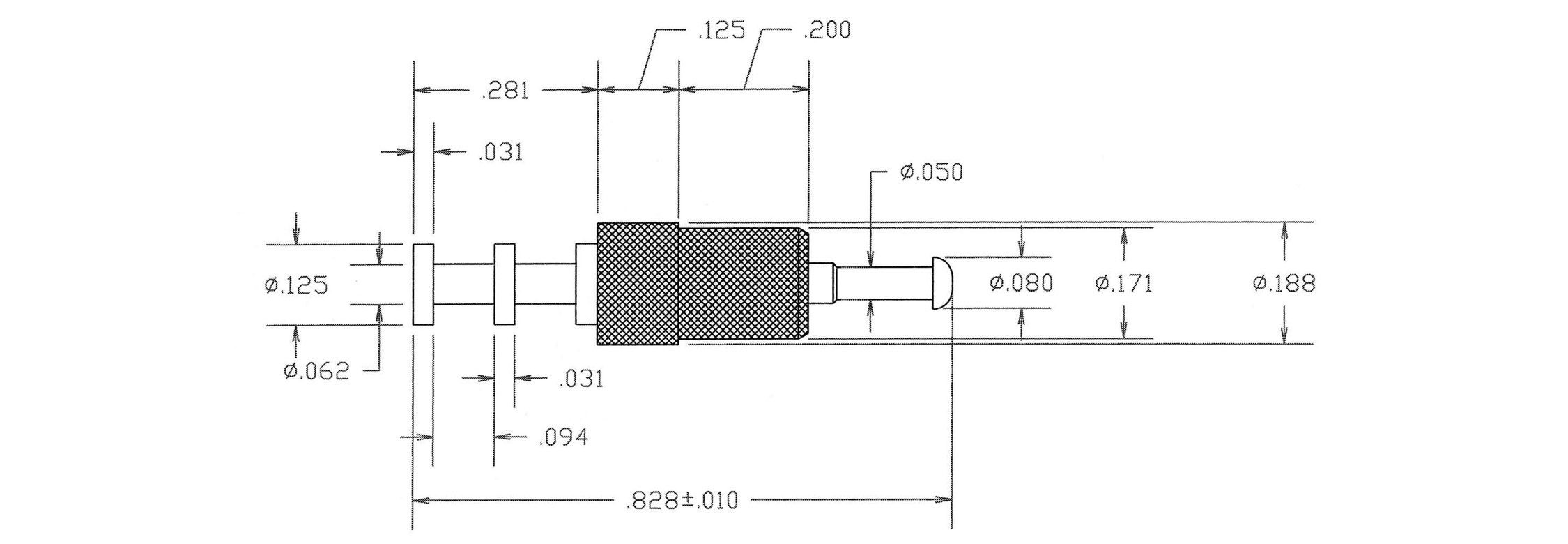

1156-18-0517
1156-18-0517
1156-18-0517
0.828" 0.050 DOUBLE Turret/Tip Press Fit 5/32 0.158 Brass Electro Solder - - PTFE Violet NO

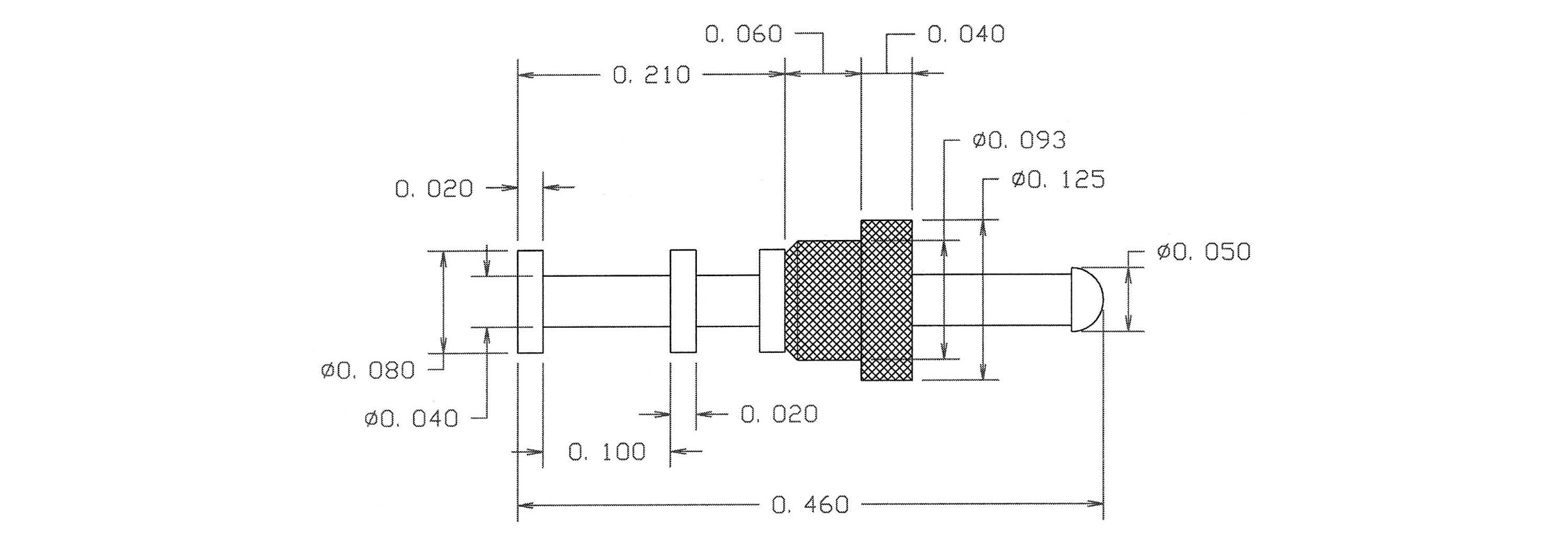

1156R-01-0113
1156R-01-0113
1156R-01-0113
0.460" 0.040 DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Silver - - PTFE Orange NO

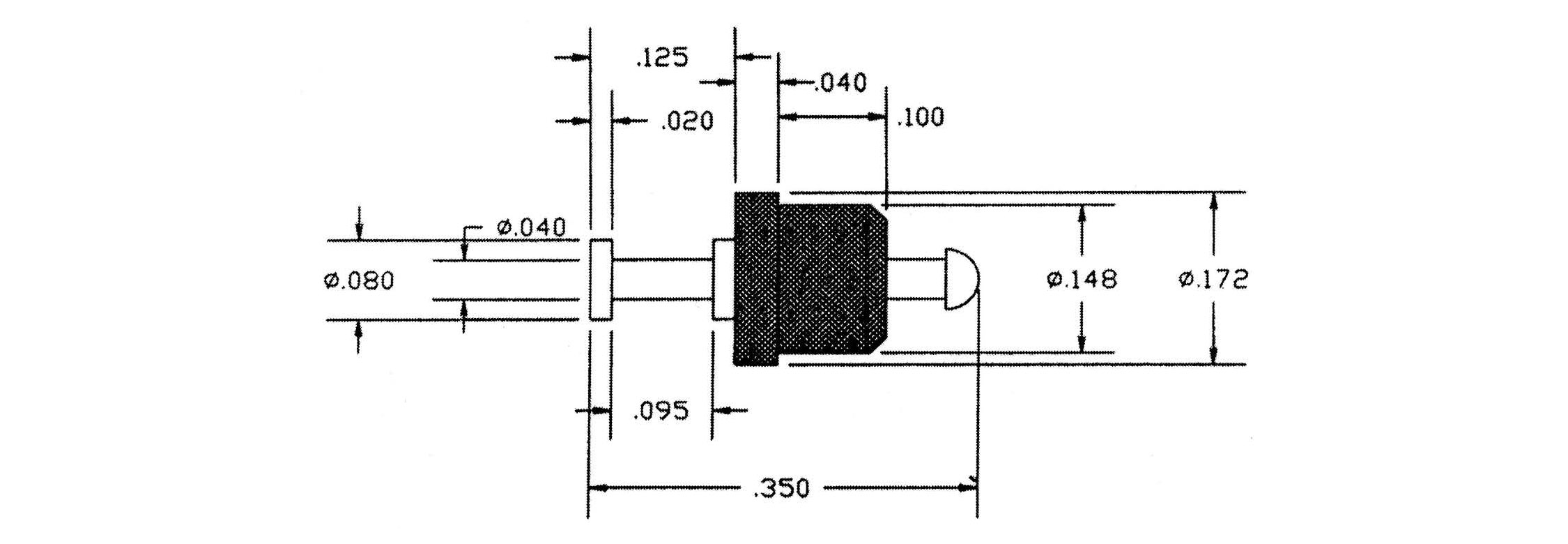

1157-01-0319
1157-01-0319
1157-01-0319
0.350" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Gold - - PTFE White YES
1157-06-04415
1157-06-04415
1157-06-04415
1.115" 0.050 TURRET/PIN Press Fit 11/32 0.158 Brass Bright Tin - - PTFE Green YES

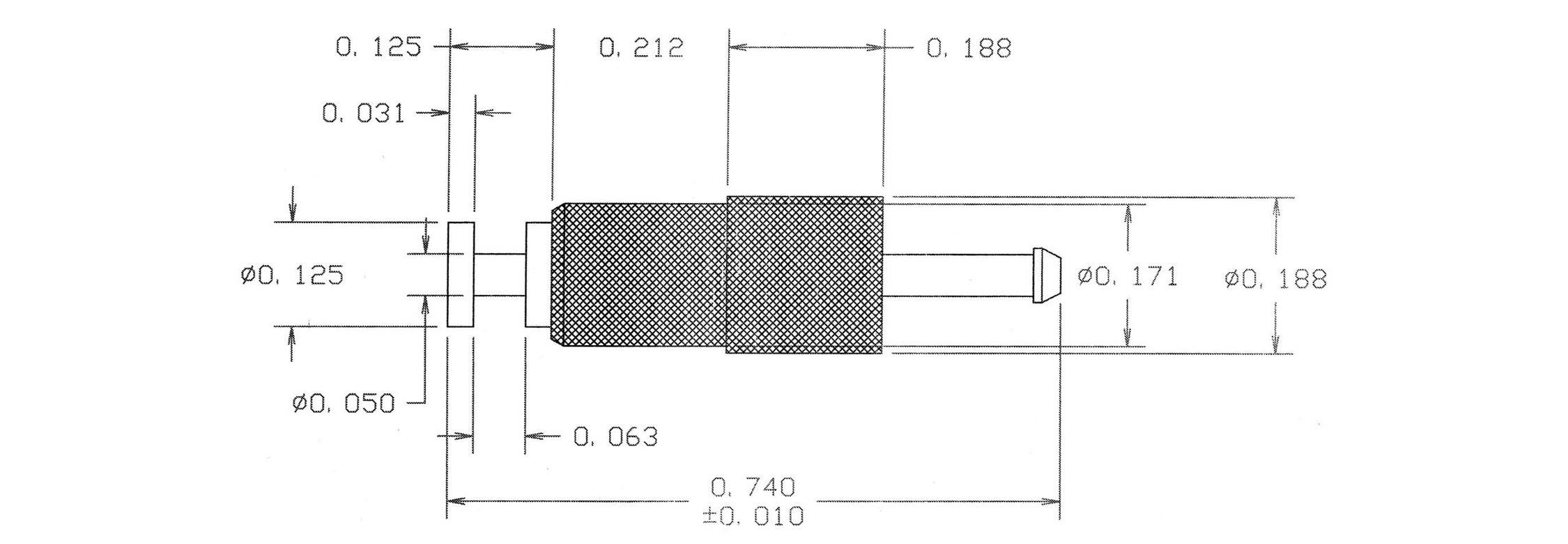

1157R-04-08811
1157R-04-08811
1157R-04-08811
0.740" 0.050 TURRET/PIN Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Brown NO

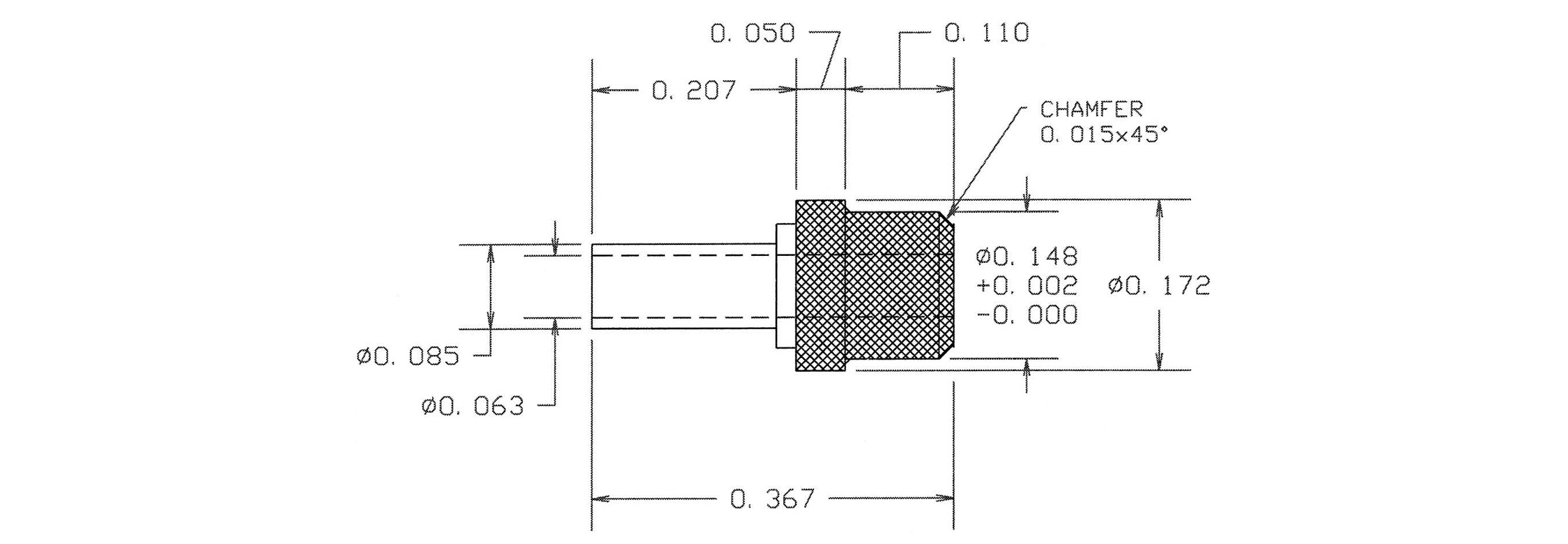

1160-13-0117
1160-13-0117
1160-13-0117
0.367" 0.085 - Press Fit 1/16 0.136 Brass Silver - - PTFE Violet YES

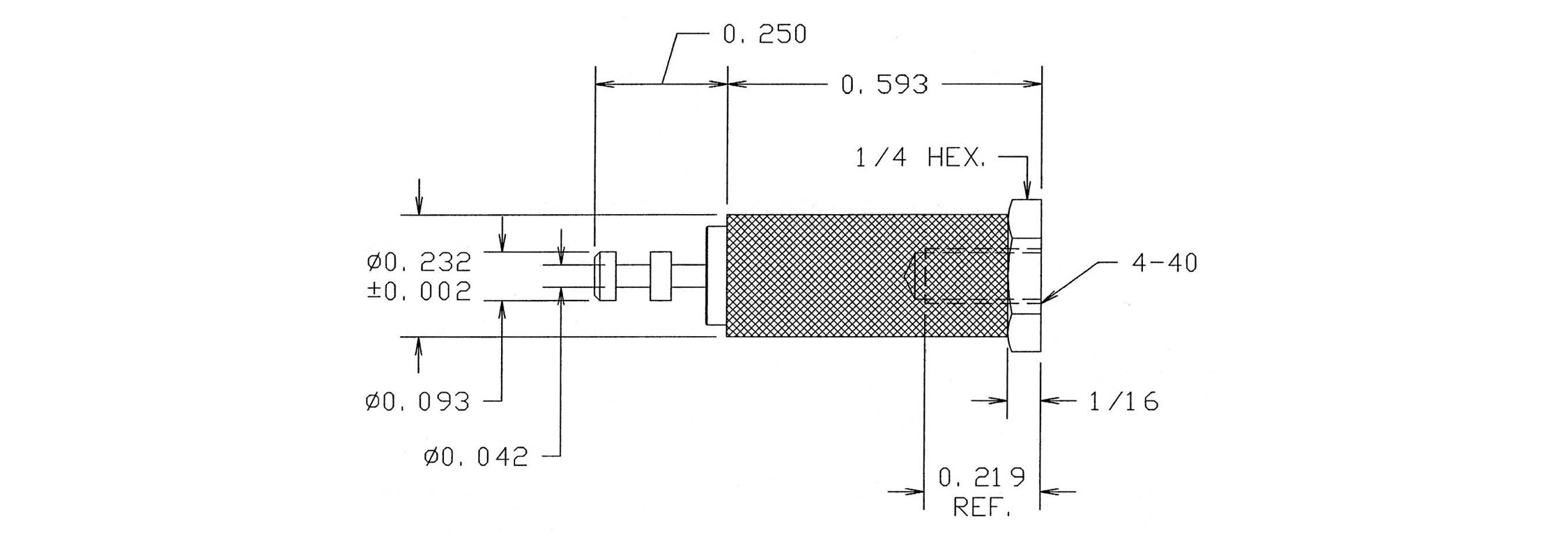

1167-20-0413
1167-20-0413
1167-20-0413
0.843" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Orange YES

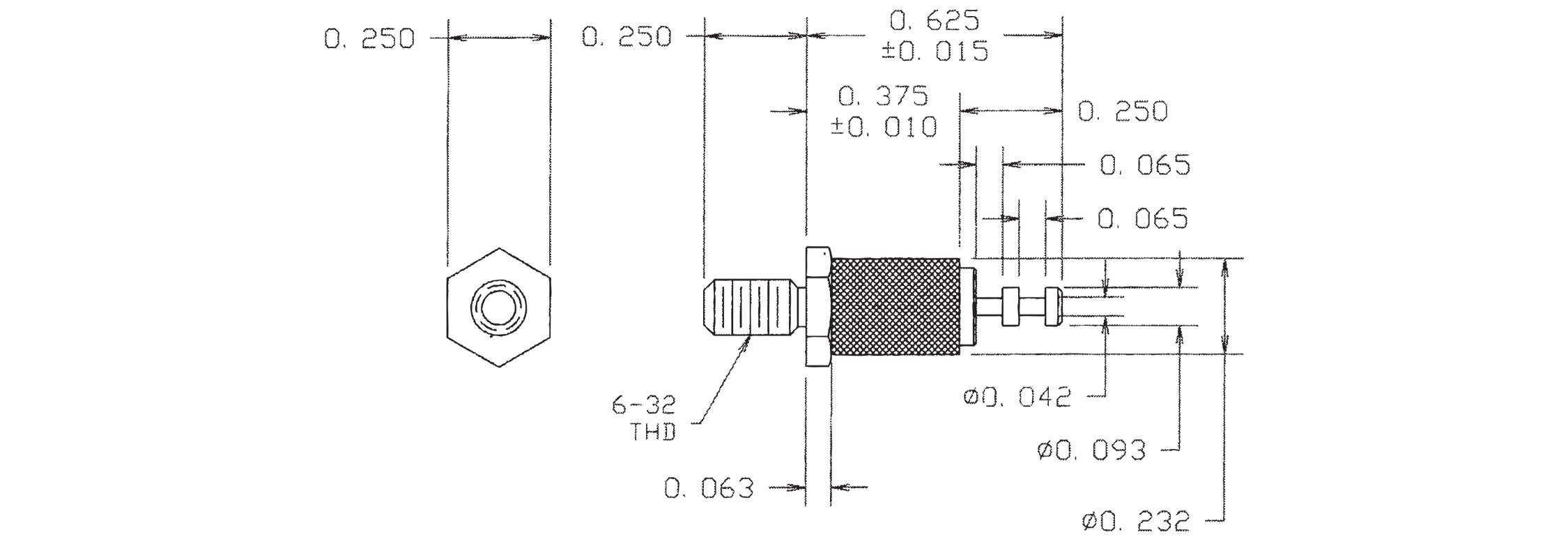

1167-67-04419
1167-67-04419
1167-67-04419
0.875" - - 6-32 Nut 1/8 0.144 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE White YES

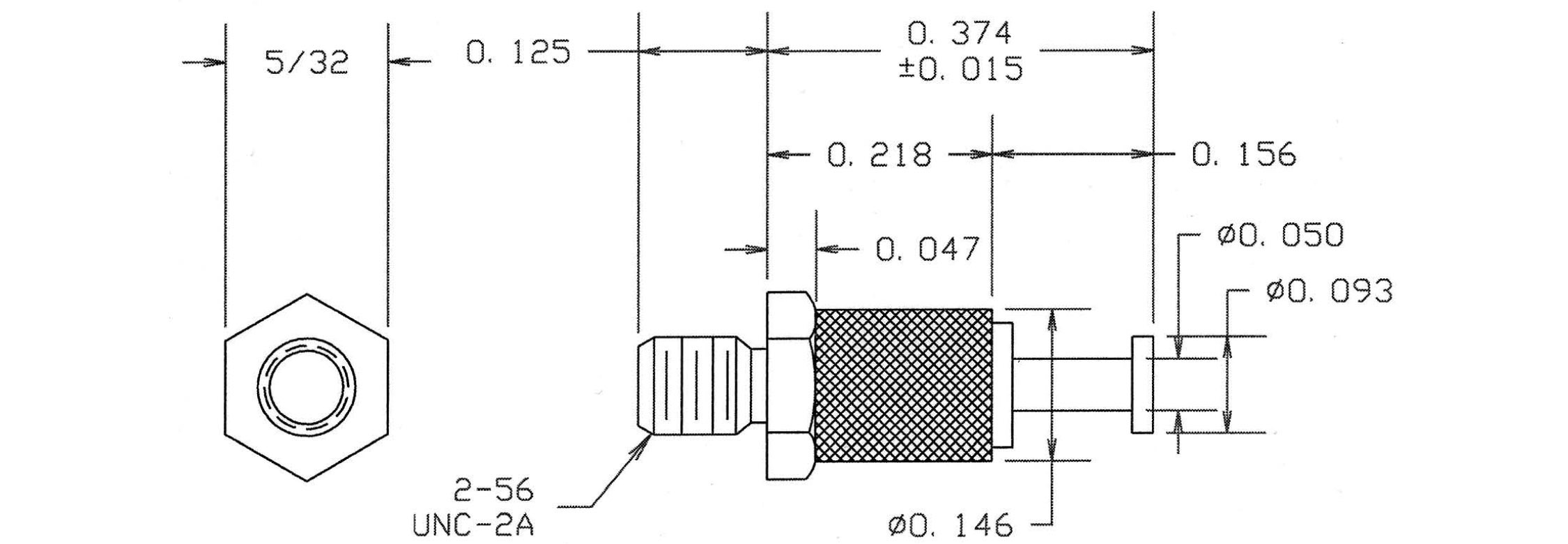

1169-08-08815
1169-08-08815
1169-08-08815
0.499" - - 2-56 Nut 1/32 0.094 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Green NO

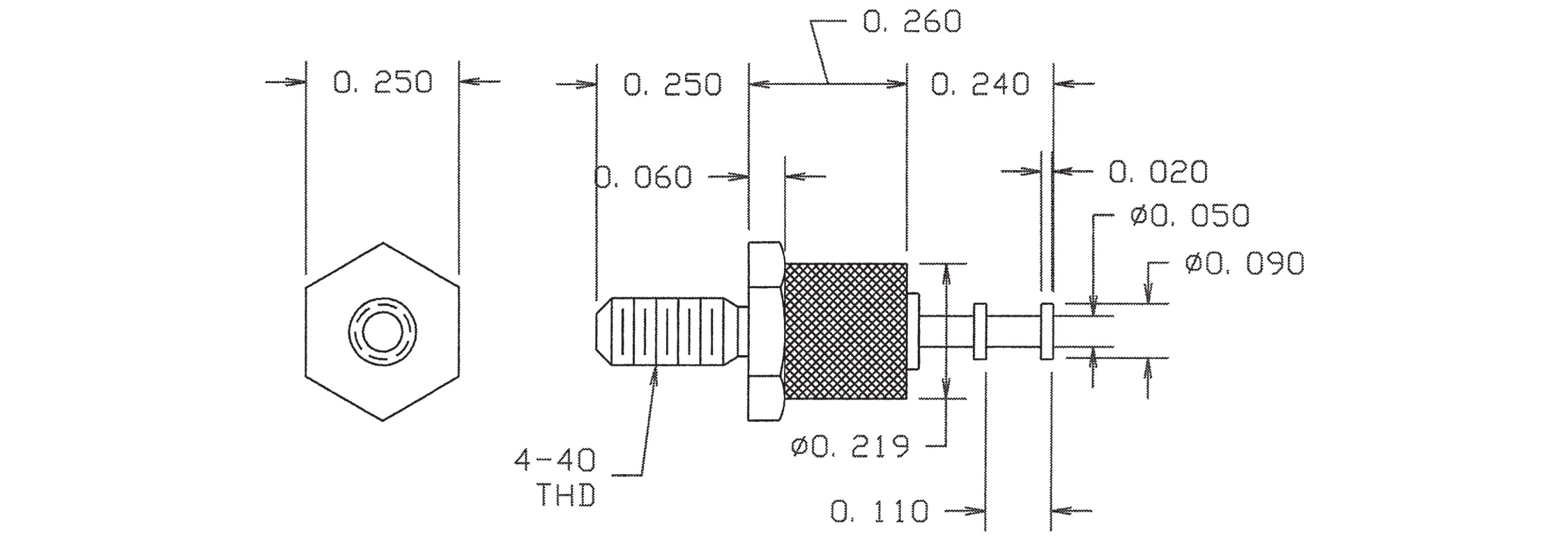

1169-37-0311
1169-37-0311
1169-37-0311
0.750" - - 4-40 Nut 1/8 0.120 Brass Gold ZINC Brass DIALLYL PHTHALATE Brown YES

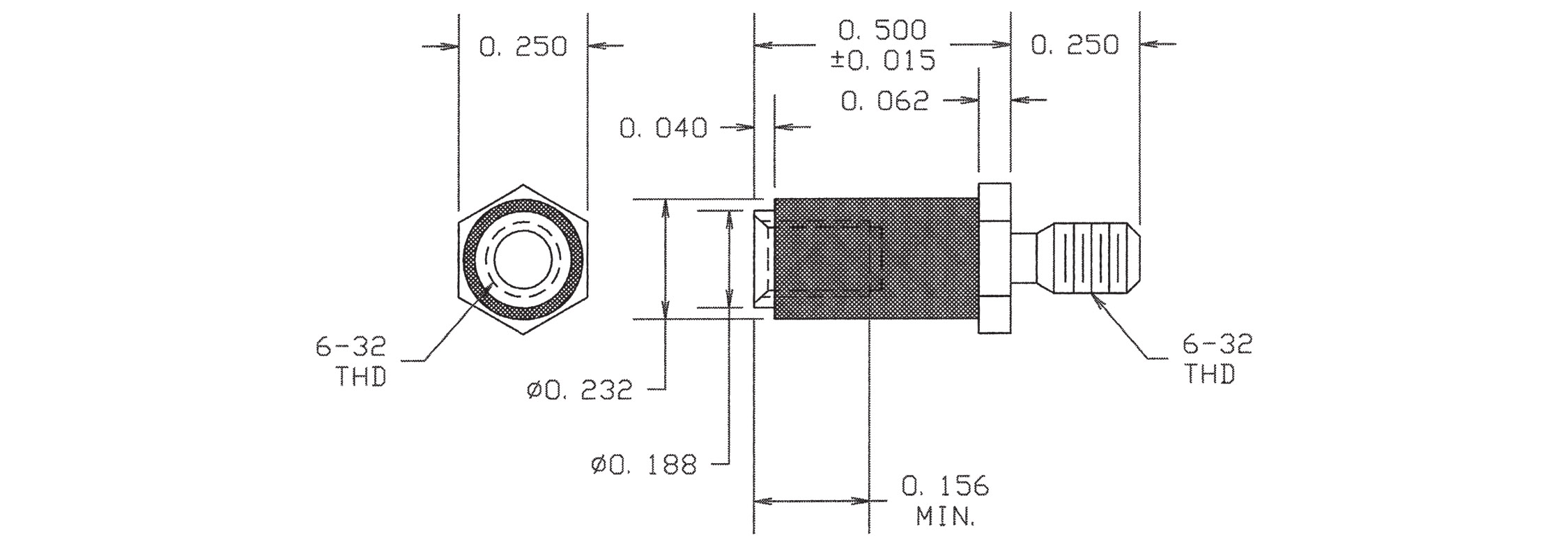

1170-03-07517
1170-03-07517
1170-03-07517
0.750" - - 6-32 Nut 1/8 0.144 Brass ZINC ZINC Brass DIALLYL PHTHALATE Violet YES

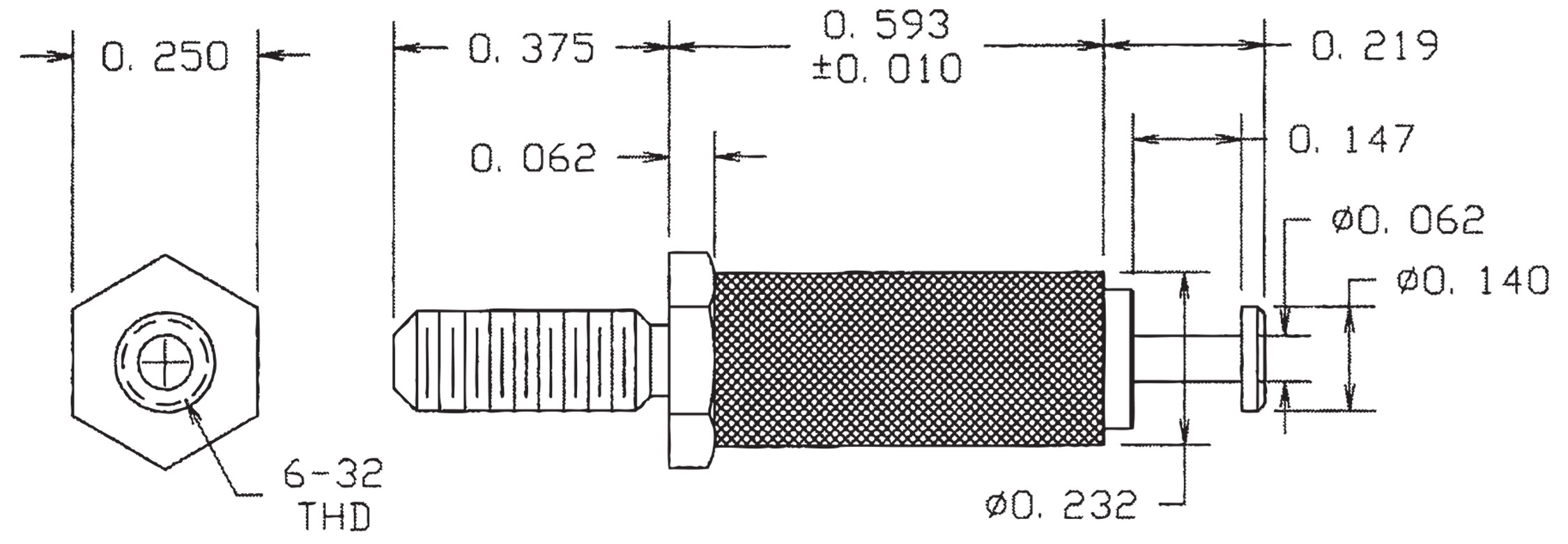

1170-22-0413
1170-22-0413
1170-22-0413
0.968" - - 6-32 Nut Up to 1/4 0.144 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Orange YES

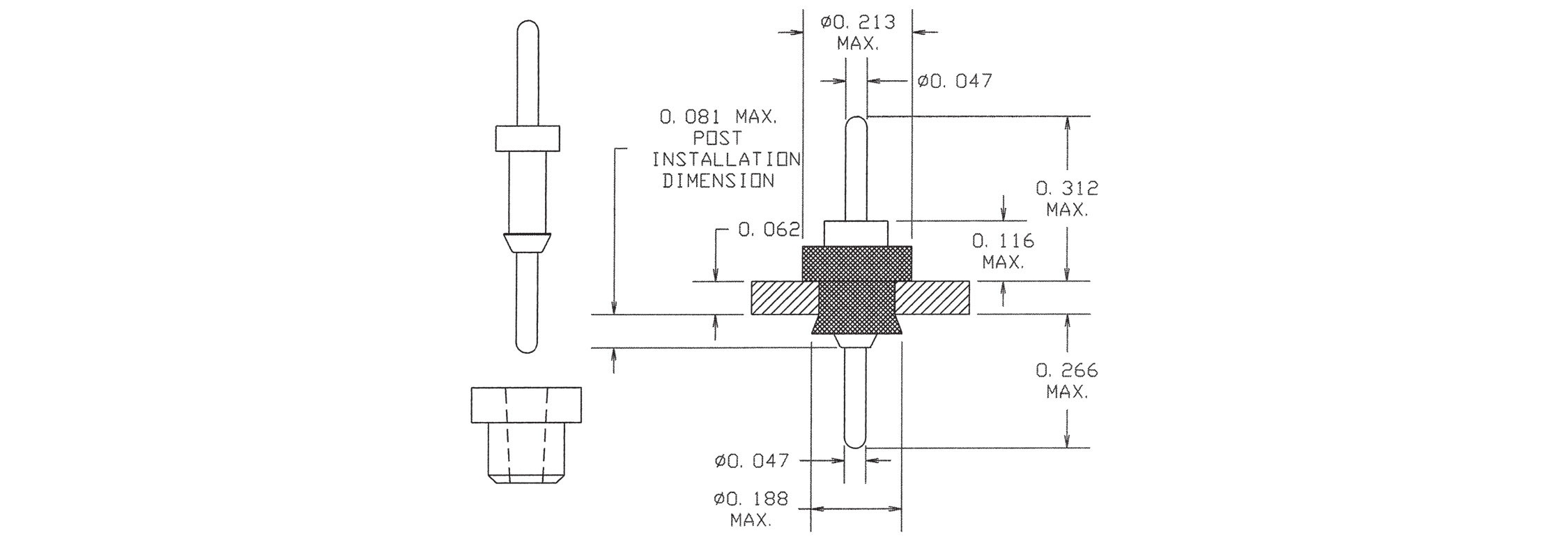

1175-012-04419
1175-012-04419
1175-012-04419
0.640" 0.047 Pin/Pin PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE White YES

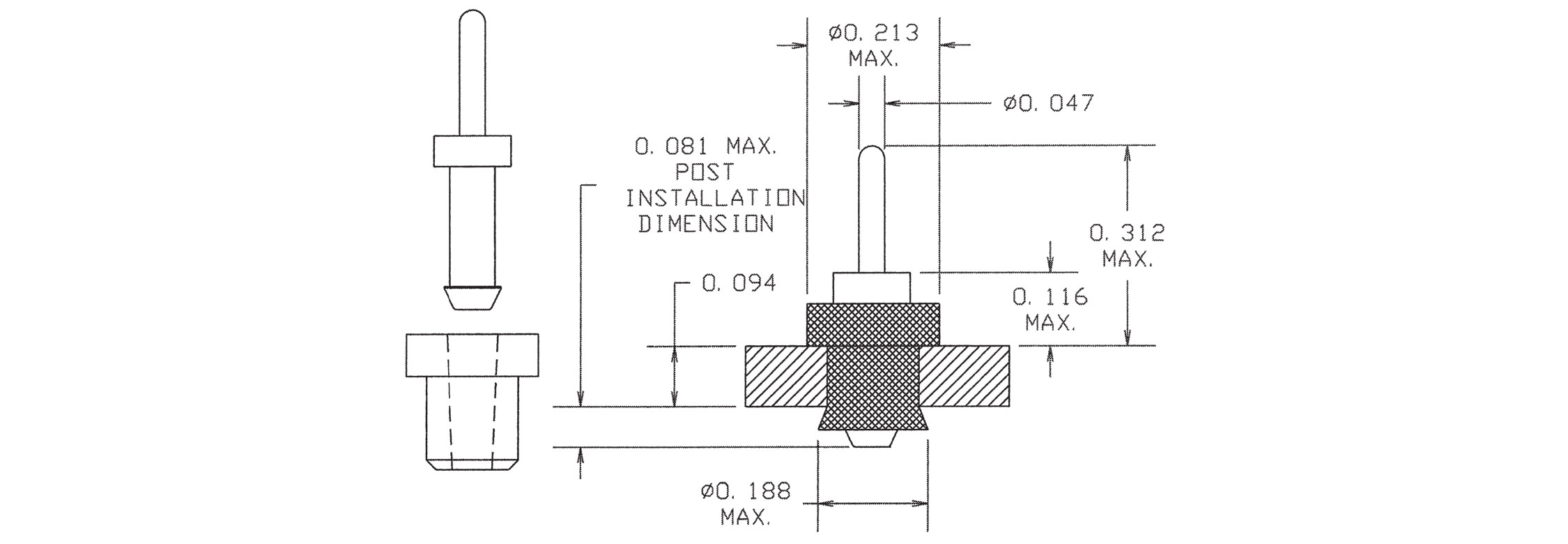

1175-023-08815
1175-023-08815
1175-023-08815
0.487" 0.047 - PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Green NO

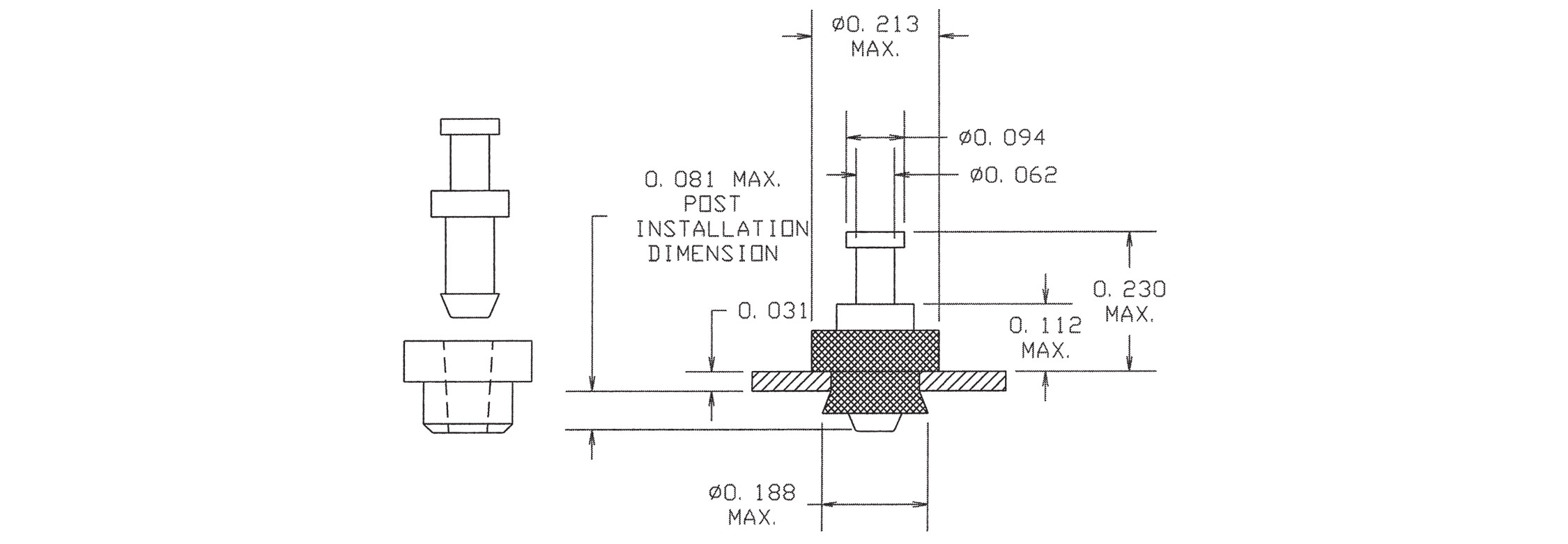

1175-351-0311
1175-351-0311
1175-351-0311
0.342" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Gold - - PTFE Brown NO

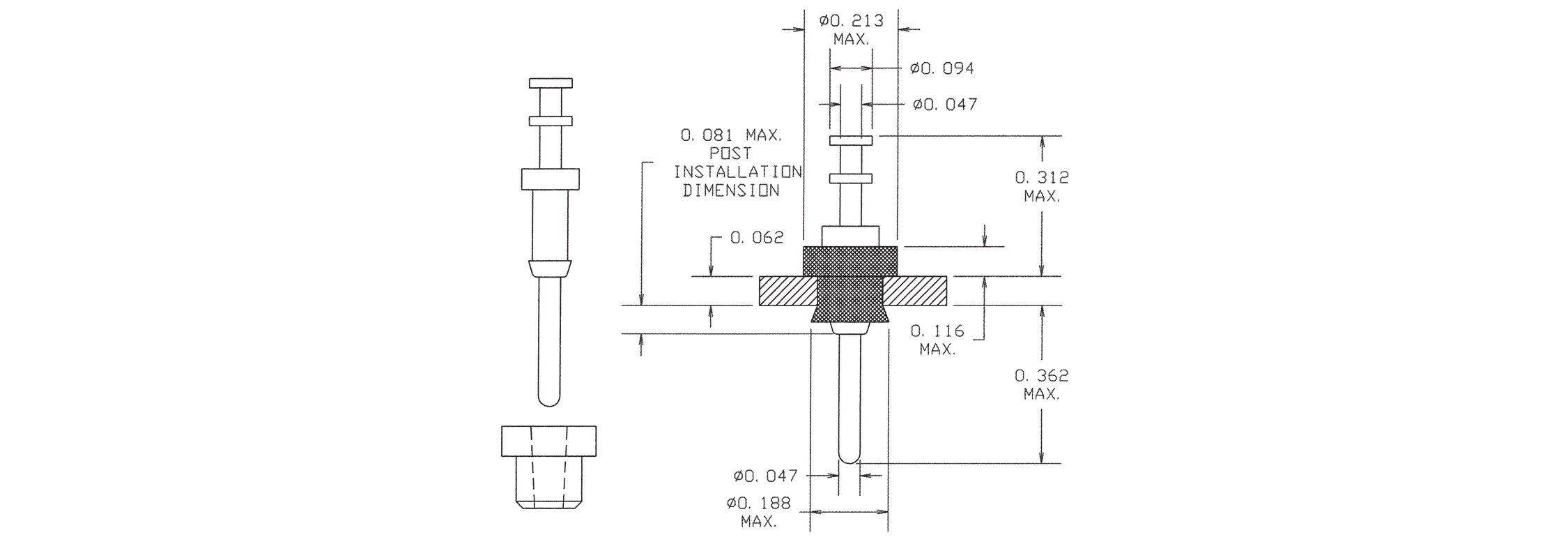

1175-372-0417
1175-372-0417
1175-372-0417
0.736" 0.040 DOUBLE TURRET/PIN PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Violet YES

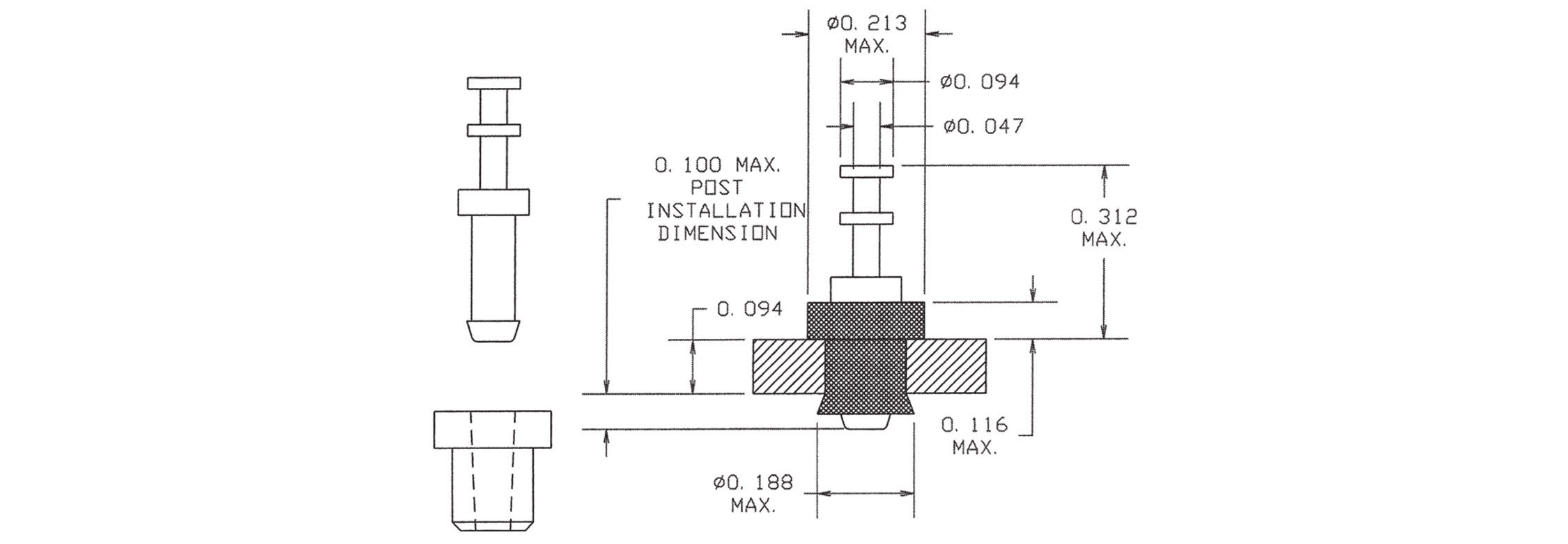

1175-403-0513
1175-403-0513
1175-403-0513
0.506" - - PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Orange NO

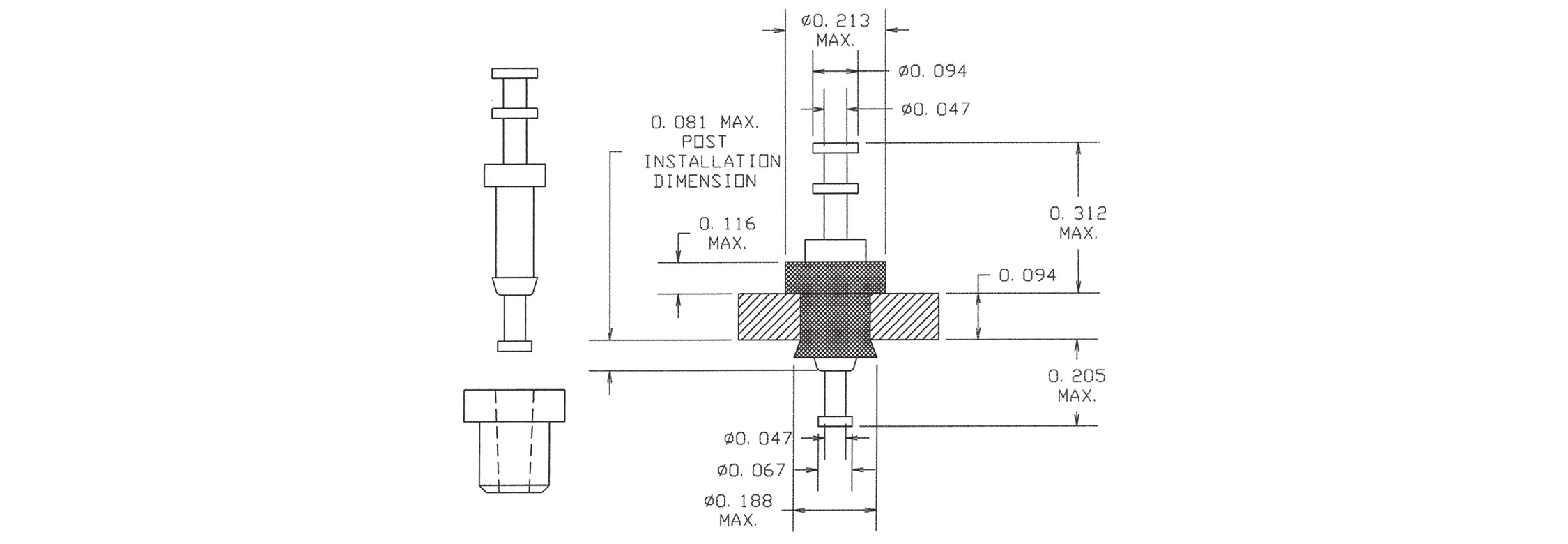

1175-413-08819
1175-413-08819
1175-413-08819
0.611" - DOUBLE Turret/Turret PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE White NO
1175-424-0315
1175-424-0315
1175-424-0315
0.756" - Double Turret/Double Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Gold - - PTFE Green YES
