Commercial
Insulated
Pin Terminals

Filter
1135-09-0311
1135-09-0311
1135-09-0311
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Gold - - PTFE Brown NO
1137-02-0417
1137-02-0417
1137-02-0417
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Electro-Tin - - PTFE Violet YES
1139-03-0513
1139-03-0513
1139-03-0513
0.448" 0.030 Pin/Pin Press Fit 1/16 0.070 Brass Electro Solder - - PTFE Orange NO

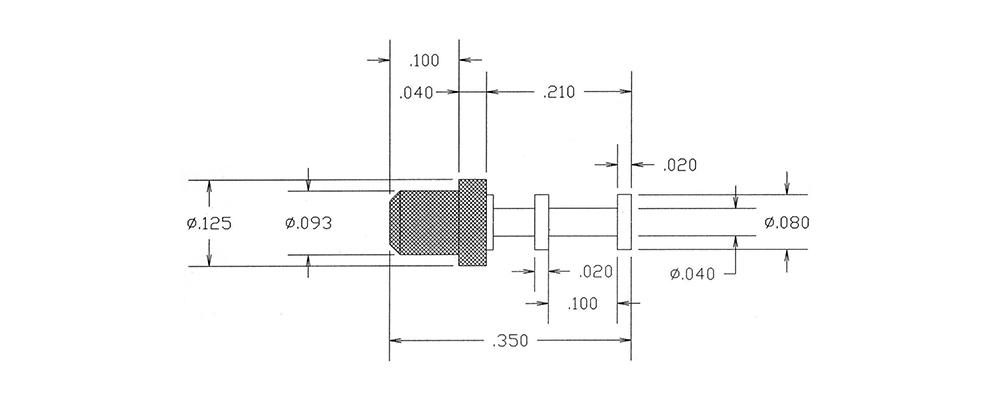

1151-02-08819
1151-02-08819
1151-02-08819
0.350" - - Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE White NO
1151-11-0315
1151-11-0315
1151-11-0315
0.455" - - Press Fit 1/8 0.136 Brass Gold - - PTFE Green YES

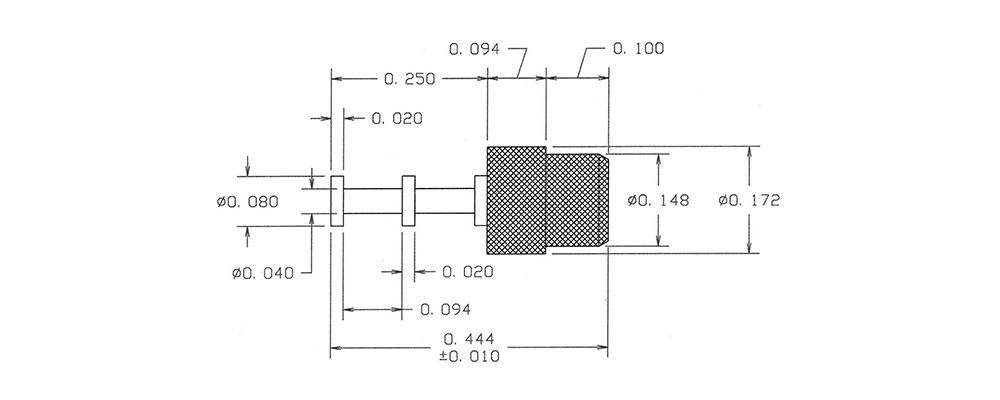

1151-19-04411
1151-19-04411
1151-19-04411
0.444" - - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Brown NO
1151-38-0517
1151-38-0517
1151-38-0517
0.390" - - Press Fit 1/16 0.158 Brass Electro Solder - - PTFE Violet NO

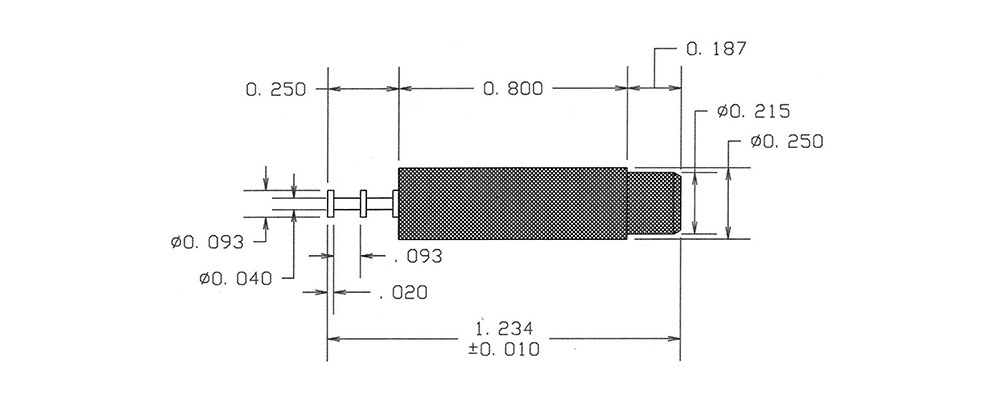

1151-51-0113
1151-51-0113
1151-51-0113
1.234" - - Press Fit 5/32 0.203 Brass Silver - - PTFE Orange NO
1151R-09-0319
1151R-09-0319
1151R-09-0319
0.390" - - Press Fit 1/16 0.136 Brass Gold - - PTFE White YES

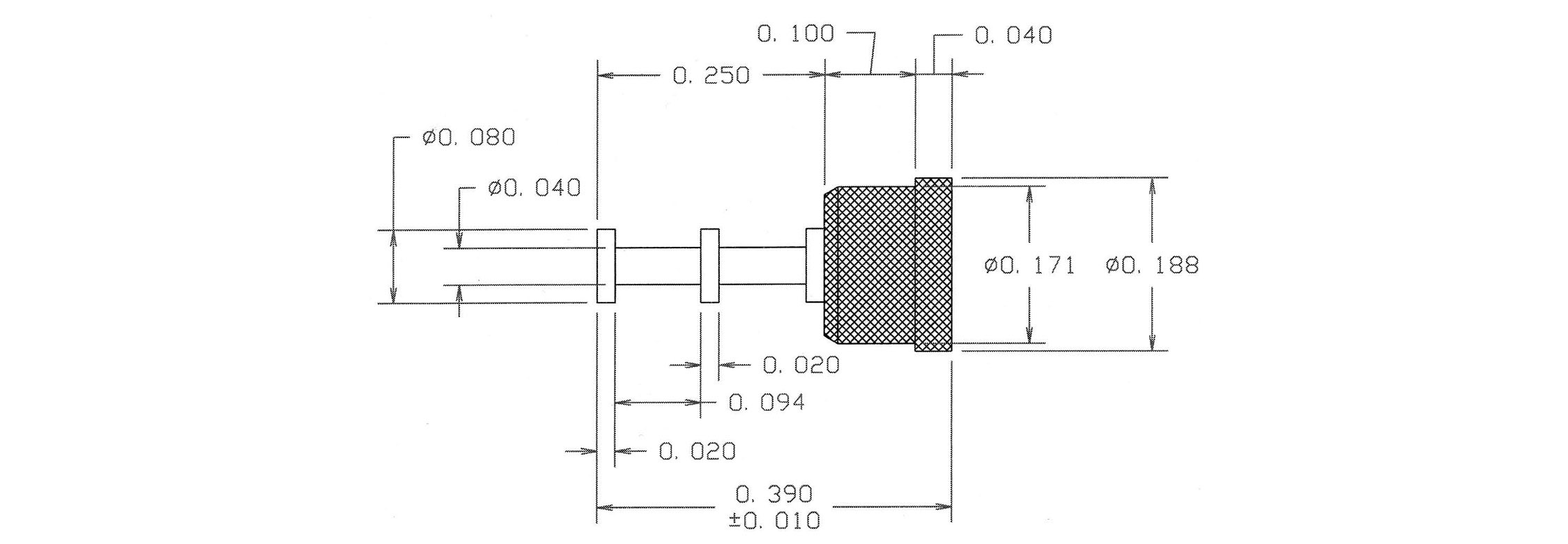

1151R-38-04415
1151R-38-04415
1151R-38-04415
0.390" - - Press Fit 1/16 0.158 Brass Bright Tin - - PTFE Green YES

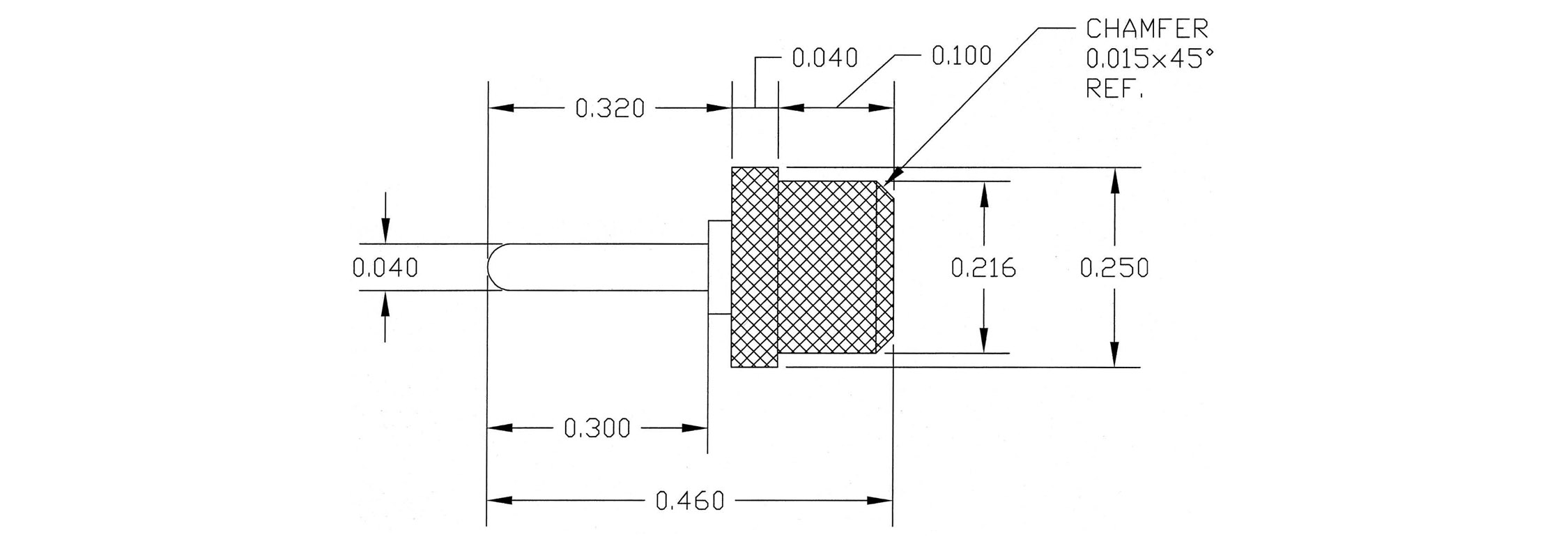

1152-29-08811
1152-29-08811
1152-29-08811
0.460" 0.040 - Press Fit 1/16 0.204 Brass Bright Tin-Lead - - PTFE Brown NO
1152R-17-0117
1152R-17-0117
1152R-17-0117
0.615" 0.040 - Press Fit 1/8 0.136 Brass Silver - - PTFE Violet YES
1153-06-0413
1153-06-0413
1153-06-0413
0.515" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Orange NO
1153-31-04419
1153-31-04419
1153-31-04419
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Bright Tin - - PTFE White YES

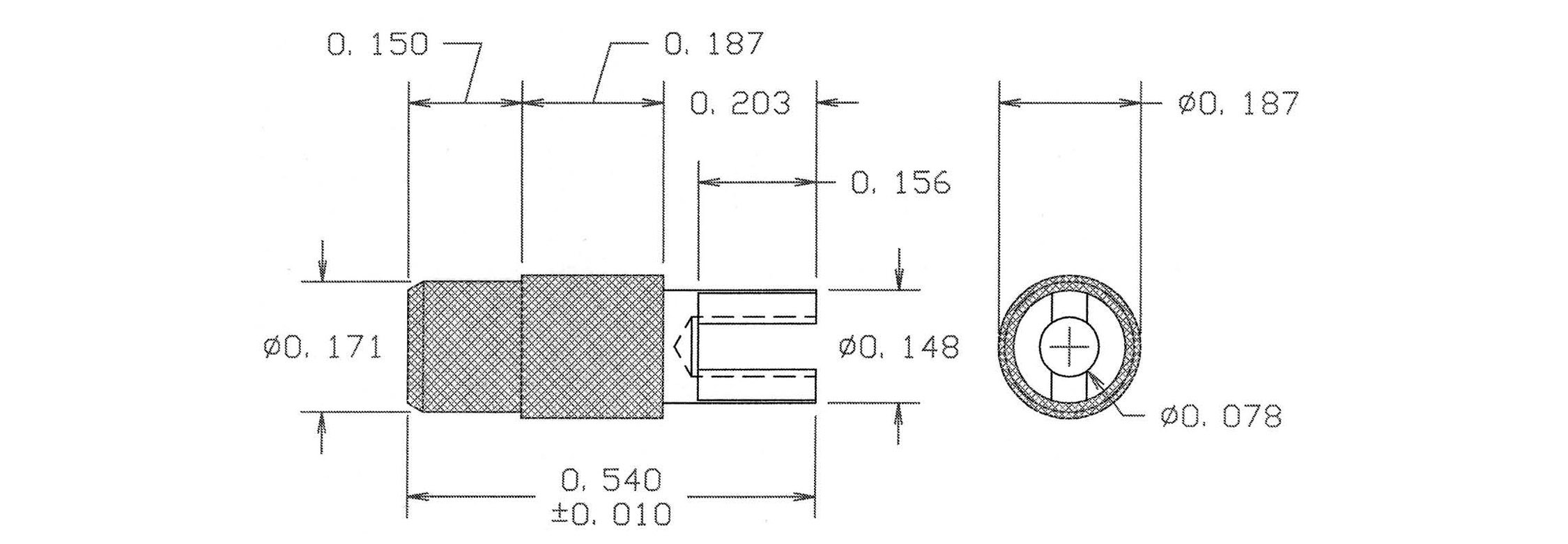

1154-08-08815
1154-08-08815
1154-08-08815
0.540" - - Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE Green NO
1154-44-0311
1154-44-0311
1154-44-0311
0.821" 0.050 Pin/Slotted Press Fit Up to 3/16 0.158 Brass Gold - - PTFE Brown NO
1155-01-0417
1155-01-0417
1155-01-0417
0.427" - - Press Fit Up to 3/16 0.204 Brass Electro-Tin - - PTFE Violet YES
1155-07-0513
1155-07-0513
1155-07-0513
0.347" - - Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Orange NO

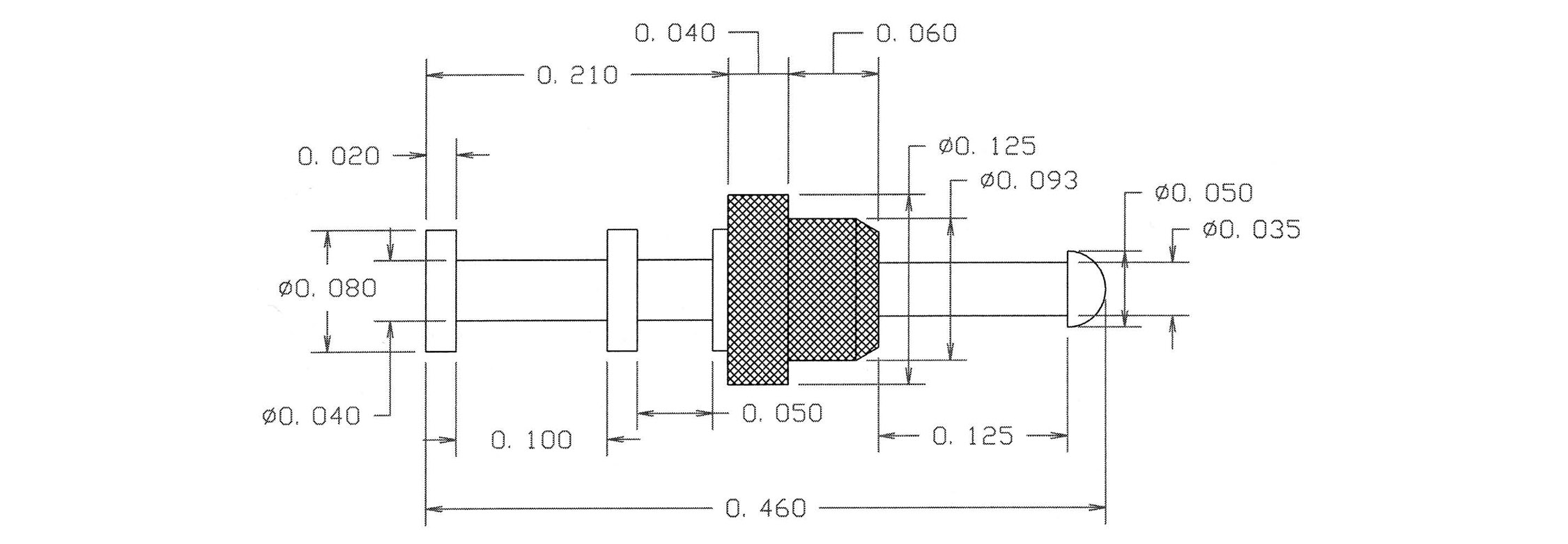

1156-01-08819
1156-01-08819
1156-01-08819
0.460" - DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Bright Tin-Lead - - PTFE White NO
1156-07-0315
1156-07-0315
1156-07-0315
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 3/32 0.136 Brass Gold - - PTFE Green YES
