Commercial
Insulated
Pin Terminals

Filter

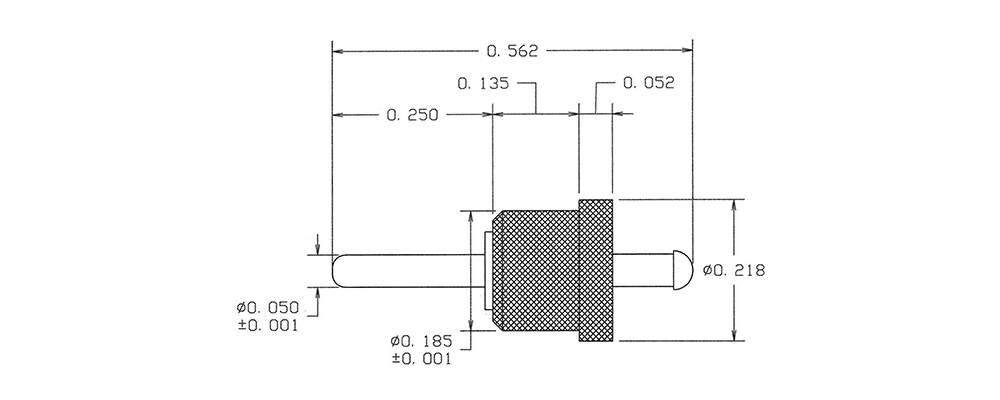

1131R-50-08819
1131R-50-08819
1131R-50-08819
0.562" 0.050 Pin/Tip Press Fit 3/32 0.172 Brass Bright Tin-Lead - - PTFE White NO
1133-02-0315
1133-02-0315
1133-02-0315
0.836" 0.040 DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 Brass Gold - - PTFE Green YES
1133R-05-04411
1133R-05-04411
1133R-05-04411
0.450" 0.040 TURRET/PIN Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Brown NO
1135-04-0517
1135-04-0517
1135-04-0517
0.320" 0.030 Pin/Slotted Press Fit 3/32 0.072 Brass Electro Solder - - PTFE Violet NO
1135-09-0113
1135-09-0113
1135-09-0113
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Silver - - PTFE Orange NO
1137-02-0319
1137-02-0319
1137-02-0319
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Gold - - PTFE White YES
1139-03-04415
1139-03-04415
1139-03-04415
0.448" 0.030 Pin/Pin Press Fit 1/16 0.070 Brass Bright Tin - - PTFE Green YES

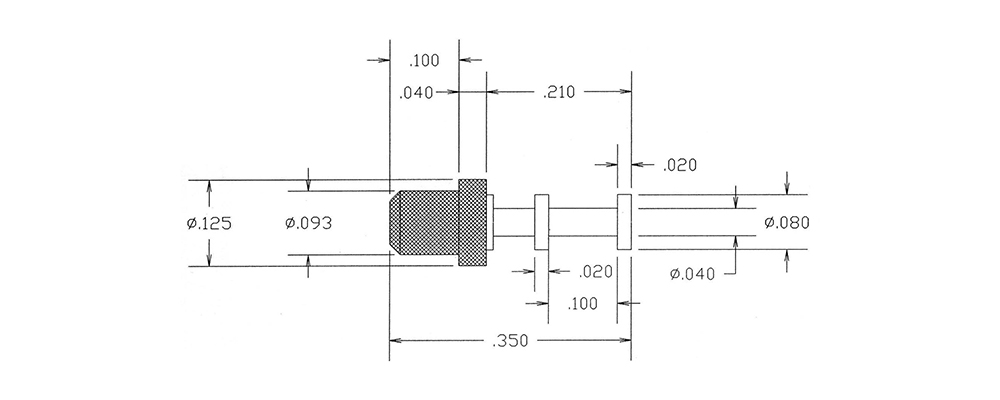

1151-02-08811
1151-02-08811
1151-02-08811
0.350" - - Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Brown NO
1151-11-0117
1151-11-0117
1151-11-0117
0.455" - - Press Fit 1/8 0.136 Brass Silver - - PTFE Violet YES

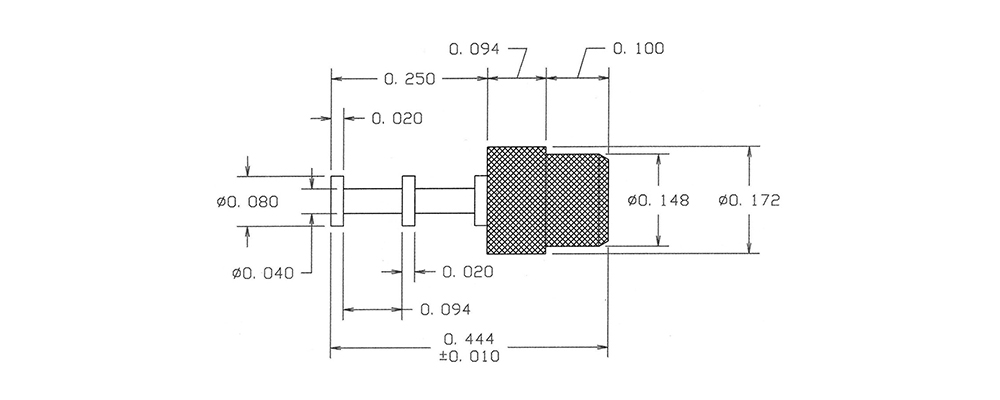

1151-19-0413
1151-19-0413
1151-19-0413
0.444" - - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Orange NO

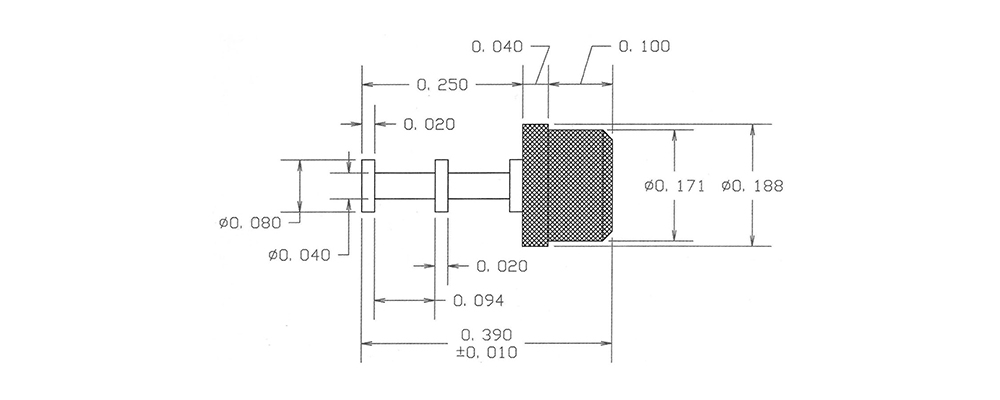

1151-38-04419
1151-38-04419
1151-38-04419
0.390" - - Press Fit 1/16 0.158 Brass Bright Tin - - PTFE White YES

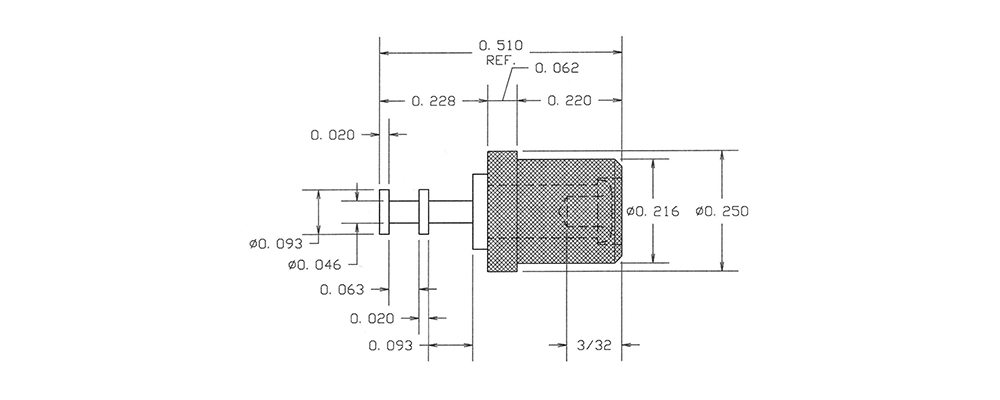

1151-44-08815
1151-44-08815
1151-44-08815
0.510" - - Press Fit Up to 3/16 0.204 Brass Bright Tin-Lead - - PTFE Green NO
1151R-09-0311
1151R-09-0311
1151R-09-0311
0.390" - - Press Fit 1/16 0.136 Brass Gold - - PTFE Brown NO

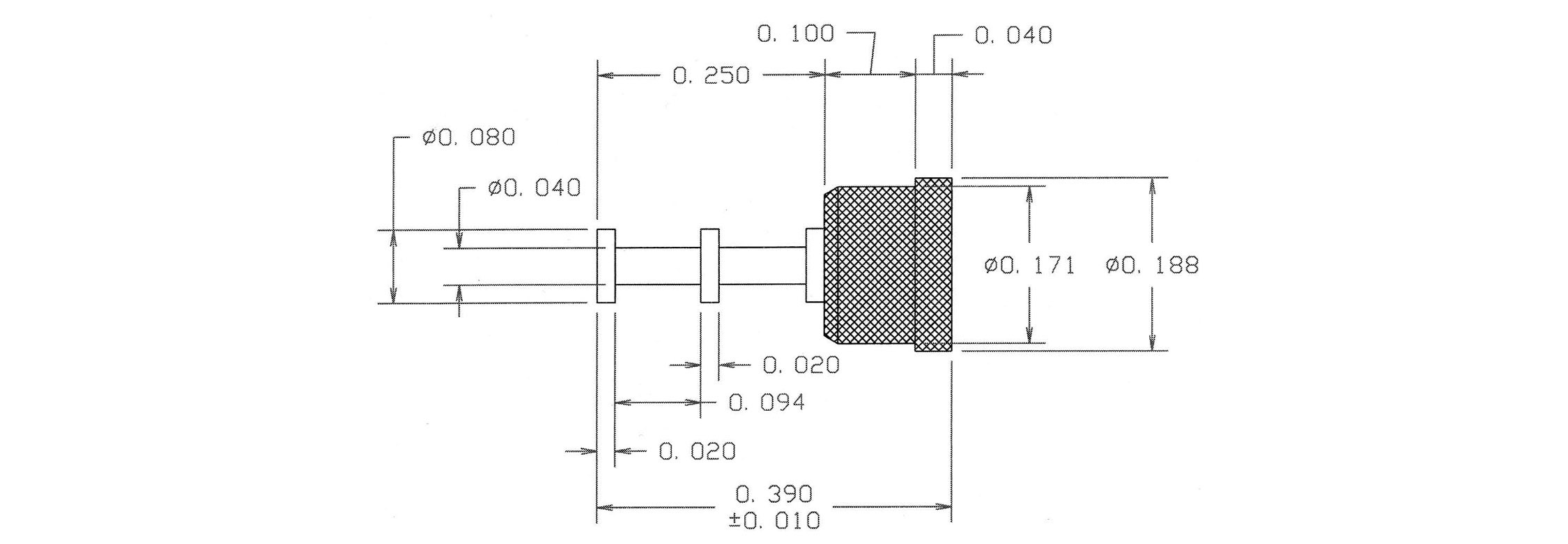

1151R-38-0417
1151R-38-0417
1151R-38-0417
0.390" - - Press Fit 1/16 0.158 Brass Electro-Tin - - PTFE Violet YES
1152-29-0513
1152-29-0513
1152-29-0513
0.460" 0.040 - Press Fit 1/16 0.204 Brass Electro Solder - - PTFE Orange NO

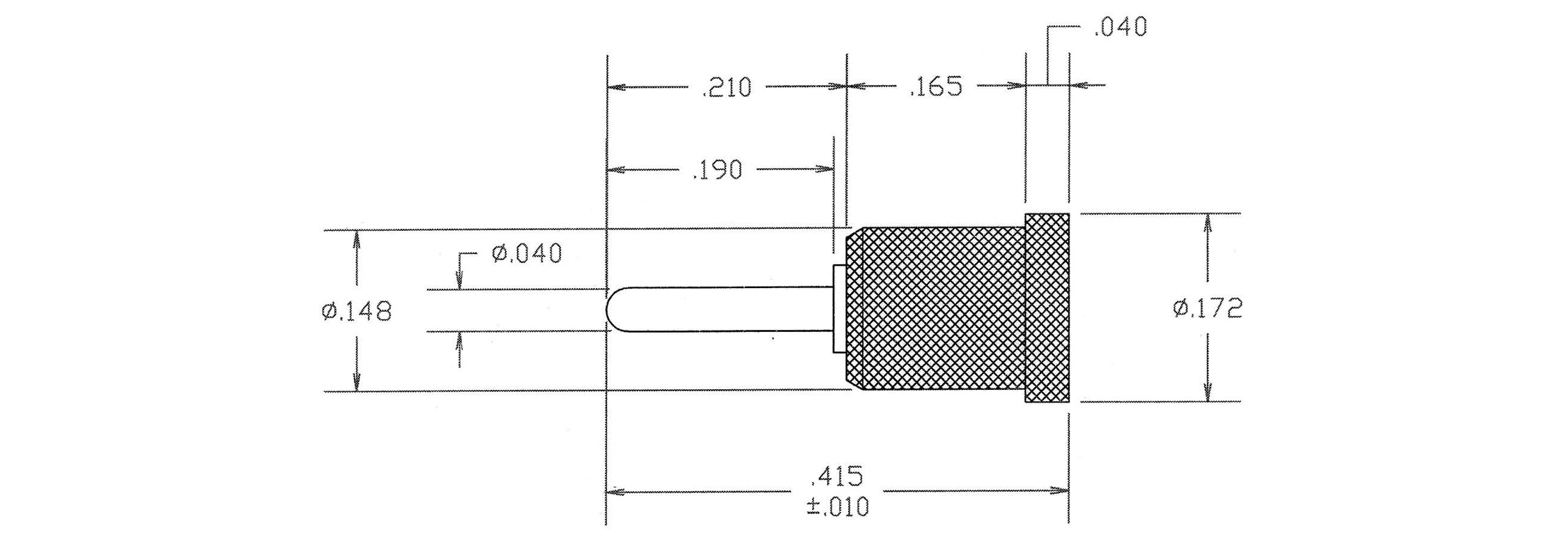

1152R-03-08819
1152R-03-08819
1152R-03-08819
0.415" 0.040 - Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE White NO
1153-06-0315
1153-06-0315
1153-06-0315
0.515" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Gold - - PTFE Green YES
1153-31-04411
1153-31-04411
1153-31-04411
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Bright Tin - - PTFE Brown NO

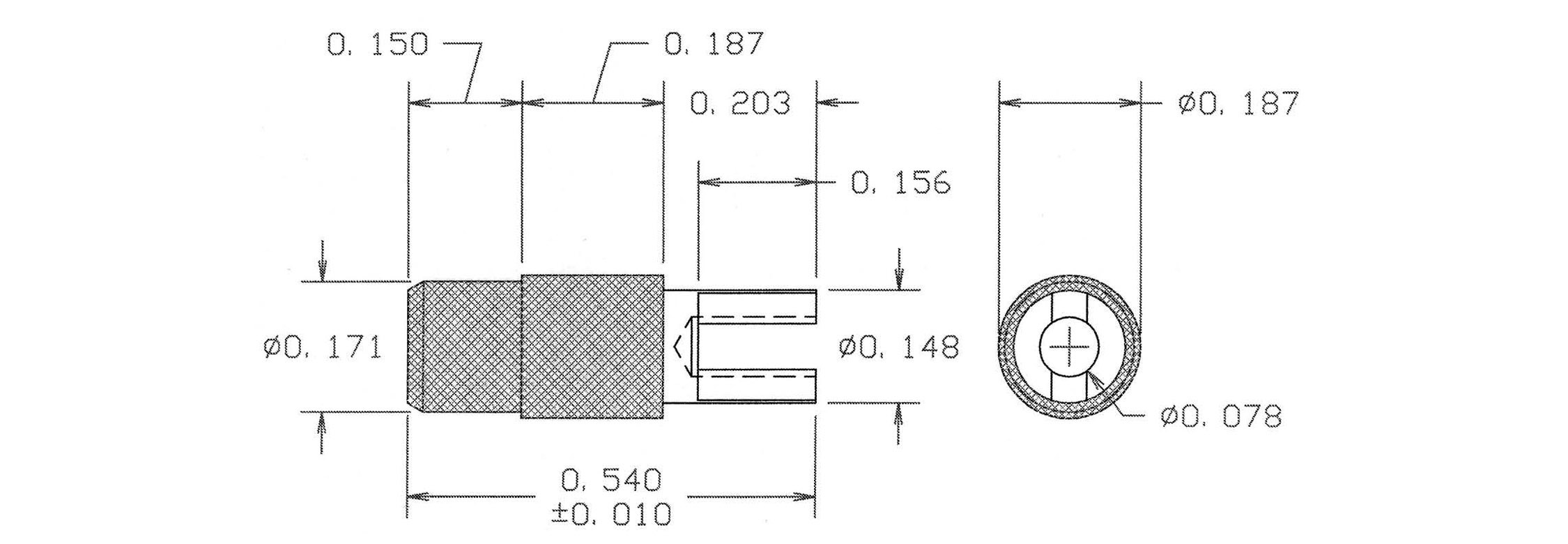

1154-08-0517
1154-08-0517
1154-08-0517
0.540" - - Press Fit 1/8 0.158 Brass Electro Solder - - PTFE Violet NO
1154-44-0113
1154-44-0113
1154-44-0113
0.821" 0.050 Pin/Slotted Press Fit Up to 3/16 0.158 Brass Silver - - PTFE Orange NO
