Commercial
Insulated
Pin Terminals

Filter
1127-08-0111
1127-08-0111
1127-08-0111
0.884" 0.070 - 4-40 Nut 3/32 0.120 Brass Silver ZINC Brass DIALLYL PHTHALATE Brown YES
1127-12-0317
1127-12-0317
1127-12-0317
0.821" 0.070 - Swage Mount 1/8 0.104 Brass Gold ZINC Brass DIALLYL PHTHALATE Violet YES
1127-16-04413
1127-16-04413
1127-16-04413
0.813" - - 4-40 Nut 3/32 0.120 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Orange YES
1127-20-0519
1127-20-0519
1127-20-0519
0.907" - - Swage Mount 1/16 0.104 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE White NO
1127-25-0115
1127-25-0115
1127-25-0115
0.938" - - Swage Mount 3/32 0.147 Brass Silver ZINC Brass DIALLYL PHTHALATE Green YES
1127-30-0411
1127-30-0411
1127-30-0411
0.813" - - 4-40 Nut 3/32 0.120 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Brown YES
1127-34-04417
1127-34-04417
1127-34-04417
0.688" - - Swage Mount 1/16 0.147 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Violet YES

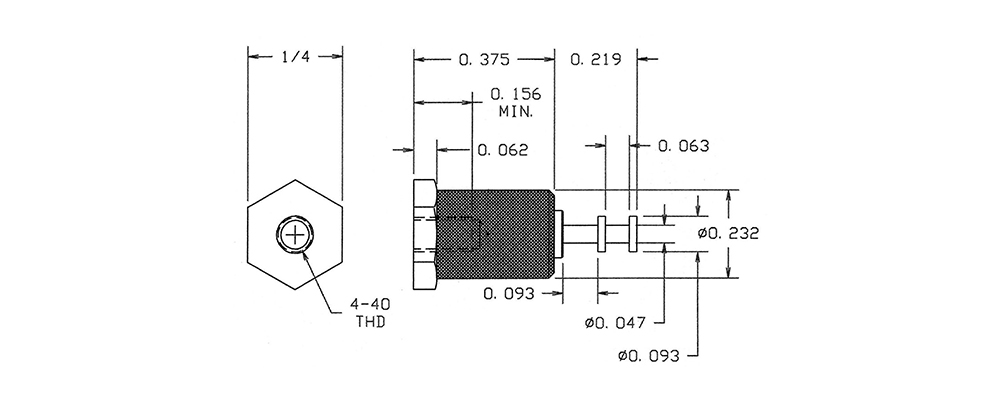

1127-38-08813
1127-38-08813
1127-38-08813
0.594" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Orange NO
1127-43-0119
1127-43-0119
1127-43-0119
0.969" - - 6-32 Nut 1/8 0.144 Brass Silver ZINC Brass DIALLYL PHTHALATE White YES
1127-47-0415
1127-47-0415
1127-47-0415
0.844" - - Swage Mount 3/32 0.104 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Green YES
1127-51-0511
1127-51-0511
1127-51-0511
0.844" - - Swage Mount 3/32 0.147 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Brown NO

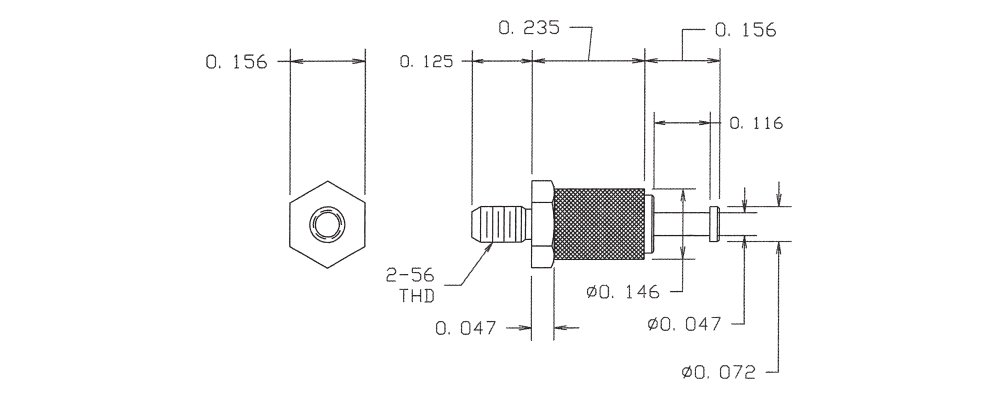

1127-56-08817
1127-56-08817
1127-56-08817
0.516" - - 2-56 Nut 1/32 0.094 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Violet NO
1127-61-0313
1127-61-0313
1127-61-0313
0.704" - - 2-56 Nut 1/8 0.094 Brass Gold ZINC Brass DIALLYL PHTHALATE Orange YES
1127-65-0419
1127-65-0419
1127-65-0419
0.547" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE White YES

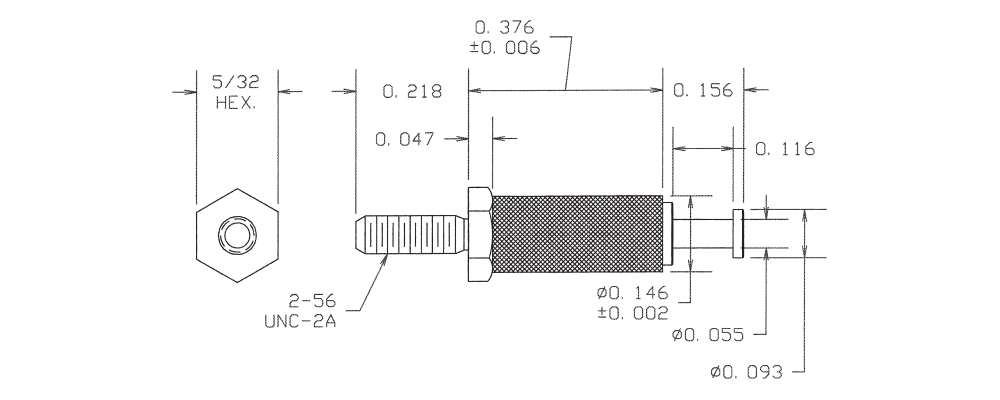

1127-69-0515
1127-69-0515
1127-69-0515
0.750" - - 2-56 Nut 3/32 0.094 Brass Electro Solder Electro Solder Brass DIALLYL PHTHALATE Green NO

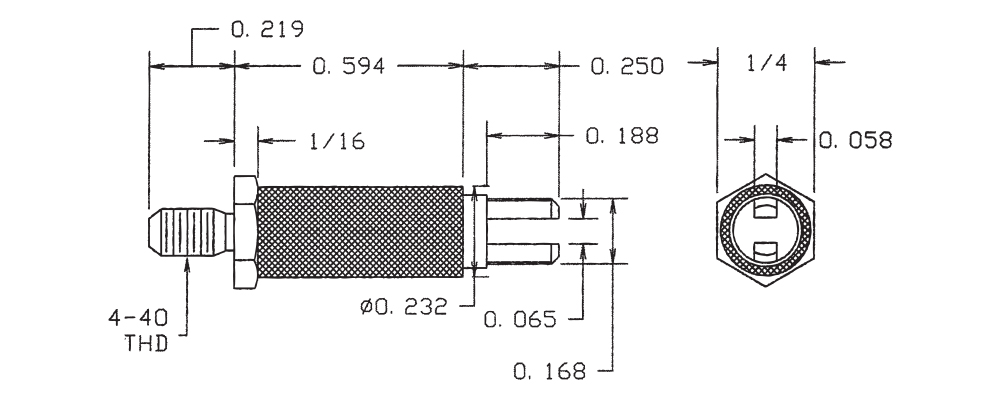

1127-74-0111
1127-74-0111
1127-74-0111
1.000" - - 4-40 Nut 3/32 0.120 Brass Silver ZINC Brass DIALLYL PHTHALATE Brown YES
1127-78-0317
1127-78-0317
1127-78-0317
0.859" - - Swage Mount 3/16 0.104 Brass Gold ZINC Brass DIALLYL PHTHALATE Violet YES
1127-82-04413
1127-82-04413
1127-82-04413
0.859" - - Swage Mount 3/16 0.147 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Orange YES

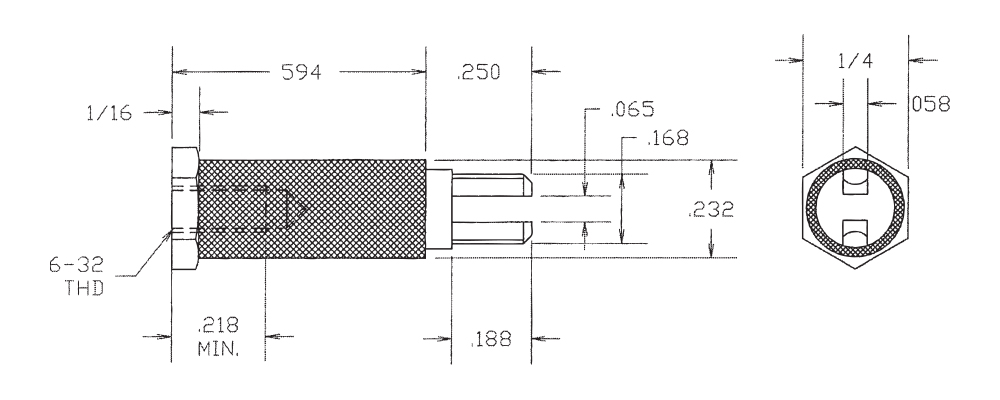

1127-86-0519
1127-86-0519
1127-86-0519
0.844" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Electro Solder ZINC Brass DIALLYL PHTHALATE White NO

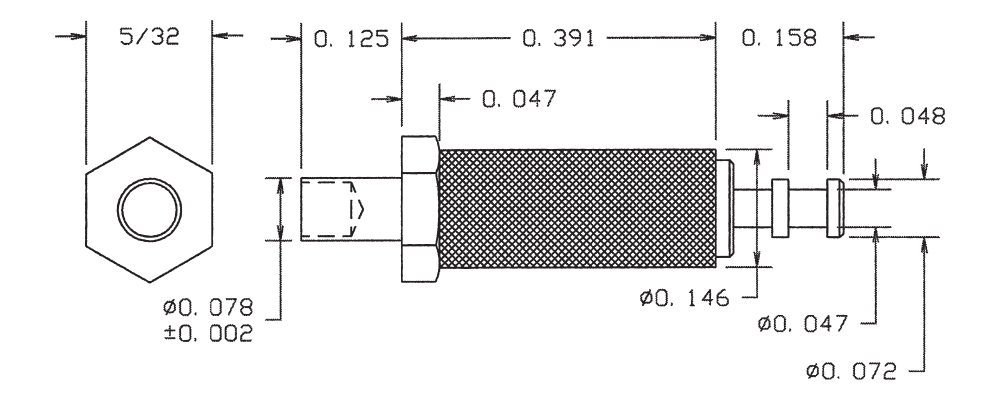

1127-91-0115
1127-91-0115
1127-91-0115
0.674" - - Swage Mount 3/32 0.082 Brass Silver ZINC Brass DIALLYL PHTHALATE Green YES
