Commercial
Insulated
Pin Terminals

Filter
1114-24-0319
1114-24-0319
1114-24-0319
0.367" 0.085 - Press Fit 1/16 0.136 Brass Gold - - PTFE White YES

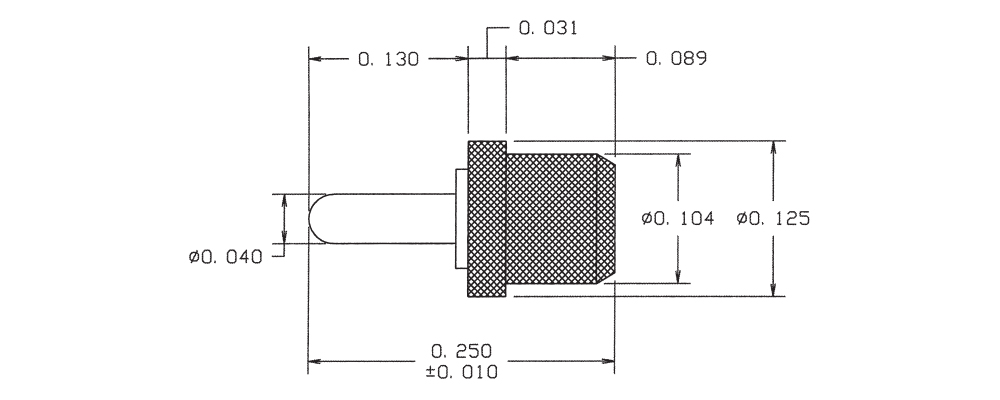

1100-08-04419
1100-08-04419
1100-08-04419
0.250" 0.040 - Press Fit 3/64 0.091 Brass Bright Tin - - PTFE White YES
1114-27-04415
1114-27-04415
1114-27-04415
0.367" 0.085 - Press Fit 1/16 0.158 Brass Bright Tin - - PTFE Green YES

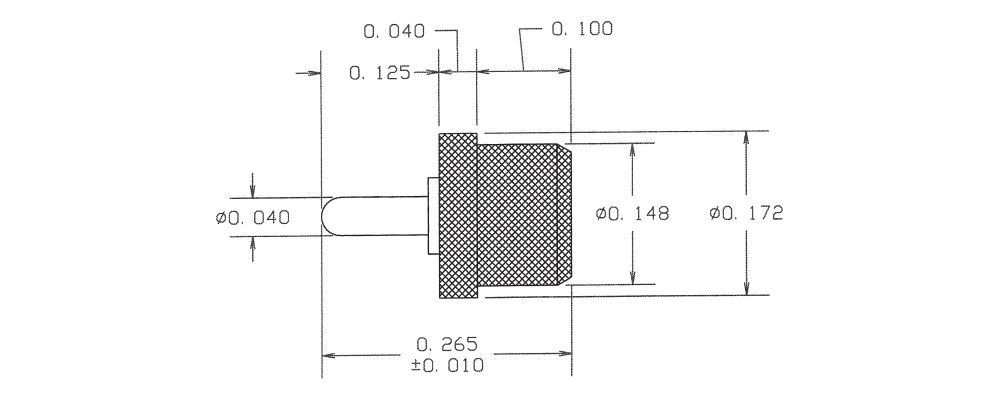

1100-13-08815
1100-13-08815
1100-13-08815
0.265" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Green NO
1121-08-08811
1121-08-08811
1121-08-08811
0.350" 0.040 Turret/Tip Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Brown NO

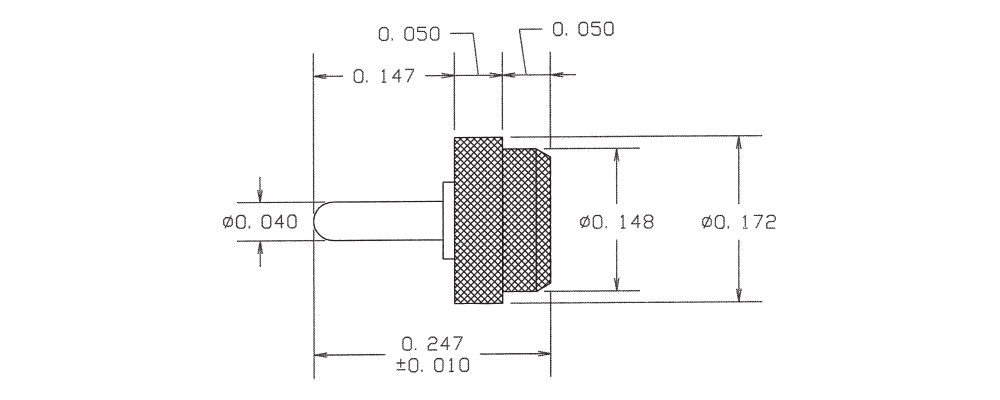

1100-18-0311
1100-18-0311
1100-18-0311
0.247" 0.040 - Press Fit 1/32 0.136 Brass Gold - - PTFE Brown NO

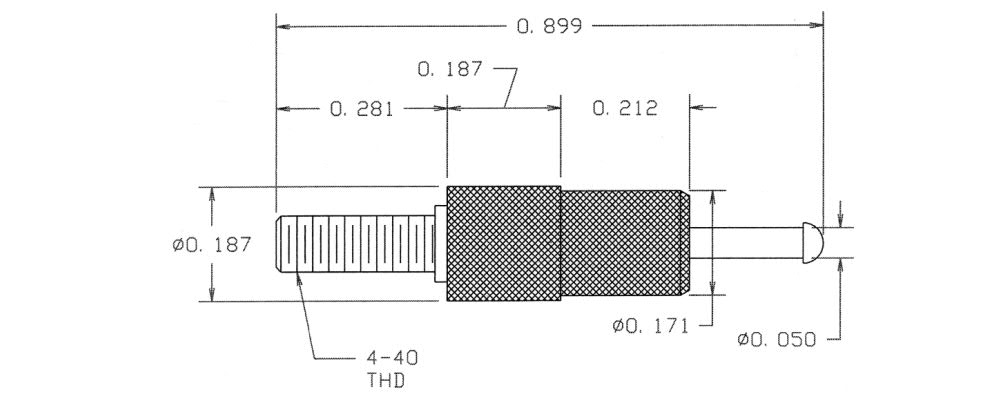

1124-10-0117
1124-10-0117
1124-10-0117
0.899" 0.050 THREAD/TIP Press Fit Up to 3/16 0.158 Brass Silver - - PTFE Violet YES

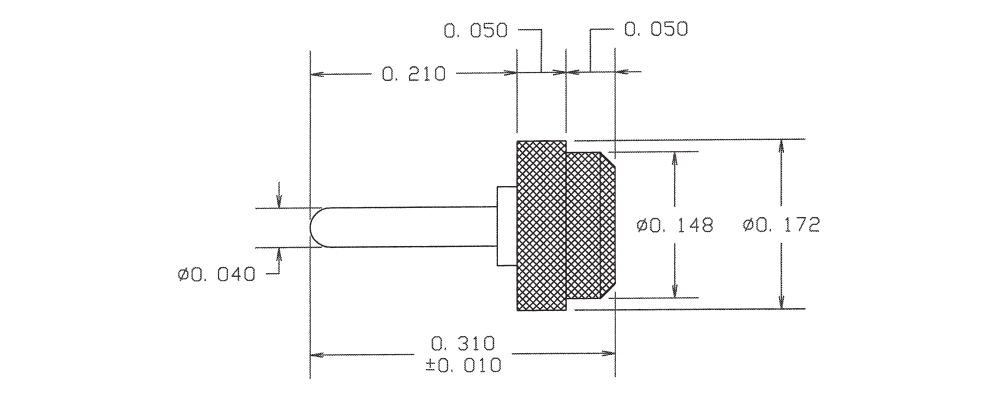

1100-22-0417
1100-22-0417
1100-22-0417
0.310" 0.040 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Violet YES
1125-80-0413
1125-80-0413
1125-80-0413
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Electro-Tin ZINC Brass PTFE Orange NO

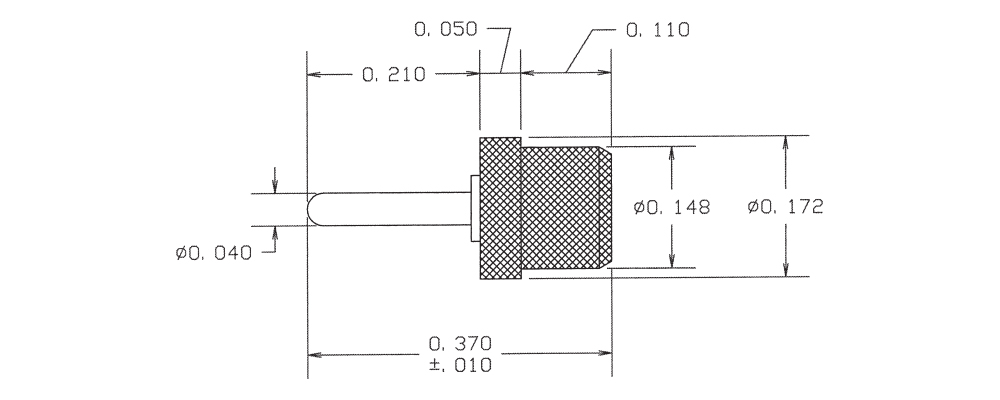

1100-32-0513
1100-32-0513
1100-32-0513
0.370" 0.040 - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Orange NO

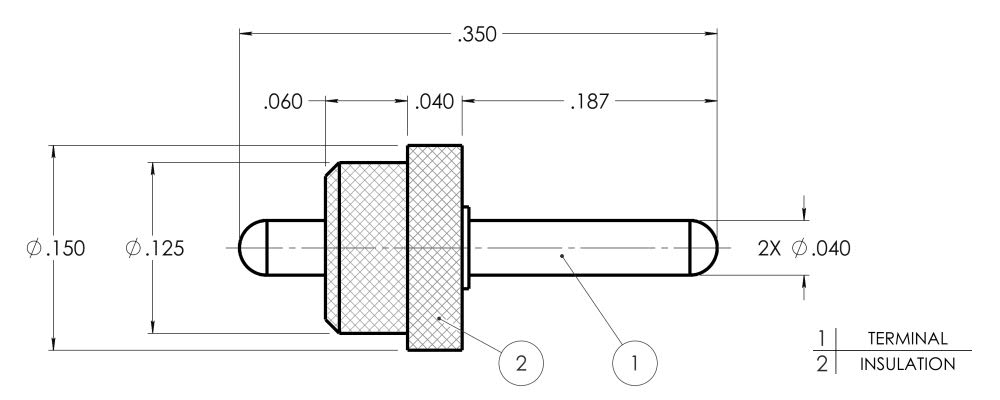

1110-54-04419
1110-54-04419
1110-54-04419
0.350" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Bright Tin - - PTFE White YES

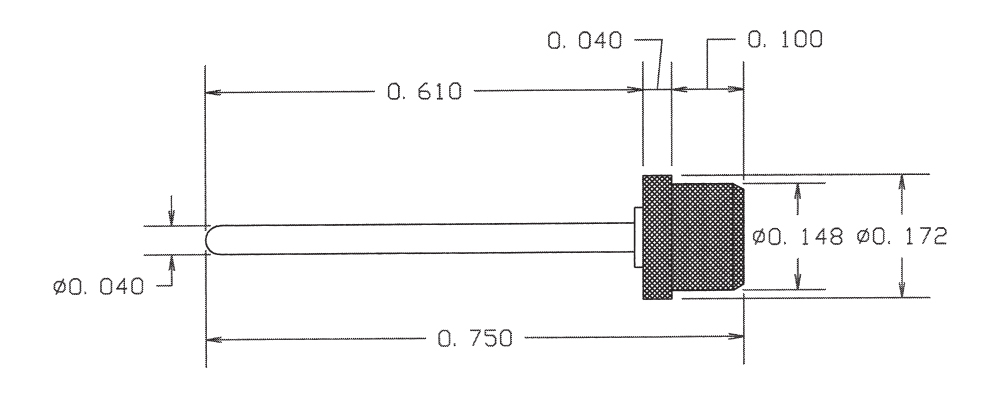

1100-42-08819
1100-42-08819
1100-42-08819
0.750" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE White NO

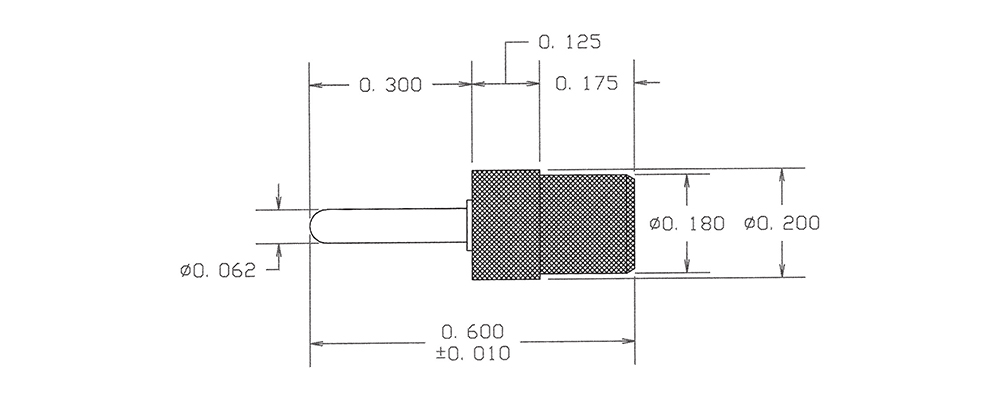

1100-48-0315
1100-48-0315
1100-48-0315
0.600" 0.062 - Press Fit 1/8 0.167 Brass Gold - - PTFE Green YES
1100-73-04411
1100-73-04411
1100-73-04411
0.580" 0.063 - Press Fit 1/16 0.158 Brass Bright Tin - - PTFE Brown NO

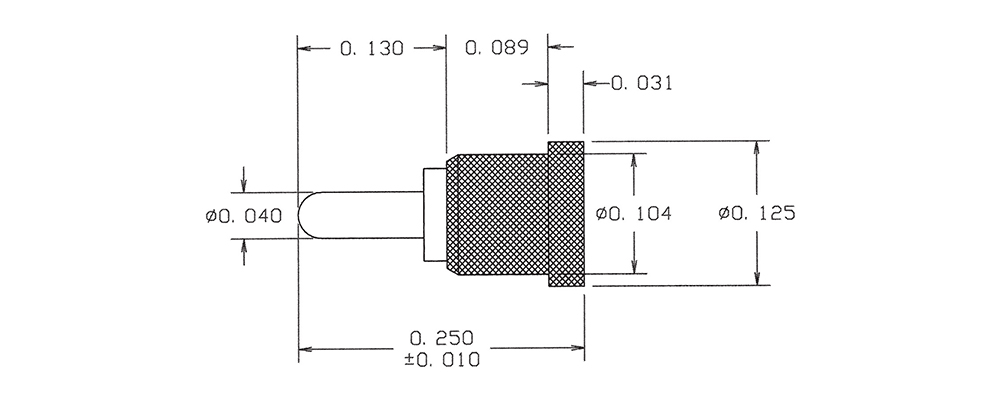

1100R-08-0517
1100R-08-0517
1100R-08-0517
0.250" 0.040 - Press Fit 1/16 0.091 Brass Electro Solder - - PTFE Violet NO

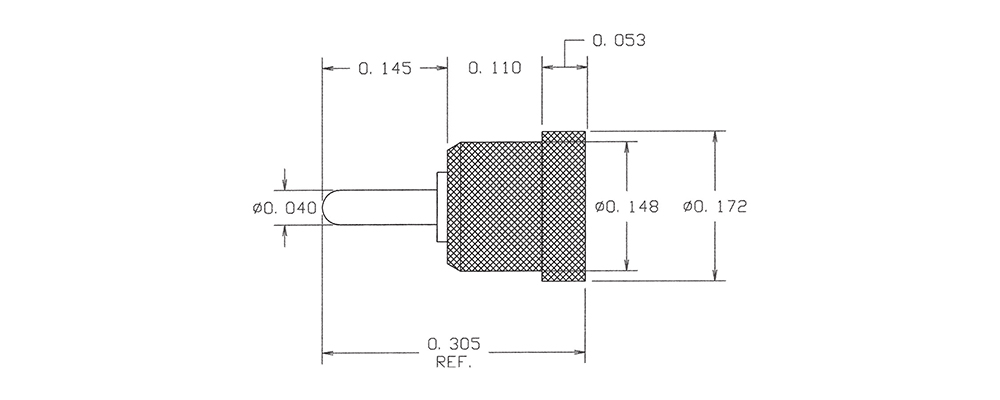

1100R-17-0113
1100R-17-0113
1100R-17-0113
0.305" 0.040 - Press Fit 1/16 0.136 Brass Silver - - PTFE Orange NO

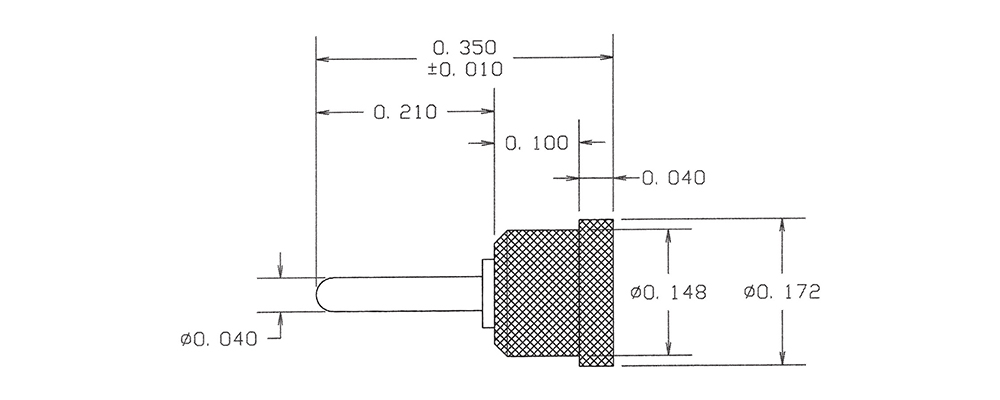

1100R-28-0319
1100R-28-0319
1100R-28-0319
0.350" 0.040 - Press Fit 1/16 0.136 Brass Gold - - PTFE White YES

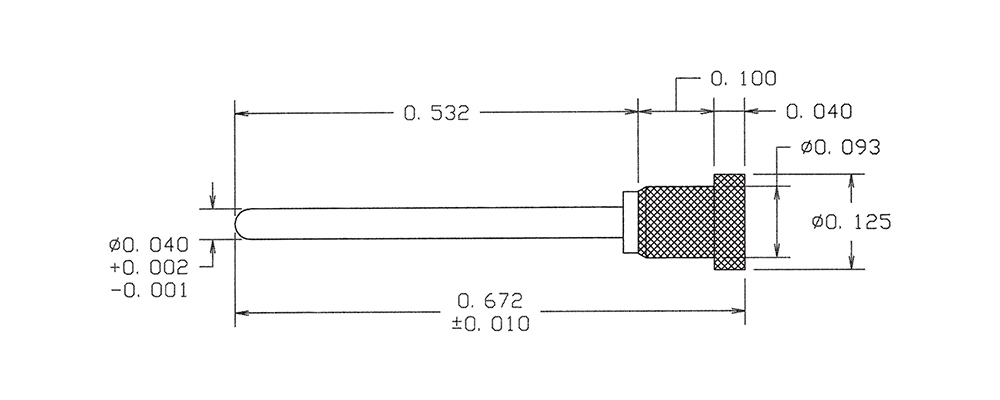

1100R-63-04415
1100R-63-04415
1100R-63-04415
0.672" 0.040 (+0.002/-0.001) - Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Green YES

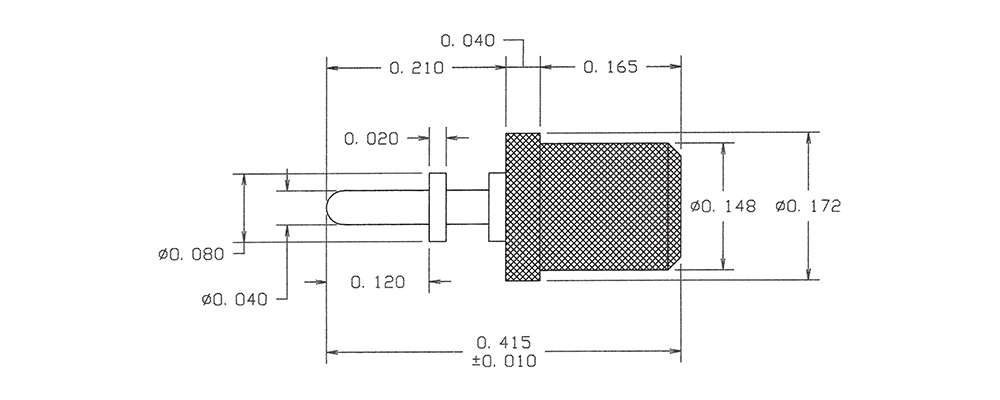

1101-04-08811
1101-04-08811
1101-04-08811
0.415" - - Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Brown NO

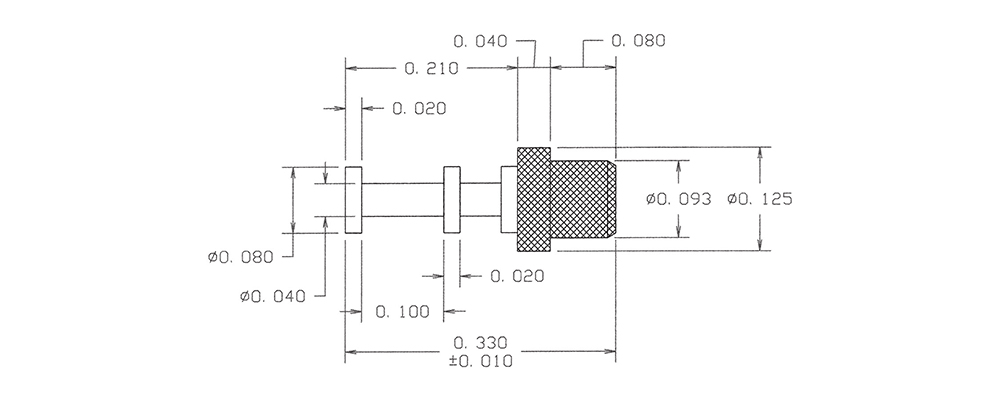

1102-02-0117
1102-02-0117
1102-02-0117
0.330" - - Press Fit 1/32 0.086 Brass Silver - - PTFE Violet YES
