Commercial
Insulated
Pin Terminals

Filter
1151R-09-0119
1151R-09-0119
1151R-09-0119
0.390" - - Press Fit 1/16 0.136 Brass Silver - - PTFE White YES
1114-03-0319
1114-03-0319
1114-03-0319
0.215" 0.040 - Press Fit 1/64 0.086 Brass Gold - - PTFE White YES
1151R-06-0319
1151R-06-0319
1151R-06-0319
0.375" - - Press Fit 3/32 0.136 Brass Gold - - PTFE White YES
1113R-08-0319
1113R-08-0319
1113R-08-0319
0.333" - - Press Fit 1/6 0.136 Brass Gold - - PTFE White YES
1102-96-0417
1102-96-0417
1102-96-0417
0.280" - - Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Violet YES
1100-56-04419
1100-56-04419
1100-56-04419
0.300" 0.030 - Press Fit 1/32 0.070 Brass Bright Tin - - PTFE White YES
1156-04-0319
1156-04-0319
1156-04-0319
0.460" 0.040 DOUBLE Turret/Tip Press Fit 1/32 0.136 Brass Gold - - PTFE White YES
1100-59-04419
1100-59-04419
1100-59-04419
0.685" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE White YES
1157-01-0115
1157-01-0115
1157-01-0115
0.350" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Silver - - PTFE Green YES
1151-51-04419
1151-51-04419
1151-51-04419
1.234" - - Press Fit 5/32 0.203 Brass Bright Tin - - PTFE White YES
1120-03-04419
1120-03-04419
1120-03-04419
0.593" 0.050 TIP/HOOK Press Fit 3/32 0.136 Brass Bright Tin - - PTFE White YES
1101-01-04418
1101-01-04418
1101-01-04418
0.328" - - Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Gray NO
1102R-11-0119
1102R-11-0119
1102R-11-0119
0.296" - - Press Fit 1/16 0.136 Brass Silver - - PTFE White YES
1102R-28-0319
1102R-28-0319
1102R-28-0319
0.361" - - Press Fit 1/8 0.140 Brass Gold - - PTFE White YES
1157R-01-0315
1157R-01-0315
1157R-01-0315
0.350" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Gold - - PTFE Green YES

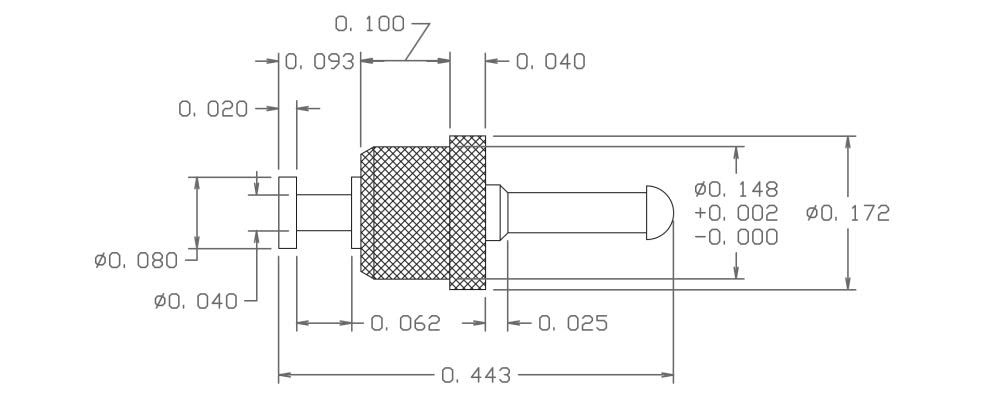

1175-431-0518
1175-431-0518
1175-431-0518
0.443" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Gray NO
1110-22-08818
1110-22-08818
1110-22-08818
0.515" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Gray NO
09-2112-1-0518
09-2112-1-0518
09-2112-1-0518
0.838" - - 6-32 Nut 1/8 0.144 Brass Electro Solder Nickel Brass PTFE Gray NO
1160-03-0417
1160-03-0417
1160-03-0417
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Violet YES
1112-19-0118
1112-19-0118
1112-19-0118
0.273" - - Press Fit 1/32 0.205 Brass Silver - - PTFE Gray NO
