Commercial
Insulated
Pin Terminals

Filter

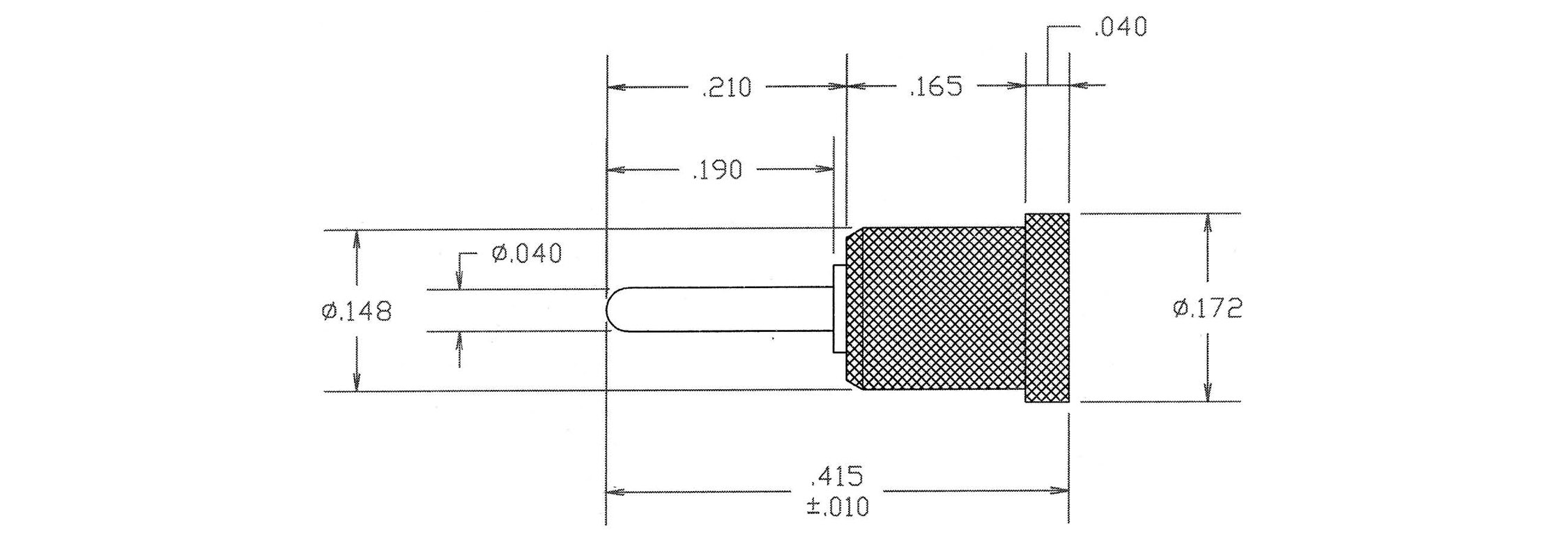

1152R-03-08814
1152R-03-08814
1152R-03-08814
0.415" 0.040 - Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO
1153-06-0310
1153-06-0310
1153-06-0310
0.515" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Gold - - PTFE Black YES
1153-31-0416
1153-31-0416
1153-31-0416
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Electro-Tin - - PTFE Blue YES

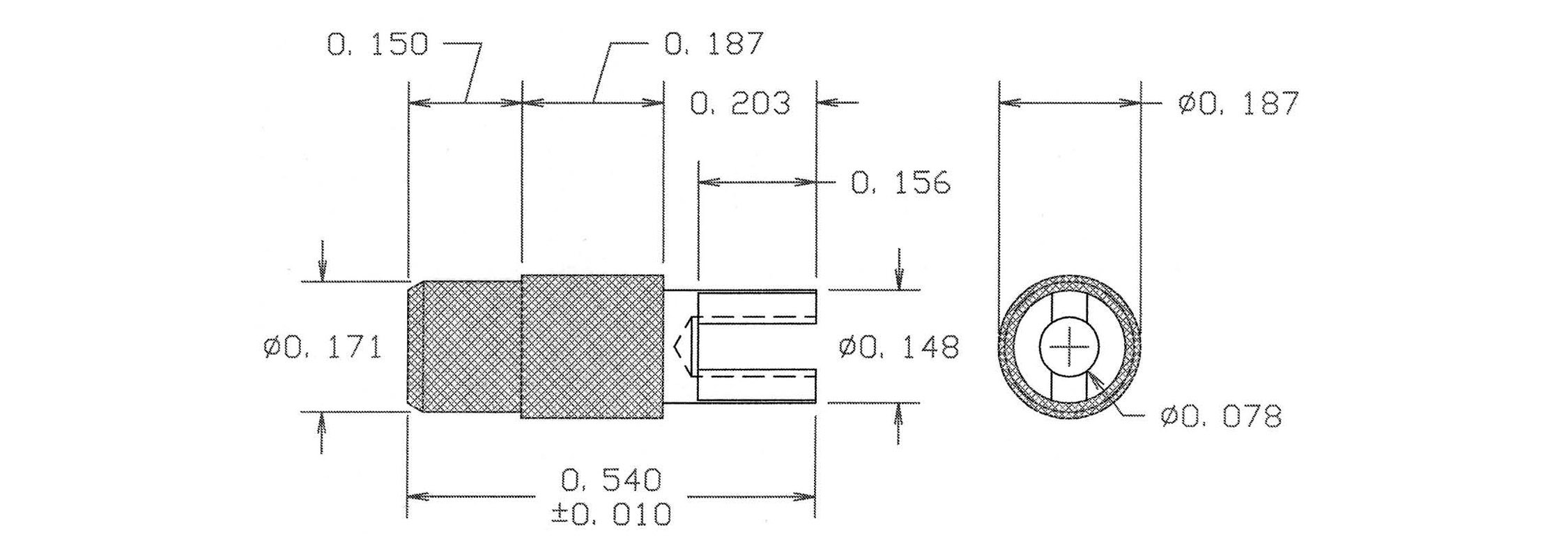

1154-08-0512
1154-08-0512
1154-08-0512
0.540" - - Press Fit 1/8 0.158 Brass Electro Solder - - PTFE Red NO
1154-43-08818
1154-43-08818
1154-43-08818
1.197" 0.050 Pin/Slotted Press Fit 11/32 0.158 Brass Bright Tin-Lead - - PTFE Gray NO
1155-01-0314
1155-01-0314
1155-01-0314
0.427" - - Press Fit Up to 3/16 0.204 Brass Gold - - PTFE Yellow NO
1155-07-04410
1155-07-04410
1155-07-04410
0.347" - - Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Black YES

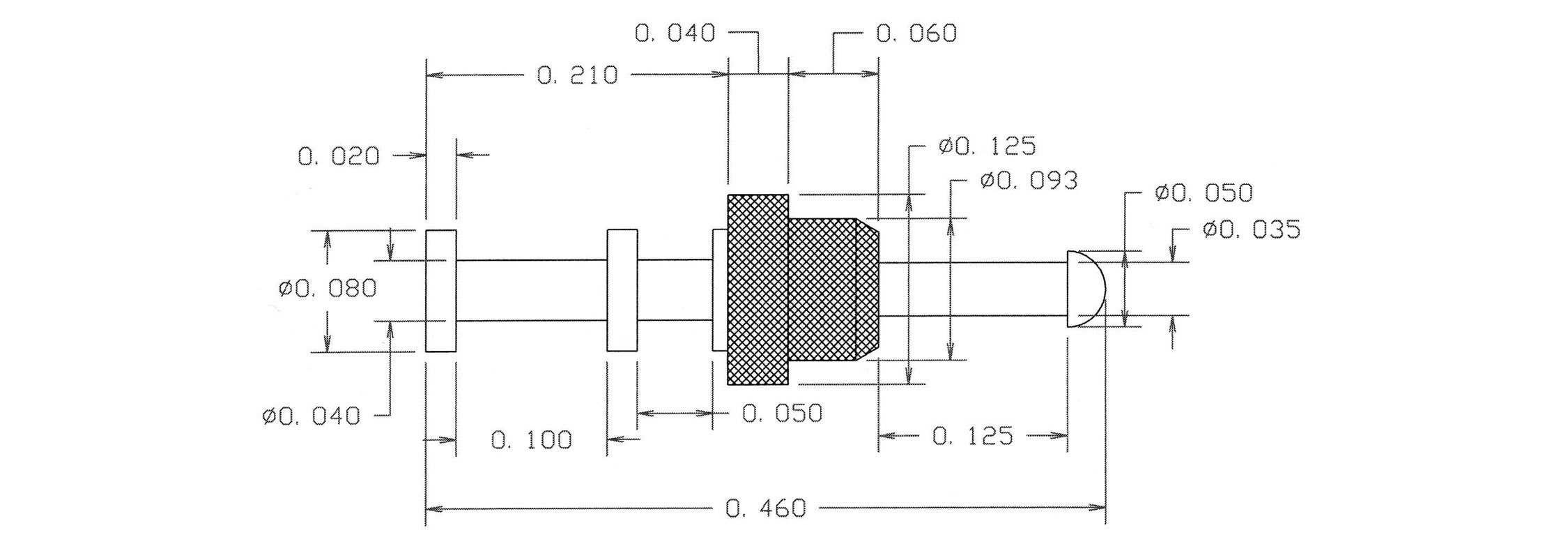

1156-01-0516
1156-01-0516
1156-01-0516
0.460" - DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Electro Solder - - PTFE Blue NO
1156-07-0112
1156-07-0112
1156-07-0112
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 3/32 0.136 Brass Silver - - PTFE Red NO
1156-14-0318
1156-14-0318
1156-14-0318
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.158 Brass Gold - - PTFE Gray NO

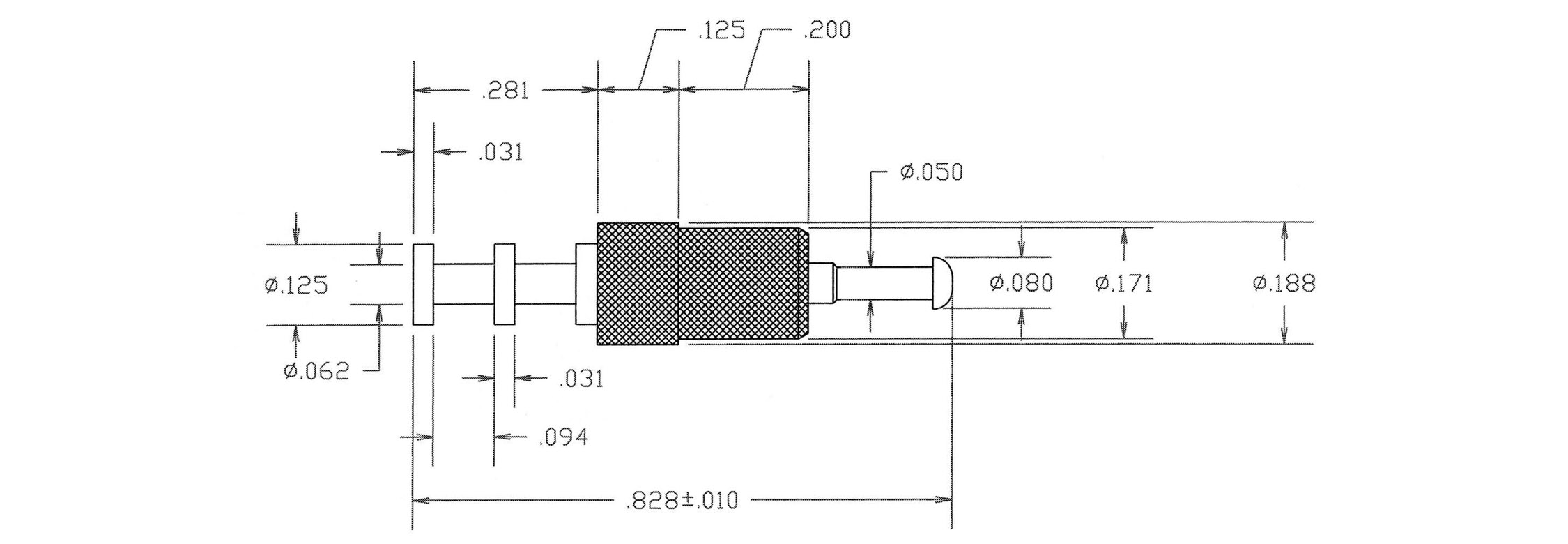

1156-18-04414
1156-18-04414
1156-18-04414
0.828" 0.050 DOUBLE Turret/Tip Press Fit 5/32 0.158 Brass Bright Tin - - PTFE Yellow NO
1156-26-08810
1156-26-08810
1156-26-08810
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Black NO
1157-01-0116
1157-01-0116
1157-01-0116
0.350" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Silver - - PTFE Blue YES
1157-06-0412
1157-06-0412
1157-06-0412
1.115" 0.050 TURRET/PIN Press Fit 11/32 0.158 Brass Electro-Tin - - PTFE Red NO
1157R-04-04418
1157R-04-04418
1157R-04-04418
0.740" 0.050 TURRET/PIN Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Gray NO

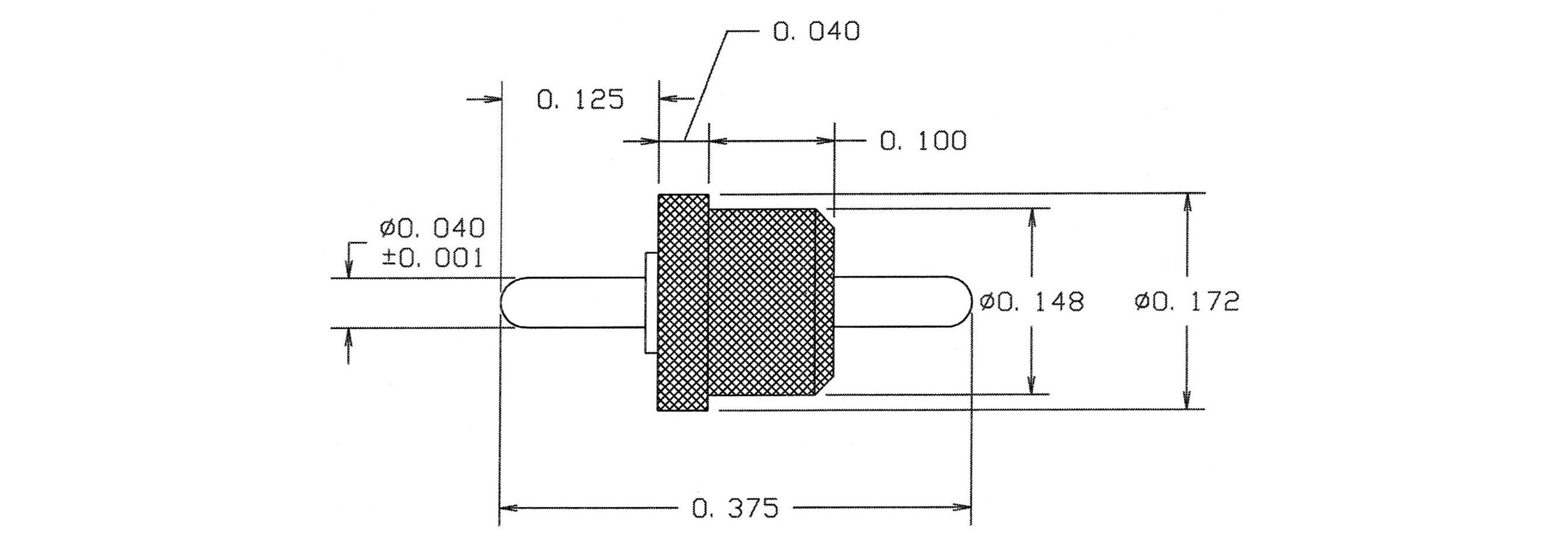

1160-05-08814
1160-05-08814
1160-05-08814
0.375" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO
1167-20-0310
1167-20-0310
1167-20-0310
0.843" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Gold ZINC Brass DIALLYL PHTHALATE Black YES
1167-67-0416
1167-67-0416
1167-67-0416
0.875" - - 6-32 Nut 1/8 0.144 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Blue YES
1169-08-0512
1169-08-0512
1169-08-0512
0.499" - - 2-56 Nut 1/32 0.094 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Red NO

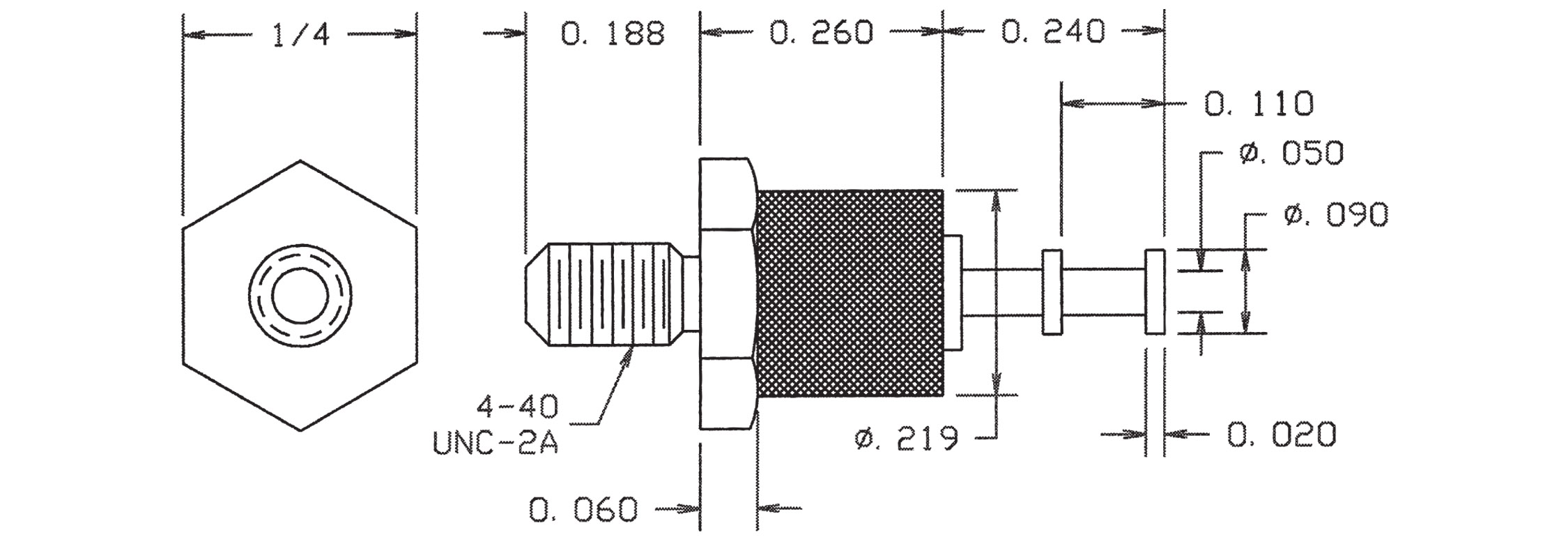

1169-36-08818
1169-36-08818
1169-36-08818
0.688" - - 4-40 Nut 1/16 0.120 Brass Bright Tin-Lead Bright Tin-Lead Brass DIALLYL PHTHALATE Gray NO
