Commercial
Insulated
Pin Terminals

Filter
1127-87-0413
1127-87-0413
1127-87-0413
0.515" - - 2-56 Nut 1/32 0.094 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Orange YES
1127-91-04419
1127-91-04419
1127-91-04419
0.674" - - Swage Mount 3/32 0.082 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE White YES
1127-95-08815
1127-95-08815
1127-95-08815
0.704" 0.060 - Swage Mount 3/32 0.082 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Green NO

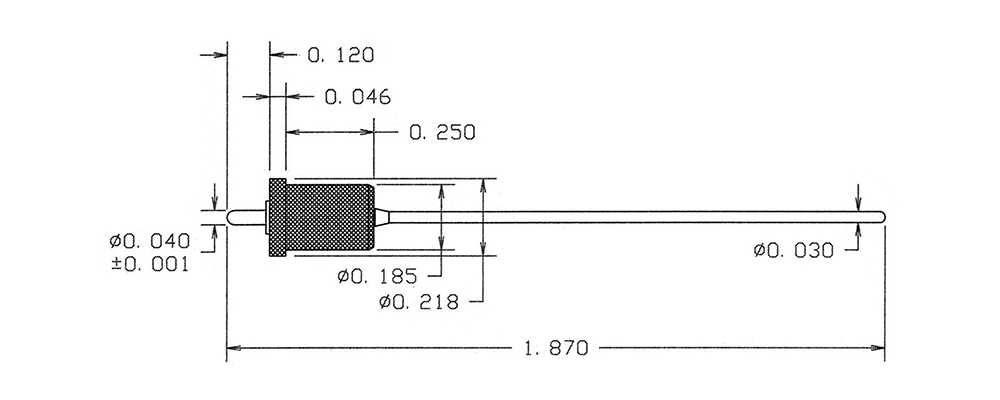

1130-02-0311
1130-02-0311
1130-02-0311
1.870" (0.030)/(0.040) Pin/Pin Press Fit 7/32 0.172 Brass Gold - - PTFE Brown NO
1130-07-0417
1130-07-0417
1130-07-0417
2.083" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Electro-Tin - - PTFE Violet YES
1130R-05-0513
1130R-05-0513
1130R-05-0513
1.531" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Electro Solder - - PTFE Orange NO
1131-02-08819
1131-02-08819
1131-02-08819
0.648" (0.040)/(0.090) Pin/Tip Press Fit Up to 1/4 0.172 Brass Bright Tin-Lead - - PTFE White NO

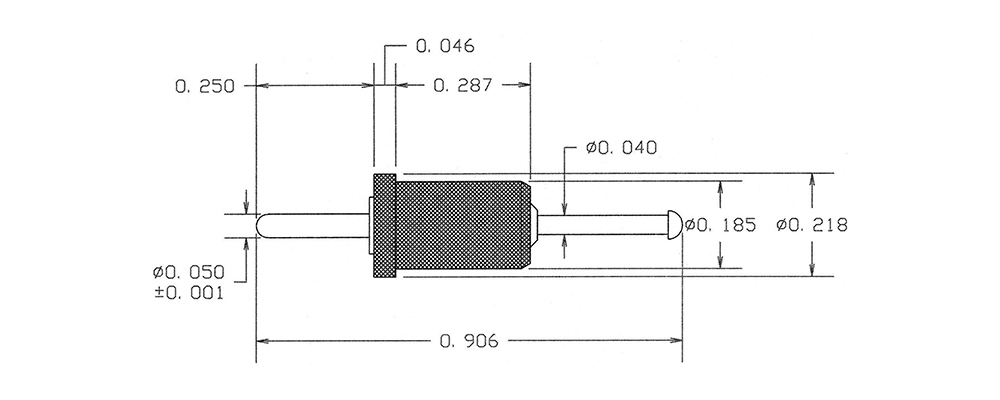

1131-07-0315
1131-07-0315
1131-07-0315
0.906" (0.040)/(0.050) Pin/Tip Press Fit Up to 1/4 0.172 Brass Gold - - PTFE Green YES
1132-01-04411
1132-01-04411
1132-01-04411
0.645" 0.090 - Solder 7/32 0.0935 Brass Bright Tin - - PTFE Brown NO
1133-02-0517
1133-02-0517
1133-02-0517
0.836" 0.040 DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 Brass Electro Solder - - PTFE Violet NO

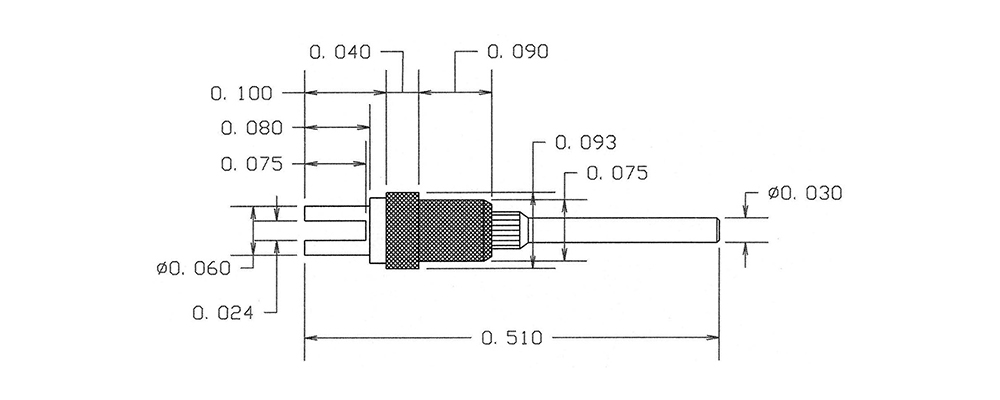

1135-01-0113
1135-01-0113
1135-01-0113
0.510" 0.030 Pin/Slotted Press Fit 1/32 0.070 Brass Silver - - PTFE Orange NO
1135-05-0319
1135-05-0319
1135-05-0319
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Gold - - PTFE White YES
1135-09-04415
1135-09-04415
1135-09-04415
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Green YES
1137-02-08811
1137-02-08811
1137-02-08811
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Bright Tin-Lead - - PTFE Brown NO
1139-04-0117
1139-04-0117
1139-04-0117
0.405" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Silver - - PTFE Violet YES
1151-05-0413
1151-05-0413
1151-05-0413
0.350" - - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Orange NO
1151-11-04419
1151-11-04419
1151-11-04419
0.455" - - Press Fit 1/8 0.136 Brass Bright Tin - - PTFE White YES
1151-19-08815
1151-19-08815
1151-19-08815
0.444" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Green NO

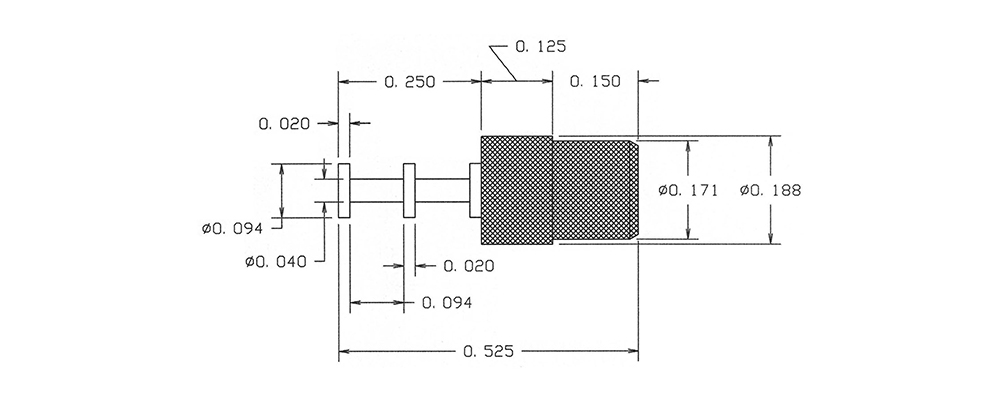

1151-39-0311
1151-39-0311
1151-39-0311
0.525" - - Press Fit 1/8 0.158 Brass Gold - - PTFE Brown NO
1151-51-0417
1151-51-0417
1151-51-0417
1.234" - - Press Fit 5/32 0.203 Brass Electro-Tin - - PTFE Violet YES
