Commercial
Insulated
Pin Terminals

Filter
1125-11-0413
1125-11-0413
1125-11-0413
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Electro-Tin Electro-Tin Brass PTFE Orange NO

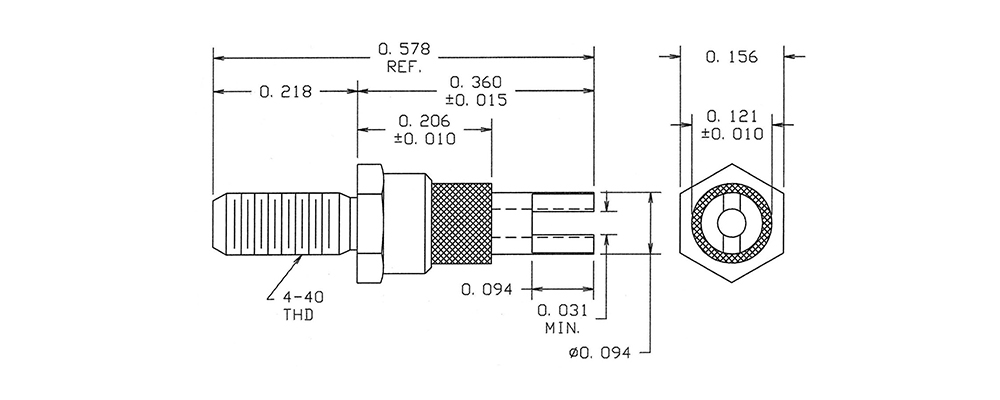

1125-15-04419
1125-15-04419
1125-15-04419
0.578" - - 4-40 Nut 7/64 0.120 Brass Bright Tin Electro-Tin Brass PTFE White YES
1125-19-08815
1125-19-08815
1125-19-08815
0.822" - - 6-32 Nut Up to 3/16 0.144 Brass Bright Tin-Lead Electro-Tin Brass PTFE Green NO

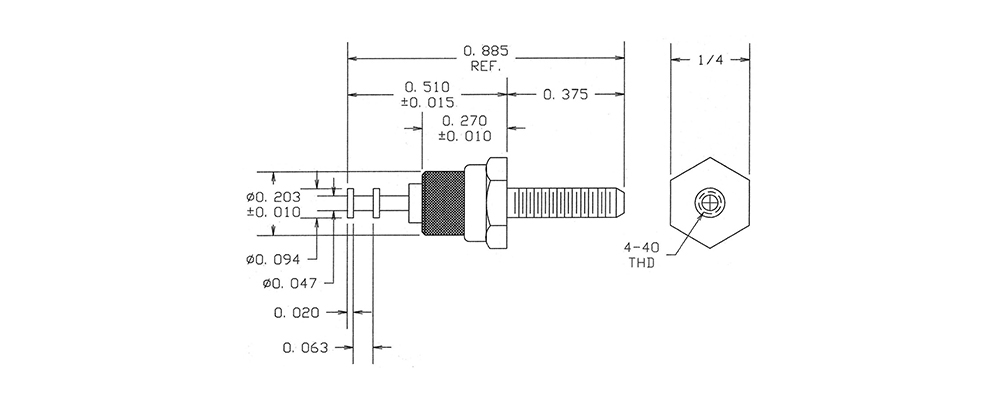

1125-24-0311
1125-24-0311
1125-24-0311
0.885" - - 4-40 Nut Up to 1/4 0.120 Brass Gold Electro-Tin Brass PTFE Brown NO
1125-28-0417
1125-28-0417
1125-28-0417
0.615" - - Swage Mount 1/16 0.116 ±0.001 Brass Electro-Tin Electro-Tin Brass PTFE Violet YES
09-2128-1-0513
09-2128-1-0513
09-2128-1-0513
0.443" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Orange NO
1100-47-08819
1100-47-08819
1100-47-08819
0.350" 0.040 - Press Fit 1/16 0.166 Brass Bright Tin-Lead - - PTFE White NO
1100R-23A-0315
1100R-23A-0315
1100R-23A-0315
0.330" 0.040 - Press Fit 1/32 0.136 Brass Gold - - PTFE Green YES
1100R-36-04411
1100R-36-04411
1100R-36-04411
0.390" 0.040 - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Brown NO
1100R-53-0517
1100R-53-0517
1100R-53-0517
0.756" 0.040 - Press Fit 15/32 0.172 Brass Electro Solder - - PTFE Violet NO

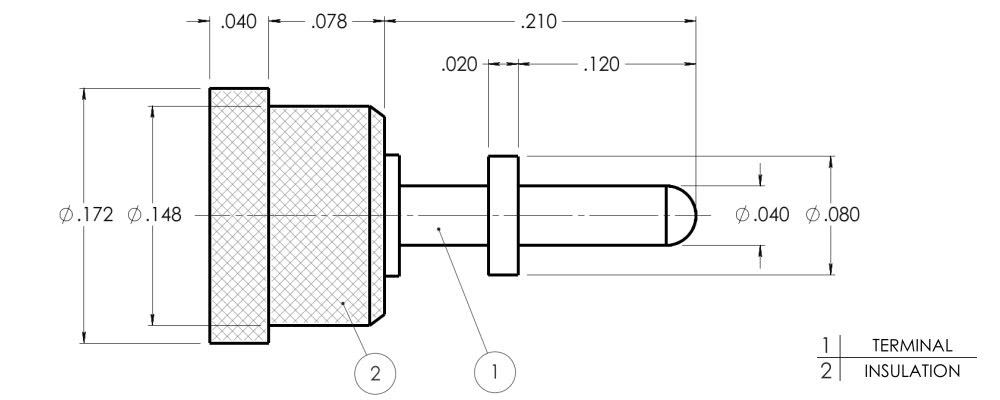

1101R-01-0113
1101R-01-0113
1101R-01-0113
0.328" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE Orange NO
09-2010-1-0414
09-2010-1-0414
09-2010-1-0414
0.436" 0.040 Pin/Tip Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Yellow NO
1102-44-0410
1102-44-0410
1102-44-0410
0.750" - - Press Fit 1/16 0.152 Brass Electro-Tin - - PTFE Black YES
09-2078-1-0510
09-2078-1-0510
09-2078-1-0510
0.856" 0.025 SQ. TURRET/PIN Press Fit 5/64 0.086 Brass Electro Solder - - PTFE Black NO
1110-39-04416
1110-39-04416
1110-39-04416
0.515" 0.040 Pin/Pin Press Fit 1/16 0.144 Brass Bright Tin - - PTFE Blue YES

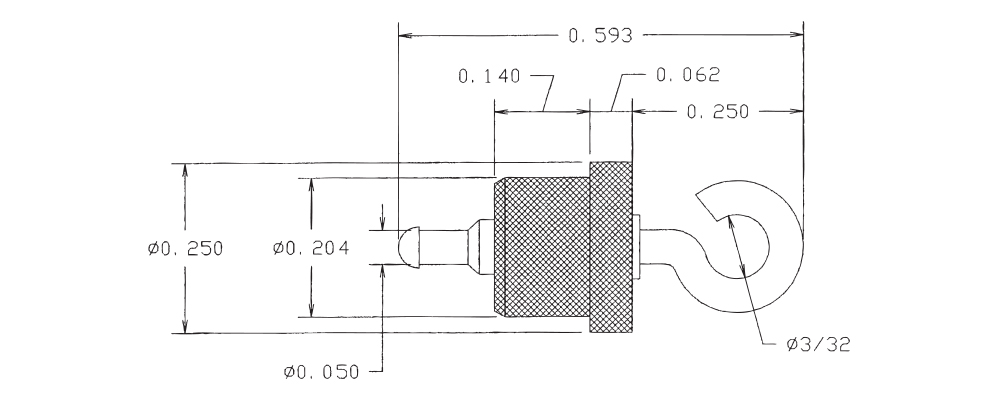

09-2094-1-08816
09-2094-1-08816
09-2094-1-08816
0.593" 0.050 ± 0.010 Pin/Hook Press Fit 3/32 0.191 Brass Bright Tin-Lead - - PTFE Blue NO
1111-19-08812
1111-19-08812
1111-19-08812
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.136 Brass Bright Tin-Lead - - PTFE Red NO
09-2104-1-0312
09-2104-1-0312
09-2104-1-0312
0.460" 0.036 Pin/Pin Press Fit 3/32 0.136 Brass Gold - - PTFE Red NO
1112-07-0118
1112-07-0118
1112-07-0118
0.273" - - Press Fit 1/16 0.113 Brass Silver - - PTFE Gray NO
09-2112-1-0418
09-2112-1-0418
09-2112-1-0418
0.838" - - 6-32 Nut 1/8 0.144 Brass Electro-Tin Nickel Brass PTFE Gray NO
