Commercial
Insulated
Pin Terminals

Filter
1101-11-0314
1101-11-0314
1101-11-0314
0.330" - - Press Fit 1/16 0.136 Brass Gold - - PTFE Yellow NO
1106-11-0510
1106-11-0510
1106-11-0510
0.703" - - Press Fit 1/16 0.158 Brass Electro Solder - - PTFE Black NO
1133-11-08817
1133-11-08817
1133-11-08817
1.052" 0.040 DOUBLE TURRET/PIN Press Fit Up to 1/4 0.172 Brass Bright Tin-Lead - - PTFE Violet NO
1133-11-0310
1133-11-0310
1133-11-0310
1.052" 0.040 DOUBLE TURRET/PIN Press Fit Up to 1/4 0.172 Brass Gold - - PTFE Black YES
1114R-11-0515
1114R-11-0515
1114R-11-0515
0.225" 0.045 (+0.000/-0.005) - Press Fit 1/32 0.113 Brass Electro Solder - - PTFE Green NO
1106-11-0517
1106-11-0517
1106-11-0517
0.703" - - Press Fit 1/16 0.158 Brass Electro Solder - - PTFE Violet NO
1106-11-0518
1106-11-0518
1106-11-0518
0.703" - - Press Fit 1/16 0.158 Brass Electro Solder - - PTFE Gray NO
1106-11-0519
1106-11-0519
1106-11-0519
0.703" - - Press Fit 1/16 0.158 Brass Electro Solder - - PTFE White NO

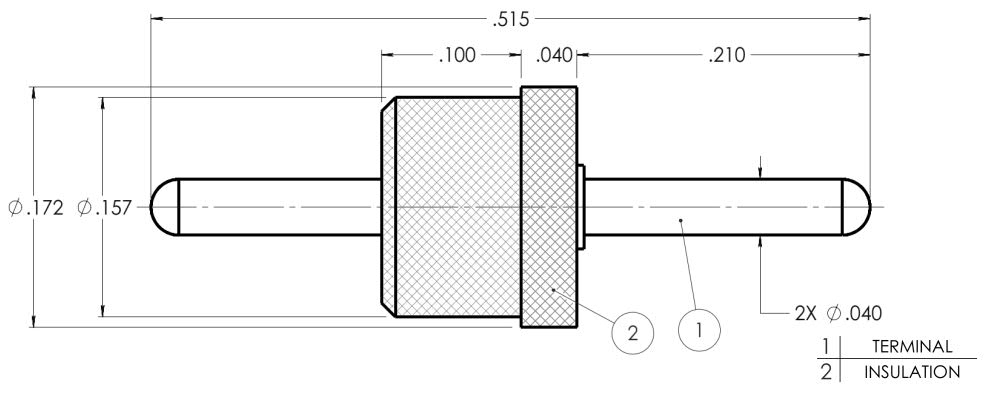

1110-11-0414
1110-11-0414
1110-11-0414
0.515" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Electro-Tin - - PTFE Yellow NO
1114R-11-04419
1114R-11-04419
1114R-11-04419
0.225" 0.045 (+0.000/-0.005) - Press Fit 1/32 0.113 Brass Bright Tin - - PTFE White YES
1114R-11-04418
1114R-11-04418
1114R-11-04418
0.225" 0.045 (+0.000/-0.005) - Press Fit 1/32 0.113 Brass Bright Tin - - PTFE Gray NO
1114R-11-04417
1114R-11-04417
1114R-11-04417
0.225" 0.045 (+0.000/-0.005) - Press Fit 1/32 0.113 Brass Bright Tin - - PTFE Violet YES
1114R-11-04416
1114R-11-04416
1114R-11-04416
0.225" 0.045 (+0.000/-0.005) - Press Fit 1/32 0.113 Brass Bright Tin - - PTFE Blue YES
1114R-11-0514
1114R-11-0514
1114R-11-0514
0.225" 0.045 (+0.000/-0.005) - Press Fit 1/32 0.113 Brass Electro Solder - - PTFE Yellow NO
1112-11-04418
1112-11-04418
1112-11-04418
0.238" - - Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Gray NO
1151-11-04419
1151-11-04419
1151-11-04419
0.455" - - Press Fit 1/8 0.136 Brass Bright Tin - - PTFE White YES
1124-11-0513
1124-11-0513
1124-11-0513
1.024" 0.050 THREAD/TIP Press Fit Up to 1/4 0.158 Brass Electro Solder - - PTFE Orange NO
1127-11-0114
1127-11-0114
1127-11-0114
0.790" 0.070 - Swage Mount 3/32 0.104 Brass Silver ZINC Brass DIALLYL PHTHALATE Yellow YES
1127-11-0115
1127-11-0115
1127-11-0115
0.790" 0.070 - Swage Mount 3/32 0.104 Brass Silver ZINC Brass DIALLYL PHTHALATE Green YES
1127-11-0117
1127-11-0117
1127-11-0117
0.790" 0.070 - Swage Mount 3/32 0.104 Brass Silver ZINC Brass DIALLYL PHTHALATE Violet YES
