Commercial
Insulated
Pin Terminals

Filter

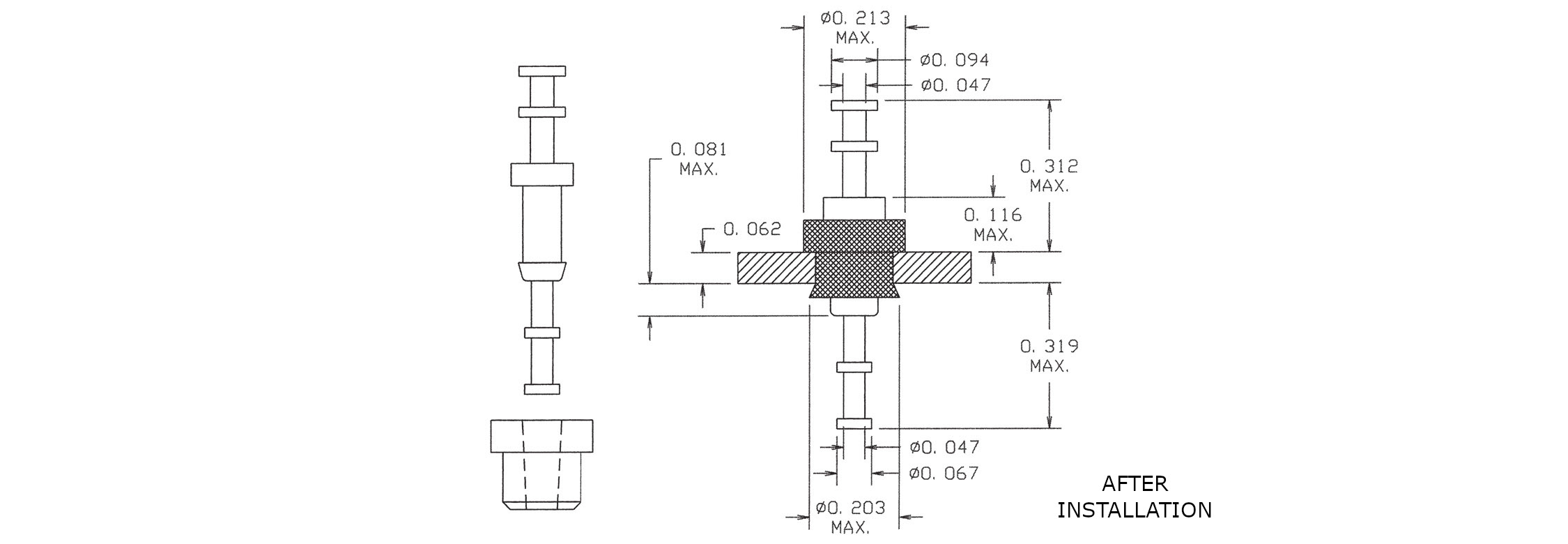

1175-722-08813
1175-722-08813
1175-722-08813
0.693" - Double Turret/Double Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Orange NO

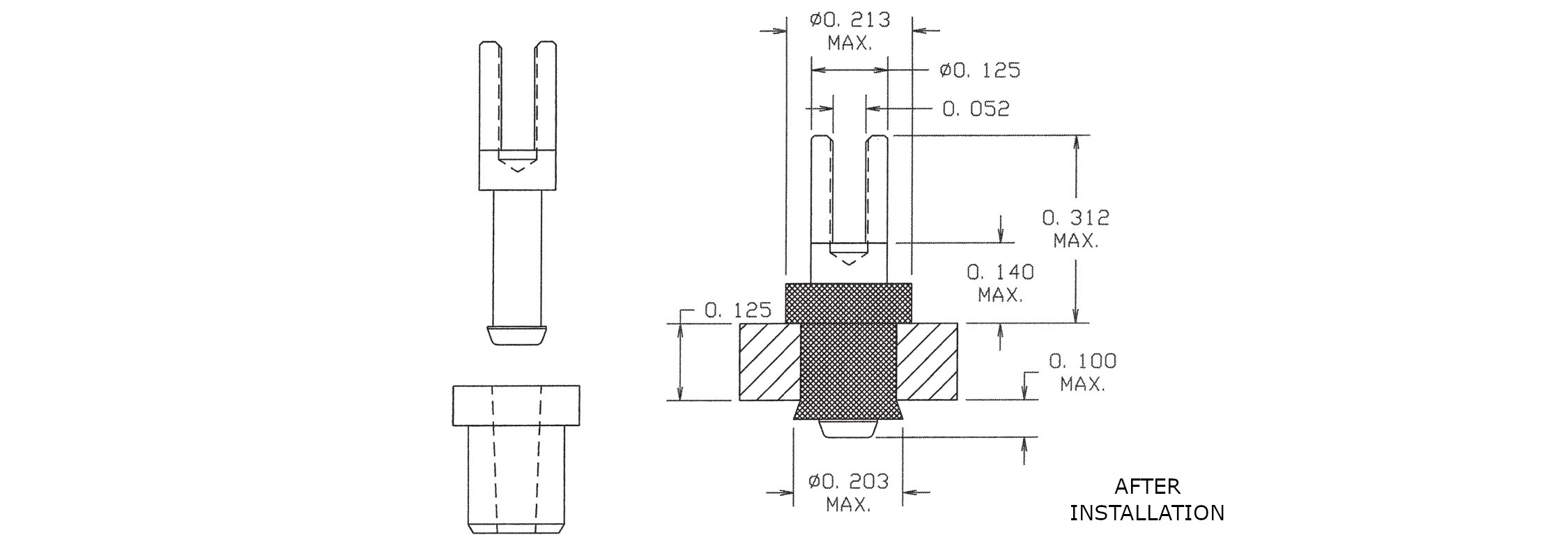

1175-734-0119
1175-734-0119
1175-734-0119
0.537" - - PRESS LOCK 1/8 0.154 (+0.003/-0.001) Brass Silver - - PTFE White YES

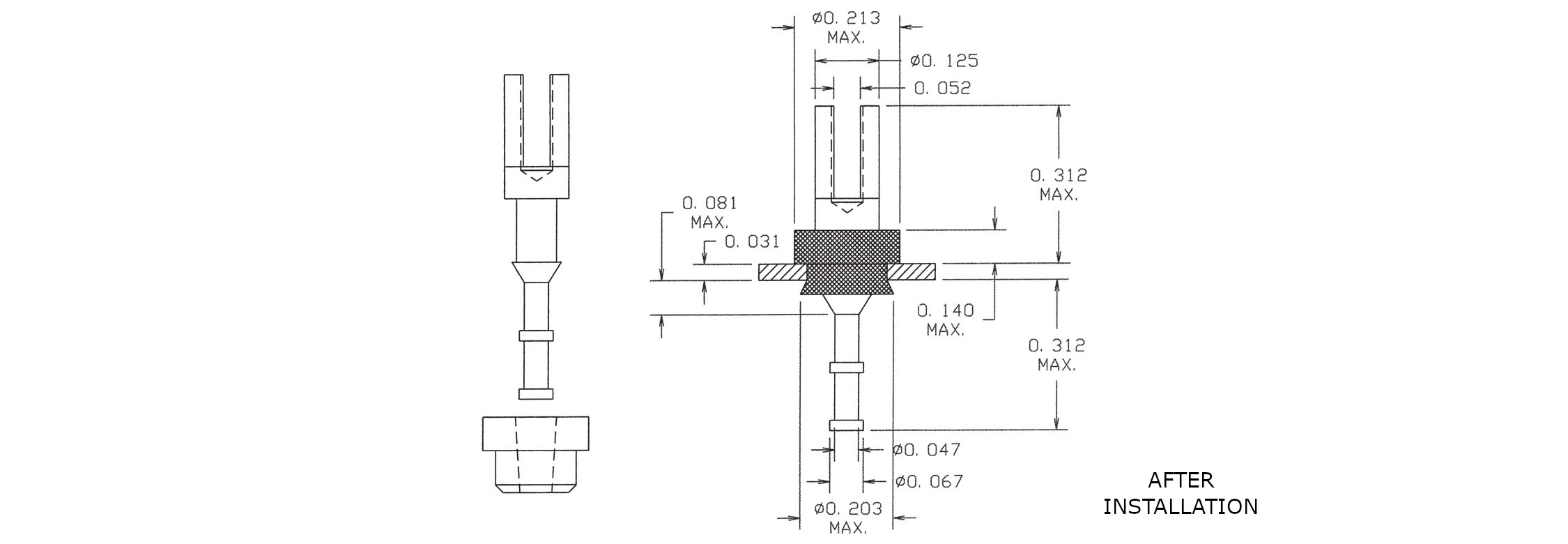

1175-751-0415
1175-751-0415
1175-751-0415
0.655" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.154 (+0.003/-0.001) Brass Electro-Tin - - PTFE Green YES

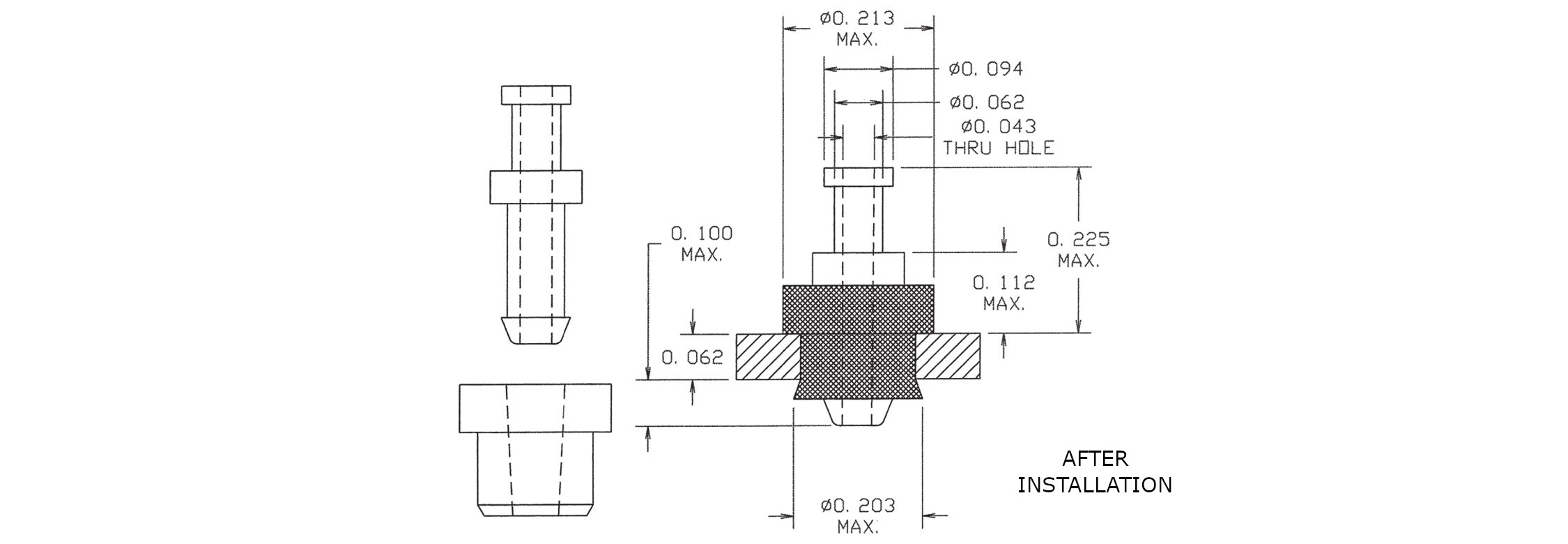

1175-762-0511
1175-762-0511
1175-762-0511
0.387" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Electro Solder - - PTFE Brown NO

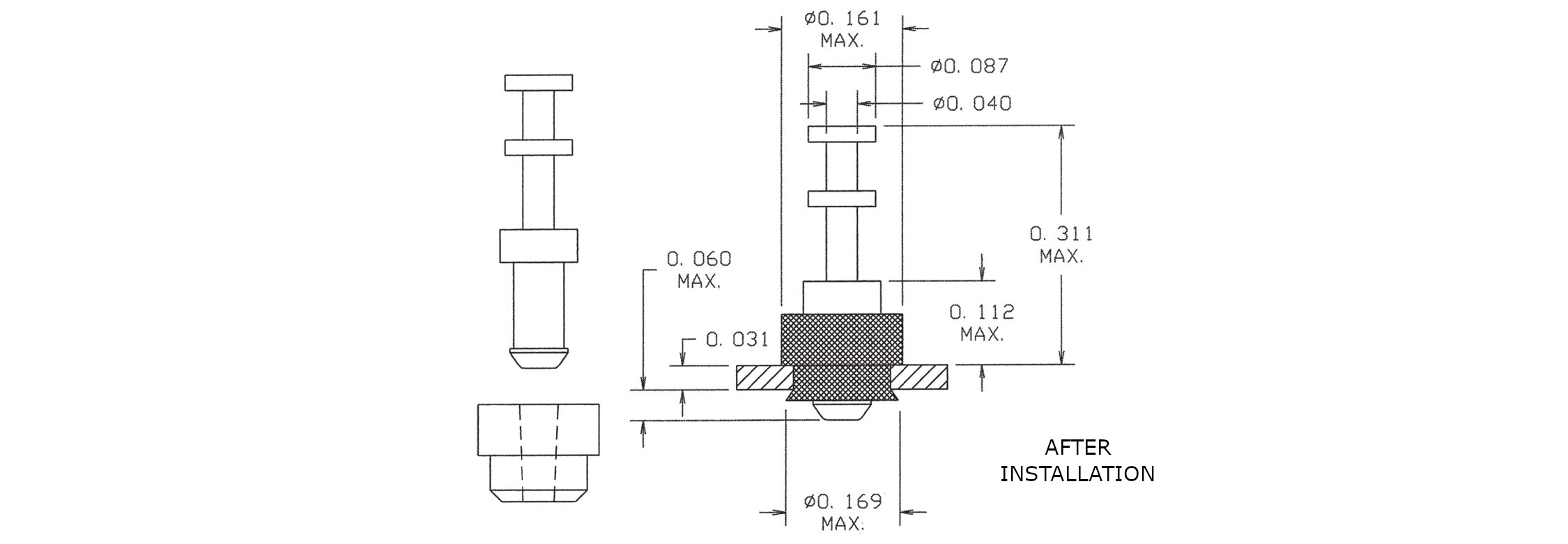

1175-821-08817
1175-821-08817
1175-821-08817
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Violet NO

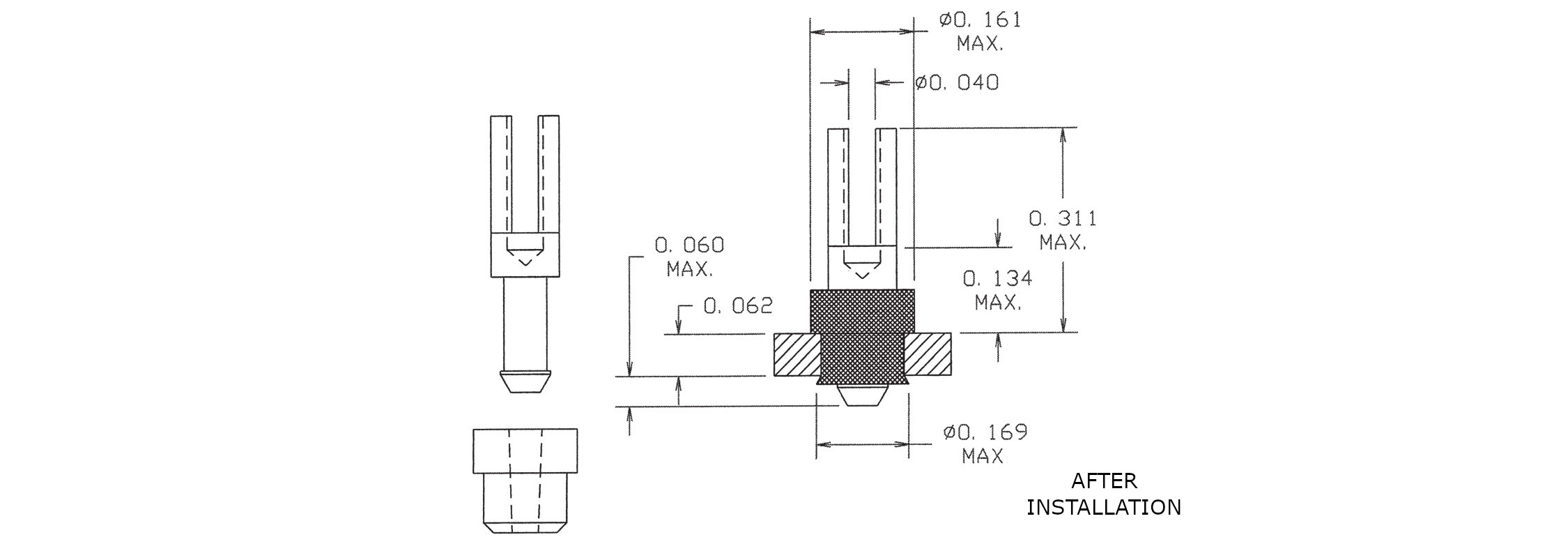

1175-842-0313
1175-842-0313
1175-842-0313
0.433" - - PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Gold - - PTFE Orange NO
1175-872-0419
1175-872-0419
1175-872-0419
0.591" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Electro-Tin - - PTFE White YES

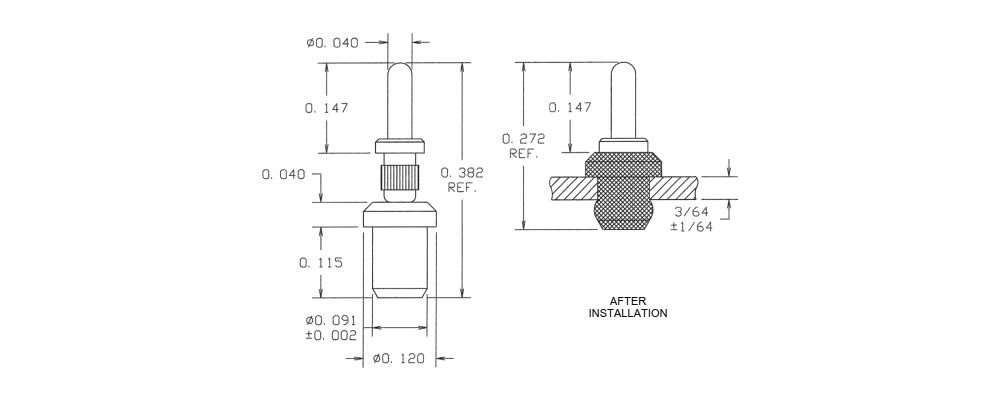

1177-02-0515
1177-02-0515
1177-02-0515
0.272" 0.040 - PRESS LOCK 1/32 - 1/16 0.093 Brass Electro Solder - - PTFE Green NO

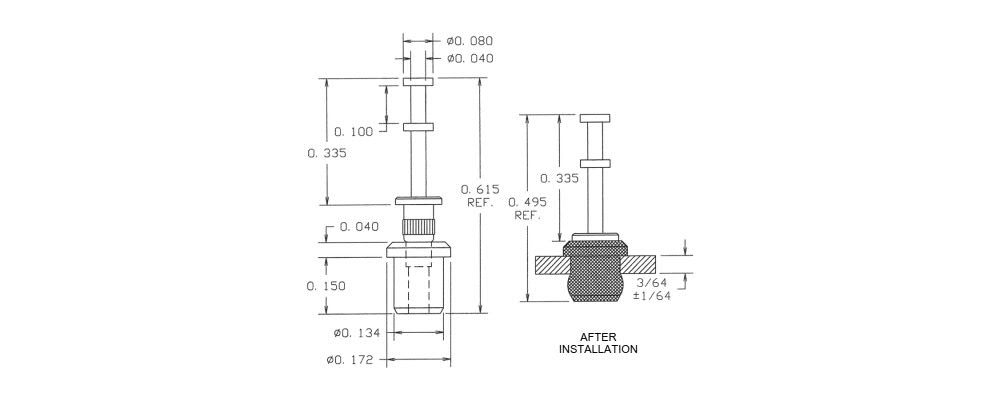

1177-13-0111
1177-13-0111
1177-13-0111
0.495" - - PRESS LOCK 1/32 - 1/16 0.136 Brass Silver - - PTFE Brown NO
1177-32-0317
1177-32-0317
1177-32-0317
0.500" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 - 1/16 0.136 Brass Gold - - PTFE Violet YES
1177-41-04413
1177-41-04413
1177-41-04413
0.387" 0.040 Pin/Slotted PRESS LOCK 1/32 - 1/16 0.109 Brass Bright Tin - - PTFE Orange NO
1177-52-0519
1177-52-0519
1177-52-0519
0.515" 0.040 Pin/Pin PRESS LOCK 1/32 - 1/16 0.086 Brass Electro Solder - - PTFE White NO
1177-57-0115
1177-57-0115
1177-57-0115
0.687" 0.050 Pin/Pin PRESS LOCK 1/32 - 1/16 0.136 Brass Silver - - PTFE Green YES
1177-61-0411
1177-61-0411
1177-61-0411
0.446" 0.040 Pin/Pin PRESS LOCK 1/64 0.138 Brass Electro-Tin - - PTFE Brown NO
1178R-03-04417
1178R-03-04417
1178R-03-04417
0.650" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.134 Brass Bright Tin - - PTFE Violet YES
1178R-10-08813
1178R-10-08813
1178R-10-08813
0.470" 0.040 Pin/Slotted PRESS LOCK 1/32 - 3/32 0.086 Brass Bright Tin-Lead - - PTFE Orange NO
1178R-15-0119
1178R-15-0119
1178R-15-0119
0.390" - - PRESS LOCK 1/32 - 5/64 0.134 Brass Silver - - PTFE White YES
1102R-95-0415
1102R-95-0415
1102R-95-0415
0.812" - - Press Fit 13/64 0.297 Brass Electro-Tin - - PTFE Green YES
1125-02-0511
1125-02-0511
1125-02-0511
0.578" - - 2-56 Nut 7/64 0.094 Brass Electro Solder Electro-Tin Brass PTFE Brown NO
1125-06-08817
1125-06-08817
1125-06-08817
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Bright Tin-Lead Electro-Tin Brass PTFE Violet NO
