Commercial
Insulated
Pin Terminals

Filter
1167-67-08813
1167-67-08813
1167-67-08813
0.875" - - 6-32 Nut 1/8 0.144 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Orange NO
1169-30-0119
1169-30-0119
1169-30-0119
0.671" 0.060 - 2-56 Nut 1/8 0.094 Brass Silver ZINC Brass DIALLYL PHTHALATE White YES
1169-37-0415
1169-37-0415
1169-37-0415
0.750" - - 4-40 Nut 1/8 0.120 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Green YES

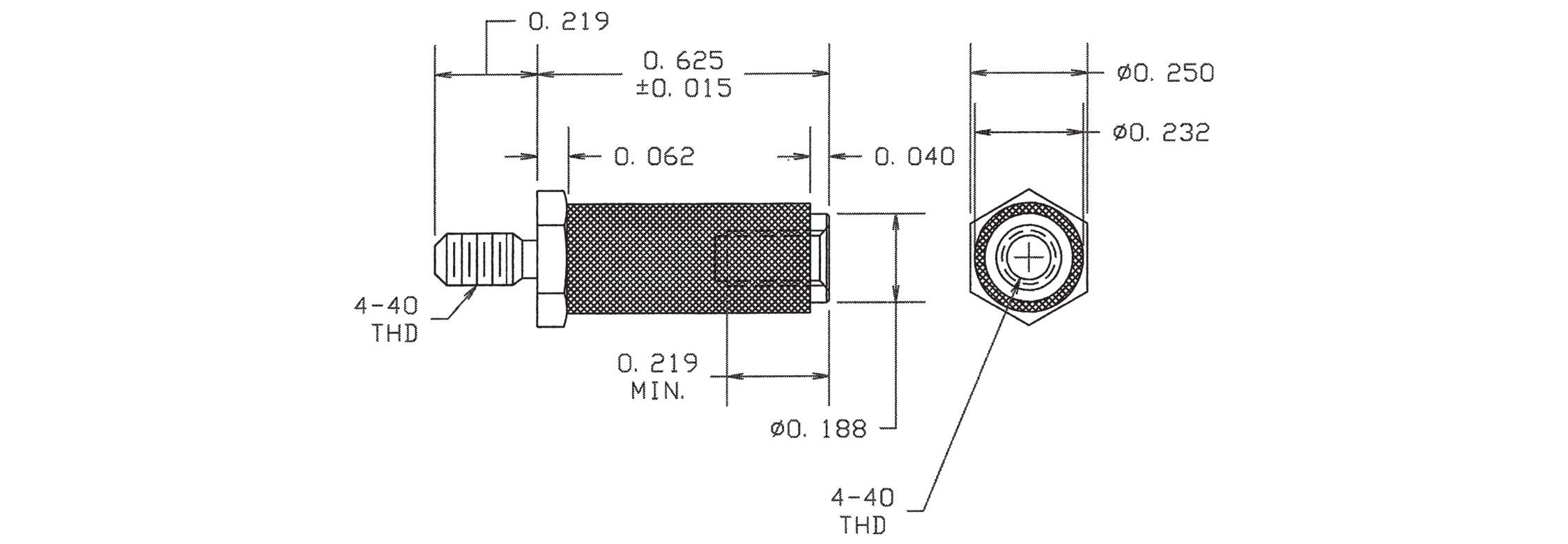

1170-05-07511
1170-05-07511
1170-05-07511
0.844" - - 4-40 Nut 3/32 0.120 Brass ZINC ZINC Brass DIALLYL PHTHALATE Brown YES
1170-22-04417
1170-22-04417
1170-22-04417
0.968" - - 6-32 Nut Up to 1/4 0.144 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Violet YES
1175-012-08813
1175-012-08813
1175-012-08813
0.640" 0.047 Pin/Pin PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Orange NO
1175-301-0119
1175-301-0119
1175-301-0119
0.460" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Silver - - PTFE White YES
1175-351-0415
1175-351-0415
1175-351-0415
0.342" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Green YES
1175-372-0511
1175-372-0511
1175-372-0511
0.736" 0.040 DOUBLE TURRET/PIN PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Brown NO
1175-403-08817
1175-403-08817
1175-403-08817
0.506" - - PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Violet NO
1175-414-0313
1175-414-0313
1175-414-0313
0.642" - DOUBLE Turret/Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Gold - - PTFE Orange NO
1175-424-0419
1175-424-0419
1175-424-0419
0.756" - Double Turret/Double Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE White YES
1175-434-0515
1175-434-0515
1175-434-0515
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Green NO

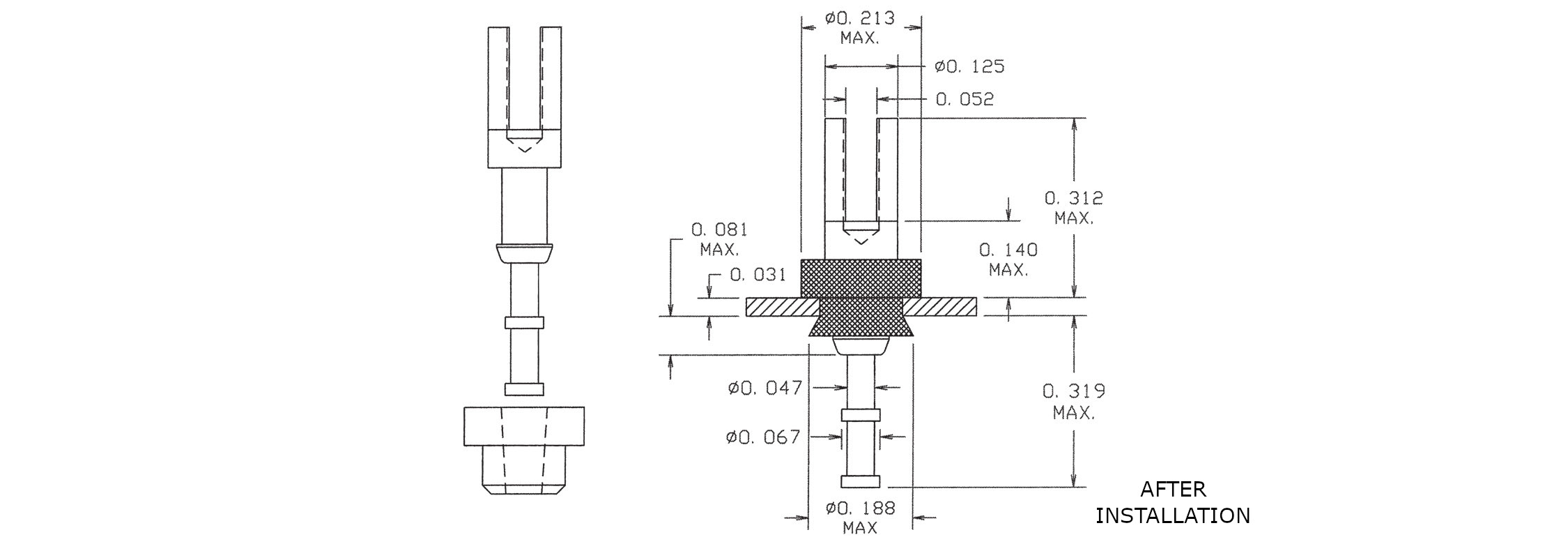

1175-451-0111
1175-451-0111
1175-451-0111
0.662" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Silver - - PTFE Brown NO

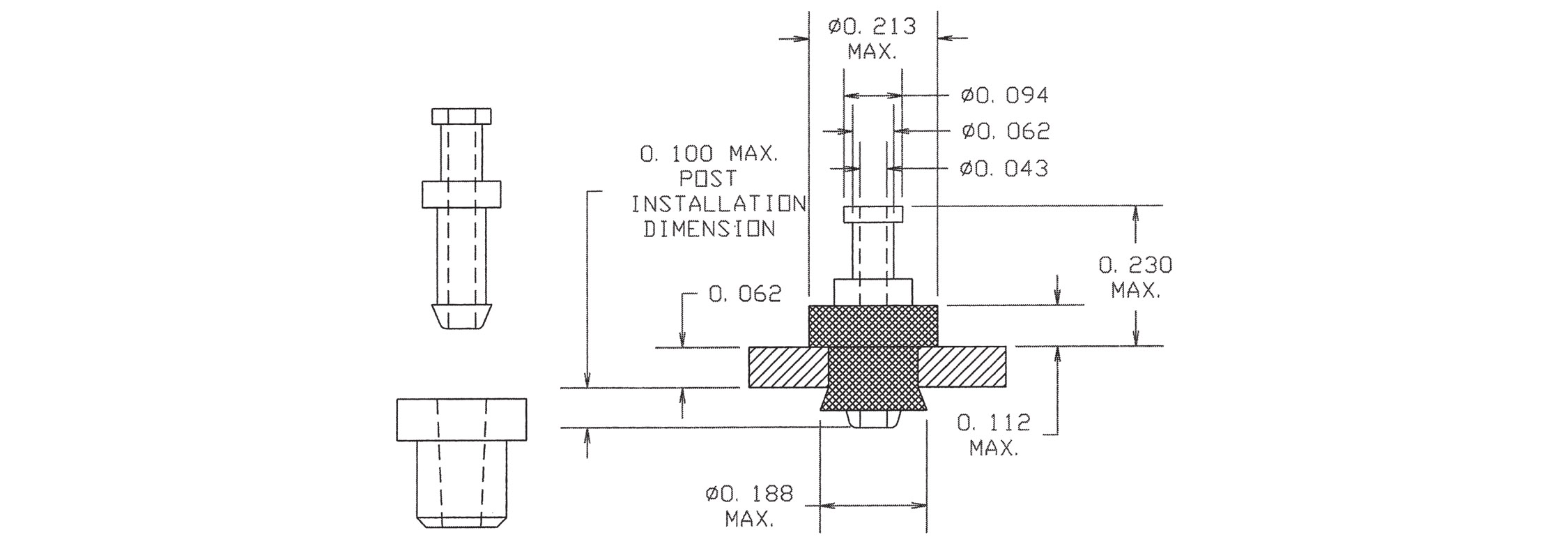

1175-462-0317
1175-462-0317
1175-462-0317
0.392" - - PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Gold - - PTFE Violet YES
1175-473-04413
1175-473-04413
1175-473-04413
0.575" - - PRESS LOCK 3/32 0.188 (+0.003/-0.001) Brass Bright Tin - - PTFE Orange NO

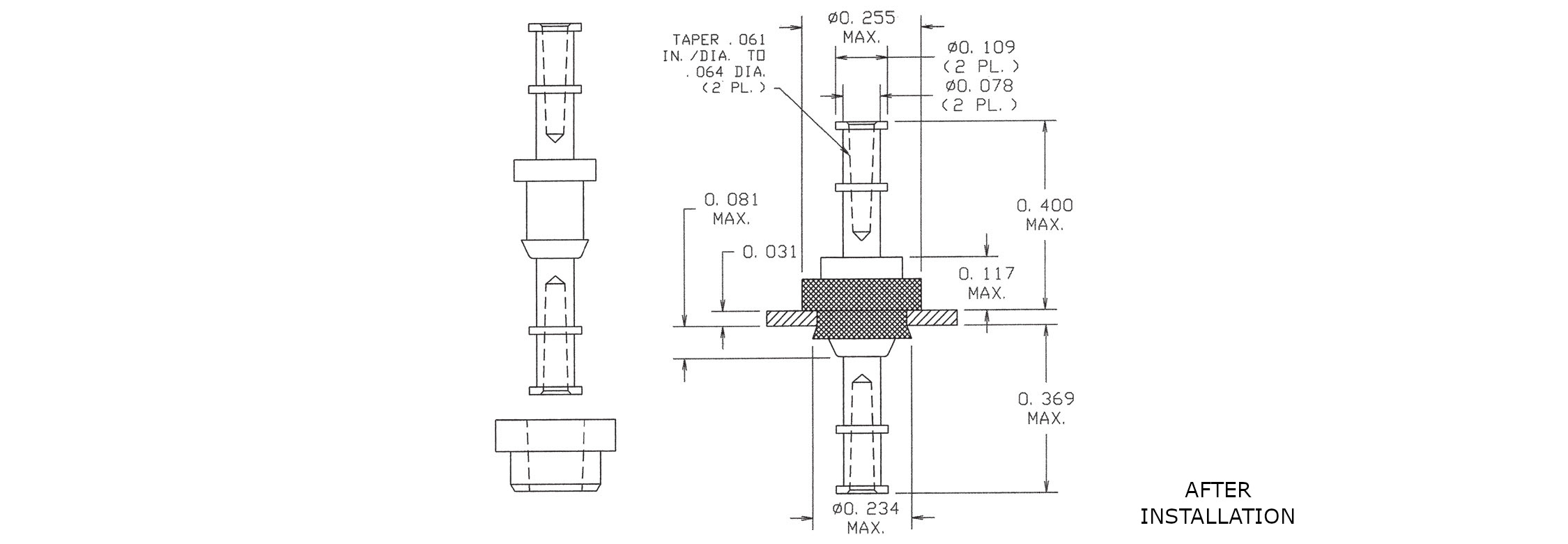

1175-491-0519
1175-491-0519
1175-491-0519
0.800" - Double Turret/Double Turret PRESS LOCK 1/32 0.188 (+0.003/-0.001) Brass Electro Solder - - PTFE White NO
1175-601-0115
1175-601-0115
1175-601-0115
0.424" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Silver - - PTFE Green YES
1175-702-0411
1175-702-0411
1175-702-0411
0.474" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Electro-Tin - - PTFE Brown NO
1175-712-04417
1175-712-04417
1175-712-04417
0.579" - DOUBLE Turret/Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Bright Tin - - PTFE Violet YES
