Commercial
Insulated
Pin Terminals

Filter
1126-46-08813
1126-46-08813
1126-46-08813
1.343" - - 6-32 Nut 1/8 0.144 Brass Bright Tin-Lead ZINC Brass PTFE Orange NO
1127-04-0119
1127-04-0119
1127-04-0119
0.719" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Silver Electro-Tin Brass DIALLYL PHTHALATE White YES
1127-08-0415
1127-08-0415
1127-08-0415
0.884" 0.070 - 4-40 Nut 3/32 0.120 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Green YES
1127-12-0511
1127-12-0511
1127-12-0511
0.821" 0.070 - Swage Mount 1/8 0.104 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Brown NO
1127-16-08817
1127-16-08817
1127-16-08817
0.813" - - 4-40 Nut 3/32 0.120 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Violet NO
1127-21-0313
1127-21-0313
1127-21-0313
0.938" - - Swage Mount 3/32 0.104 Brass Gold ZINC Brass DIALLYL PHTHALATE Orange YES
1127-25-0419
1127-25-0419
1127-25-0419
0.938" - - Swage Mount 3/32 0.147 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE White YES
1127-30-0515
1127-30-0515
1127-30-0515
0.813" - - 4-40 Nut 3/32 0.120 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Green NO
1127-35-0111
1127-35-0111
1127-35-0111
0.719" - - Swage Mount 3/32 0.147 Brass Silver ZINC Brass DIALLYL PHTHALATE Brown YES
1127-39-0317
1127-39-0317
1127-39-0317
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Gold ZINC Brass DIALLYL PHTHALATE Violet YES
1127-43-04413
1127-43-04413
1127-43-04413
0.969" - - 6-32 Nut 1/8 0.144 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Orange YES
1127-47-0519
1127-47-0519
1127-47-0519
0.844" - - Swage Mount 3/32 0.104 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE White NO
1127-52-0115
1127-52-0115
1127-52-0115
0.875" - - Swage Mount 1/8 0.147 Brass Silver ZINC Brass DIALLYL PHTHALATE Green YES
1127-57-0411
1127-57-0411
1127-57-0411
0.579" - - 2-56 Nut 1/16 0.094 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Brown YES
1127-61-04417
1127-61-04417
1127-61-04417
0.704" - - 2-56 Nut 1/8 0.094 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Violet YES
1127-65-08813
1127-65-08813
1127-65-08813
0.547" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Orange NO

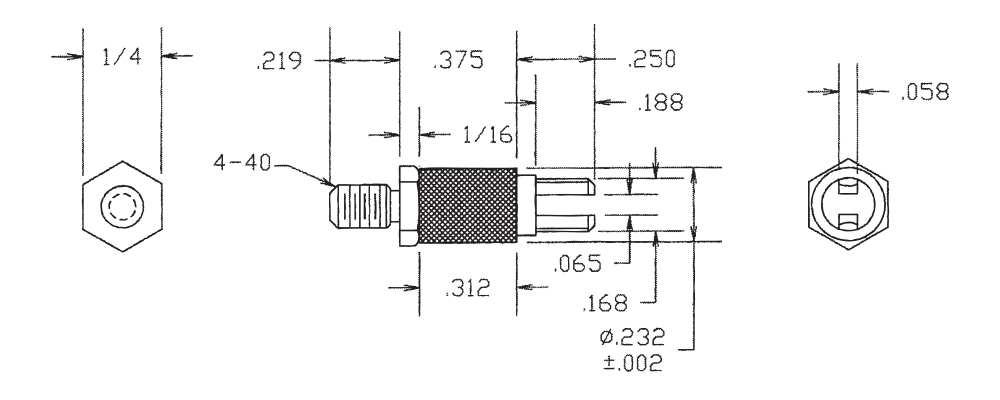

1127-70-0119
1127-70-0119
1127-70-0119
0.844" - - 4-40 Nut 3/32 0.120 Brass Silver ZINC Brass DIALLYL PHTHALATE White YES
1127-74-0415
1127-74-0415
1127-74-0415
1.000" - - 4-40 Nut 3/32 0.120 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Green YES
1127-78-0511
1127-78-0511
1127-78-0511
0.859" - - Swage Mount 3/16 0.104 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Brown NO
1127-82-08817
1127-82-08817
1127-82-08817
0.859" - - Swage Mount 3/16 0.147 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Violet NO
