Commercial
Insulated
Pin Terminals

Filter

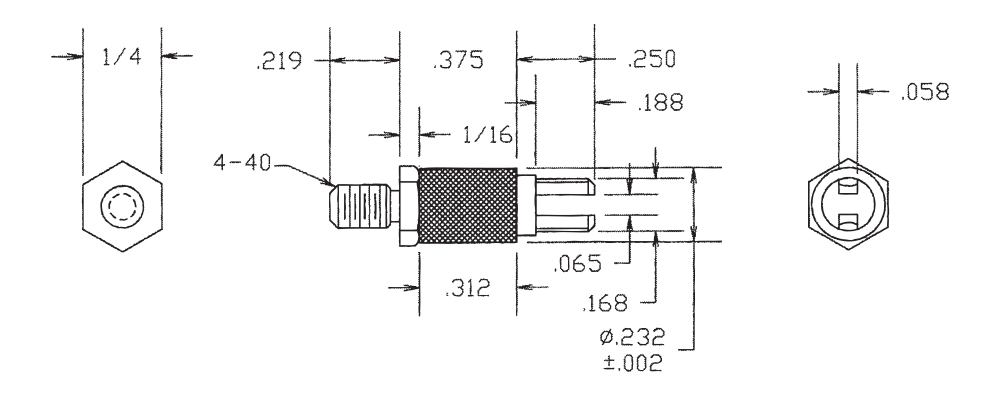

1127-70-0117
1127-70-0117
1127-70-0117
0.844" - - 4-40 Nut 3/32 0.120 Brass Silver ZINC Brass DIALLYL PHTHALATE Violet YES
1127-74-0413
1127-74-0413
1127-74-0413
1.000" - - 4-40 Nut 3/32 0.120 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Orange YES
1127-78-04419
1127-78-04419
1127-78-04419
0.859" - - Swage Mount 3/16 0.104 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE White YES

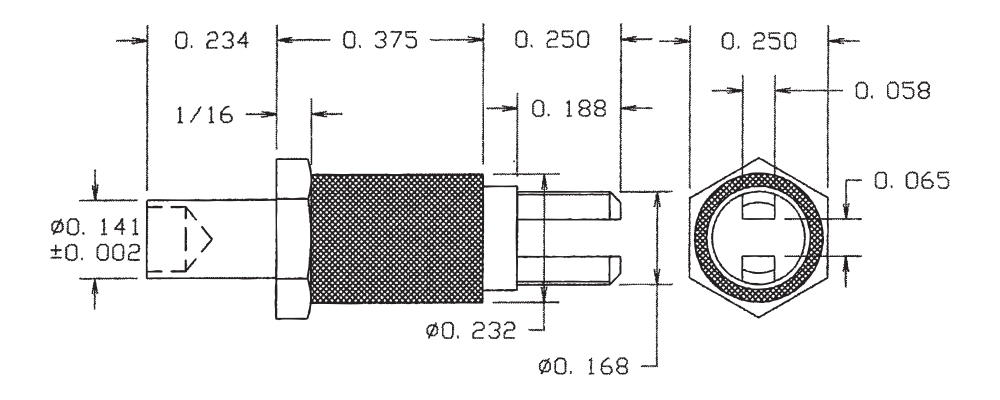

1127-82-08815
1127-82-08815
1127-82-08815
0.859" - - Swage Mount 3/16 0.147 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Green NO
1127-87-0311
1127-87-0311
1127-87-0311
0.515" - - 2-56 Nut 1/32 0.094 Brass Gold ZINC Brass DIALLYL PHTHALATE Brown YES
1127-91-0417
1127-91-0417
1127-91-0417
0.674" - - Swage Mount 3/32 0.082 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Violet YES
1127-95-0513
1127-95-0513
1127-95-0513
0.704" 0.060 - Swage Mount 3/32 0.082 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Orange NO
1130-01-08819
1130-01-08819
1130-01-08819
1.937" (0.030)/(0.050) Pin/Pin Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE White NO
1130-07-0315
1130-07-0315
1130-07-0315
2.083" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Gold - - PTFE Green YES
1130R-05-04411
1130R-05-04411
1130R-05-04411
1.531" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Bright Tin - - PTFE Brown NO
1131-02-0517
1131-02-0517
1131-02-0517
0.648" (0.040)/(0.090) Pin/Tip Press Fit Up to 1/4 0.172 Brass Electro Solder - - PTFE Violet NO

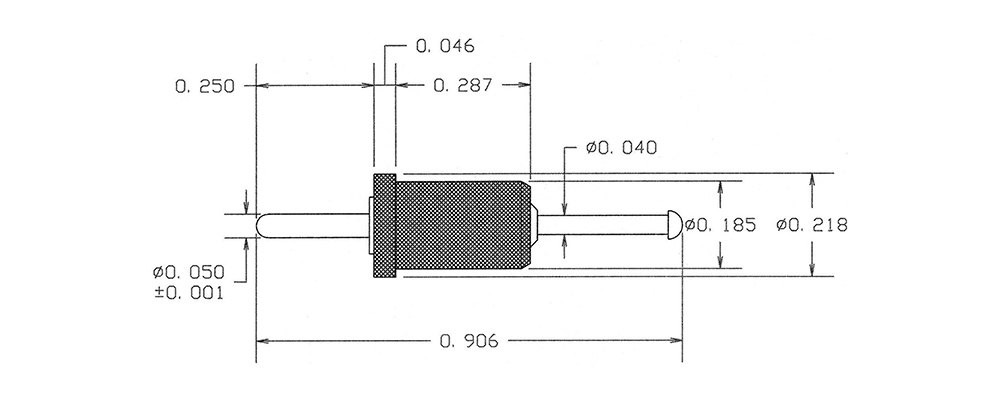

1131-07-0113
1131-07-0113
1131-07-0113
0.906" (0.040)/(0.050) Pin/Tip Press Fit Up to 1/4 0.172 Brass Silver - - PTFE Orange NO
1132-01-0319
1132-01-0319
1132-01-0319
0.645" 0.090 - Solder 7/32 0.0935 Brass Gold - - PTFE White YES
1133-02-04415
1133-02-04415
1133-02-04415
0.836" 0.040 DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 Brass Bright Tin - - PTFE Green YES
1133R-05-08811
1133R-05-08811
1133R-05-08811
0.450" 0.040 TURRET/PIN Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Brown NO
1135-05-0117
1135-05-0117
1135-05-0117
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Silver - - PTFE Violet YES
1135-09-0413
1135-09-0413
1135-09-0413
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Orange NO
1137-02-04419
1137-02-04419
1137-02-04419
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Bright Tin - - PTFE White YES
1139-03-08815
1139-03-08815
1139-03-08815
0.448" 0.030 Pin/Pin Press Fit 1/16 0.070 Brass Bright Tin-Lead - - PTFE Green NO
1151-05-0311
1151-05-0311
1151-05-0311
0.350" - - Press Fit 1/16 0.136 Brass Gold - - PTFE Brown NO
