Commercial
Insulated
Pin Terminals

Filter
1110-06-0417
1110-06-0417
1110-06-0417
0.987" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Violet YES
1110-10-0513
1110-10-0513
1110-10-0513
0.453" 0.030 Pin/Pin Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Orange NO
1110-15-08819
1110-15-08819
1110-15-08819
0.431" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE White NO

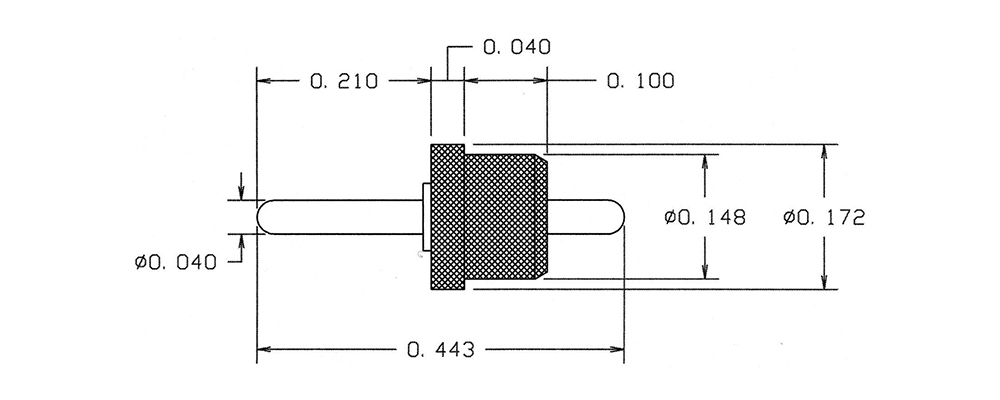

1110-20-0315
1110-20-0315
1110-20-0315
0.443" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Gold - - PTFE Green YES

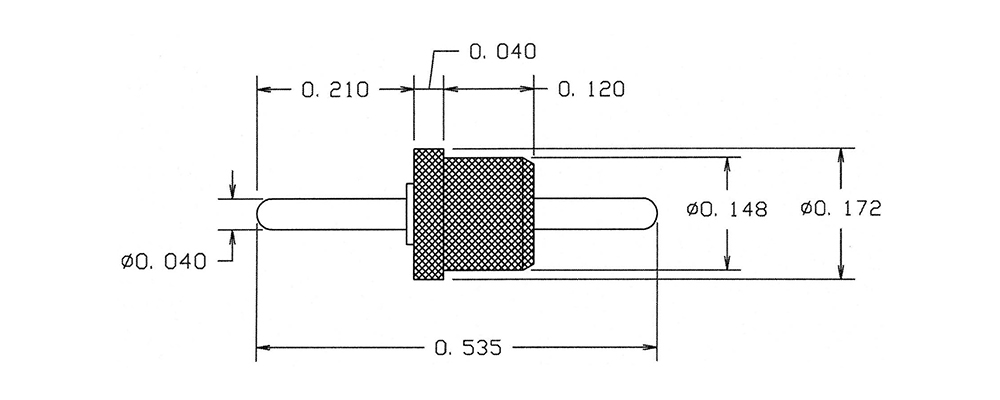

1110-24-04411
1110-24-04411
1110-24-04411
0.535" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Brown NO

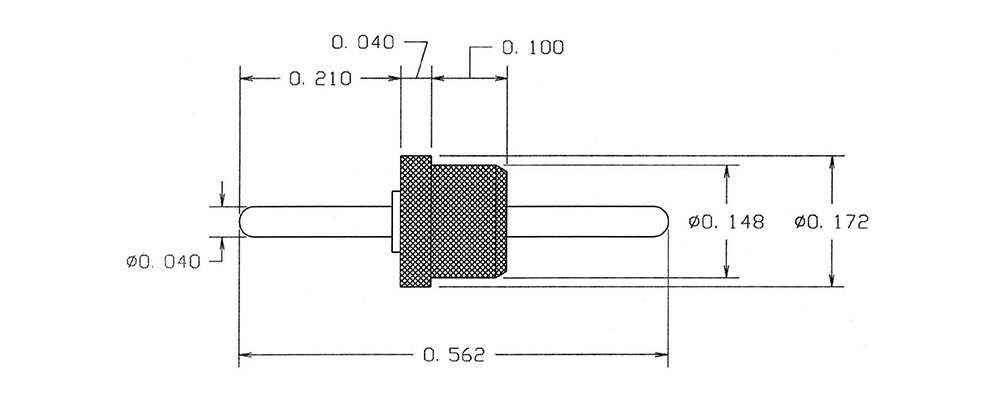

1110-28-0517
1110-28-0517
1110-28-0517
0.562" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Violet NO
1110-33-0113
1110-33-0113
1110-33-0113
0.725" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Silver - - PTFE Orange NO

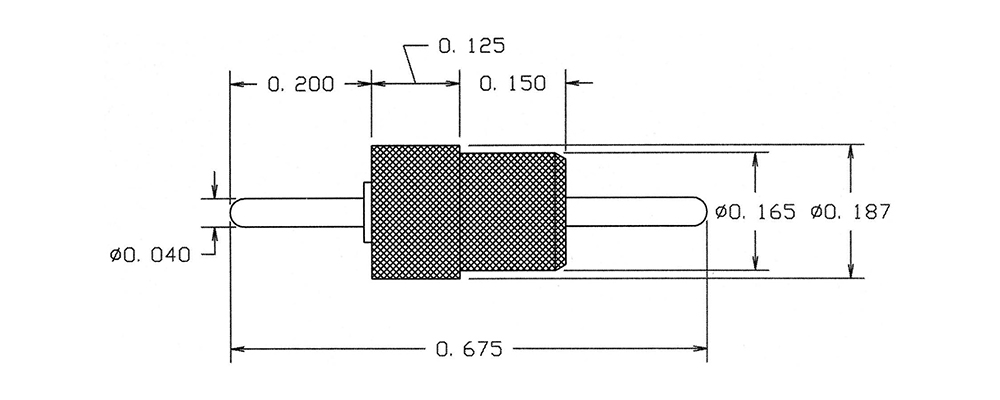

1110-40-0319
1110-40-0319
1110-40-0319
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Gold - - PTFE White YES

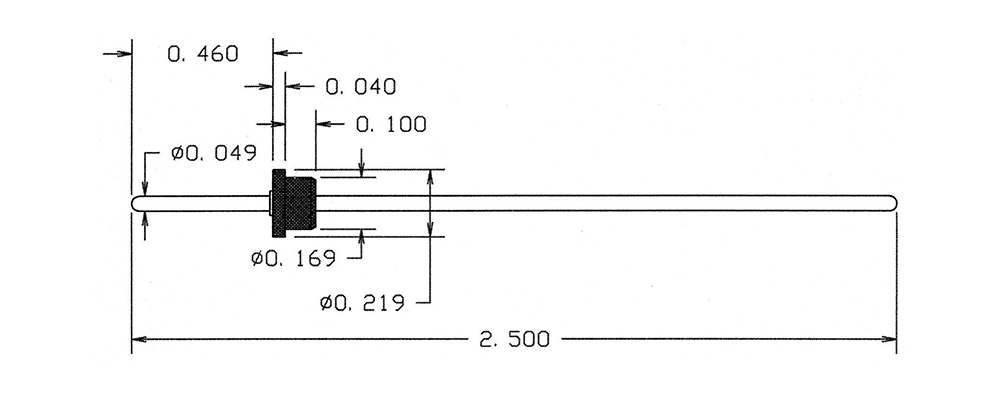

1110-44-04415
1110-44-04415
1110-44-04415
2.500" 0.049 Pin/Pin Press Fit 1/16 0.156 Brass Bright Tin - - PTFE Green YES
1110-48-08811
1110-48-08811
1110-48-08811
0.540" 0.046 Pin/Pin Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE Brown NO
1110-55-0117
1110-55-0117
1110-55-0117
0.515" 0.040 Pin/Pin Press Fit 1/16 0.166 Brass Silver - - PTFE Violet YES

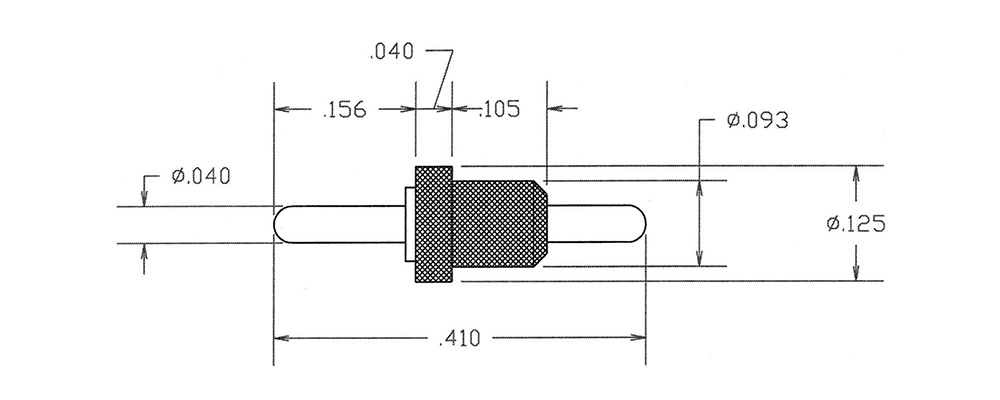

1110-61-0413
1110-61-0413
1110-61-0413
0.410" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Orange NO

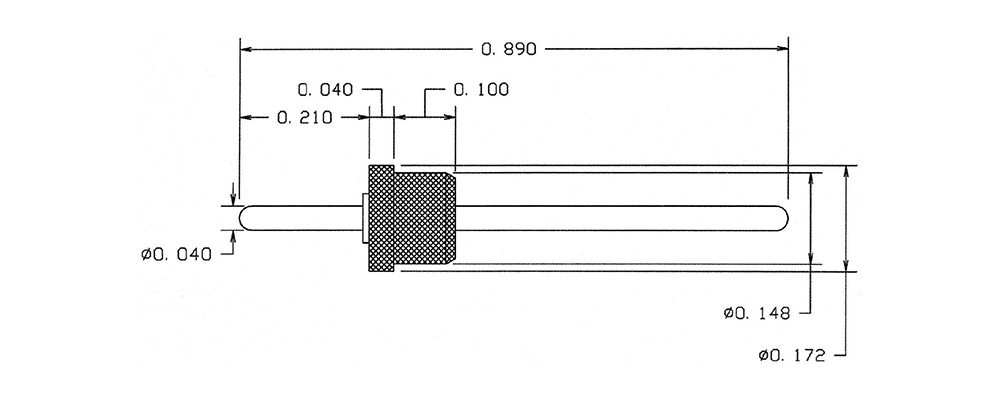

1110-66-04419
1110-66-04419
1110-66-04419
0.890" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE White YES

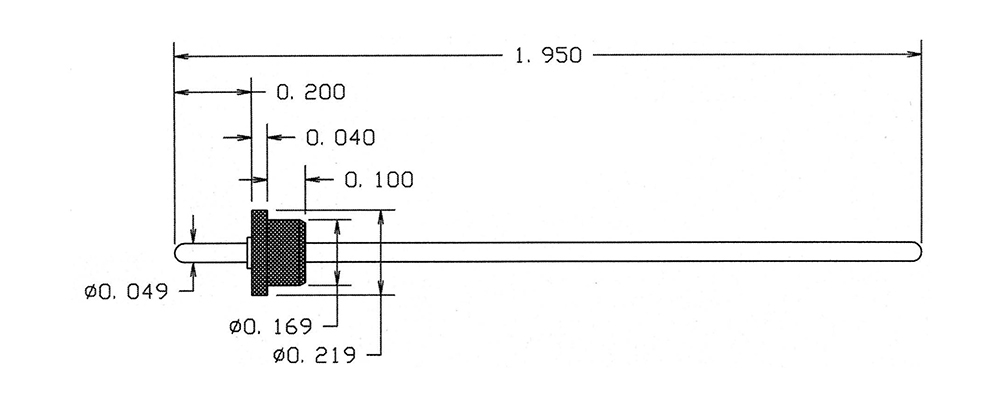

1110-70-08815
1110-70-08815
1110-70-08815
1.950" 0.049 Pin/Pin Press Fit 1/16 0.156 Brass Bright Tin-Lead - - PTFE Green NO
1110-76-0311
1110-76-0311
1110-76-0311
0.450" 0.018 Pin/Pin Press Fit 1/32 0.054 Brass Gold - - PTFE Brown NO
1110-93-0417
1110-93-0417
1110-93-0417
0.390" 0.035 Pin/Pin Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Violet YES
1111-02-0513
1111-02-0513
1111-02-0513
0.535" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.101 Brass Electro Solder - - PTFE Orange NO

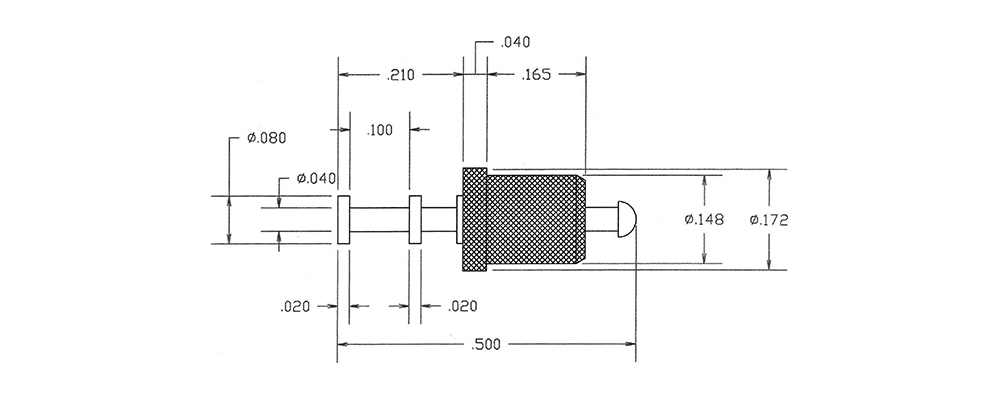

1111-10-08819
1111-10-08819
1111-10-08819
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE White NO

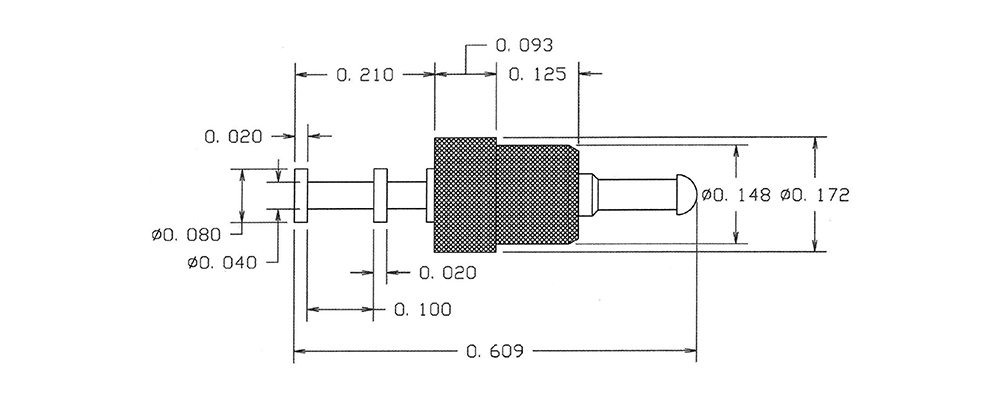

1111-15-0315
1111-15-0315
1111-15-0315
0.609" 0.040 DOUBLE Turret/Tip Press Fit 3/32 0.136 Brass Gold - - PTFE Green YES

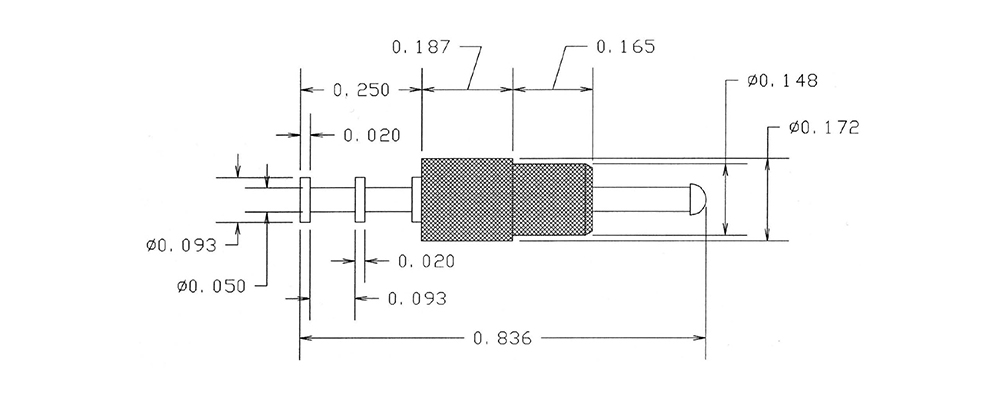

1111-20-04411
1111-20-04411
1111-20-04411
0.836" 0.050 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Brown NO
