Commercial
Insulated
Pin Terminals

Filter
1175-491-0517
1175-491-0517
1175-491-0517
0.800" - Double Turret/Double Turret PRESS LOCK 1/32 0.188 (+0.003/-0.001) Brass Electro Solder - - PTFE Violet NO
1175-601-0113
1175-601-0113
1175-601-0113
0.424" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Silver - - PTFE Orange NO
1175-702-0319
1175-702-0319
1175-702-0319
0.474" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Gold - - PTFE White YES
1175-712-04415
1175-712-04415
1175-712-04415
0.579" - DOUBLE Turret/Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Bright Tin - - PTFE Green YES
1175-722-08811
1175-722-08811
1175-722-08811
0.693" - Double Turret/Double Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Brown NO
1175-734-0117
1175-734-0117
1175-734-0117
0.537" - - PRESS LOCK 1/8 0.154 (+0.003/-0.001) Brass Silver - - PTFE Violet YES
1175-751-0413
1175-751-0413
1175-751-0413
0.655" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.154 (+0.003/-0.001) Brass Electro-Tin - - PTFE Orange NO
1175-762-04419
1175-762-04419
1175-762-04419
0.387" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Bright Tin - - PTFE White YES
1175-821-08815
1175-821-08815
1175-821-08815
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Green NO
1175-842-0311
1175-842-0311
1175-842-0311
0.433" - - PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Gold - - PTFE Brown NO
1175-872-0417
1175-872-0417
1175-872-0417
0.591" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Electro-Tin - - PTFE Violet YES
1177-02-0513
1177-02-0513
1177-02-0513
0.272" 0.040 - PRESS LOCK 1/32 - 1/16 0.093 Brass Electro Solder - - PTFE Orange NO
1177-11-08819
1177-11-08819
1177-11-08819
0.370" - - PRESS LOCK 1/32 - 1/16 0.136 Brass Bright Tin-Lead - - PTFE White NO

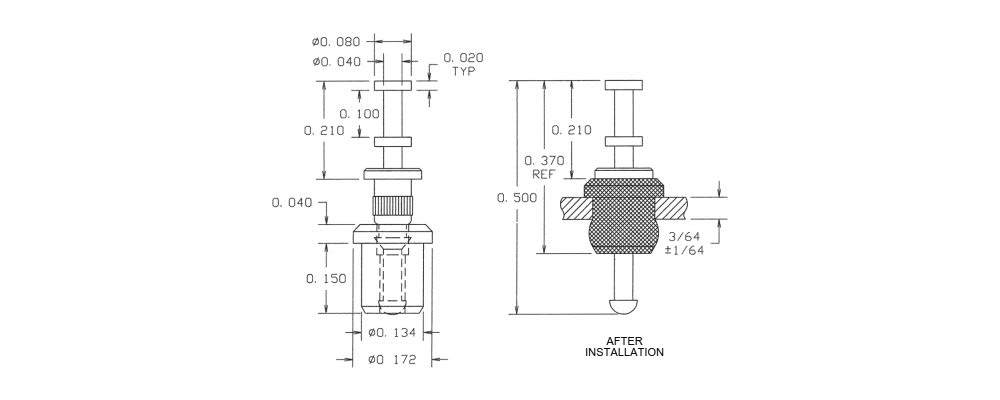

1177-32-0315
1177-32-0315
1177-32-0315
0.500" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 - 1/16 0.136 Brass Gold - - PTFE Green YES
1177-41-04411
1177-41-04411
1177-41-04411
0.387" 0.040 Pin/Slotted PRESS LOCK 1/32 - 1/16 0.109 Brass Bright Tin - - PTFE Brown NO
1177-52-0517
1177-52-0517
1177-52-0517
0.515" 0.040 Pin/Pin PRESS LOCK 1/32 - 1/16 0.086 Brass Electro Solder - - PTFE Violet NO
1177-57-0113
1177-57-0113
1177-57-0113
0.687" 0.050 Pin/Pin PRESS LOCK 1/32 - 1/16 0.136 Brass Silver - - PTFE Orange NO

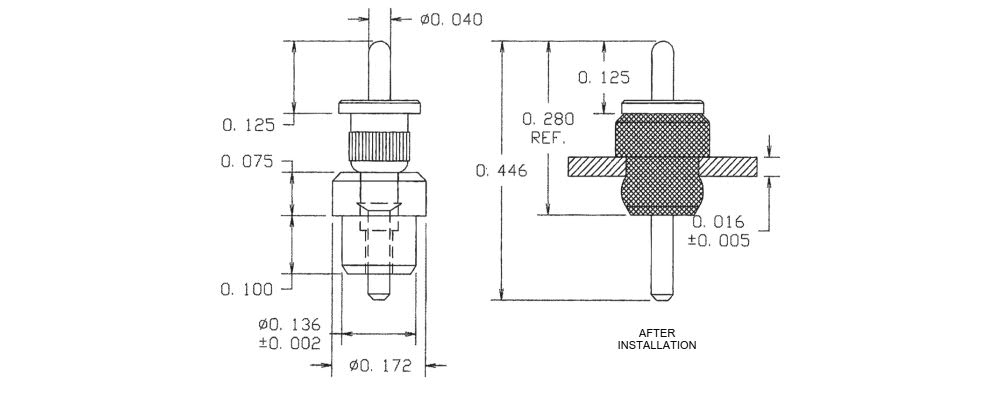

1177-61-0319
1177-61-0319
1177-61-0319
0.446" 0.040 Pin/Pin PRESS LOCK 1/64 0.138 Brass Gold - - PTFE White YES

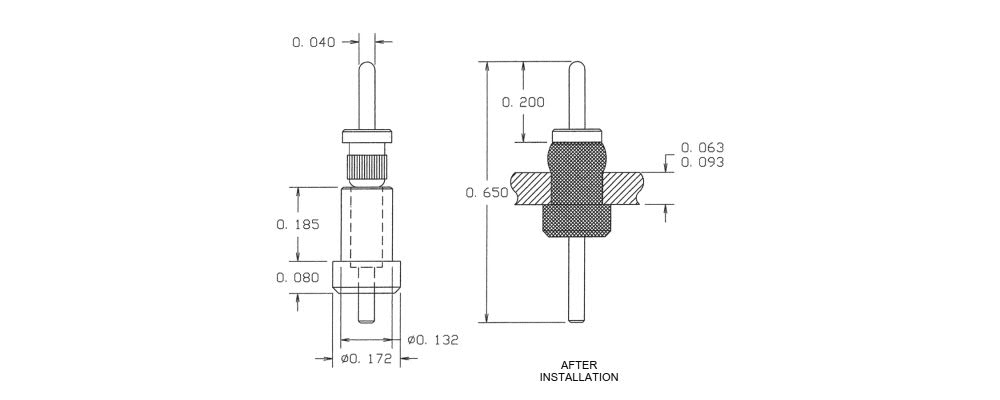

1178R-03-04415
1178R-03-04415
1178R-03-04415
0.650" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.134 Brass Bright Tin - - PTFE Green YES
1178R-10-08811
1178R-10-08811
1178R-10-08811
0.470" 0.040 Pin/Slotted PRESS LOCK 1/32 - 3/32 0.086 Brass Bright Tin-Lead - - PTFE Brown NO
