Commercial
Insulated
Pin Terminals

Filter
1111R-09-0110
1111R-09-0110
1111R-09-0110
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.136 Brass Silver - - PTFE Black YES
1110-09-0316
1110-09-0316
1110-09-0316
0.375" 0.040 Pin/Pin Press Fit 1/16 0.113 Brass Gold - - PTFE Blue YES
1151-09-08815
1151-09-08815
1151-09-08815
0.390" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Green NO
1110-09-0312
1110-09-0312
1110-09-0312
0.375" 0.040 Pin/Pin Press Fit 1/16 0.113 Brass Gold - - PTFE Red NO
1111R-09-0112
1111R-09-0112
1111R-09-0112
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.136 Brass Silver - - PTFE Red NO
1123-09-0510
1123-09-0510
1123-09-0510
1.197" 0.050 TIP/SLOTTED Press Fit 1/2 0.158 Brass Electro Solder - - PTFE Black NO
1100-09-0113
1100-09-0113
1100-09-0113
0.350" 0.040 - Press Fit 3/32 0.098 Brass Silver - - PTFE Orange NO
1114R-09-0111
1114R-09-0111
1114R-09-0111
0.193" 0.050 - Press Fit 1/32 0.113 Brass Silver - - PTFE Brown NO
1121-09-0116
1121-09-0116
1121-09-0116
0.385" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Silver - - PTFE Blue YES
1100R-09-0417
1100R-09-0417
1100R-09-0417
0.350" 0.040 - Press Fit 3/32 0.098 Brass Electro-Tin - - PTFE Violet YES
1151-09-04418
1151-09-04418
1151-09-04418
0.390" - - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Gray NO
1123-09-0113
1123-09-0113
1123-09-0113
1.197" 0.050 TIP/SLOTTED Press Fit 1/2 0.158 Brass Silver - - PTFE Orange NO
1151R-09-04416
1151R-09-04416
1151R-09-04416
0.390" - - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Blue YES
1135-09-0517
1135-09-0517
1135-09-0517
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Violet NO
1151R-09-0416
1151R-09-0416
1151R-09-0416
0.390" - - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Blue YES
1151R-09-04417
1151R-09-04417
1151R-09-04417
0.390" - - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Violet YES
1107-09-0315
1107-09-0315
1107-09-0315
0.819" 0.040 Pin/Pin Press Fit Up to 3/16 0.158 Brass Gold - - PTFE Green YES
1111R-09-0117
1111R-09-0117
1111R-09-0117
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.136 Brass Silver - - PTFE Violet YES
1107-09-0311
1107-09-0311
1107-09-0311
0.819" 0.040 Pin/Pin Press Fit Up to 3/16 0.158 Brass Gold - - PTFE Brown NO

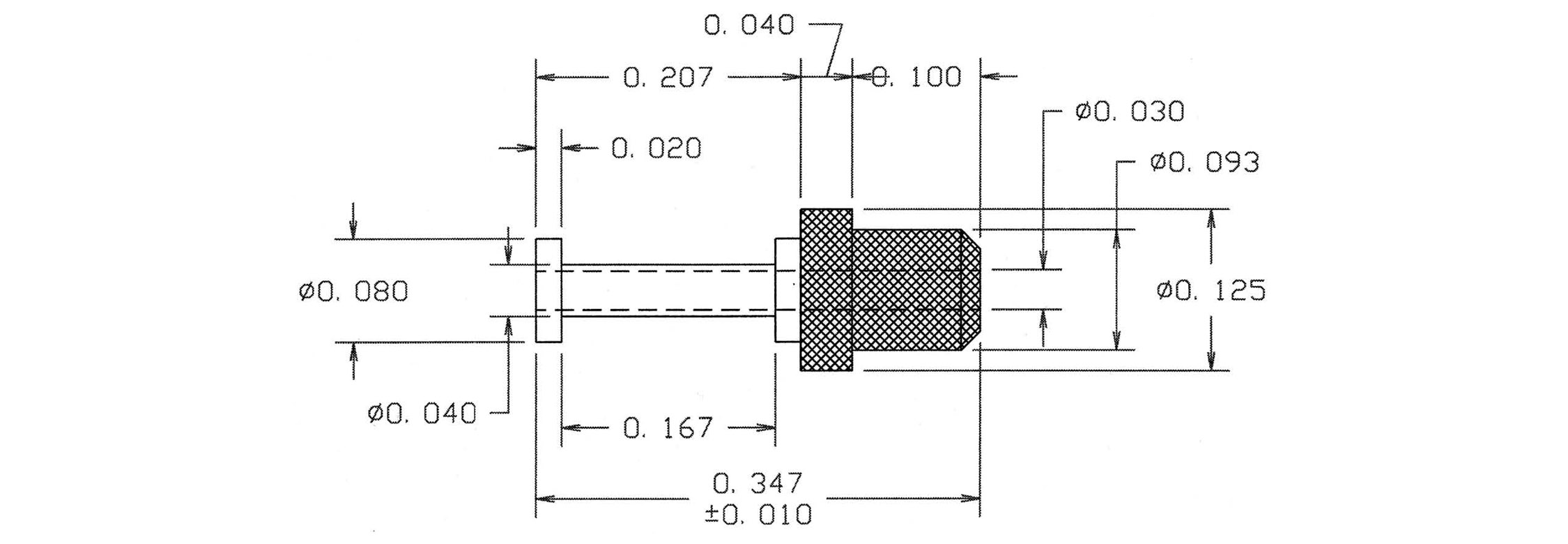

1155-07-04419
1155-07-04419
1155-07-04419
0.347" - - Press Fit 1/16 0.086 Brass Bright Tin - - PTFE White YES
