Commercial
Insulated
Pin Terminals

Filter
1114-24-0513
1114-24-0513
1114-24-0513
0.367" 0.085 - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Orange NO
1100-09-0113
1100-09-0113
1100-09-0113
0.350" 0.040 - Press Fit 3/32 0.098 Brass Silver - - PTFE Orange NO
1114-27-08819
1114-27-08819
1114-27-08819
0.367" 0.085 - Press Fit 1/16 0.158 Brass Bright Tin-Lead - - PTFE White NO
1100-14-0319
1100-14-0319
1100-14-0319
0.280" 0.040 - Press Fit 3/32 0.136 Brass Gold - - PTFE White YES
1123R-75-0315
1123R-75-0315
1123R-75-0315
0.426" - - Press Fit 1/8 0.172 Brass Gold - - PTFE Green YES

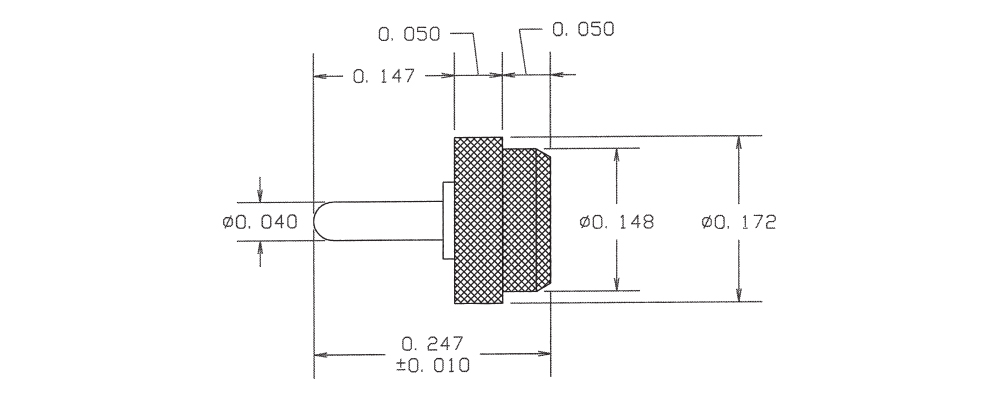

1100-18-04415
1100-18-04415
1100-18-04415
0.247" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Green YES

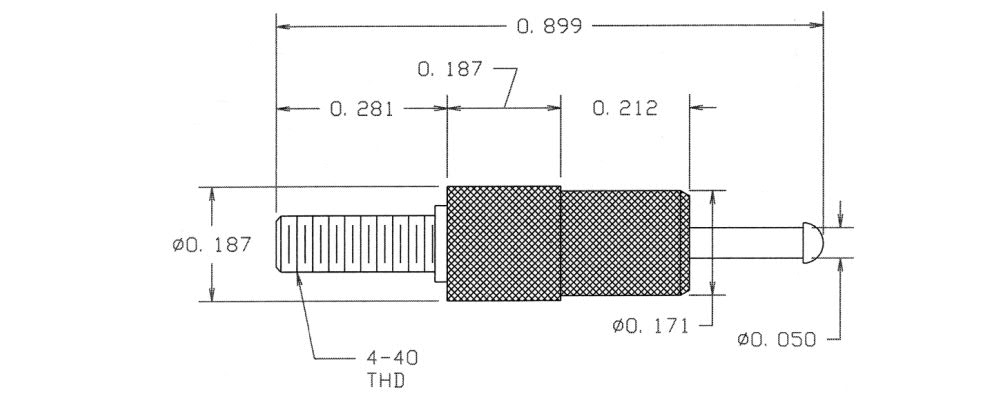

1124-10-04411
1124-10-04411
1124-10-04411
0.899" 0.050 THREAD/TIP Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Brown NO

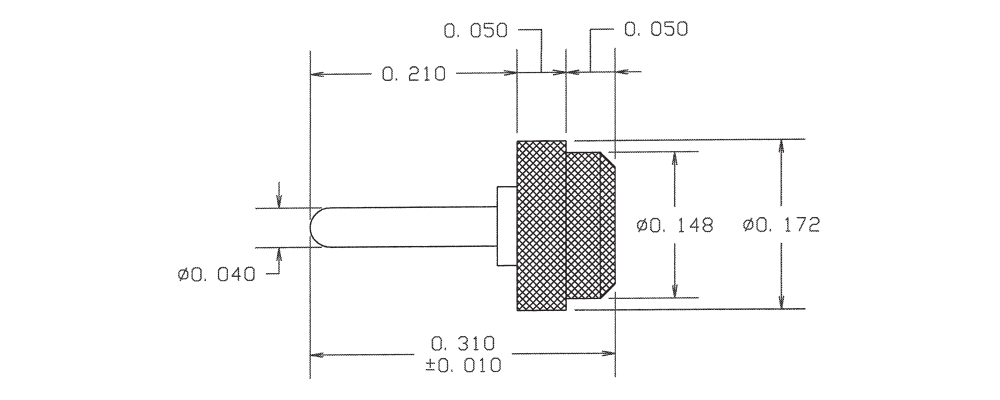

1100-22-08811
1100-22-08811
1100-22-08811
0.310" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Brown NO
1125-80-0517
1125-80-0517
1125-80-0517
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Electro Solder ZINC Brass PTFE Violet NO

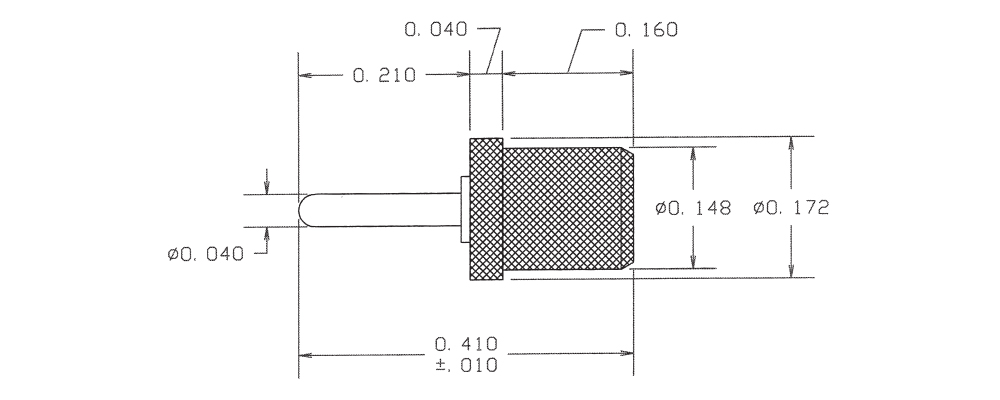

1100-34-0117
1100-34-0117
1100-34-0117
0.410" 0.040 - Press Fit 1/8 0.136 Brass Silver - - PTFE Violet YES
1110-95-0113
1110-95-0113
1110-95-0113
0.778" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Silver - - PTFE Orange NO

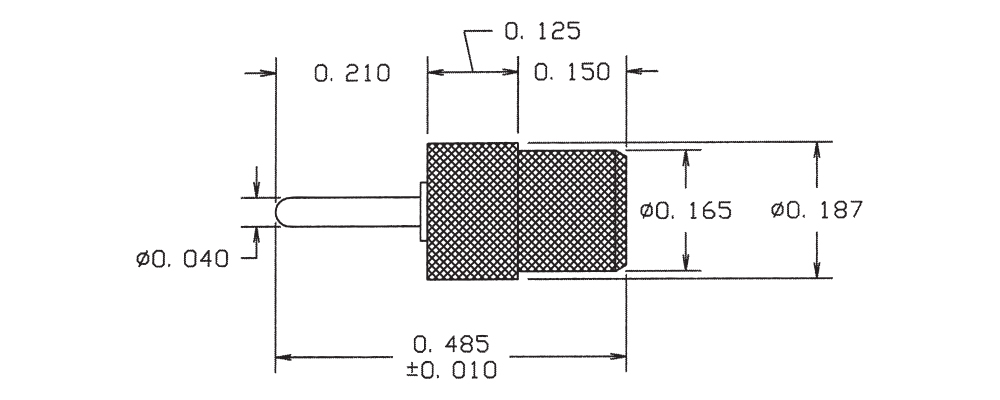

1100-43-0413
1100-43-0413
1100-43-0413
0.485" 0.040 - Press Fit 1/8 0.152 Brass Electro-Tin - - PTFE Orange NO
1100-48-04419
1100-48-04419
1100-48-04419
0.600" 0.062 - Press Fit 1/8 0.167 Brass Bright Tin - - PTFE White YES

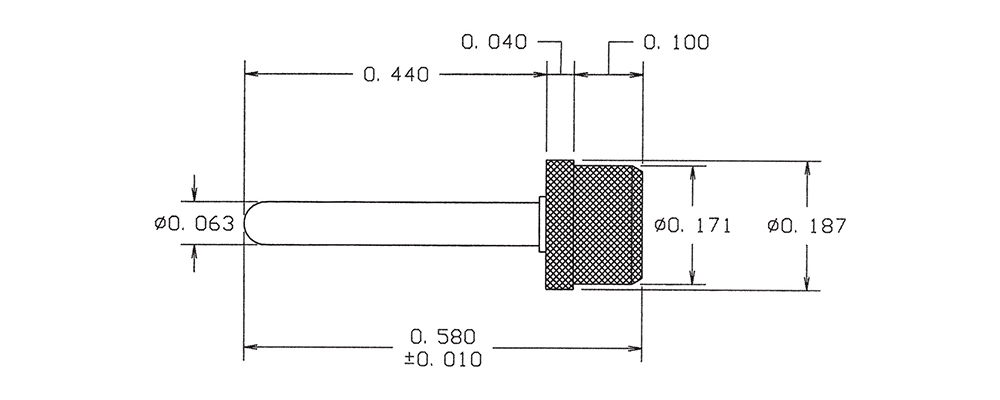

1100-73-08815
1100-73-08815
1100-73-08815
0.580" 0.063 - Press Fit 1/16 0.158 Brass Bright Tin-Lead - - PTFE Green NO

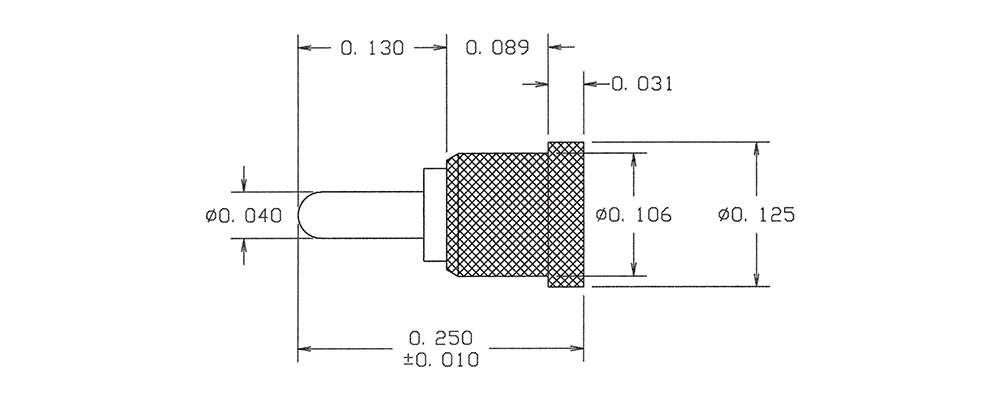

1100R-08A-0311
1100R-08A-0311
1100R-08A-0311
0.250" 0.040 - Press Fit 1/16 0.091 Brass Gold - - PTFE Brown NO

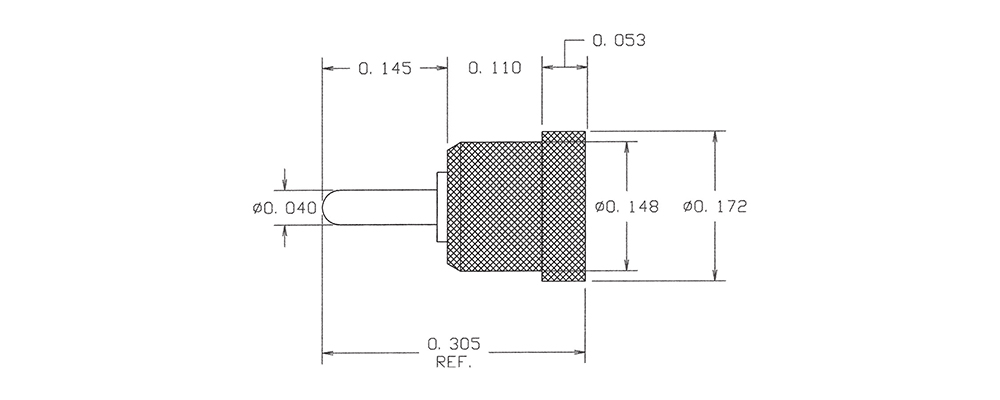

1100R-17-0417
1100R-17-0417
1100R-17-0417
0.305" 0.040 - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Violet YES

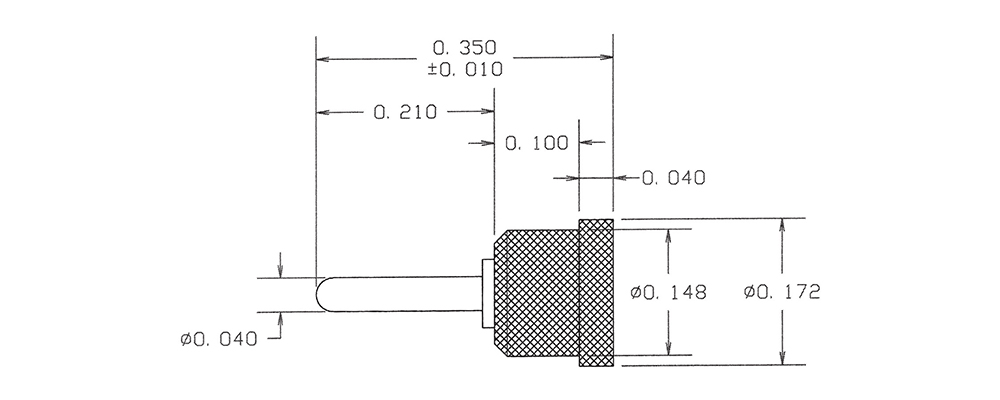

1100R-28-0513
1100R-28-0513
1100R-28-0513
0.350" 0.040 - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Orange NO
1100R-63-08819
1100R-63-08819
1100R-63-08819
0.672" 0.040 (+0.002/-0.001) - Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE White NO

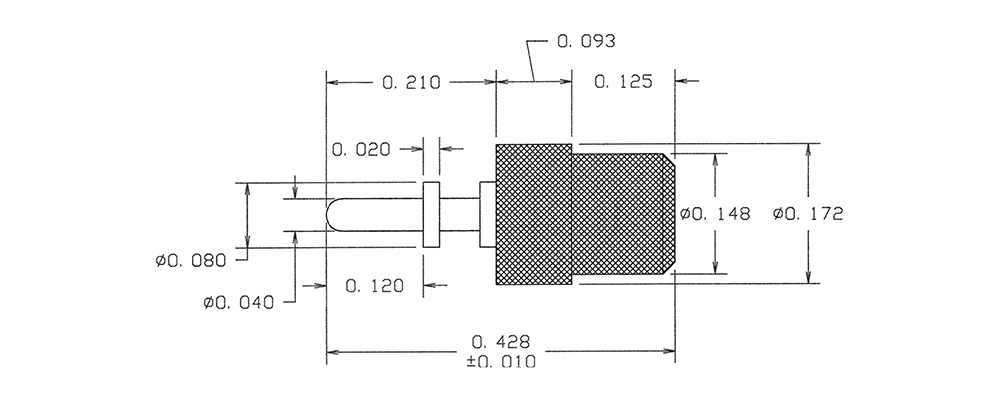

1101-05-0315
1101-05-0315
1101-05-0315
0.428" - - Press Fit 3/32 0.136 Brass Gold - - PTFE Green YES

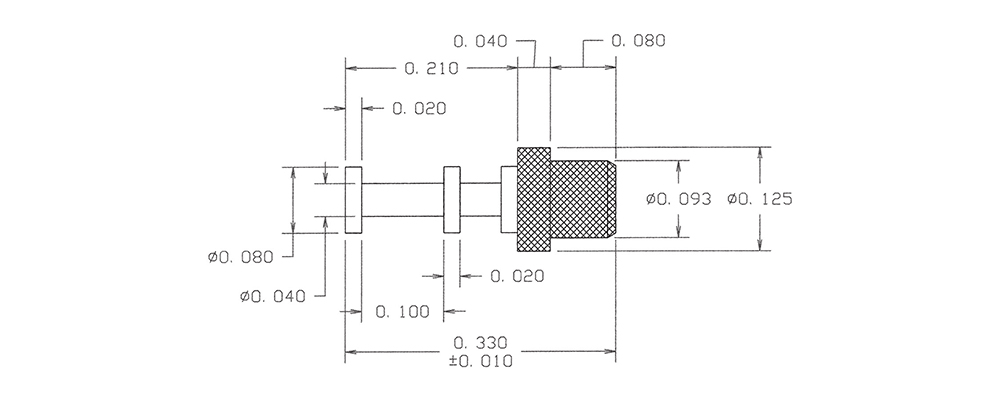

1102-02-04411
1102-02-04411
1102-02-04411
0.330" - - Press Fit 1/32 0.086 Brass Bright Tin - - PTFE Brown NO
