Commercial
Insulated
Pin Terminals

Filter
1153-06-04414
1153-06-04414
1153-06-04414
0.515" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Yellow NO
1153-31-08810
1153-31-08810
1153-31-08810
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Bright Tin-Lead - - PTFE Black NO

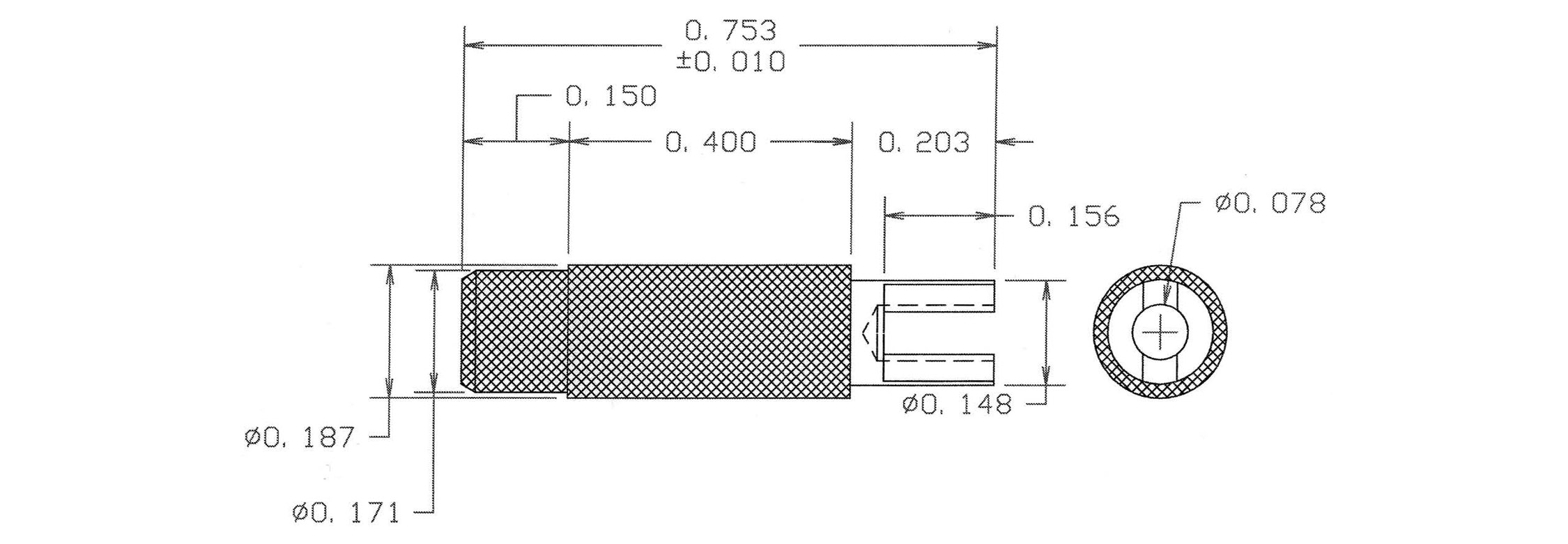

1154-10-0116
1154-10-0116
1154-10-0116
0.753" - - Press Fit 1/8 0.158 Brass Silver - - PTFE Blue YES
1154-44-0412
1154-44-0412
1154-44-0412
0.821" 0.050 Pin/Slotted Press Fit Up to 3/16 0.158 Brass Electro-Tin - - PTFE Red NO
1155-01-04418
1155-01-04418
1155-01-04418
0.427" - - Press Fit Up to 3/16 0.204 Brass Bright Tin - - PTFE Gray NO
1155-07-08814
1155-07-08814
1155-07-08814
0.347" - - Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Yellow NO
1156-02-0310
1156-02-0310
1156-02-0310
0.500" 0.035 DOUBLE Turret/Tip Press Fit 1/16 0.086 Brass Gold - - PTFE Black YES
1156-07-0416
1156-07-0416
1156-07-0416
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Blue YES
1156-14-0512
1156-14-0512
1156-14-0512
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Red NO
1156-18-08818
1156-18-08818
1156-18-08818
0.828" 0.050 DOUBLE Turret/Tip Press Fit 5/32 0.158 Brass Bright Tin-Lead - - PTFE Gray NO

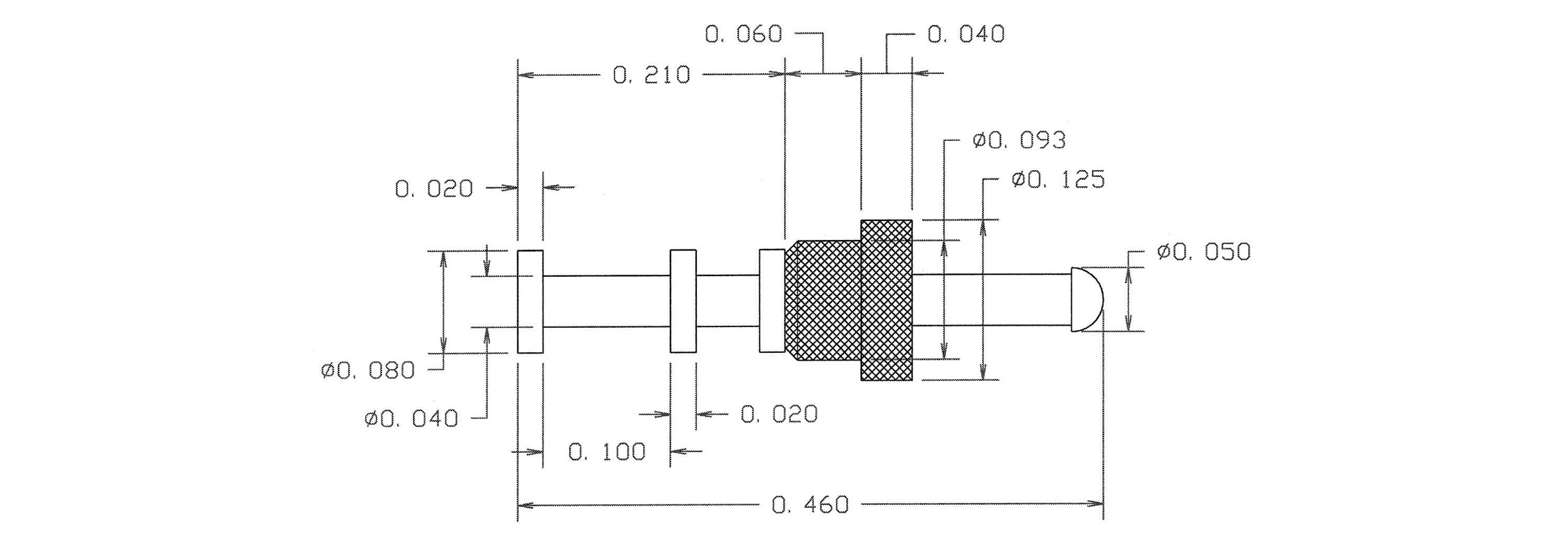

1156R-01-0314
1156R-01-0314
1156R-01-0314
0.460" 0.040 DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Gold - - PTFE Yellow NO
1157-01-04410
1157-01-04410
1157-01-04410
0.350" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Black YES
1157-06-0516
1157-06-0516
1157-06-0516
1.115" 0.050 TURRET/PIN Press Fit 11/32 0.158 Brass Electro Solder - - PTFE Blue NO
1157R-05-0112
1157R-05-0112
1157R-05-0112
0.865" 0.050 TURRET/PIN Press Fit 7/32 0.158 Brass Silver - - PTFE Red NO
1160-13-0318
1160-13-0318
1160-13-0318
0.367" 0.085 - Press Fit 1/16 0.136 Brass Gold - - PTFE Gray NO
1167-20-04414
1167-20-04414
1167-20-04414
0.843" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Yellow YES
1167-67-08810
1167-67-08810
1167-67-08810
0.875" - - 6-32 Nut 1/8 0.144 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Black NO
1169-30-0116
1169-30-0116
1169-30-0116
0.671" 0.060 - 2-56 Nut 1/8 0.094 Brass Silver ZINC Brass DIALLYL PHTHALATE Blue YES
1169-37-0412
1169-37-0412
1169-37-0412
0.750" - - 4-40 Nut 1/8 0.120 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Red YES

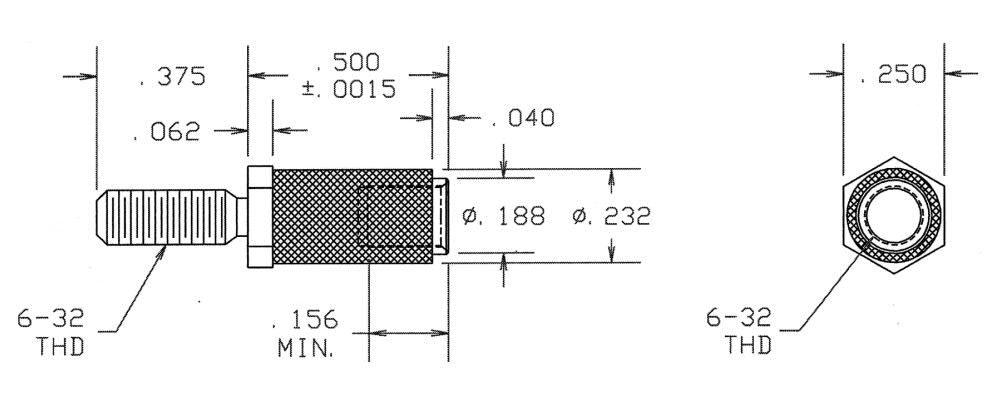

1170-04-07518
1170-04-07518
1170-04-07518
0.875" - - 6-32 Nut Up to 1/4 0.144 Brass ZINC ZINC Brass DIALLYL PHTHALATE Gray YES
