Commercial
Insulated
Pin Terminals

Filter
1130-07-0314
1130-07-0314
1130-07-0314
2.083" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Gold - - PTFE Yellow NO
1130R-05-04410
1130R-05-04410
1130R-05-04410
1.531" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Bright Tin - - PTFE Black YES
1131-02-0516
1131-02-0516
1131-02-0516
0.648" (0.040)/(0.090) Pin/Tip Press Fit Up to 1/4 0.172 Brass Electro Solder - - PTFE Blue NO

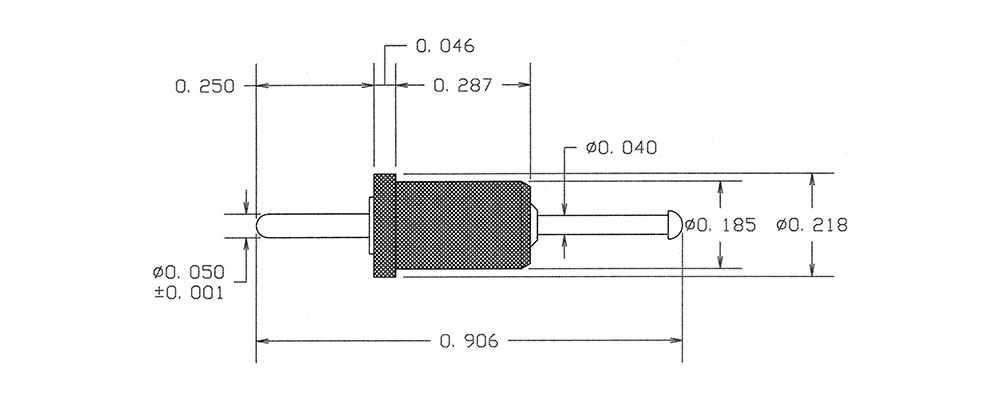

1131-07-0112
1131-07-0112
1131-07-0112
0.906" (0.040)/(0.050) Pin/Tip Press Fit Up to 1/4 0.172 Brass Silver - - PTFE Red NO
1132-01-0318
1132-01-0318
1132-01-0318
0.645" 0.090 - Solder 7/32 0.0935 Brass Gold - - PTFE Gray NO
1133-02-04414
1133-02-04414
1133-02-04414
0.836" 0.040 DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 Brass Bright Tin - - PTFE Yellow NO
1133R-05-08810
1133R-05-08810
1133R-05-08810
0.450" 0.040 TURRET/PIN Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Black NO
1135-05-0116
1135-05-0116
1135-05-0116
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Silver - - PTFE Blue YES
1135-09-0412
1135-09-0412
1135-09-0412
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Red NO
1137-02-04418
1137-02-04418
1137-02-04418
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Bright Tin - - PTFE Gray NO
1139-03-08814
1139-03-08814
1139-03-08814
0.448" 0.030 Pin/Pin Press Fit 1/16 0.070 Brass Bright Tin-Lead - - PTFE Yellow NO
1151-05-0310
1151-05-0310
1151-05-0310
0.350" - - Press Fit 1/16 0.136 Brass Gold - - PTFE Black YES
1151-11-0416
1151-11-0416
1151-11-0416
0.455" - - Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Blue YES

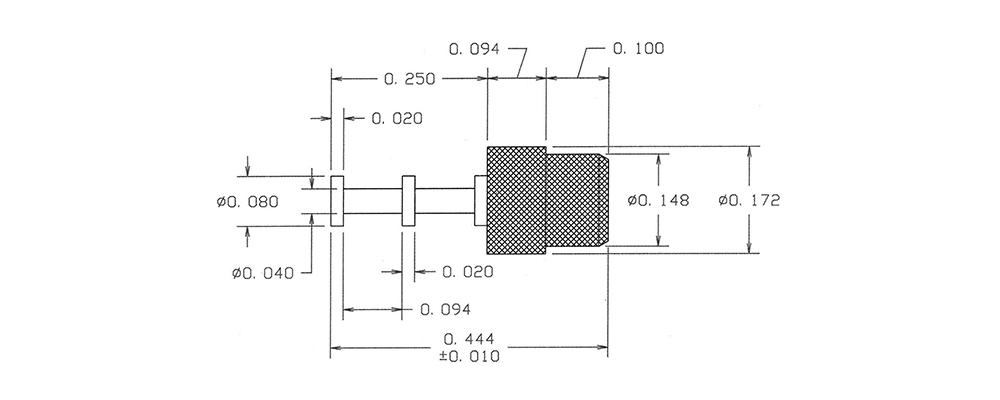

1151-19-0512
1151-19-0512
1151-19-0512
0.444" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Red NO

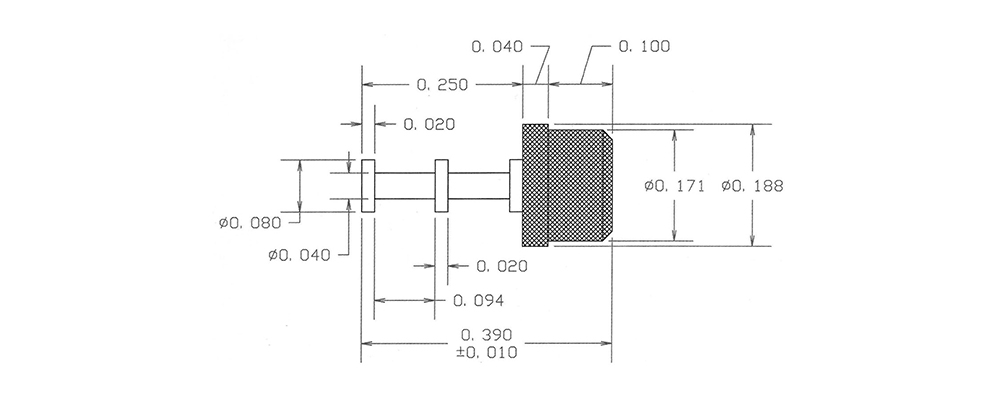

1151-38-08818
1151-38-08818
1151-38-08818
0.390" - - Press Fit 1/16 0.158 Brass Bright Tin-Lead - - PTFE Gray NO

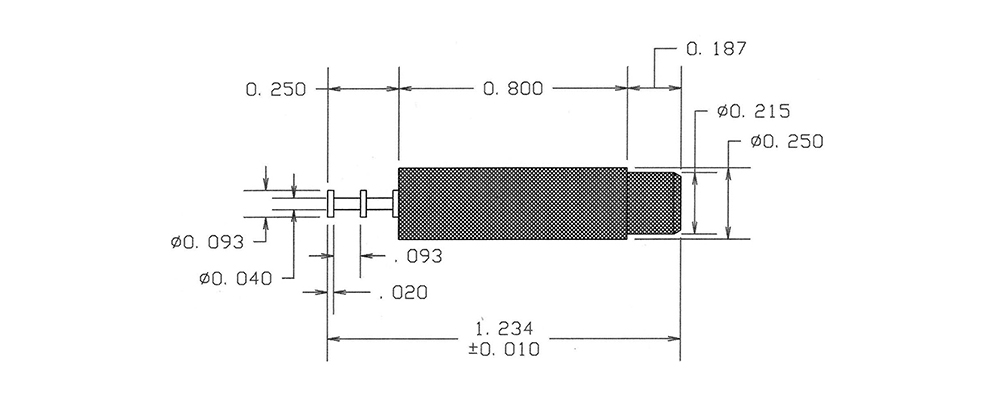

1151-51-0314
1151-51-0314
1151-51-0314
1.234" - - Press Fit 5/32 0.203 Brass Gold - - PTFE Yellow NO
1151R-09-04410
1151R-09-04410
1151R-09-04410
0.390" - - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Black YES

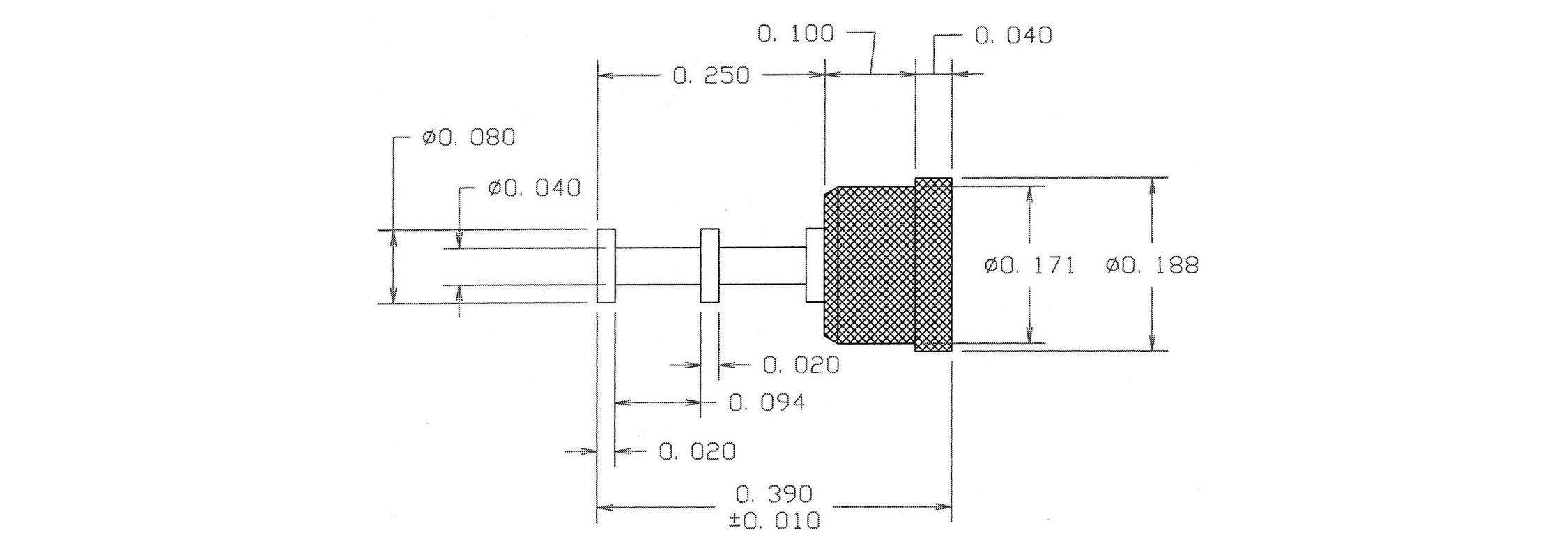

1151R-38-0516
1151R-38-0516
1151R-38-0516
0.390" - - Press Fit 1/16 0.158 Brass Electro Solder - - PTFE Blue NO
1152-31-0112
1152-31-0112
1152-31-0112
0.750" 0.040 - Press Fit 1/16 0.203 Brass Silver - - PTFE Red NO
1152R-17-0318
1152R-17-0318
1152R-17-0318
0.615" 0.040 - Press Fit 1/8 0.136 Brass Gold - - PTFE Gray NO
