Commercial
Insulated
Pin Terminals

Filter
1178R-15-0512
1178R-15-0512
1178R-15-0512
0.390" - - PRESS LOCK 1/32 - 5/64 0.134 Brass Electro Solder - - PTFE Red NO
1102R-95-08818
1102R-95-08818
1102R-95-08818
0.812" - - Press Fit 13/64 0.297 Brass Bright Tin-Lead - - PTFE Gray NO
1125-03-0314
1125-03-0314
1125-03-0314
0.485" - - 4-40 1/8 4-40 THREAD Brass Gold Electro-Tin Brass PTFE Yellow NO

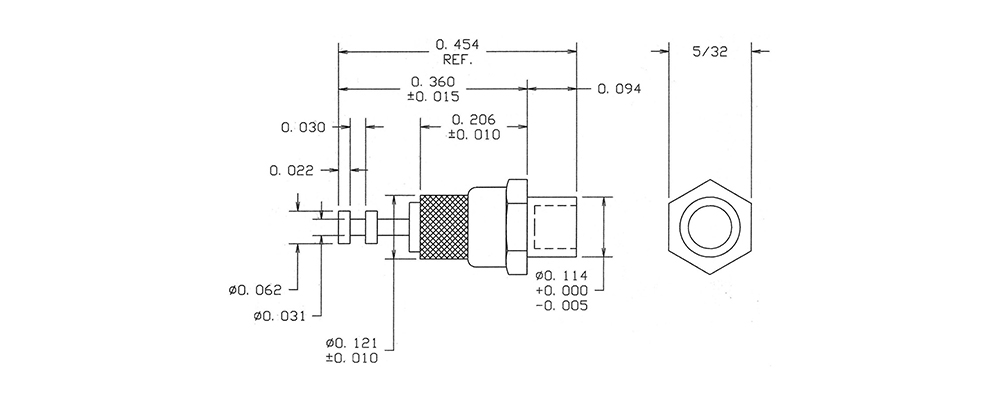

1125-07-04410
1125-07-04410
1125-07-04410
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Bright Tin Electro-Tin Brass PTFE Black YES
1125-11-0516
1125-11-0516
1125-11-0516
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Electro Solder Electro-Tin Brass PTFE Blue NO

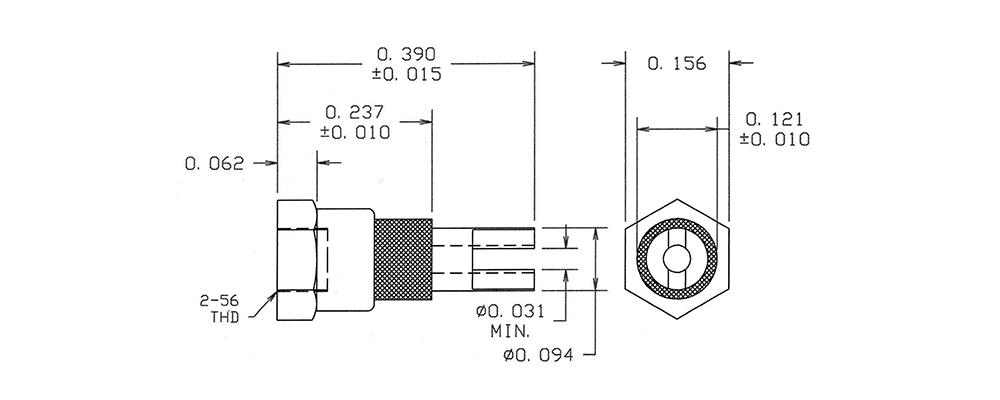

1125-16-0112
1125-16-0112
1125-16-0112
0.390" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Silver Electro-Tin Brass PTFE Red NO

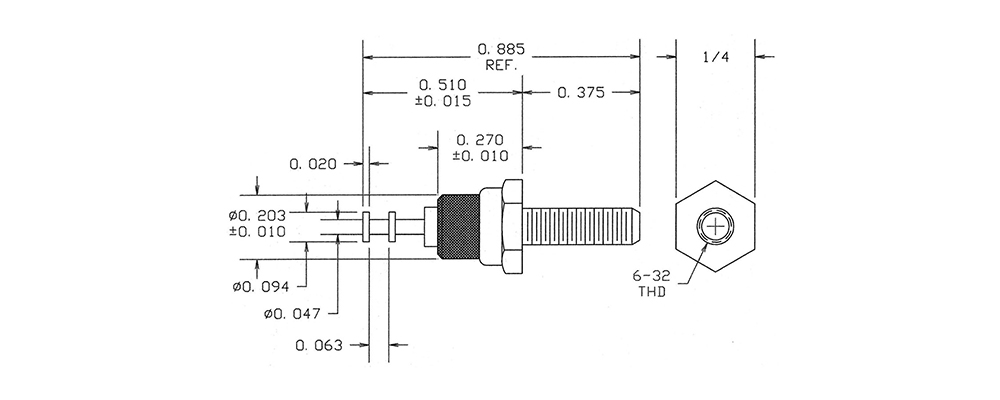

1125-20-0318
1125-20-0318
1125-20-0318
0.885" - - 6-32 Nut 7/32 0.144 Brass Gold Electro-Tin Brass PTFE Gray NO
1125-24-04414
1125-24-04414
1125-24-04414
0.885" - - 4-40 Nut Up to 1/4 0.120 Brass Bright Tin Electro-Tin Brass PTFE Yellow NO
1125-28-08810
1125-28-08810
1125-28-08810
0.615" - - Swage Mount 1/16 0.116 ±0.001 Brass Bright Tin-Lead Electro-Tin Brass PTFE Black NO
1100-29-0116
1100-29-0116
1100-29-0116
0.350" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE Blue YES
1100-49-0412
1100-49-0412
1100-49-0412
0.350" 0.040 - Press Fit 1/16 0.205 Brass Electro-Tin - - PTFE Red NO
1100R-23A-04418
1100R-23A-04418
1100R-23A-04418
0.330" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Gray NO
1100R-36-08814
1100R-36-08814
1100R-36-08814
0.390" 0.040 - Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO
1100R-54-0310
1100R-54-0310
1100R-54-0310
1.133" 0.040 - Press Fit 7/32 0.172 Brass Gold - - PTFE Black YES
1101R-01-0416
1101R-01-0416
1101R-01-0416
0.328" 0.040 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Blue YES
09-2010-1-0517
09-2010-1-0517
09-2010-1-0517
0.436" 0.040 Pin/Tip Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Violet NO
1102-44-0513
1102-44-0513
1102-44-0513
0.750" - - Press Fit 1/16 0.152 Brass Electro Solder - - PTFE Orange NO

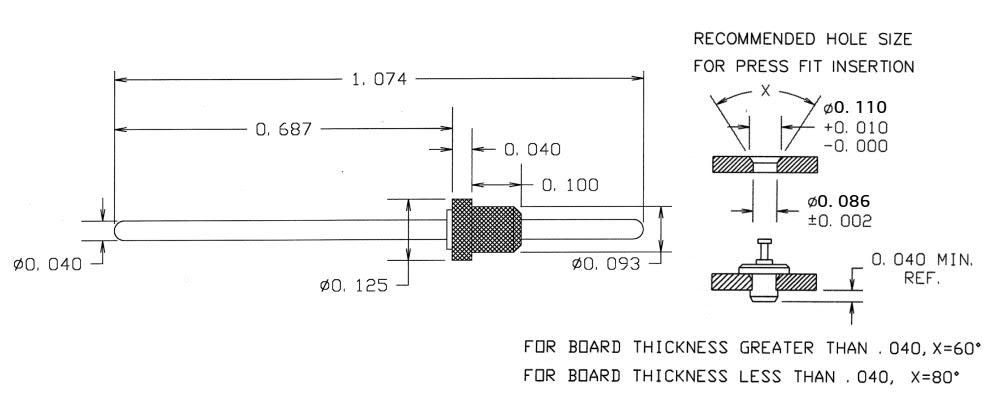

09-2084-1-0113
09-2084-1-0113
09-2084-1-0113
1.074" 0.040 ± 0.010 Pin/Pin Press Fit 1/16 0.086 Brass Silver - - PTFE Orange NO
1110-39-08819
1110-39-08819
1110-39-08819
0.515" 0.040 Pin/Pin Press Fit 1/16 0.144 Brass Bright Tin-Lead - - PTFE White NO

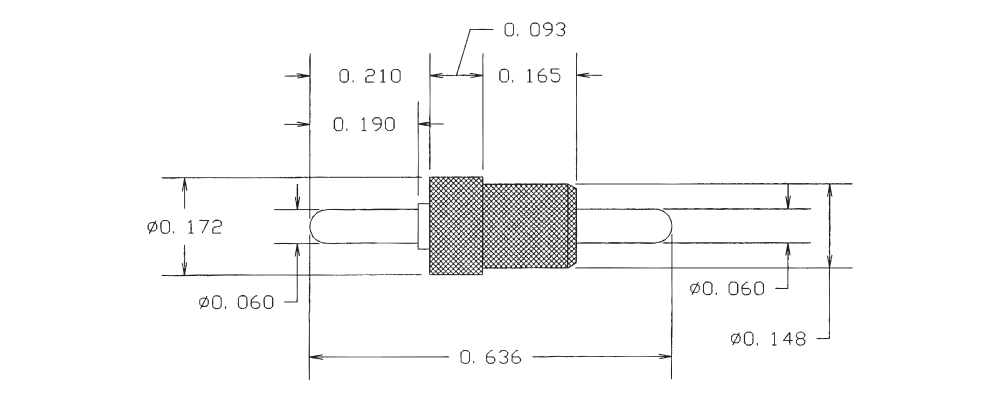

09-2095-1-0319
09-2095-1-0319
09-2095-1-0319
0.636" 0.060 ± 0.010 Pin/Pin Press Fit 1/8 0.136 Brass Gold - - PTFE White YES
