Commercial
Insulated
Pin Terminals

Filter
1130-07-0519
1130-07-0519
1130-07-0519
2.083" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Electro Solder - - PTFE White NO
1130R-06-0115
1130R-06-0115
1130R-06-0115
1.937" (0.030)/(0.050) Pin/Pin Press Fit 3/32 0.172 Brass Silver - - PTFE Green YES
1131-03-0411
1131-03-0411
1131-03-0411
0.562" (0.040)/(0.050) Pin/Tip Press Fit 3/32 0.172 Brass Electro-Tin - - PTFE Brown NO

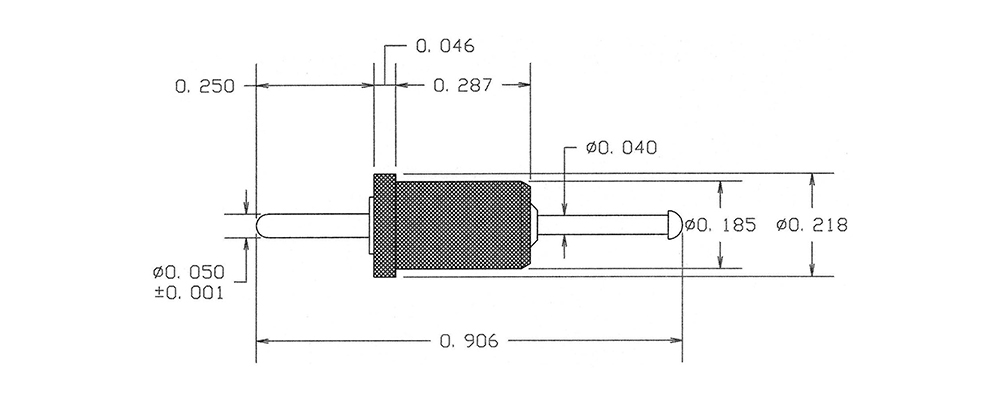

1131-07-04417
1131-07-04417
1131-07-04417
0.906" (0.040)/(0.050) Pin/Tip Press Fit Up to 1/4 0.172 Brass Bright Tin - - PTFE Violet YES
1132-01-08813
1132-01-08813
1132-01-08813
0.645" 0.090 - Solder 7/32 0.0935 Brass Bright Tin-Lead - - PTFE Orange NO
1133-03-0119
1133-03-0119
1133-03-0119
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 1/16 0.086 Brass Silver - - PTFE White YES
1135-01-0415
1135-01-0415
1135-01-0415
0.510" 0.030 Pin/Slotted Press Fit 1/32 0.070 Brass Electro-Tin - - PTFE Green YES
1135-05-0511
1135-05-0511
1135-05-0511
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Electro Solder - - PTFE Brown NO
1135-09-08817
1135-09-08817
1135-09-08817
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Violet NO

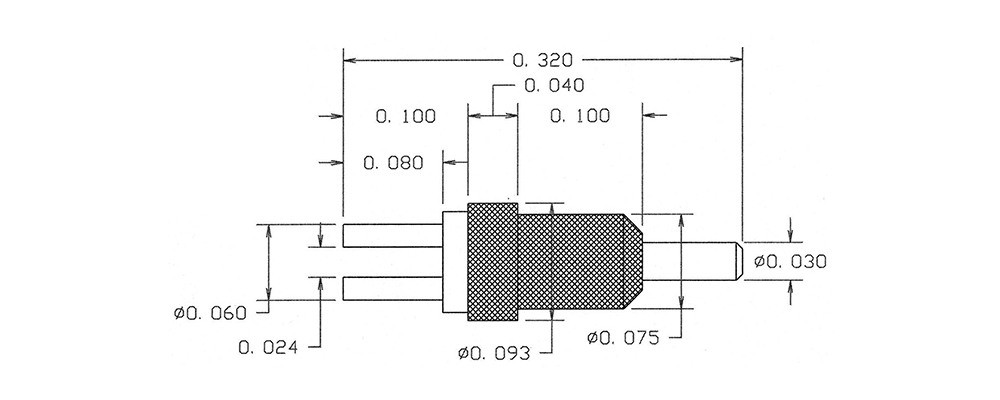

1137-03-0313
1137-03-0313
1137-03-0313
0.320" 0.030 Pin/Slotted Press Fit 1/16 0.070 Brass Gold - - PTFE Orange NO
1139-04-0419
1139-04-0419
1139-04-0419
0.405" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE White YES
1151-05-0515
1151-05-0515
1151-05-0515
0.350" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Green NO

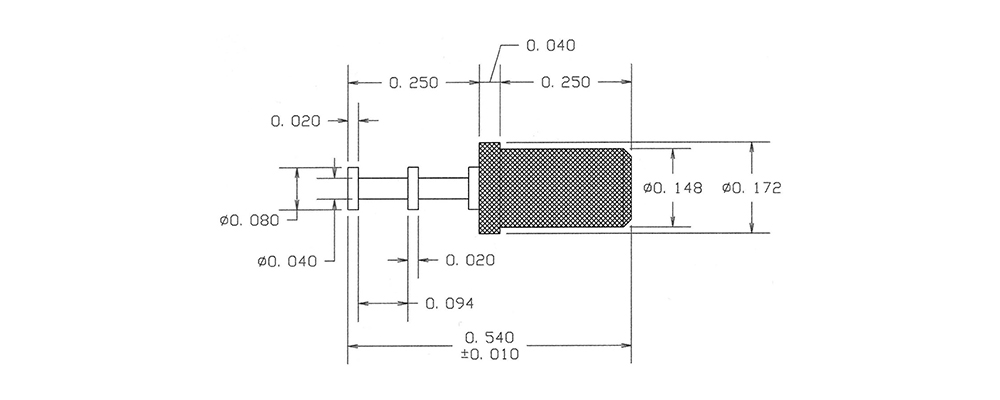

1151-12-0111
1151-12-0111
1151-12-0111
0.540" - - Press Fit 7/32 0.136 Brass Silver - - PTFE Brown NO

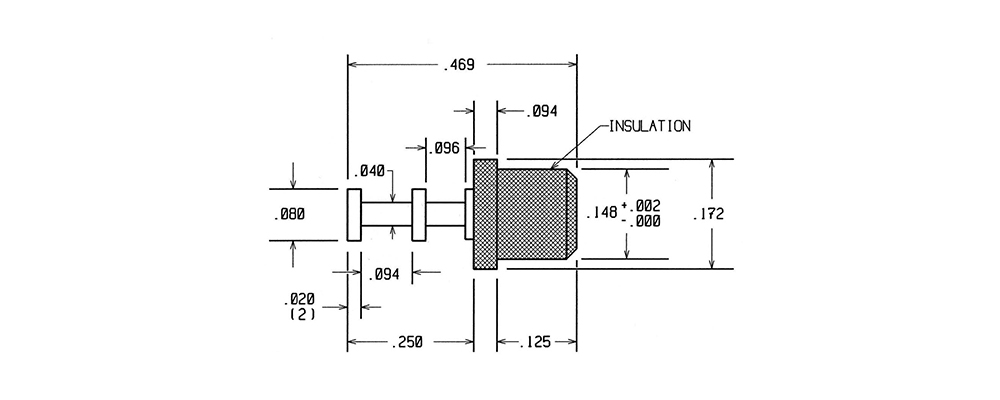

1151-20-0317
1151-20-0317
1151-20-0317
0.469" - - Press Fit 3/32 0.136 Brass Gold - - PTFE Violet YES

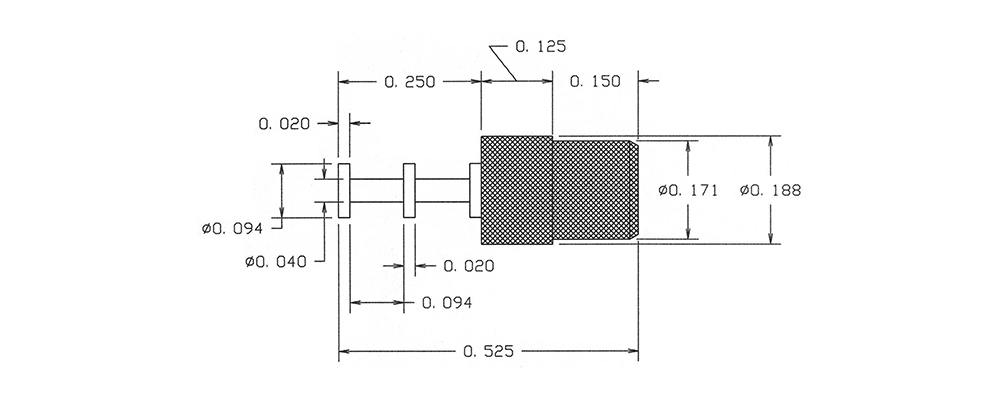

1151-39-04413
1151-39-04413
1151-39-04413
0.525" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Orange NO

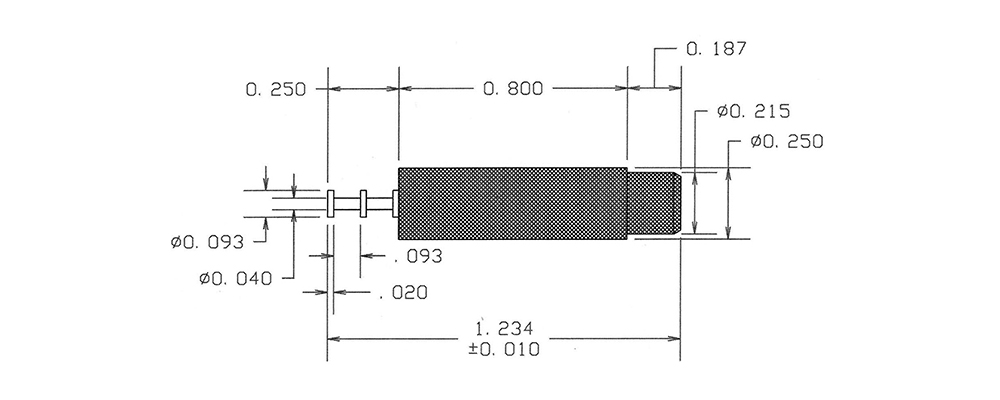

1151-51-0519
1151-51-0519
1151-51-0519
1.234" - - Press Fit 5/32 0.203 Brass Electro Solder - - PTFE White NO

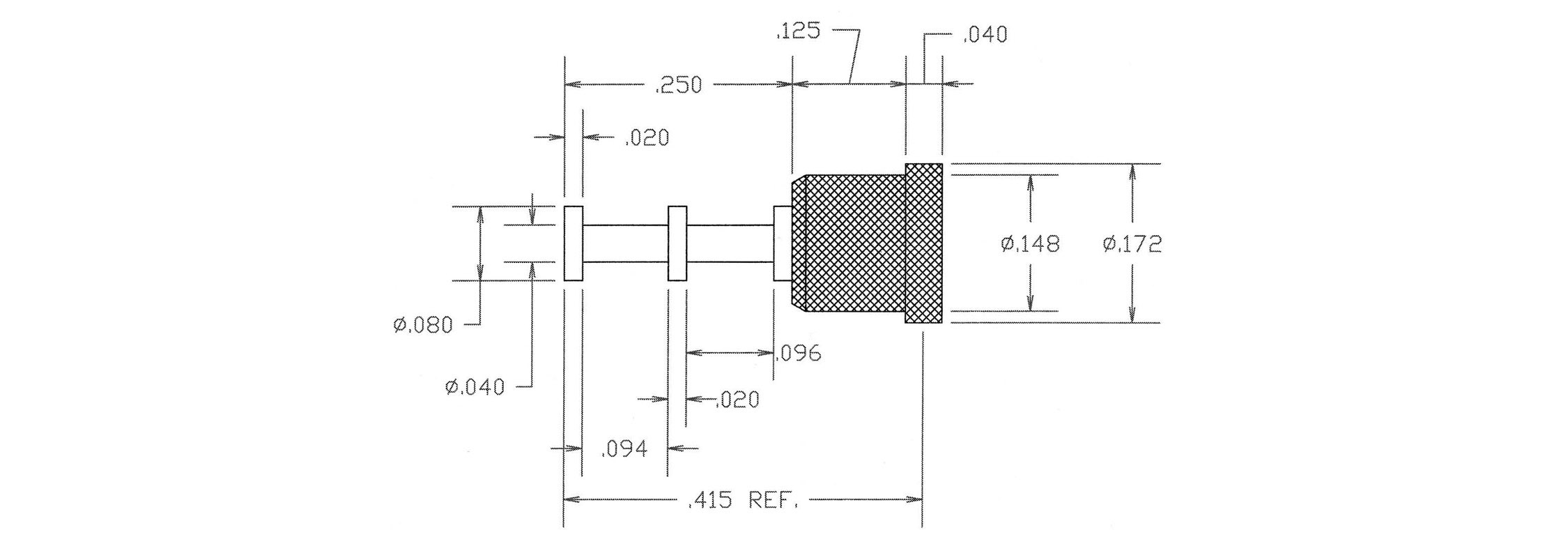

1151R-10-0115
1151R-10-0115
1151R-10-0115
0.415" - - Press Fit 3/32 0.136 Brass Silver - - PTFE Green YES
1152-01-0411
1152-01-0411
1152-01-0411
0.350" 0.040 - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Brown NO
1152-31-04417
1152-31-04417
1152-31-04417
0.750" 0.040 - Press Fit 1/16 0.203 Brass Bright Tin - - PTFE Violet YES
1152R-17-08813
1152R-17-08813
1152R-17-08813
0.615" 0.040 - Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Orange NO
