Commercial
Insulated
Pin Terminals

Filter
1125-11-0513
1125-11-0513
1125-11-0513
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Electro Solder Electro-Tin Brass PTFE Orange NO
1125-15-08819
1125-15-08819
1125-15-08819
0.578" - - 4-40 Nut 7/64 0.120 Brass Bright Tin-Lead Electro-Tin Brass PTFE White NO
1125-20-0315
1125-20-0315
1125-20-0315
0.885" - - 6-32 Nut 7/32 0.144 Brass Gold Electro-Tin Brass PTFE Green YES
1125-24-04411
1125-24-04411
1125-24-04411
0.885" - - 4-40 Nut Up to 1/4 0.120 Brass Bright Tin Electro-Tin Brass PTFE Brown NO
1125-28-0517
1125-28-0517
1125-28-0517
0.615" - - Swage Mount 1/16 0.116 ±0.001 Brass Electro Solder Electro-Tin Brass PTFE Violet NO
1100-29-0113
1100-29-0113
1100-29-0113
0.350" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE Orange NO
1100-49-0319
1100-49-0319
1100-49-0319
0.350" 0.040 - Press Fit 1/16 0.205 Brass Gold - - PTFE White YES
1100R-23A-04415
1100R-23A-04415
1100R-23A-04415
0.330" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Green YES
1100R-36-08811
1100R-36-08811
1100R-36-08811
0.390" 0.040 - Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Brown NO
1100R-54-0117
1100R-54-0117
1100R-54-0117
1.133" 0.040 - Press Fit 7/32 0.172 Brass Silver - - PTFE Violet YES
1101R-01-0413
1101R-01-0413
1101R-01-0413
0.328" 0.040 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Orange NO
09-2010-1-0514
09-2010-1-0514
09-2010-1-0514
0.436" 0.040 Pin/Tip Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Yellow NO
1102-44-0510
1102-44-0510
1102-44-0510
0.750" - - Press Fit 1/16 0.152 Brass Electro Solder - - PTFE Black NO

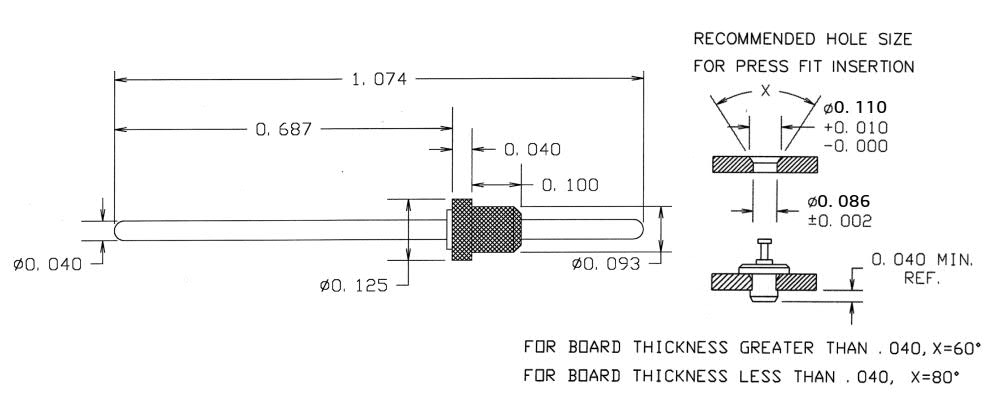

09-2084-1-0110
09-2084-1-0110
09-2084-1-0110
1.074" 0.040 ± 0.010 Pin/Pin Press Fit 1/16 0.086 Brass Silver - - PTFE Black YES

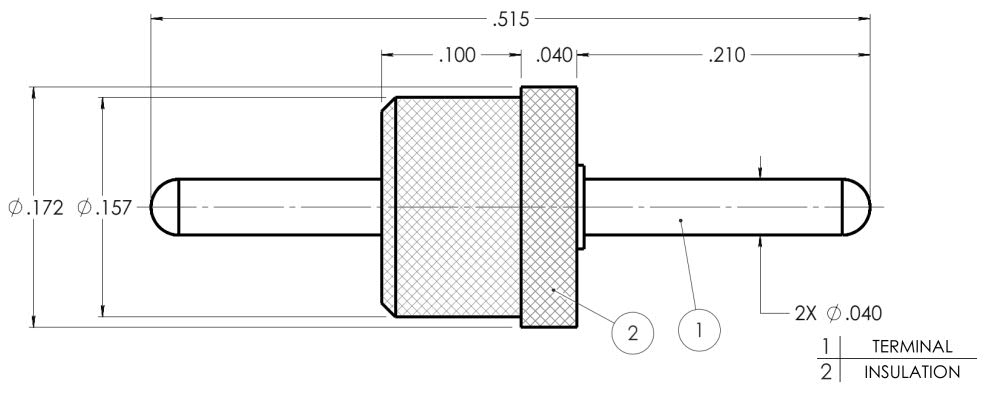

1110-39-08816
1110-39-08816
1110-39-08816
0.515" 0.040 Pin/Pin Press Fit 1/16 0.144 Brass Bright Tin-Lead - - PTFE Blue NO

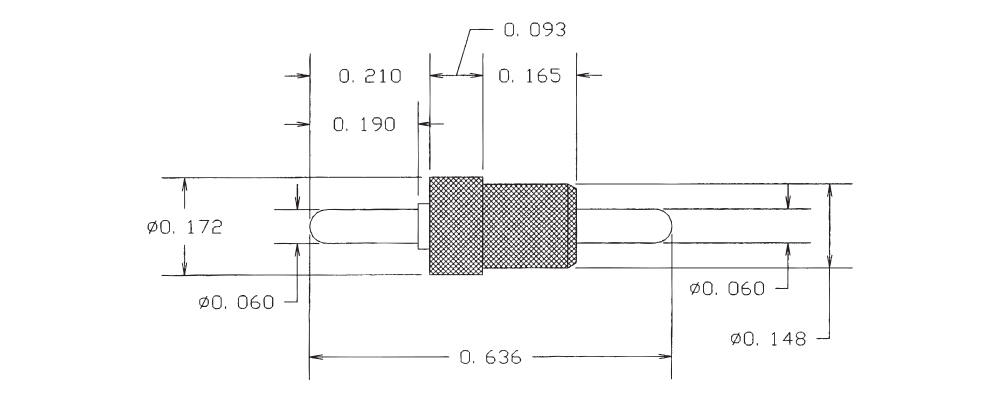

09-2095-1-0316
09-2095-1-0316
09-2095-1-0316
0.636" 0.060 ± 0.010 Pin/Pin Press Fit 1/8 0.136 Brass Gold - - PTFE Blue YES
1111-25-0312
1111-25-0312
1111-25-0312
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.152 Brass Gold - - PTFE Red NO

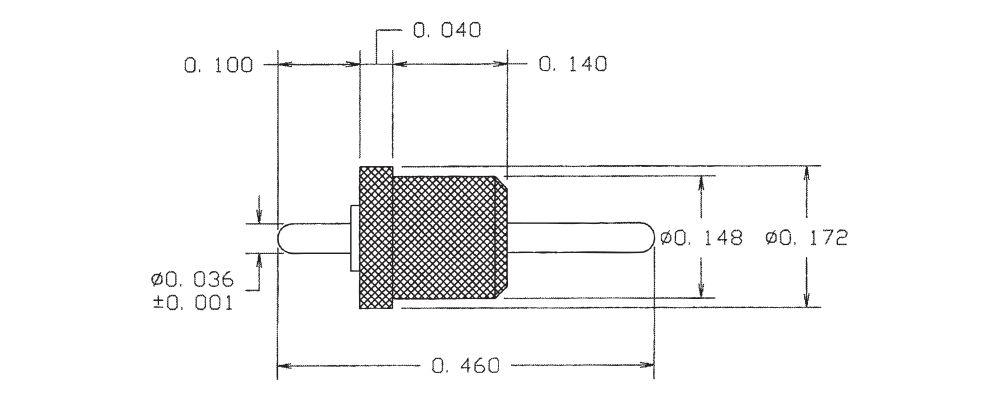

09-2104-1-04412
09-2104-1-04412
09-2104-1-04412
0.460" 0.036 Pin/Pin Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Red NO
1112-07-0418
1112-07-0418
1112-07-0418
0.273" - - Press Fit 1/16 0.113 Brass Electro-Tin - - PTFE Gray NO
09-2112-1-0518
09-2112-1-0518
09-2112-1-0518
0.838" - - 6-32 Nut 1/8 0.144 Brass Electro Solder Nickel Brass PTFE Gray NO
