Commercial
Insulated
Pin Terminals

Filter

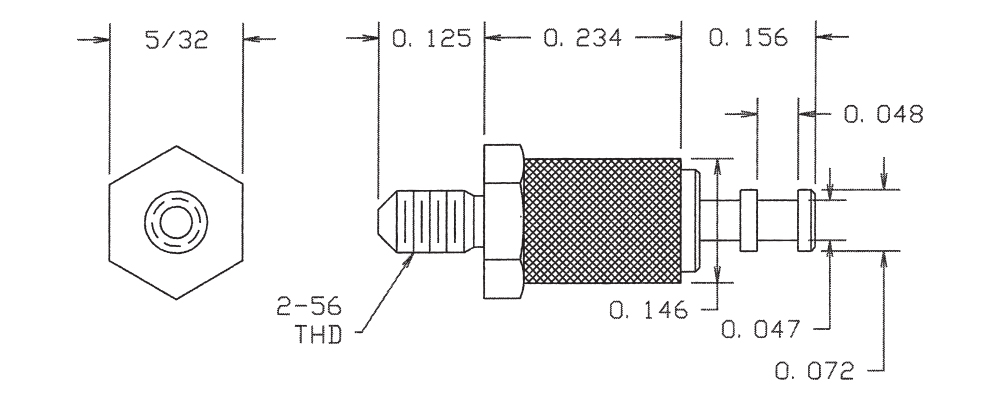

1127-87-0513
1127-87-0513
1127-87-0513
0.515" - - 2-56 Nut 1/32 0.094 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Orange NO

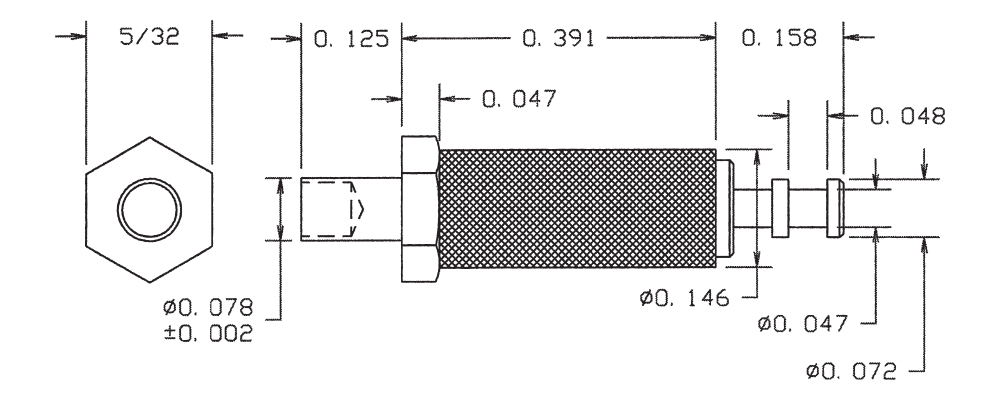

1127-91-08819
1127-91-08819
1127-91-08819
0.674" - - Swage Mount 3/32 0.082 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE White NO

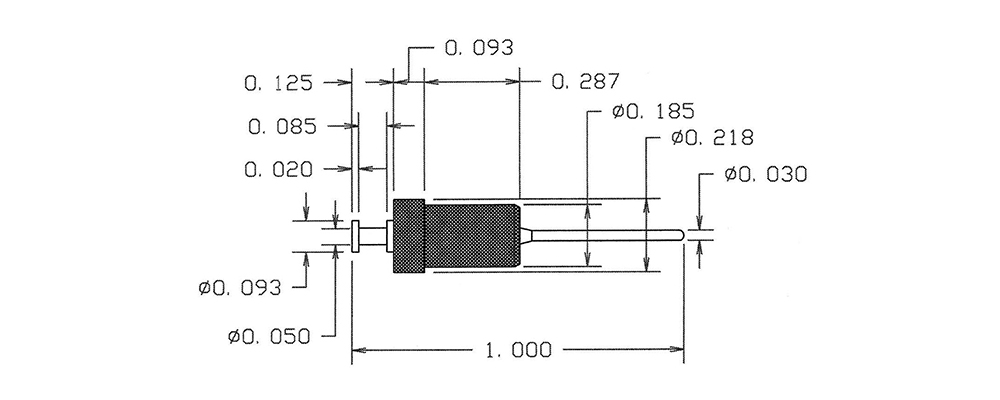

1129-01-0315
1129-01-0315
1129-01-0315
1.000" 0.030 TURRET/PIN Press Fit Up to 1/4 0.205 Brass Gold - - PTFE Green YES

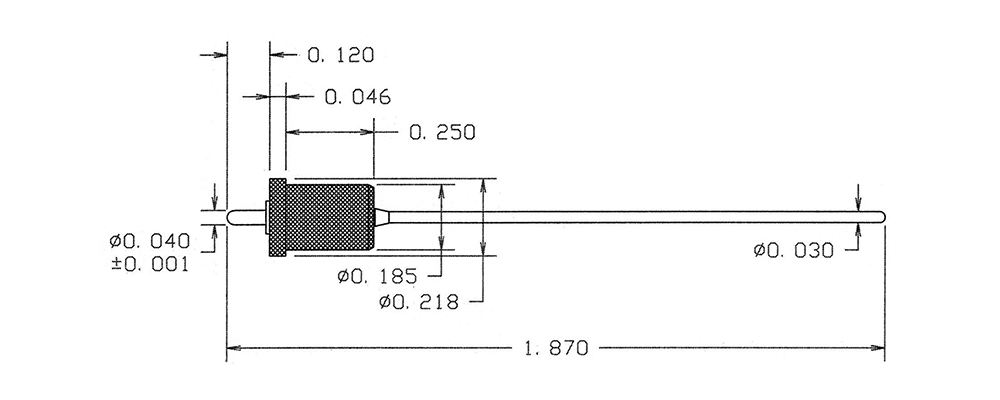

1130-02-04411
1130-02-04411
1130-02-04411
1.870" (0.030)/(0.040) Pin/Pin Press Fit 7/32 0.172 Brass Bright Tin - - PTFE Brown NO
1130-07-0517
1130-07-0517
1130-07-0517
2.083" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Electro Solder - - PTFE Violet NO

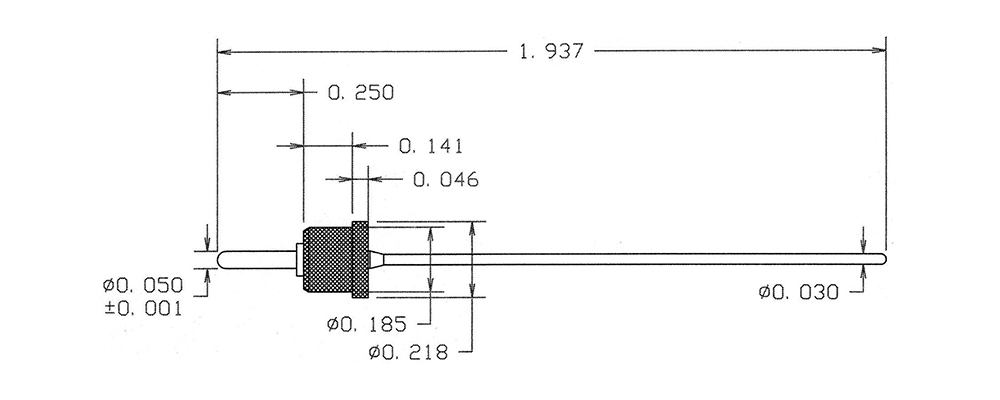

1130R-06-0113
1130R-06-0113
1130R-06-0113
1.937" (0.030)/(0.050) Pin/Pin Press Fit 3/32 0.172 Brass Silver - - PTFE Orange NO
1131-03-0319
1131-03-0319
1131-03-0319
0.562" (0.040)/(0.050) Pin/Tip Press Fit 3/32 0.172 Brass Gold - - PTFE White YES

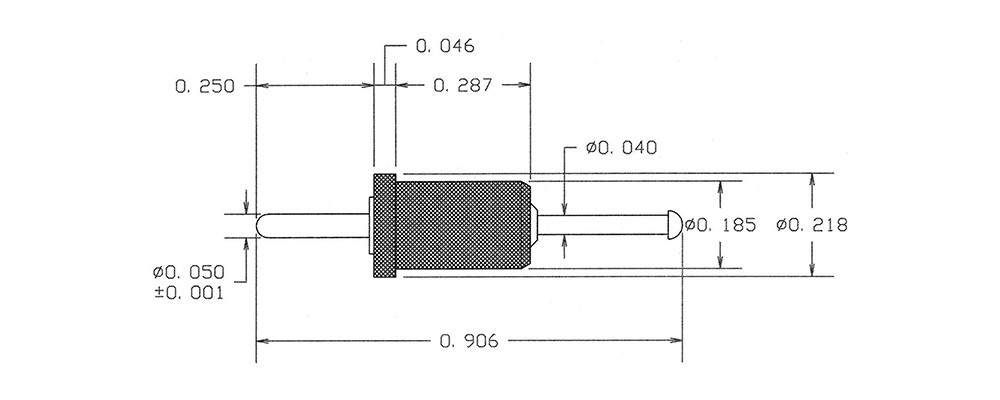

1131-07-04415
1131-07-04415
1131-07-04415
0.906" (0.040)/(0.050) Pin/Tip Press Fit Up to 1/4 0.172 Brass Bright Tin - - PTFE Green YES

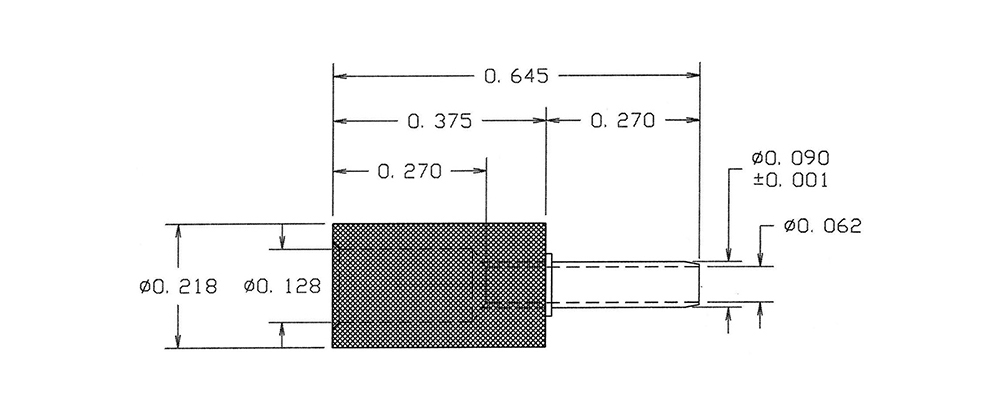

1132-01-08811
1132-01-08811
1132-01-08811
0.645" 0.090 - Solder 7/32 0.0935 Brass Bright Tin-Lead - - PTFE Brown NO
1133-03-0117
1133-03-0117
1133-03-0117
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 1/16 0.086 Brass Silver - - PTFE Violet YES

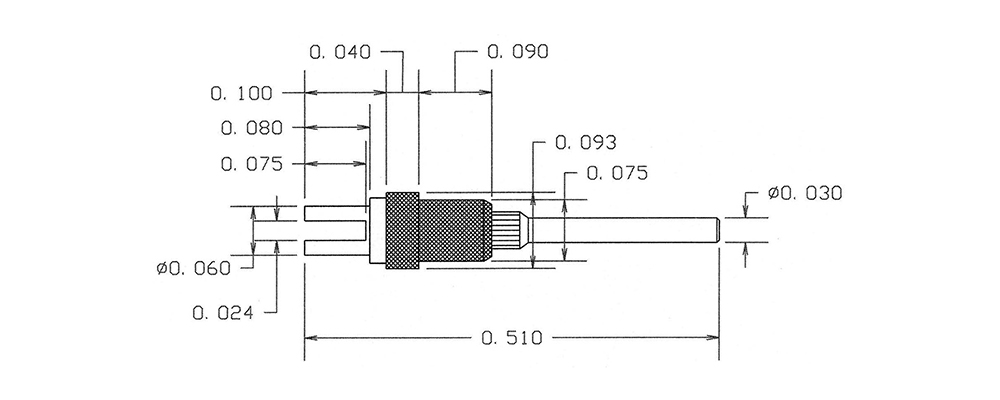

1135-01-0413
1135-01-0413
1135-01-0413
0.510" 0.030 Pin/Slotted Press Fit 1/32 0.070 Brass Electro-Tin - - PTFE Orange NO

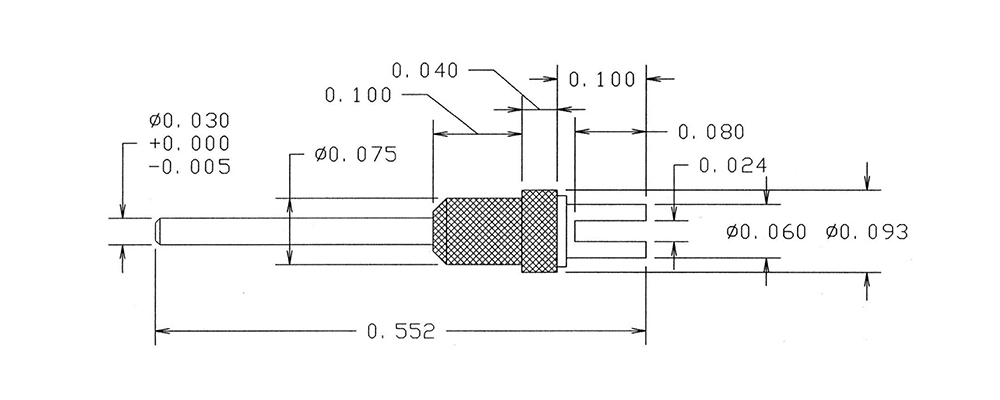

1135-05-04419
1135-05-04419
1135-05-04419
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Bright Tin - - PTFE White YES

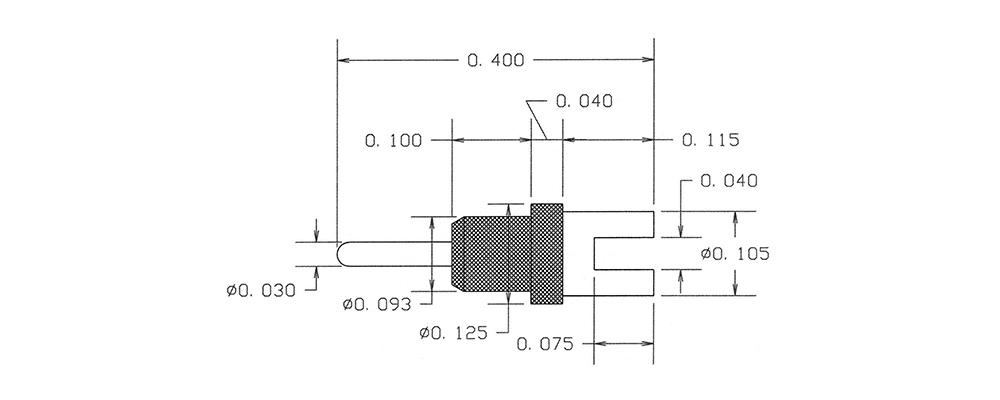

1135-09-08815
1135-09-08815
1135-09-08815
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Green NO

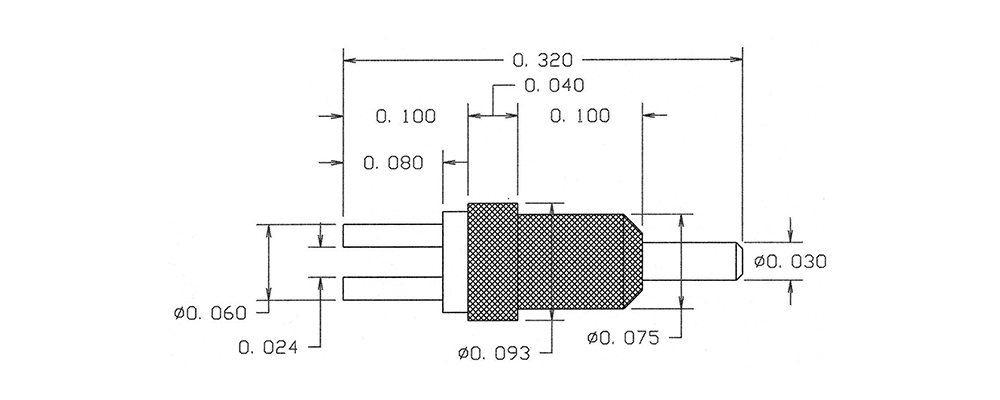

1137-03-0311
1137-03-0311
1137-03-0311
0.320" 0.030 Pin/Slotted Press Fit 1/16 0.070 Brass Gold - - PTFE Brown NO

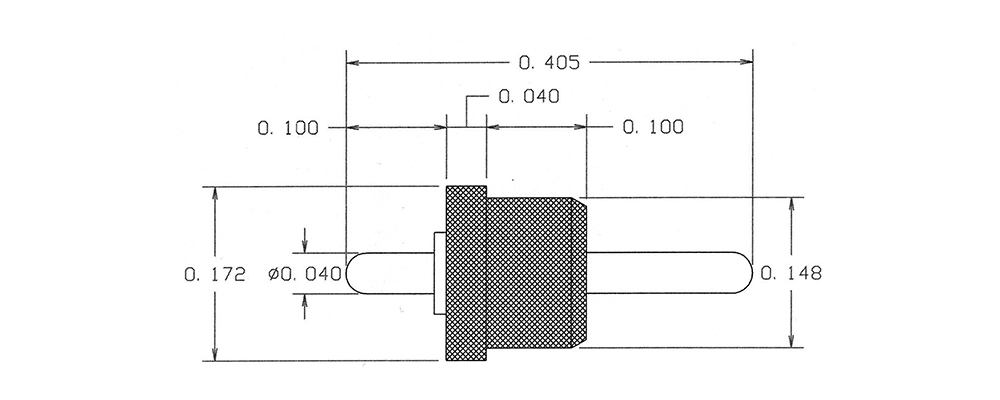

1139-04-0417
1139-04-0417
1139-04-0417
0.405" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Violet YES
1151-05-0513
1151-05-0513
1151-05-0513
0.350" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Orange NO
1151-11-08819
1151-11-08819
1151-11-08819
0.455" - - Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE White NO

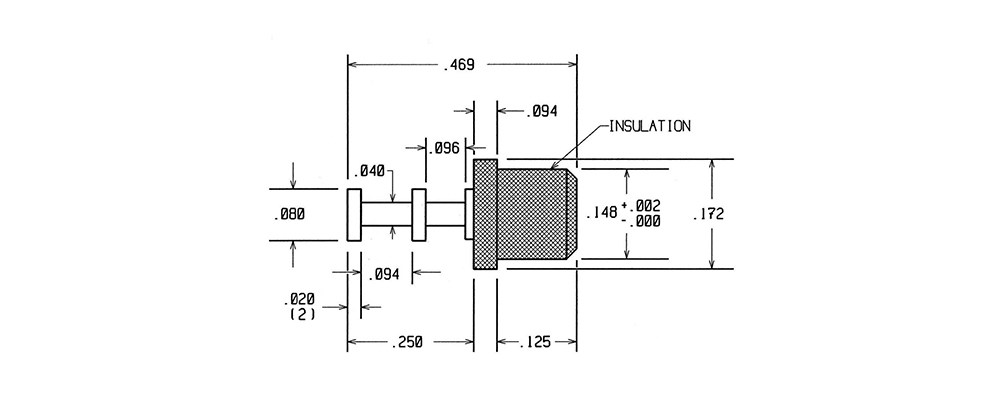

1151-20-0315
1151-20-0315
1151-20-0315
0.469" - - Press Fit 3/32 0.136 Brass Gold - - PTFE Green YES
1151-39-04411
1151-39-04411
1151-39-04411
0.525" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Brown NO
1151-51-0517
1151-51-0517
1151-51-0517
1.234" - - Press Fit 5/32 0.203 Brass Electro Solder - - PTFE Violet NO
