Commercial
Insulated
Pin Terminals

Filter

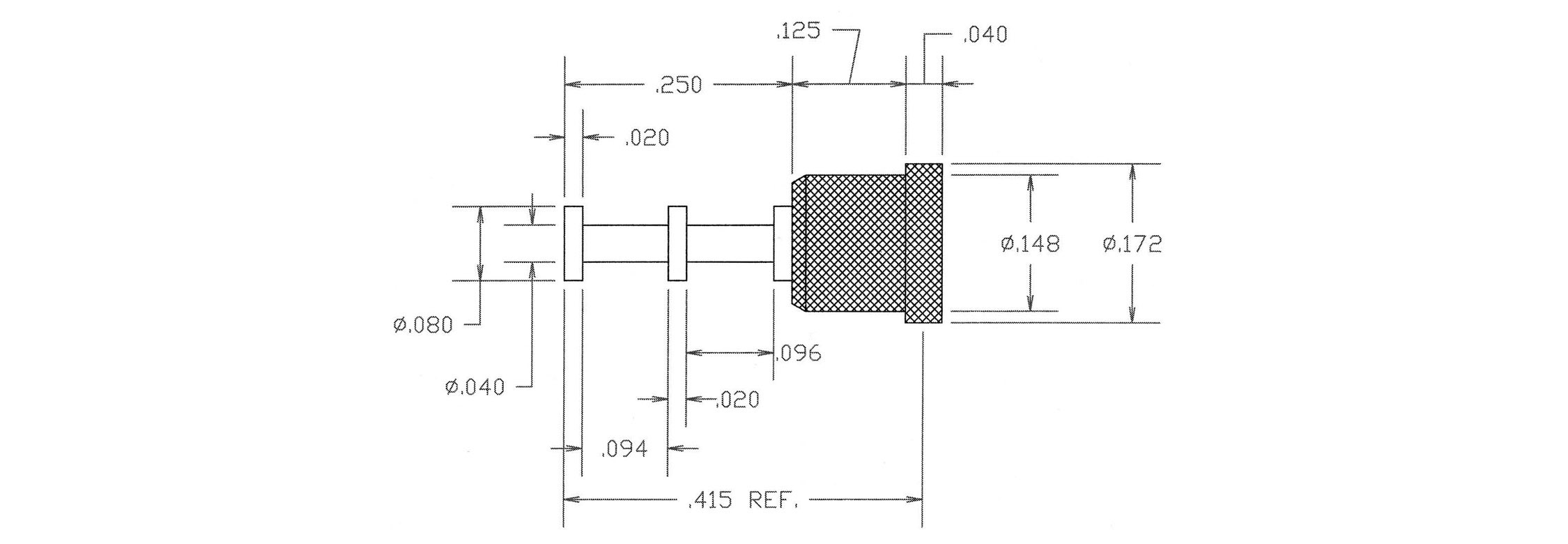

1151R-10-0113
1151R-10-0113
1151R-10-0113
0.415" - - Press Fit 3/32 0.136 Brass Silver - - PTFE Orange NO

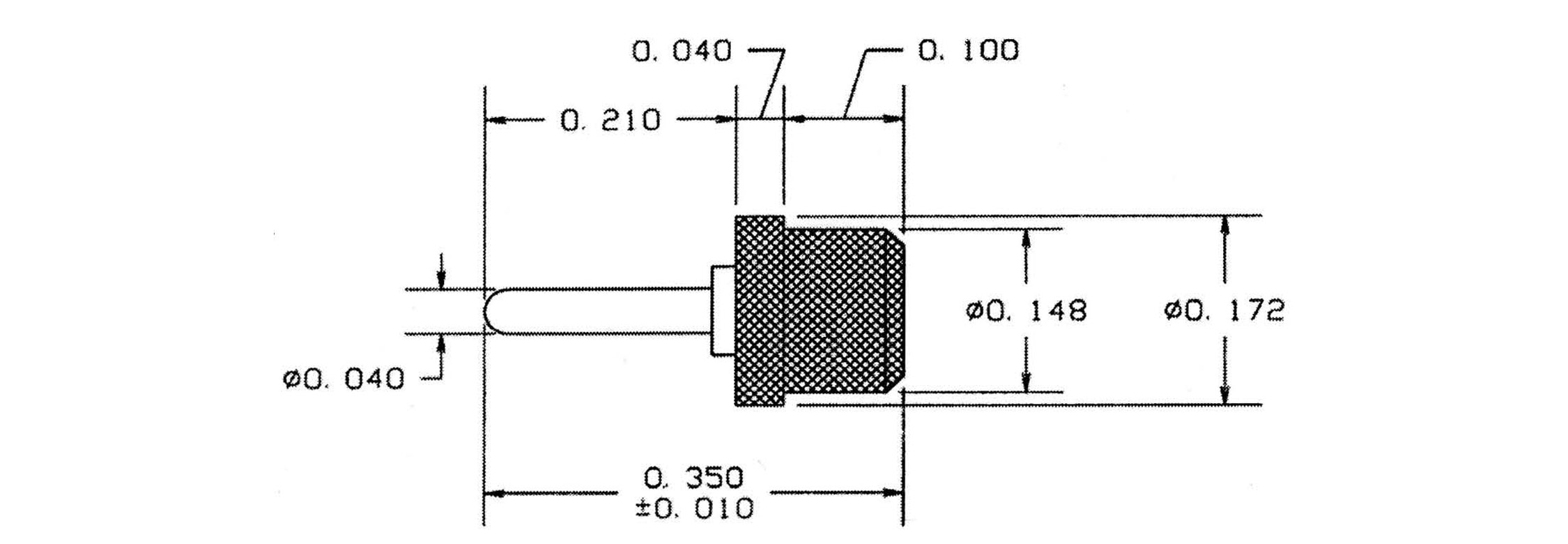

1152-01-0319
1152-01-0319
1152-01-0319
0.350" 0.040 - Press Fit 1/16 0.136 Brass Gold - - PTFE White YES
1152-31-04415
1152-31-04415
1152-31-04415
0.750" 0.040 - Press Fit 1/16 0.203 Brass Bright Tin - - PTFE Green YES
1152R-17-08811
1152R-17-08811
1152R-17-08811
0.615" 0.040 - Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Brown NO
1153-07-0117
1153-07-0117
1153-07-0117
0.540" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Silver - - PTFE Violet YES

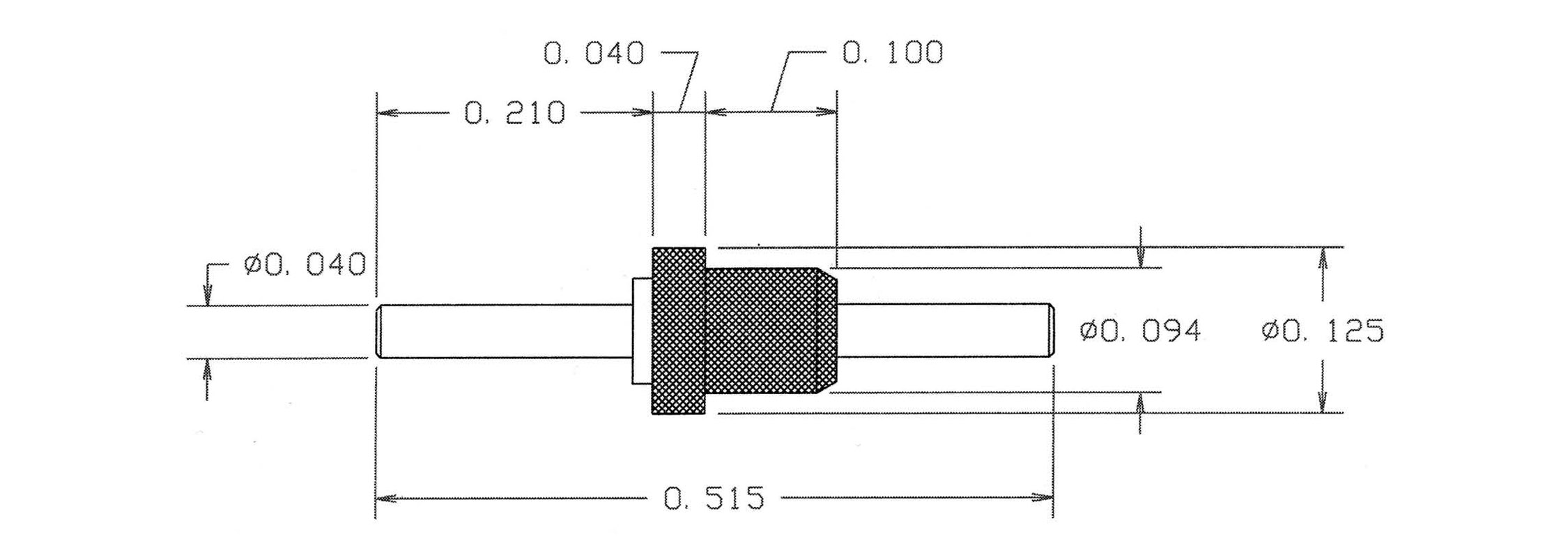

1153-32-0413
1153-32-0413
1153-32-0413
0.515" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Orange NO
1154-10-04419
1154-10-04419
1154-10-04419
0.753" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE White YES
1154-44-08815
1154-44-08815
1154-44-08815
0.821" 0.050 Pin/Slotted Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Green NO

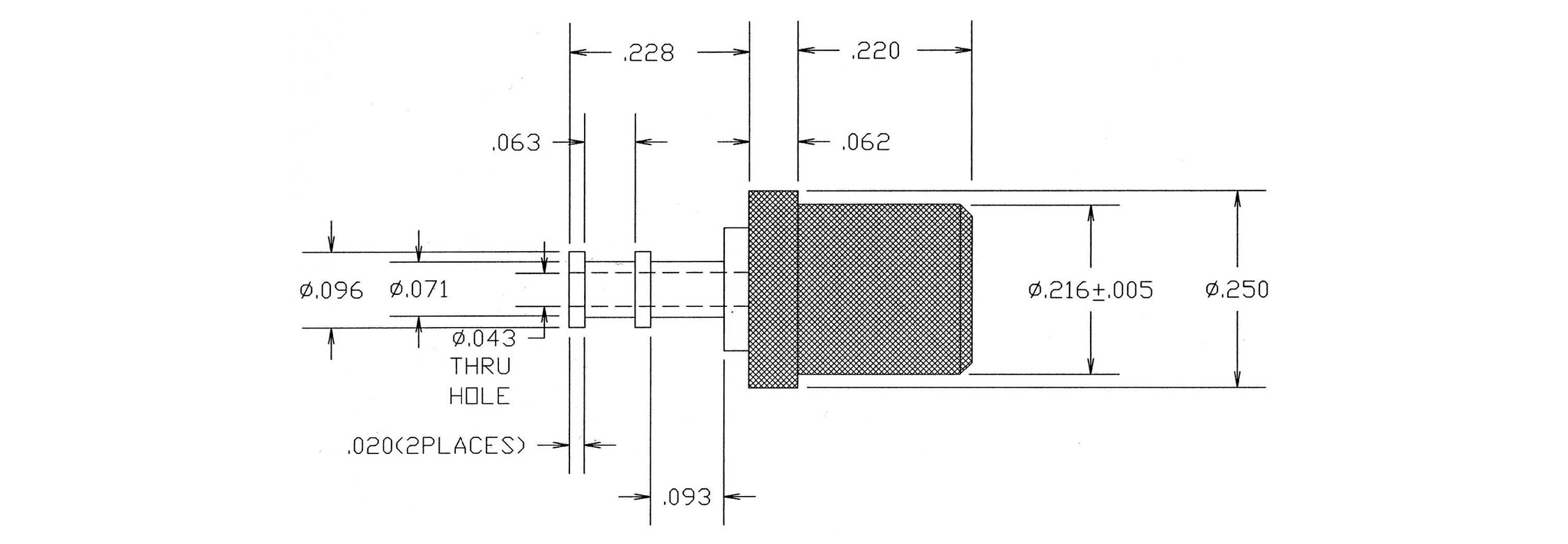

1155-02-0311
1155-02-0311
1155-02-0311
0.510" - - Press Fit Up to 3/16 0.204 Brass Gold - - PTFE Brown NO

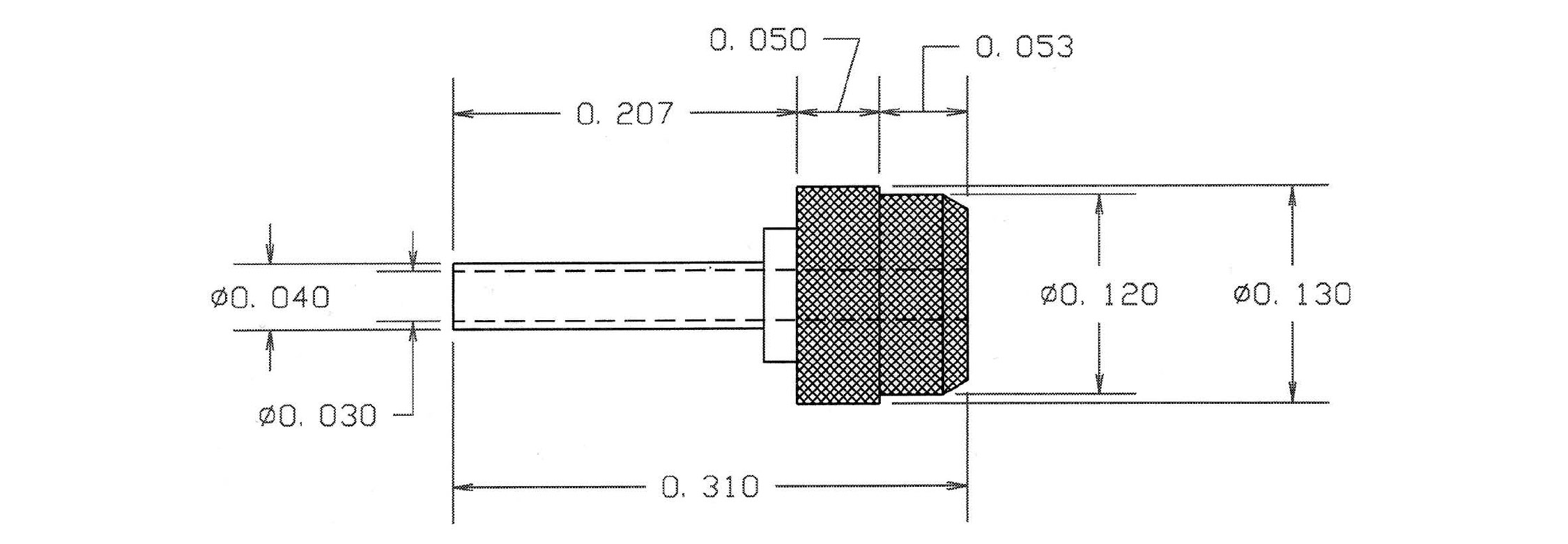

1155-13-0417
1155-13-0417
1155-13-0417
0.310" 0.040 - Press Fit 1/64 0.108 Brass Electro-Tin - - PTFE Violet YES
1156-02-0513
1156-02-0513
1156-02-0513
0.500" 0.035 DOUBLE Turret/Tip Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Orange NO
1156-07-08819
1156-07-08819
1156-07-08819
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE White NO

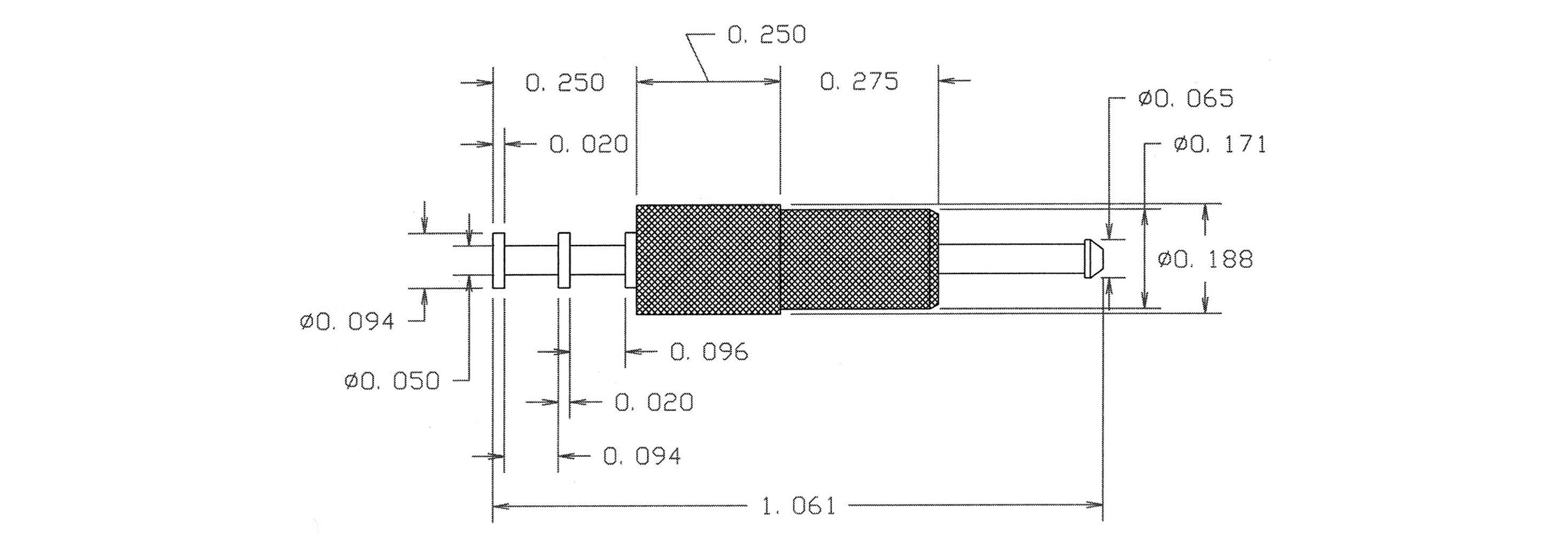

1156-15-0315
1156-15-0315
1156-15-0315
1.061" 0.050 DOUBLE TURRET/PIN Press Fit 7/32 0.158 Brass Gold - - PTFE Green YES

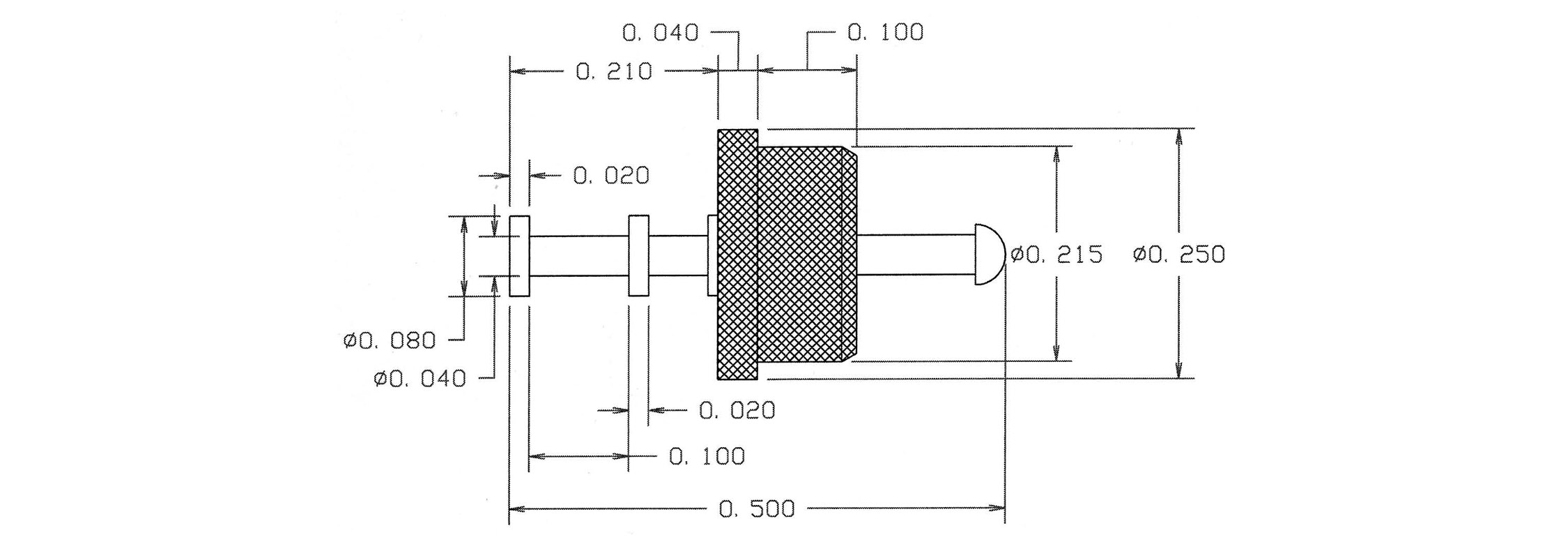

1156-19-04411
1156-19-04411
1156-19-04411
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.203 Brass Bright Tin - - PTFE Brown NO
1156R-01-0517
1156R-01-0517
1156R-01-0517
0.460" 0.040 DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Electro Solder - - PTFE Violet NO

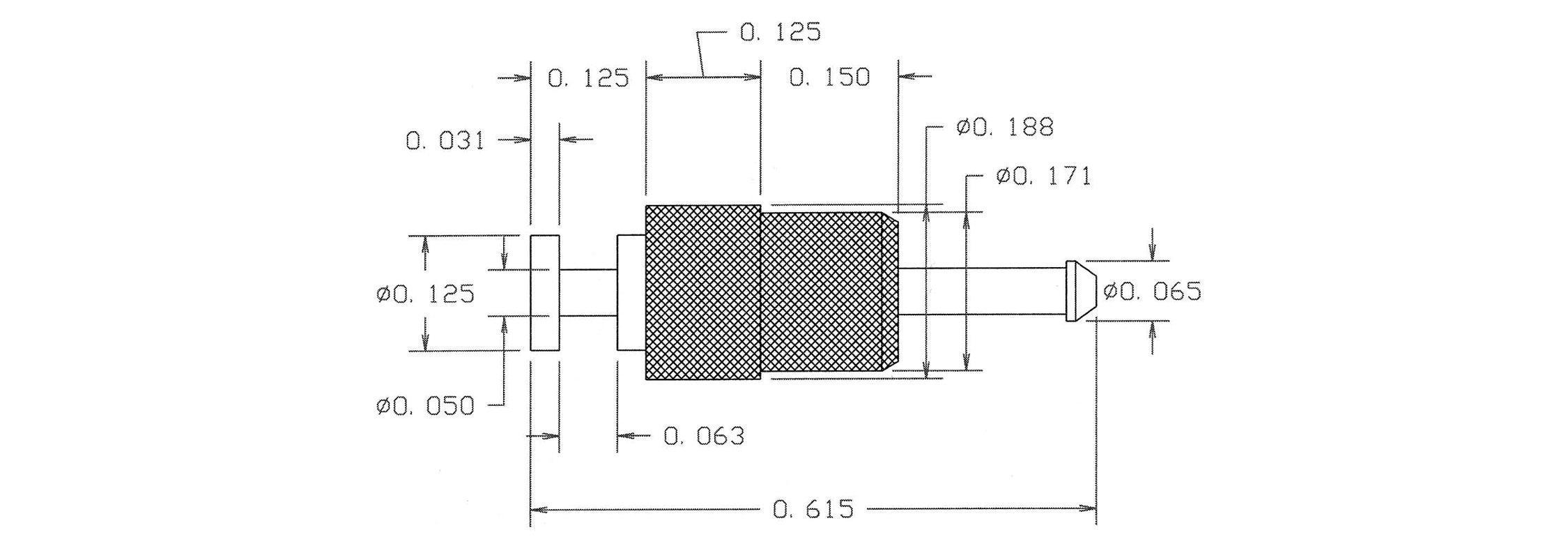

1157-03-0113
1157-03-0113
1157-03-0113
0.615" 0.050 TURRET/PIN Press Fit 1/8 0.158 Brass Silver - - PTFE Orange NO

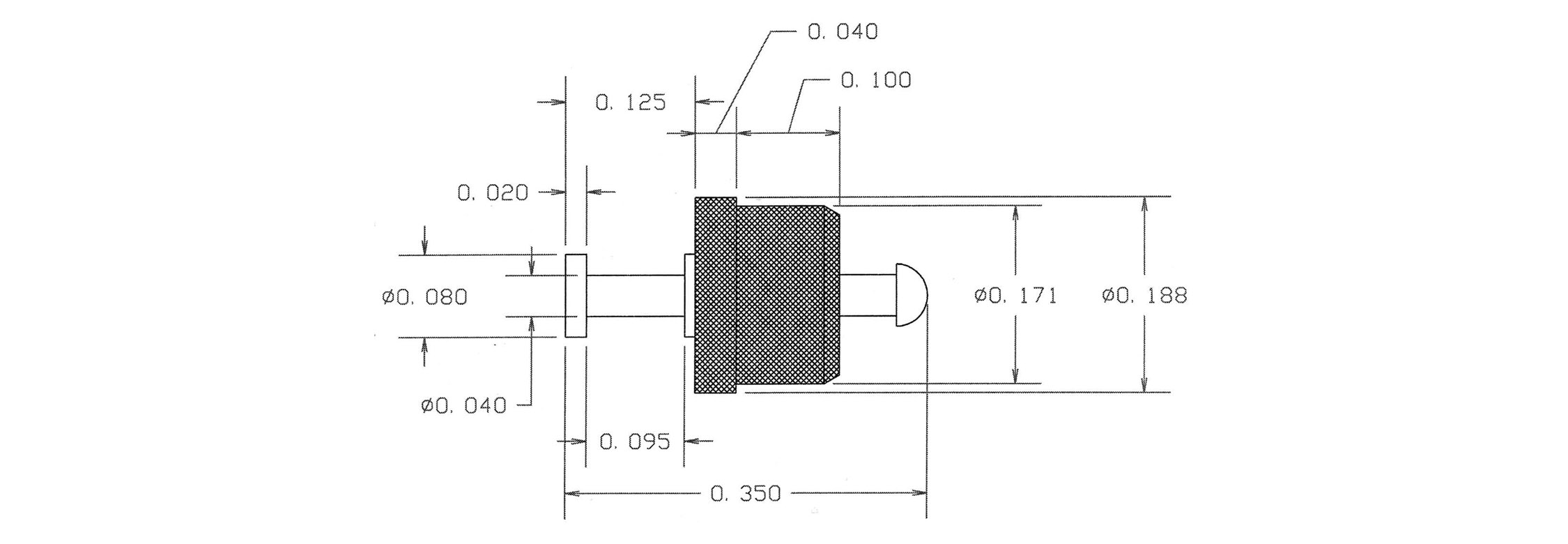

1157-07-0319
1157-07-0319
1157-07-0319
0.350" 0.040 Turret/Tip Press Fit 1/16 0.158 Brass Gold - - PTFE White YES
1157R-05-04415
1157R-05-04415
1157R-05-04415
0.865" 0.050 TURRET/PIN Press Fit 7/32 0.158 Brass Bright Tin - - PTFE Green YES
1160-13-08811
1160-13-08811
1160-13-08811
0.367" 0.085 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Brown NO
1167-24-0117
1167-24-0117
1167-24-0117
0.781" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Silver ZINC Brass DIALLYL PHTHALATE Violet YES
