Commercial
Insulated
Pin Terminals

Filter
1102-85-04416
1102-85-04416
1102-85-04416
0.968" - - Press Fit Up to 1/4 0.203 Brass Bright Tin - - PTFE Blue YES
1102-94-08812
1102-94-08812
1102-94-08812
0.649" - - Press Fit Up to 3/16 0.191 Brass Bright Tin-Lead - - PTFE Red NO

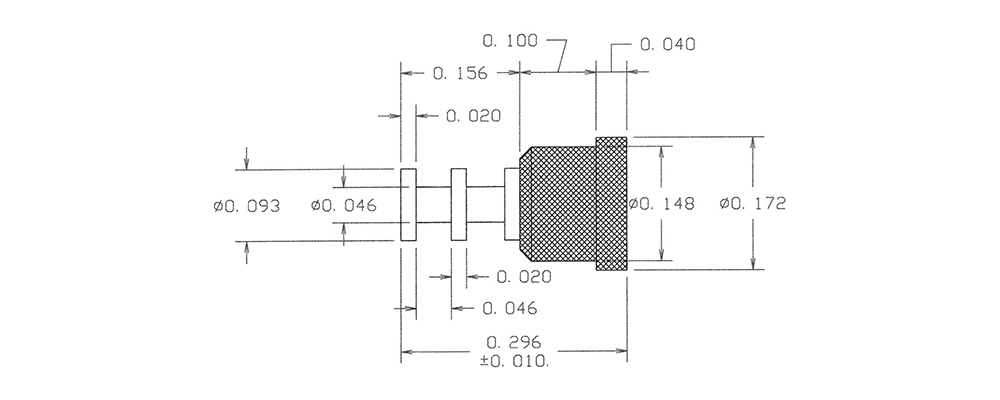

1102R-11-0118
1102R-11-0118
1102R-11-0118
0.296" - - Press Fit 1/16 0.136 Brass Silver - - PTFE Gray NO

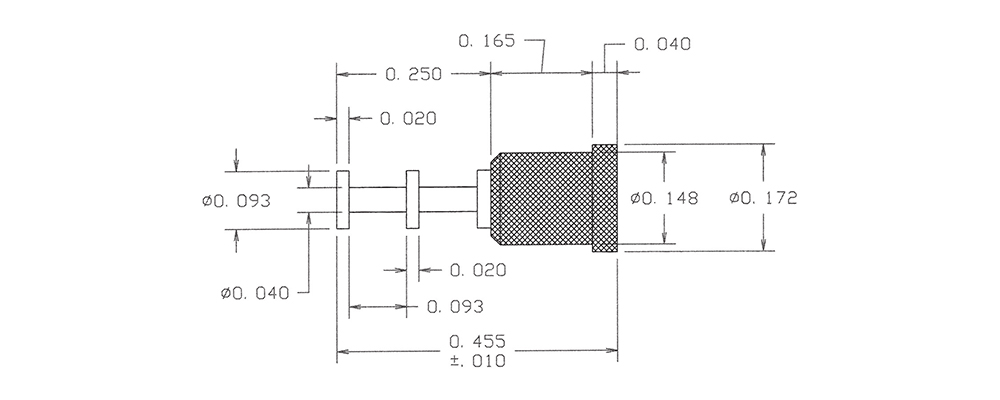

1102R-21-0414
1102R-21-0414
1102R-21-0414
0.455" - - Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Yellow NO
1102R-28-0510
1102R-28-0510
1102R-28-0510
0.361" - - Press Fit 1/8 0.140 Brass Electro Solder - - PTFE Black NO
1102R-74-08816
1102R-74-08816
1102R-74-08816
0.375" - - Press Fit 3/32 0.172 Brass Bright Tin-Lead - - PTFE Blue NO
1103-01-0312
1103-01-0312
1103-01-0312
0.250" - - Press Fit 1/16 0.136 Brass Gold - - PTFE Red NO
1103-08-0418
1103-08-0418
1103-08-0418
0.320" - - Press Fit 3/32 0.152 Brass Electro-Tin - - PTFE Gray NO
1103R-08-0514
1103R-08-0514
1103R-08-0514
0.320" - - Press Fit 3/32 0.158 Brass Electro Solder - - PTFE Yellow NO

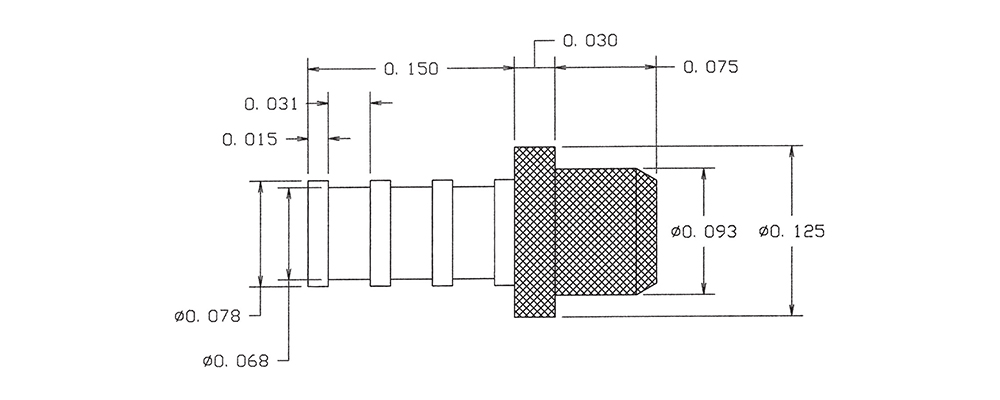

1104-51-0110
1104-51-0110
1104-51-0110
0.255" - - Press Fit 1/32 0.086 Brass Silver - - PTFE Black YES
1105-02-0316
1105-02-0316
1105-02-0316
1.687" - Double Turret/Double Turret Press Fit 9/16 0.205 Brass Gold - - PTFE Blue YES
1106-03-04412
1106-03-04412
1106-03-04412
0.478" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Red NO
1106-07-0518
1106-07-0518
1106-07-0518
0.602" - - Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Gray NO
1106-12-0114
1106-12-0114
1106-12-0114
0.753" - - Press Fit 1/8 0.158 Brass Silver - - PTFE Yellow NO

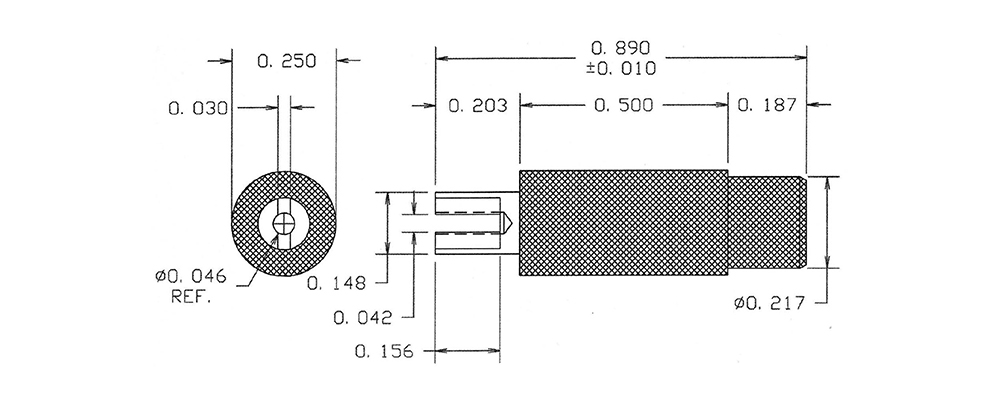

1106-16-0410
1106-16-0410
1106-16-0410
0.890" - - Press Fit 5/32 0.205 Brass Electro-Tin - - PTFE Black YES

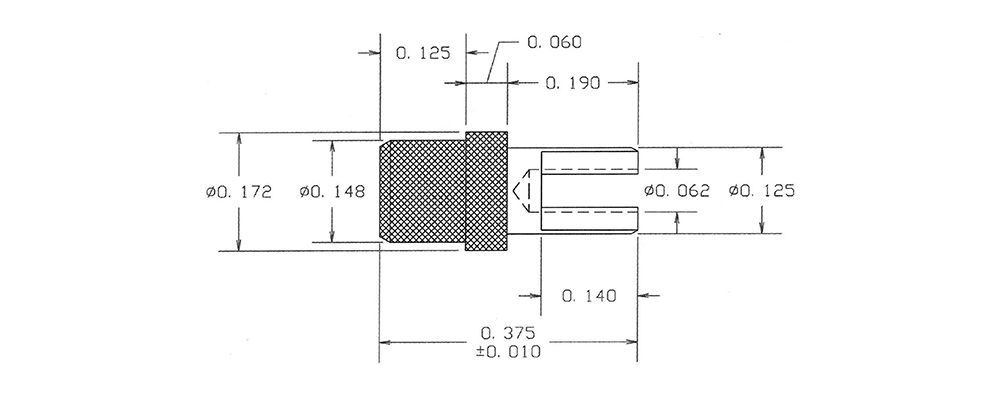

1106-22-04416
1106-22-04416
1106-22-04416
0.375" - - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Blue YES
1106-52-08812
1106-52-08812
1106-52-08812
0.276" - - Press Fit 3/32 0.086 Brass Bright Tin-Lead - - PTFE Red NO
1106R-24-0118
1106R-24-0118
1106R-24-0118
0.890" - - Press Fit 5/32 0.158 Brass Silver - - PTFE Gray NO

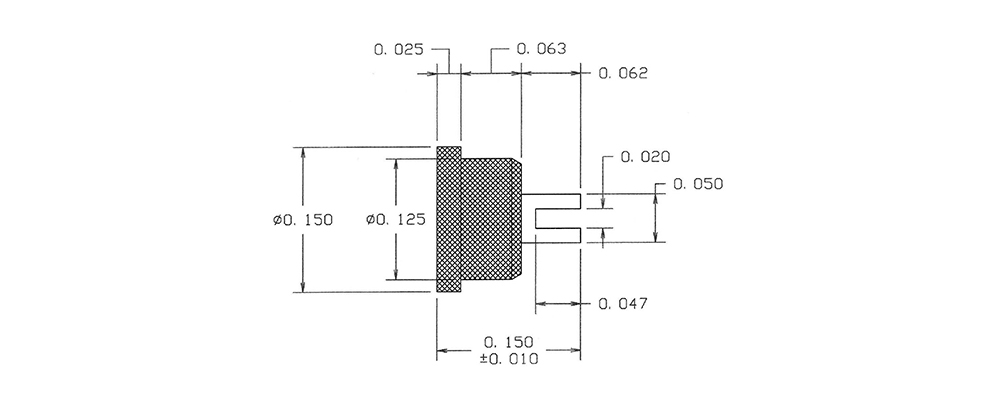

1106R-51-0414
1106R-51-0414
1106R-51-0414
0.150" - - Press Fit 1/32 0.113 Brass Electro-Tin - - PTFE Yellow NO
1107-03-0510
1107-03-0510
1107-03-0510
0.819" 0.040 Pin/Pin Press Fit Up to 3/16 0.136 Brass Electro Solder - - PTFE Black NO
