Commercial
Insulated
Pin Terminals

Filter

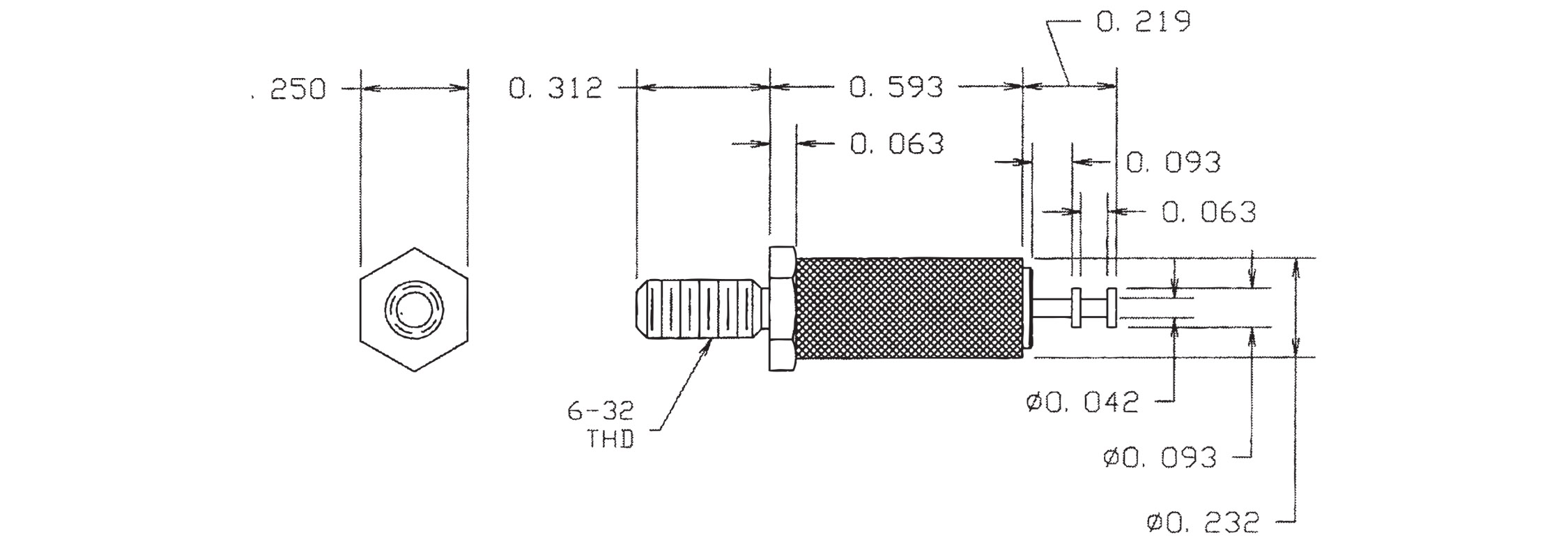

1167-75-0413
1167-75-0413
1167-75-0413
0.905" - - 6-32 Nut Up to 3/16 0.144 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Orange YES
1169-30-04419
1169-30-04419
1169-30-04419
0.671" 0.060 - 2-56 Nut 1/8 0.094 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE White YES
1169-37-08815
1169-37-08815
1169-37-08815
0.750" - - 4-40 Nut 1/8 0.120 Brass Bright Tin-Lead Bright Tin-Lead Brass DIALLYL PHTHALATE Green NO
1170-08-07511
1170-08-07511
1170-08-07511
1.000" - - 6-32 Nut Up to 1/4 0.144 Brass ZINC ZINC Brass DIALLYL PHTHALATE Brown YES

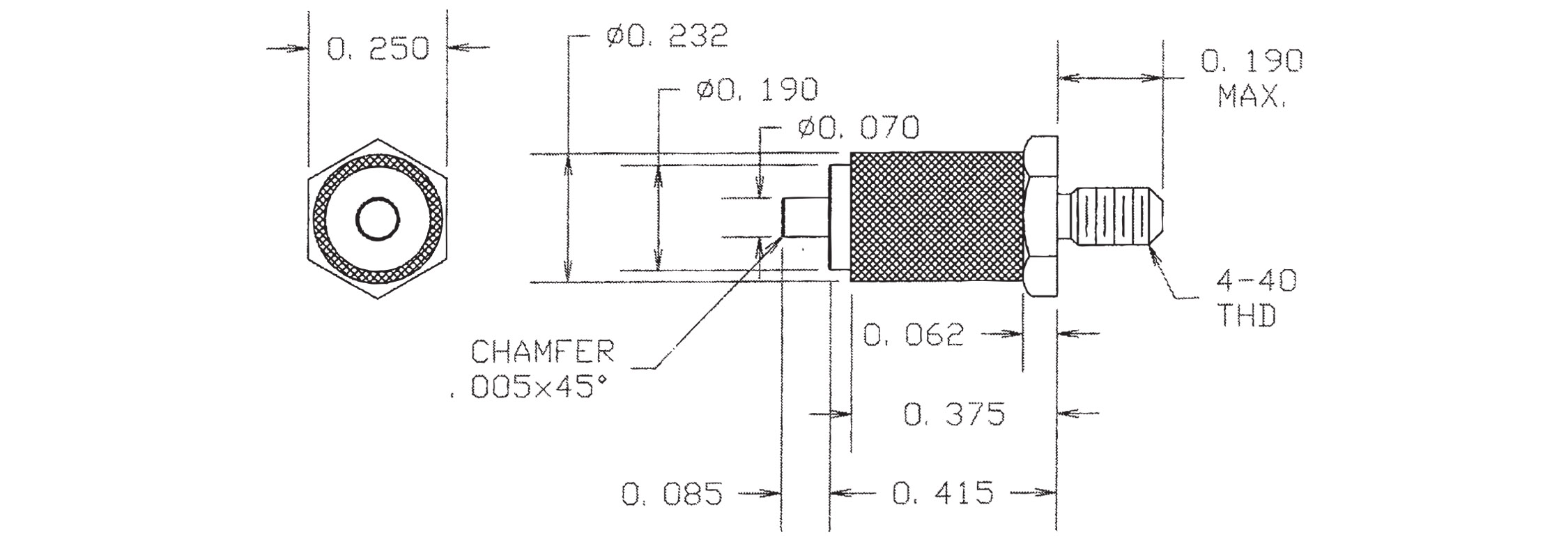

1170-23-0117
1170-23-0117
1170-23-0117
0.500" 0.070 - 4-40 Nut 1/16 0.120 Brass Silver ZINC Brass DIALLYL PHTHALATE Violet YES

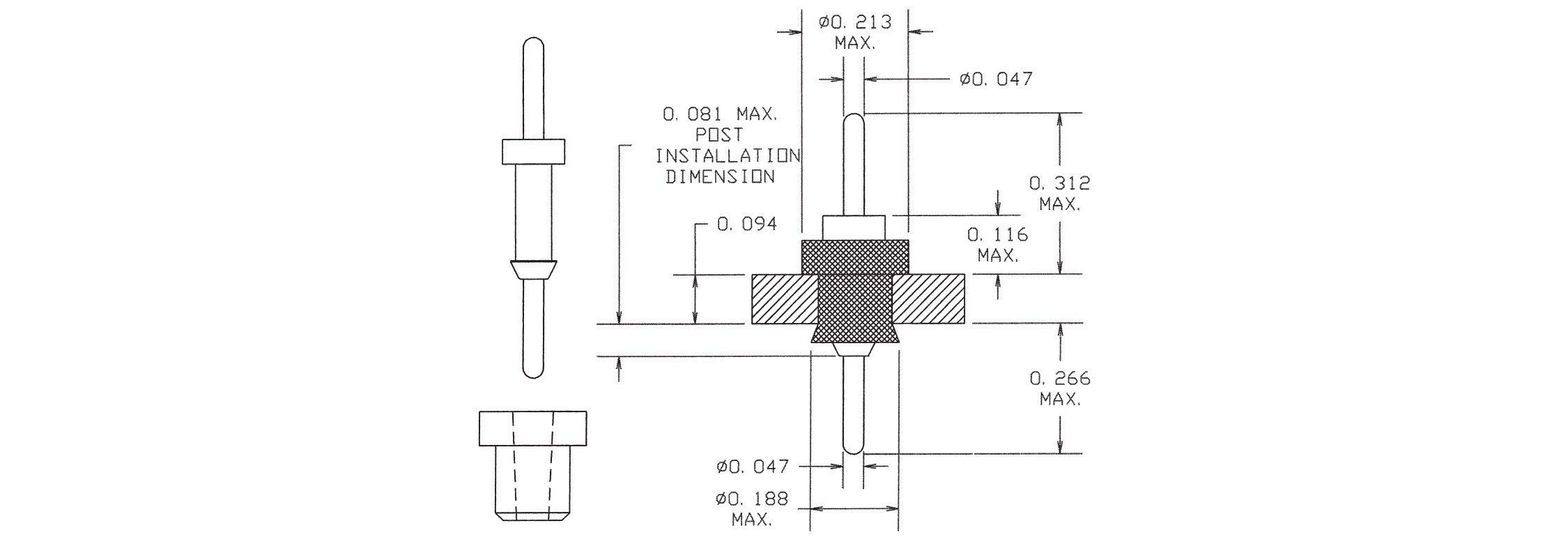

1175-013-0413
1175-013-0413
1175-013-0413
0.672" 0.047 Pin/Pin PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Orange NO
1175-301-04419
1175-301-04419
1175-301-04419
0.460" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE White YES
1175-351-08815
1175-351-08815
1175-351-08815
0.342" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Green NO
1175-373-0311
1175-373-0311
1175-373-0311
0.768" 0.040 DOUBLE TURRET/PIN PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Gold - - PTFE Brown NO
1175-404-0417
1175-404-0417
1175-404-0417
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Violet YES
1175-414-0513
1175-414-0513
1175-414-0513
0.642" - DOUBLE Turret/Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Orange NO
1175-424-08819
1175-424-08819
1175-424-08819
0.756" - Double Turret/Double Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE White NO

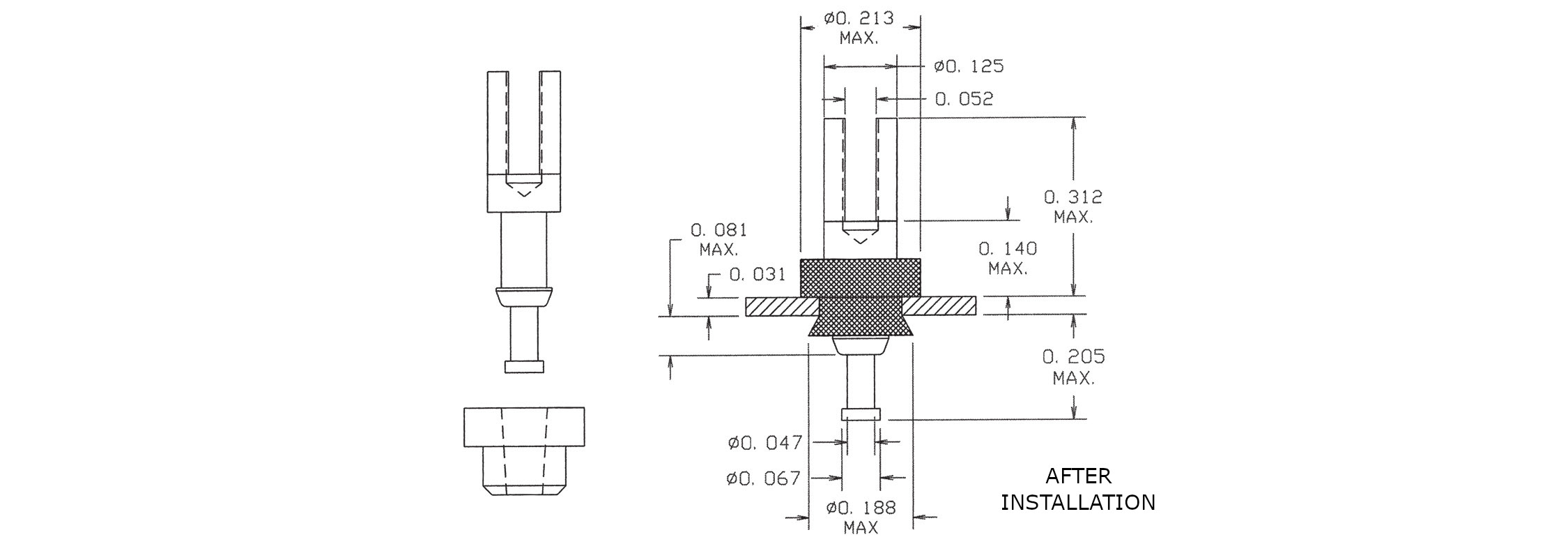

1175-441-0315
1175-441-0315
1175-441-0315
0.548" - TURRET/SLOTTED PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Gold - - PTFE Green YES
1175-451-04411
1175-451-04411
1175-451-04411
0.662" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Brown NO
1175-462-0517
1175-462-0517
1175-462-0517
0.392" - - PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Violet NO

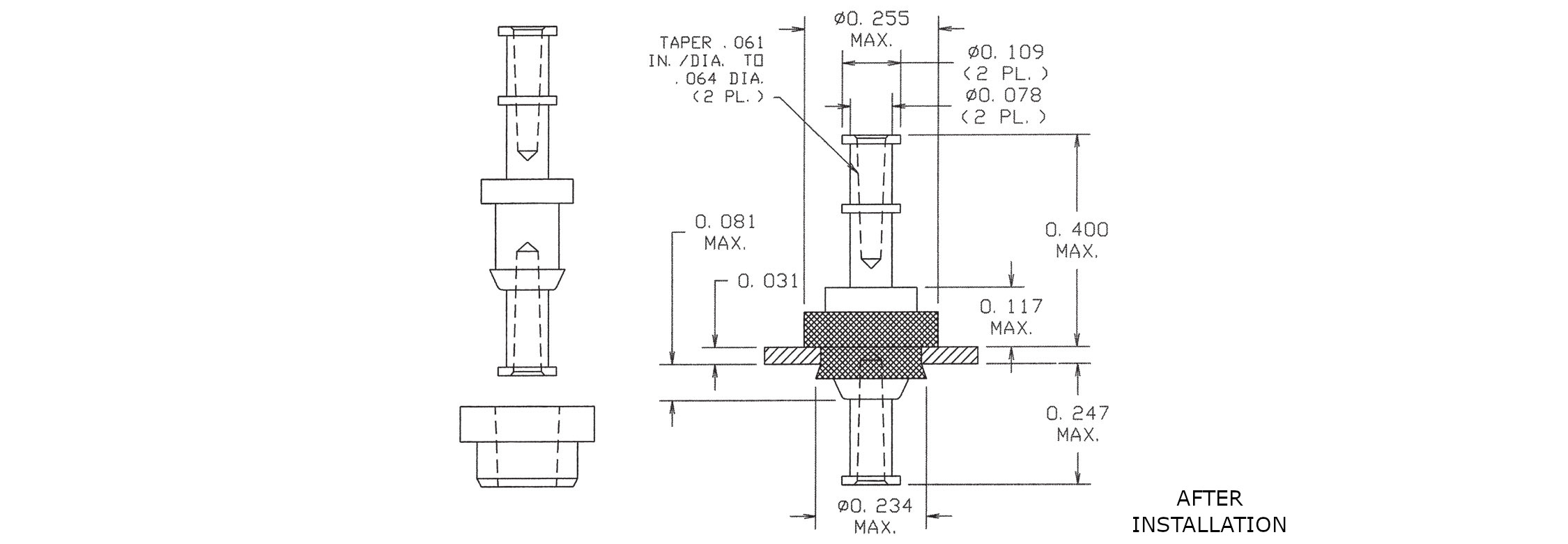

1175-481-0113
1175-481-0113
1175-481-0113
0.678" - DOUBLE Turret/Turret PRESS LOCK 1/32 0.188 (+0.003/-0.001) Brass Silver - - PTFE Orange NO

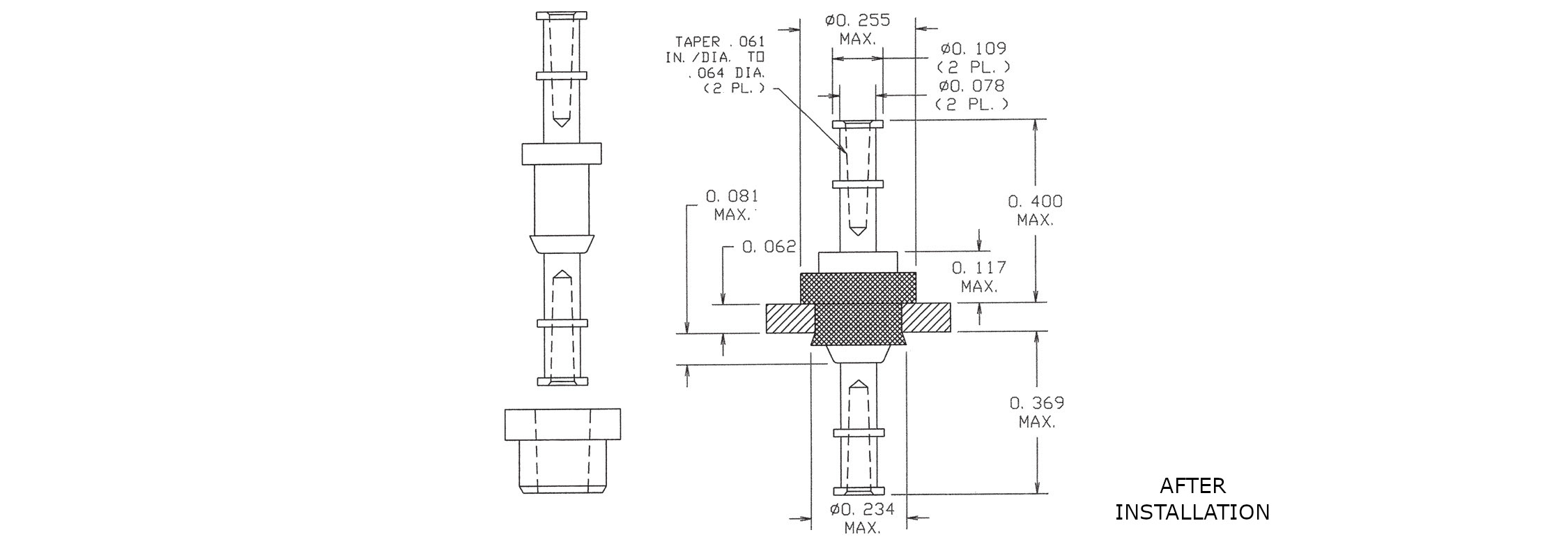

1175-492-0319
1175-492-0319
1175-492-0319
0.831" - Double Turret/Double Turret PRESS LOCK 1/16 0.188 (+0.003/-0.001) Brass Gold - - PTFE White YES
1175-601-04415
1175-601-04415
1175-601-04415
0.424" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Green YES
1175-702-08811
1175-702-08811
1175-702-08811
0.474" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Brown NO

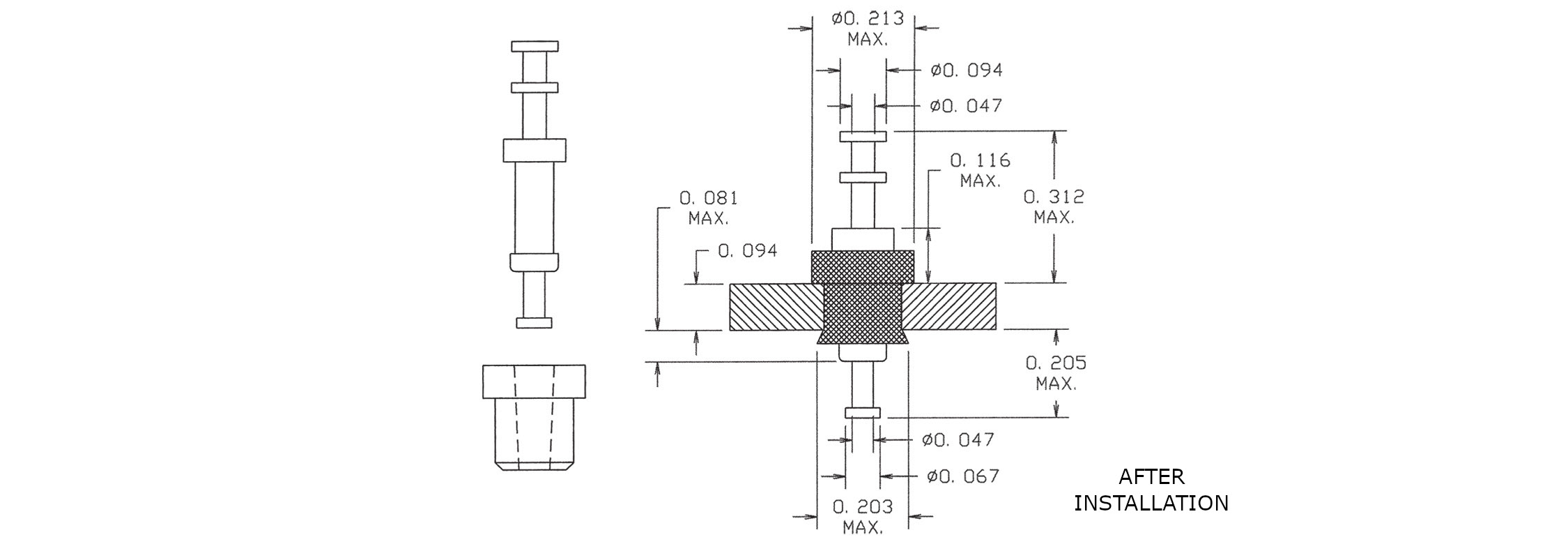

1175-713-0117
1175-713-0117
1175-713-0117
0.611" - DOUBLE Turret/Turret PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Silver - - PTFE Violet YES
