Commercial
Insulated
Pin Terminals

Filter
1123R-75-0512
1123R-75-0512
1123R-75-0512
0.426" - - Press Fit 1/8 0.172 Brass Electro Solder - - PTFE Red NO

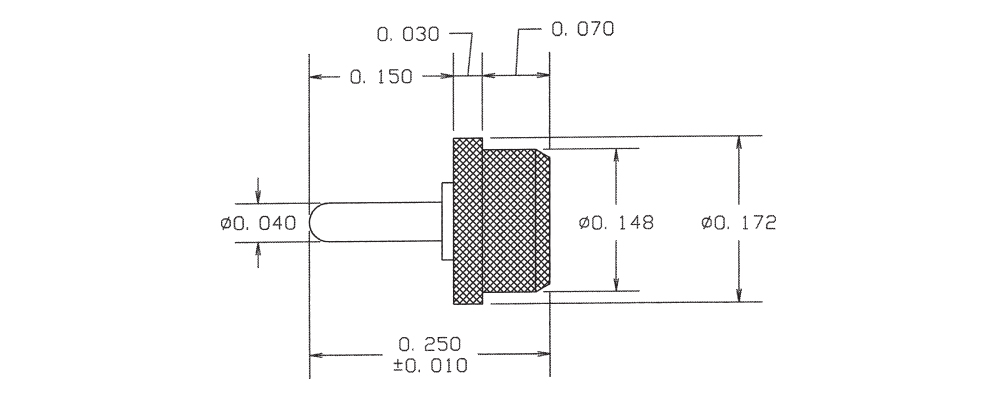

1100-19-0112
1100-19-0112
1100-19-0112
0.250" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE Red NO
1124-10-08818
1124-10-08818
1124-10-08818
0.899" 0.050 THREAD/TIP Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Gray NO

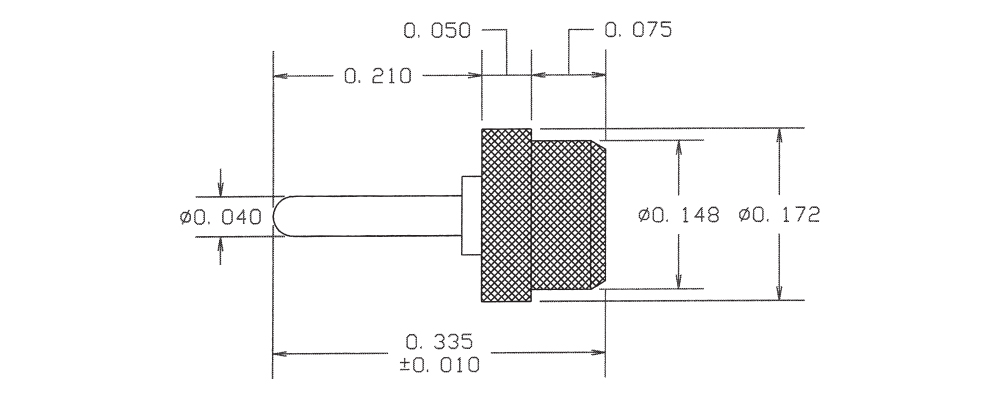

1100-24-0318
1100-24-0318
1100-24-0318
0.335" 0.040 - Press Fit 1/32 0.136 Brass Gold - - PTFE Gray NO
1153-12-0314
1153-12-0314
1153-12-0314
0.594" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Gold - - PTFE Yellow NO
1100-34-04414
1100-34-04414
1100-34-04414
0.410" 0.040 - Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Yellow NO
1110-95-04410
1110-95-04410
1110-95-04410
0.778" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Black YES
1100-43-08810
1100-43-08810
1100-43-08810
0.485" 0.040 - Press Fit 1/8 0.152 Brass Bright Tin-Lead - - PTFE Black NO

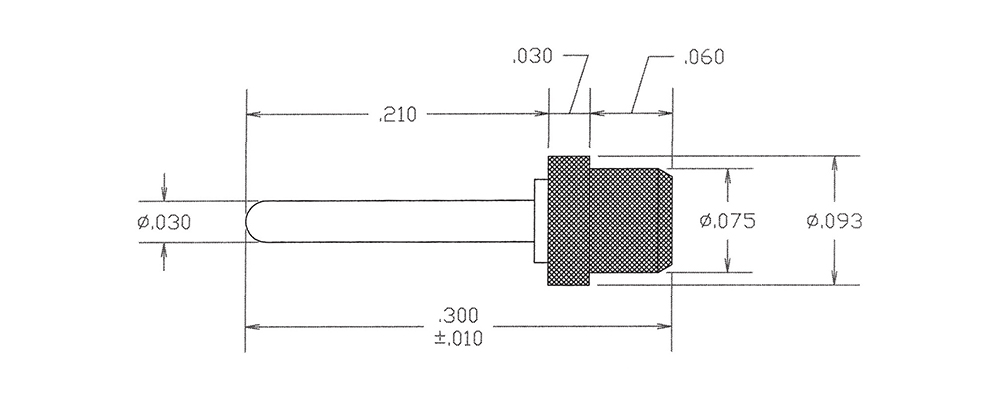

1100-56-0116
1100-56-0116
1100-56-0116
0.300" 0.030 - Press Fit 1/32 0.070 Brass Silver - - PTFE Blue YES
1100-93-0412
1100-93-0412
1100-93-0412
0.315" 0.030 - Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Red NO
1100R-08A-04418
1100R-08A-04418
1100R-08A-04418
0.250" 0.040 - Press Fit 1/16 0.091 Brass Bright Tin - - PTFE Gray NO
1100R-17-08814
1100R-17-08814
1100R-17-08814
0.305" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO

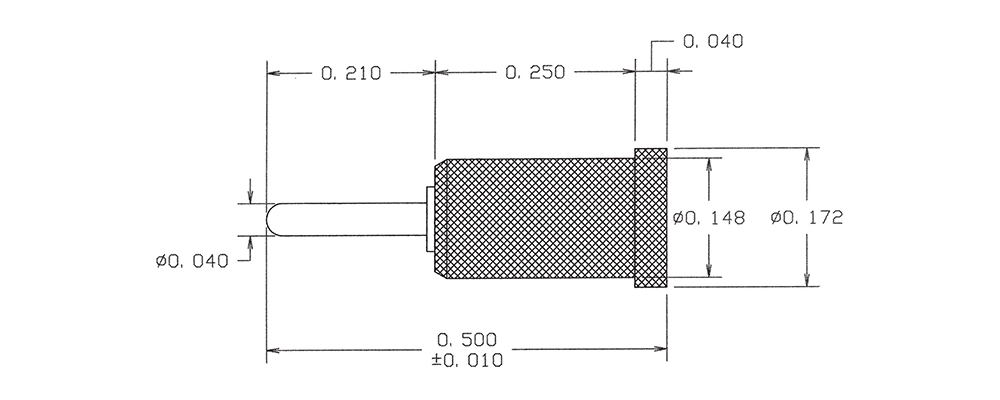

1100R-35-0310
1100R-35-0310
1100R-35-0310
0.500" 0.040 - Press Fit Up to 3/16 0.136 Brass Gold - - PTFE Black YES
1100R-66-0416
1100R-66-0416
1100R-66-0416
0.350" 0.040 - Press Fit 1/16 0.113 Brass Electro-Tin - - PTFE Blue YES
1101-05-0512
1101-05-0512
1101-05-0512
0.428" - - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Red NO
1102-02-08818
1102-02-08818
1102-02-08818
0.330" - - Press Fit 1/32 0.086 Brass Bright Tin-Lead - - PTFE Gray NO
1102-07-0314
1102-07-0314
1102-07-0314
0.480" - - Press Fit 5/32 0.118 Brass Gold - - PTFE Yellow NO
1102-12-04410
1102-12-04410
1102-12-04410
0.334" - - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Black YES
1102-16-0516
1102-16-0516
1102-16-0516
0.428" - - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Blue NO
1102-23-0112
1102-23-0112
1102-23-0112
0.482" - - Press Fit 1/16 0.136 Brass Silver - - PTFE Red NO
