Commercial
Insulated
Pin Terminals

Filter

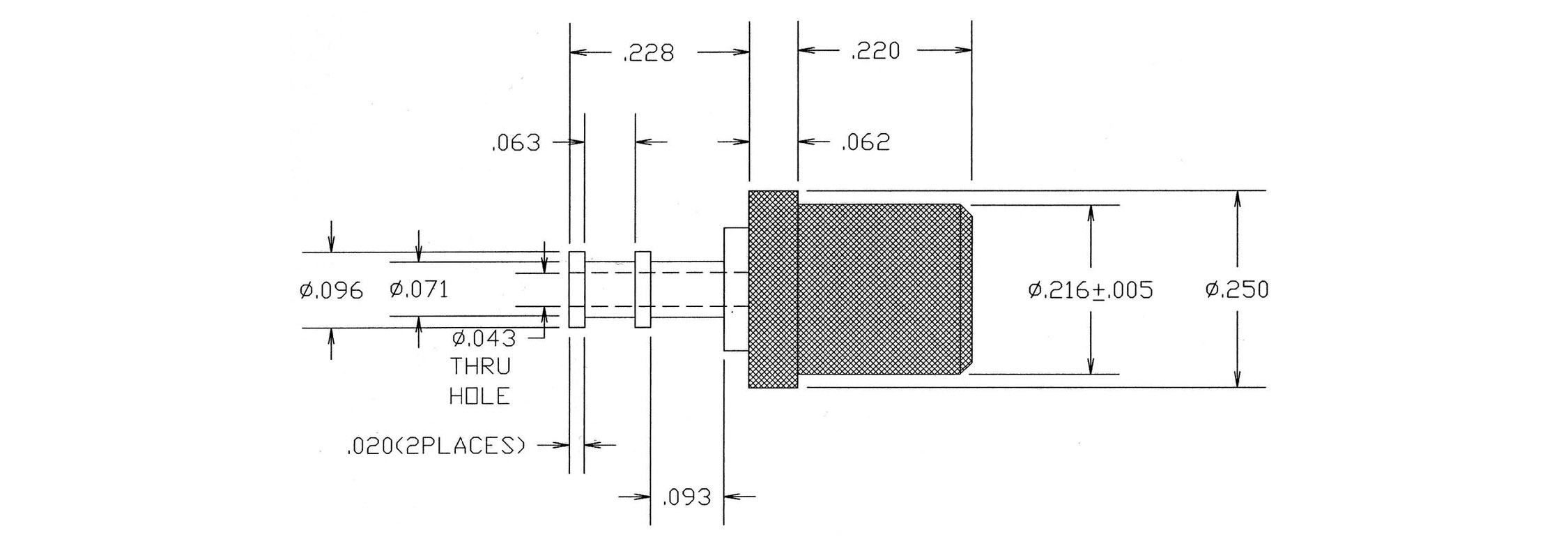

1155-02-0115
1155-02-0115
1155-02-0115
0.510" - - Press Fit Up to 3/16 0.204 Brass Silver - - PTFE Green YES

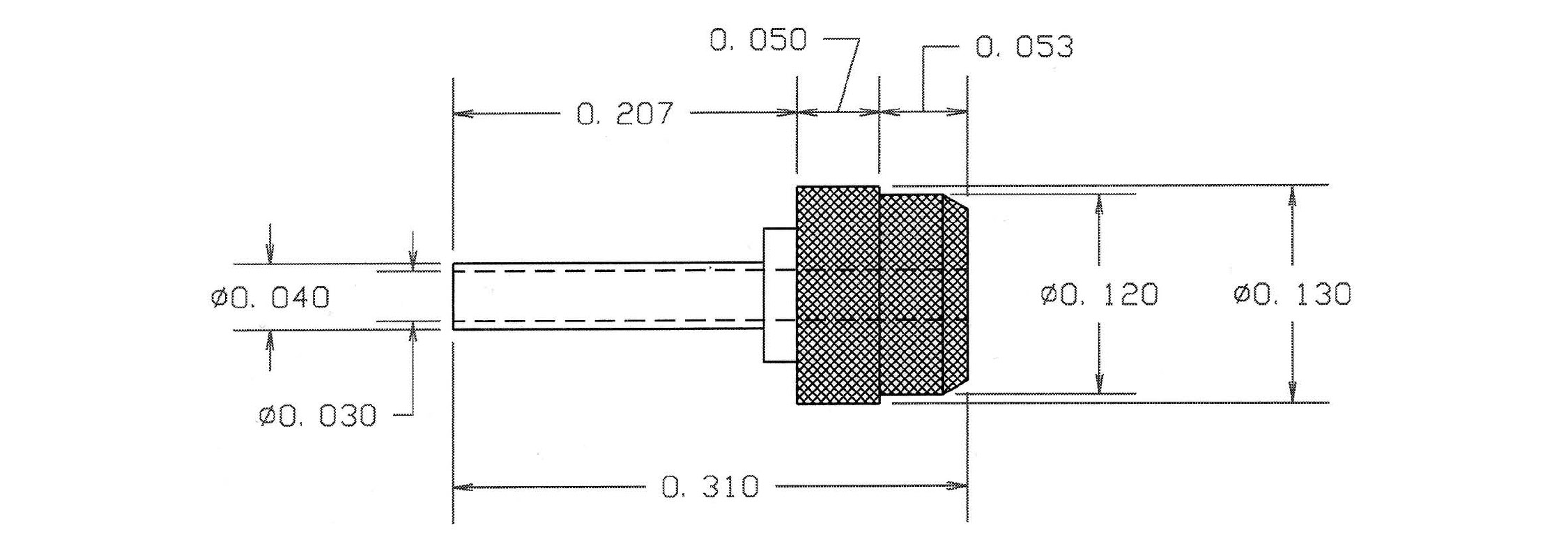

1155-13-0411
1155-13-0411
1155-13-0411
0.310" 0.040 - Press Fit 1/64 0.108 Brass Electro-Tin - - PTFE Brown NO
1156-02-04417
1156-02-04417
1156-02-04417
0.500" 0.035 DOUBLE Turret/Tip Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Violet YES
1156-07-08813
1156-07-08813
1156-07-08813
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Orange NO
1156-15-0119
1156-15-0119
1156-15-0119
1.061" 0.050 DOUBLE TURRET/PIN Press Fit 7/32 0.158 Brass Silver - - PTFE White YES

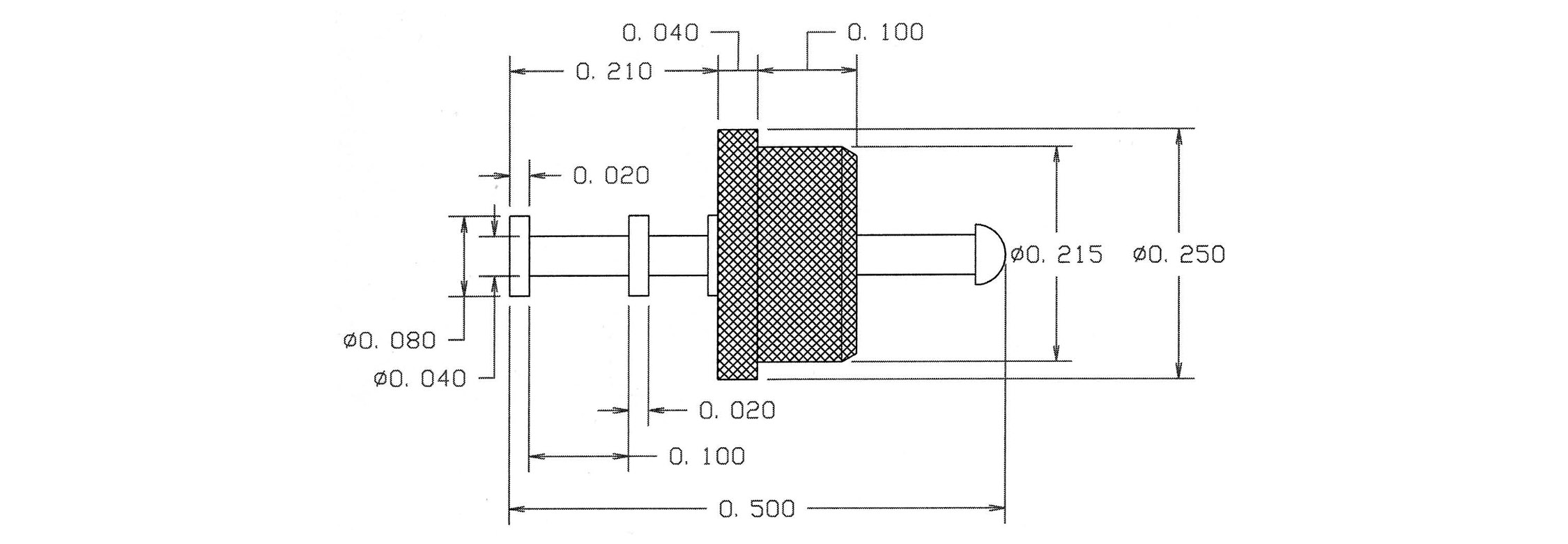

1156-19-0415
1156-19-0415
1156-19-0415
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.203 Brass Electro-Tin - - PTFE Green YES

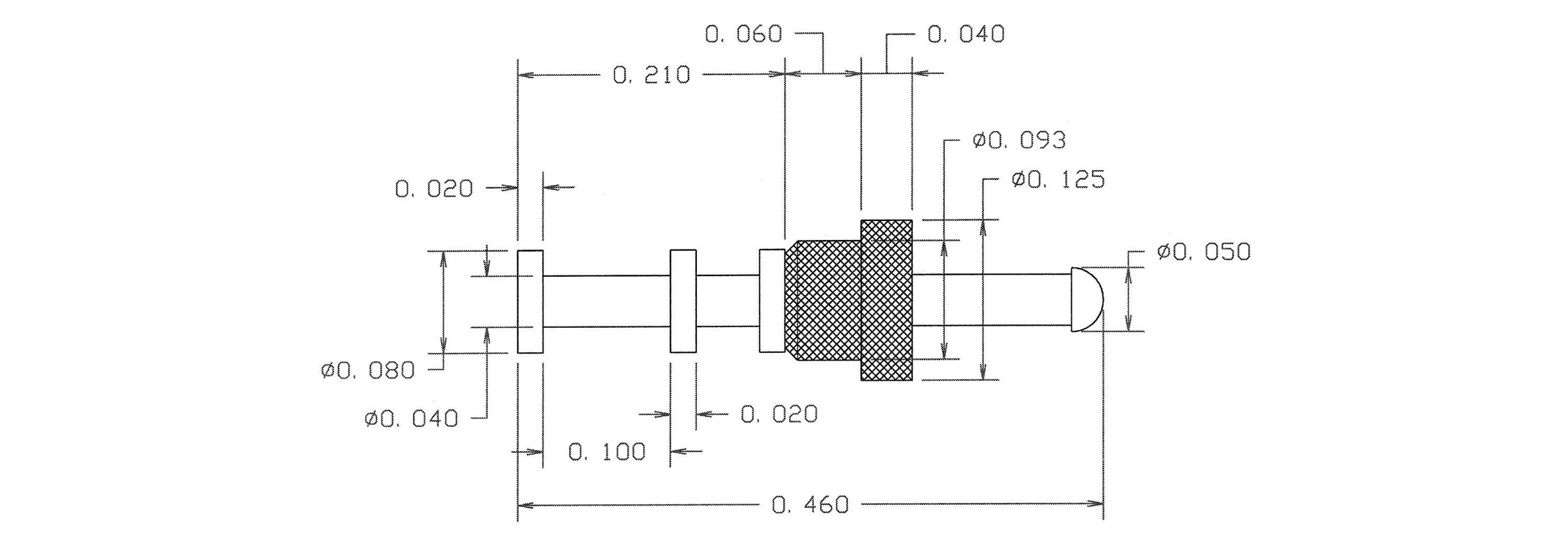

1156R-01-0511
1156R-01-0511
1156R-01-0511
0.460" 0.040 DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Electro Solder - - PTFE Brown NO
1157-01-08817
1157-01-08817
1157-01-08817
0.350" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Violet NO

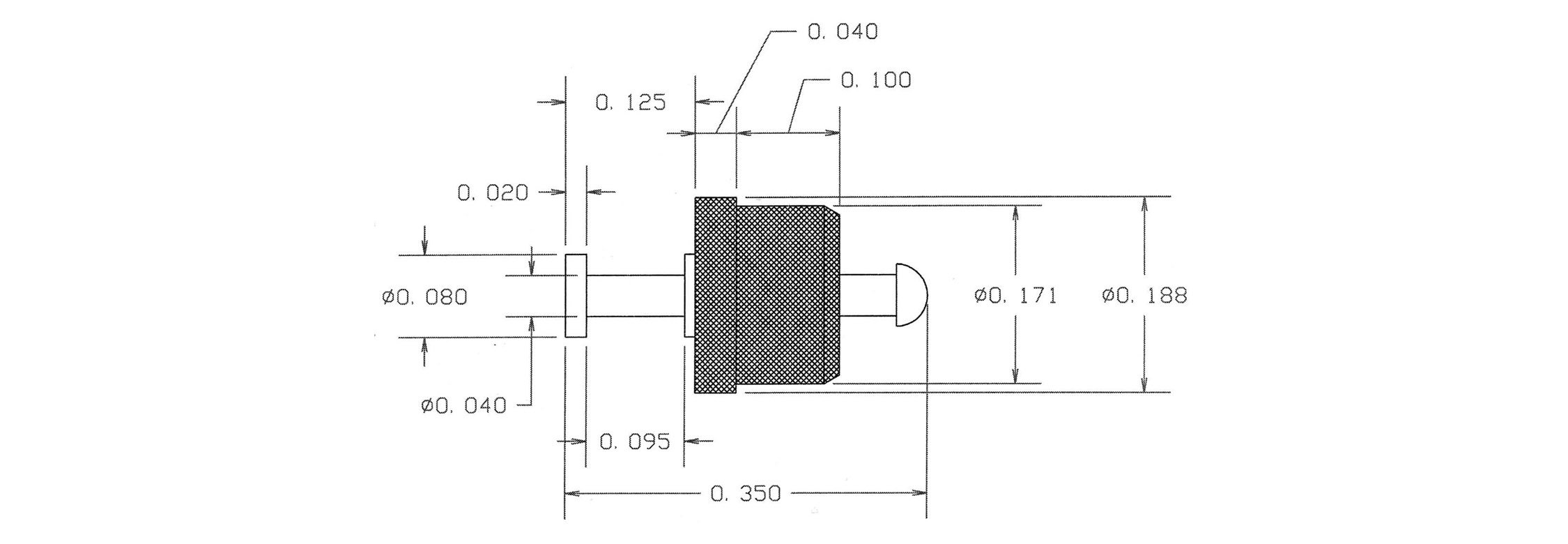

1157-07-0313
1157-07-0313
1157-07-0313
0.350" 0.040 Turret/Tip Press Fit 1/16 0.158 Brass Gold - - PTFE Orange NO
1157R-05-0419
1157R-05-0419
1157R-05-0419
0.865" 0.050 TURRET/PIN Press Fit 7/32 0.158 Brass Electro-Tin - - PTFE White YES
1160-13-0515
1160-13-0515
1160-13-0515
0.367" 0.085 - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Green NO
1167-24-0111
1167-24-0111
1167-24-0111
0.781" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Silver ZINC Brass DIALLYL PHTHALATE Brown YES

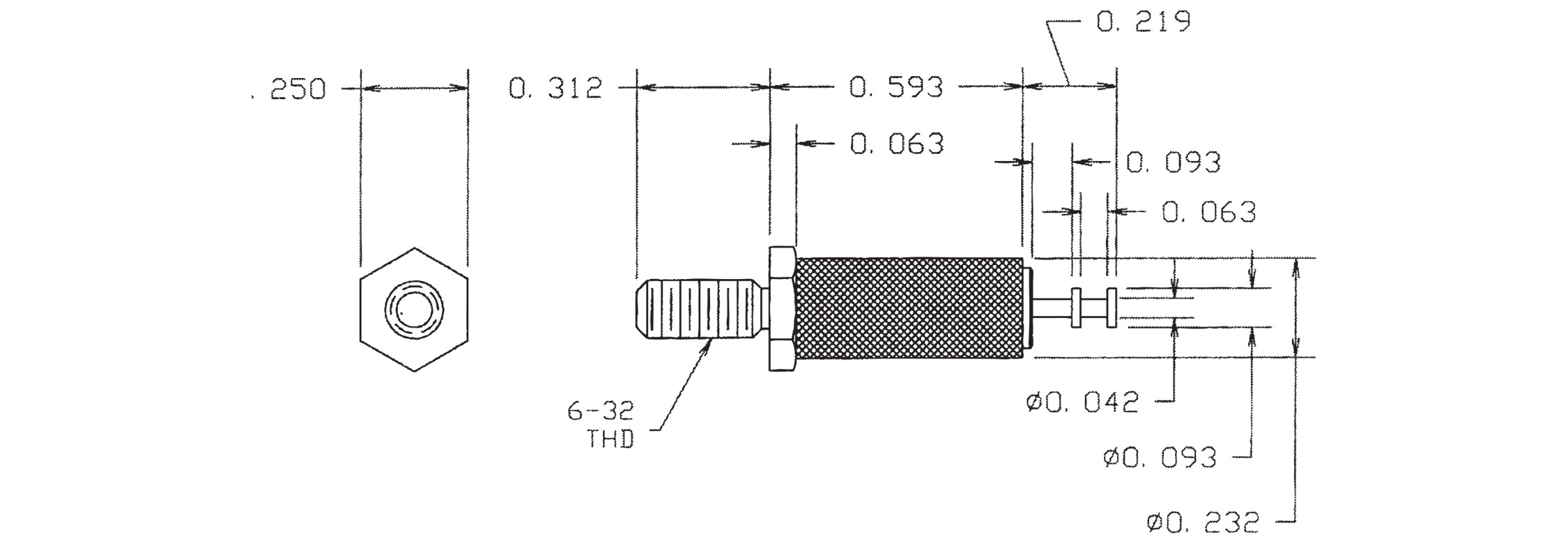

1167-75-0317
1167-75-0317
1167-75-0317
0.905" - - 6-32 Nut Up to 3/16 0.144 Brass Gold ZINC Brass DIALLYL PHTHALATE Violet YES
1169-30-04413
1169-30-04413
1169-30-04413
0.671" 0.060 - 2-56 Nut 1/8 0.094 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Orange YES
1169-37-0519
1169-37-0519
1169-37-0519
0.750" - - 4-40 Nut 1/8 0.120 Brass Electro Solder Electro Solder Brass DIALLYL PHTHALATE White NO

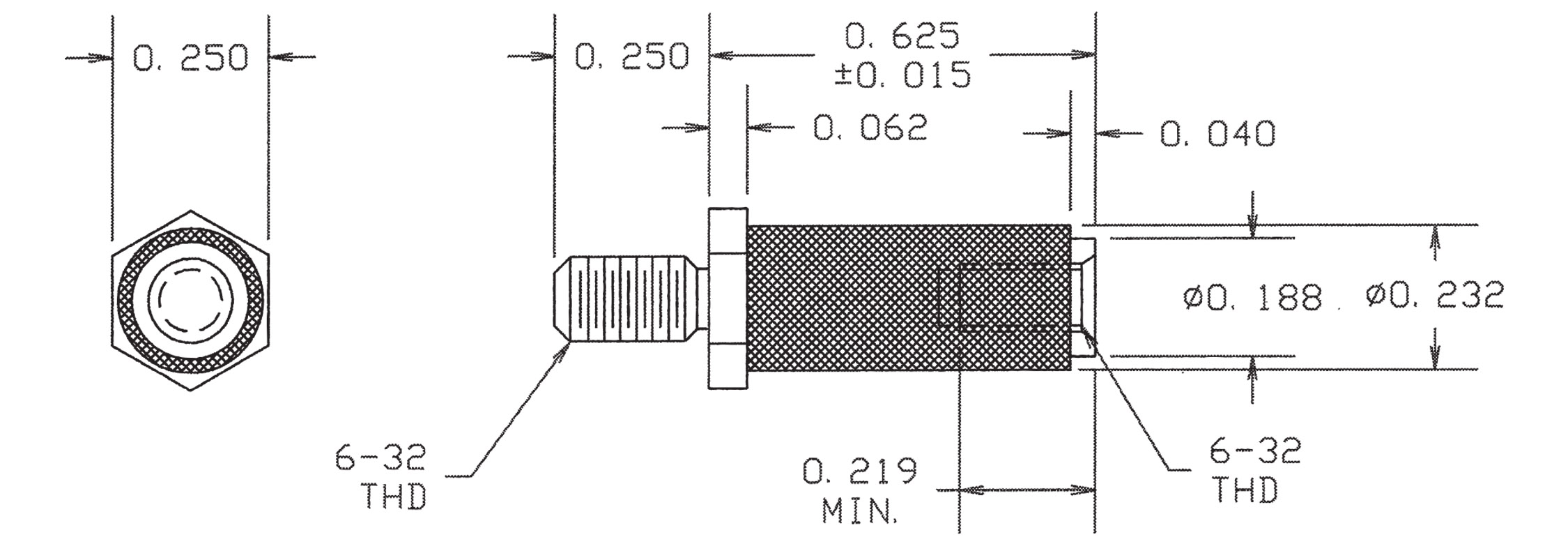

1170-07-07515
1170-07-07515
1170-07-07515
0.875" - - 6-32 Nut 1/8 0.144 Brass ZINC ZINC Brass DIALLYL PHTHALATE Green YES

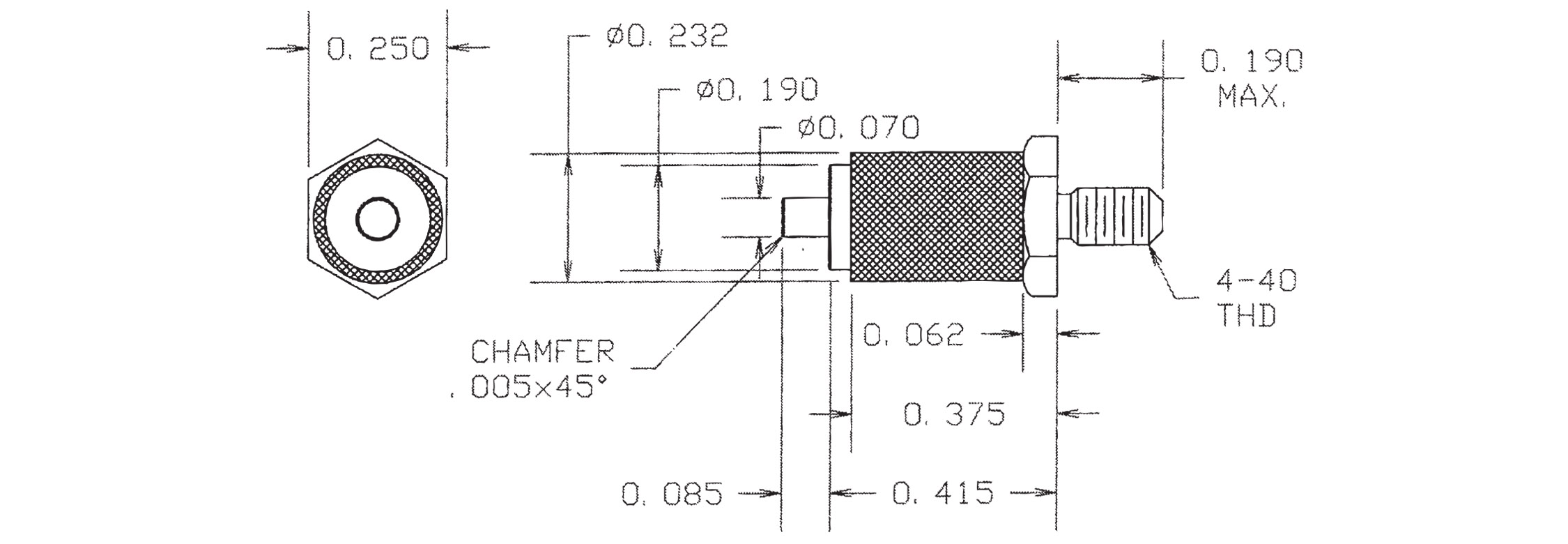

1170-23-0111
1170-23-0111
1170-23-0111
0.500" 0.070 - 4-40 Nut 1/16 0.120 Brass Silver ZINC Brass DIALLYL PHTHALATE Brown YES

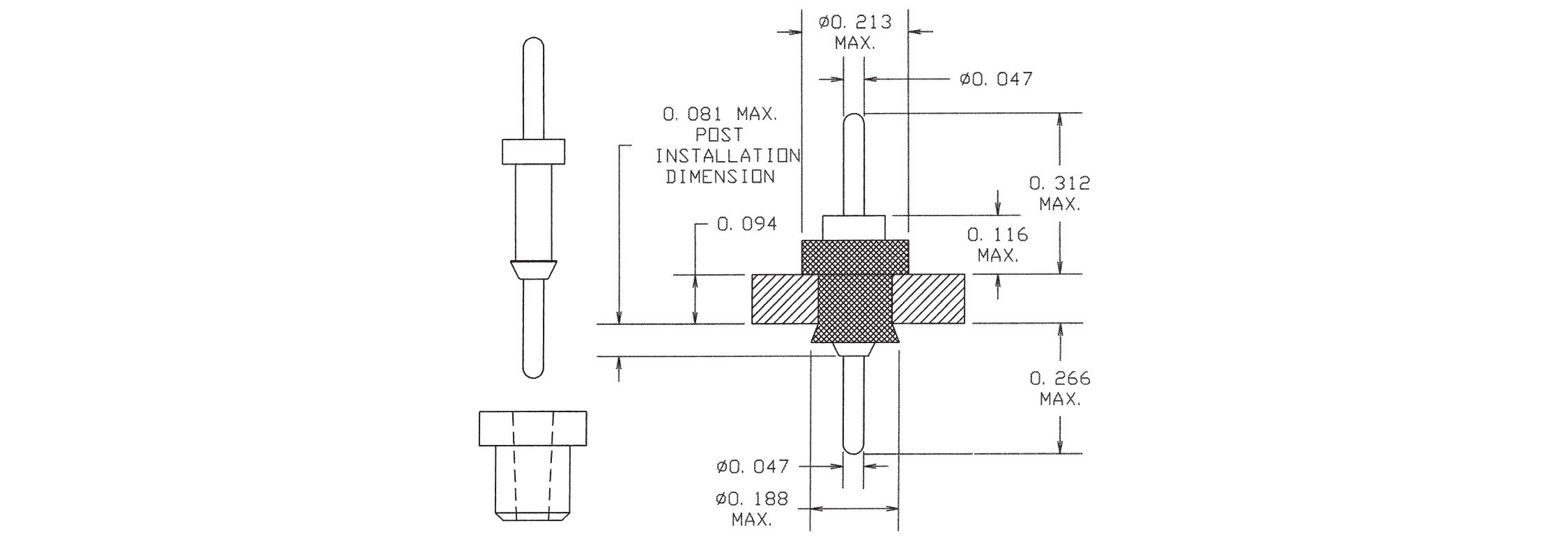

1175-013-0317
1175-013-0317
1175-013-0317
0.672" 0.047 Pin/Pin PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Gold - - PTFE Violet YES
1175-301-04413
1175-301-04413
1175-301-04413
0.460" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Orange NO
1175-351-0519
1175-351-0519
1175-351-0519
0.342" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE White NO
