Commercial
Insulated
Pin Terminals

Filter
1175-373-0115
1175-373-0115
1175-373-0115
0.768" 0.040 DOUBLE TURRET/PIN PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Silver - - PTFE Green YES
1175-404-0411
1175-404-0411
1175-404-0411
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Brown NO
1175-414-04417
1175-414-04417
1175-414-04417
0.642" - DOUBLE Turret/Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Violet YES
1175-424-08813
1175-424-08813
1175-424-08813
0.756" - Double Turret/Double Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Orange NO
1175-441-0119
1175-441-0119
1175-441-0119
0.548" - TURRET/SLOTTED PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Silver - - PTFE White YES
1175-451-0415
1175-451-0415
1175-451-0415
0.662" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Green YES
1175-462-0511
1175-462-0511
1175-462-0511
0.392" - - PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Brown NO
1175-473-08817
1175-473-08817
1175-473-08817
0.575" - - PRESS LOCK 3/32 0.188 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Violet NO

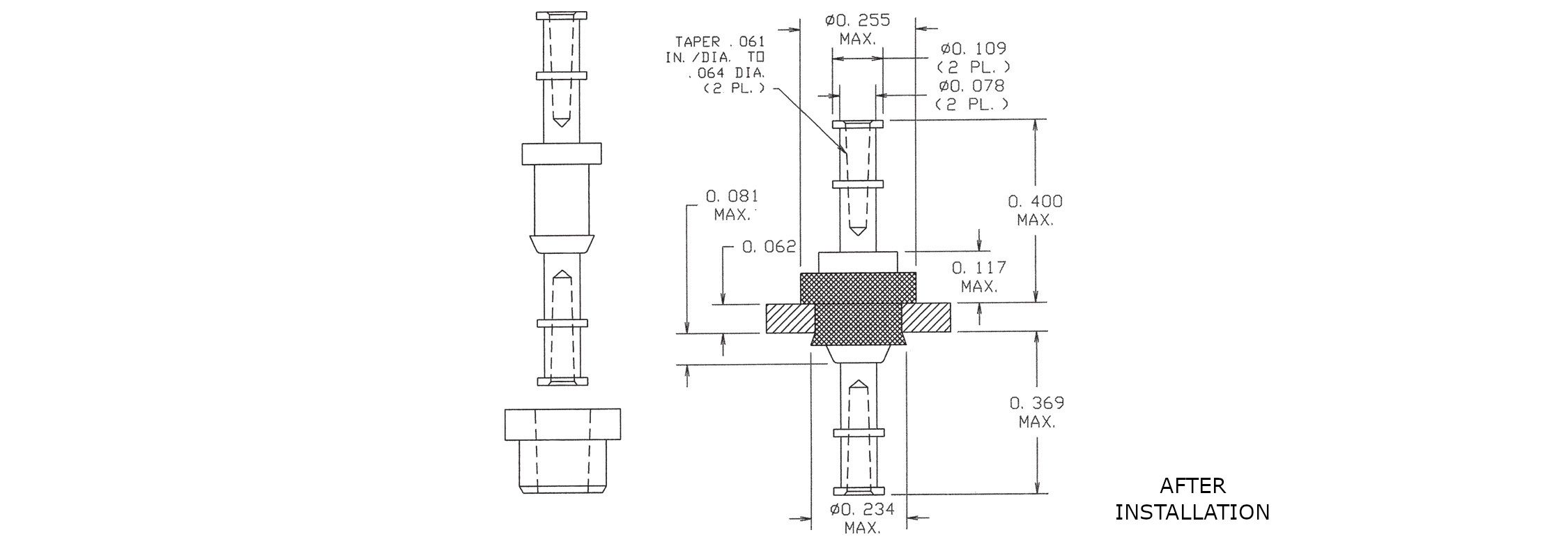

1175-492-0313
1175-492-0313
1175-492-0313
0.831" - Double Turret/Double Turret PRESS LOCK 1/16 0.188 (+0.003/-0.001) Brass Gold - - PTFE Orange NO
1175-601-0419
1175-601-0419
1175-601-0419
0.424" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE White YES
1175-702-0515
1175-702-0515
1175-702-0515
0.474" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Electro Solder - - PTFE Green NO

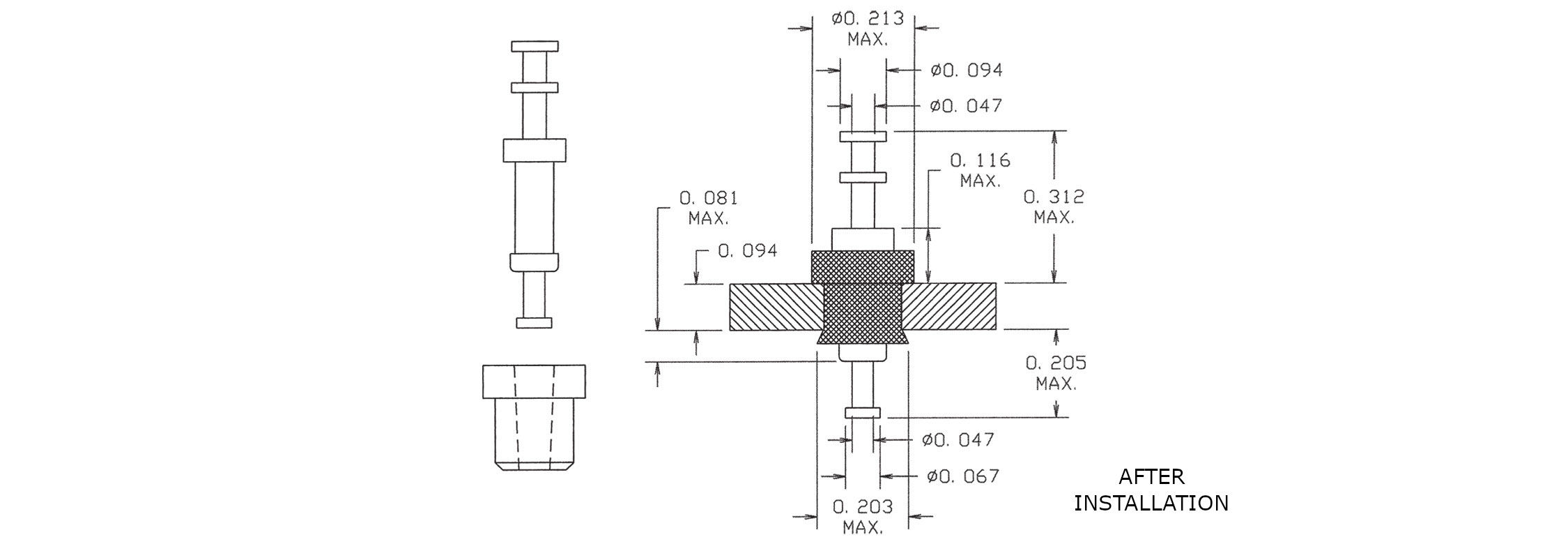

1175-713-0111
1175-713-0111
1175-713-0111
0.611" - DOUBLE Turret/Turret PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Silver - - PTFE Brown NO
1175-723-0317
1175-723-0317
1175-723-0317
0.725" - Double Turret/Double Turret PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Gold - - PTFE Violet YES

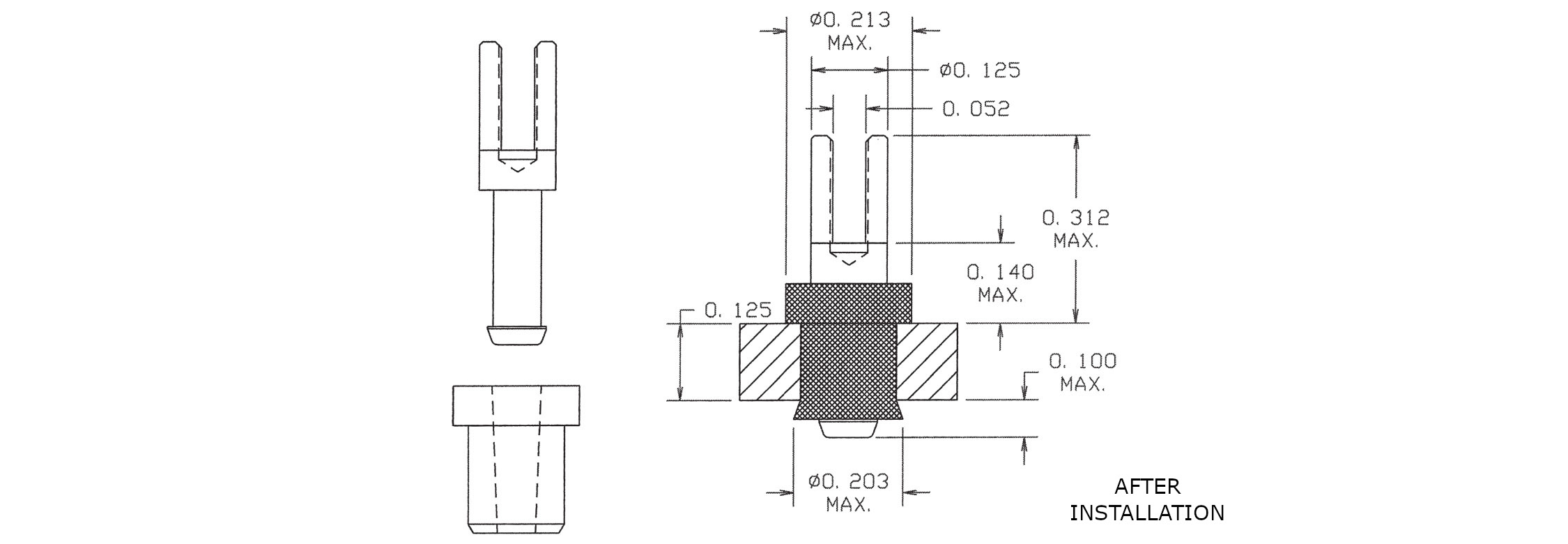

1175-734-04413
1175-734-04413
1175-734-04413
0.537" - - PRESS LOCK 1/8 0.154 (+0.003/-0.001) Brass Bright Tin - - PTFE Orange NO
1175-751-0519
1175-751-0519
1175-751-0519
0.655" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.154 (+0.003/-0.001) Brass Electro Solder - - PTFE White NO
1175-763-0115
1175-763-0115
1175-763-0115
0.419" - - PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Silver - - PTFE Green YES
1175-822-0411
1175-822-0411
1175-822-0411
0.433" - - PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Electro-Tin - - PTFE Brown NO

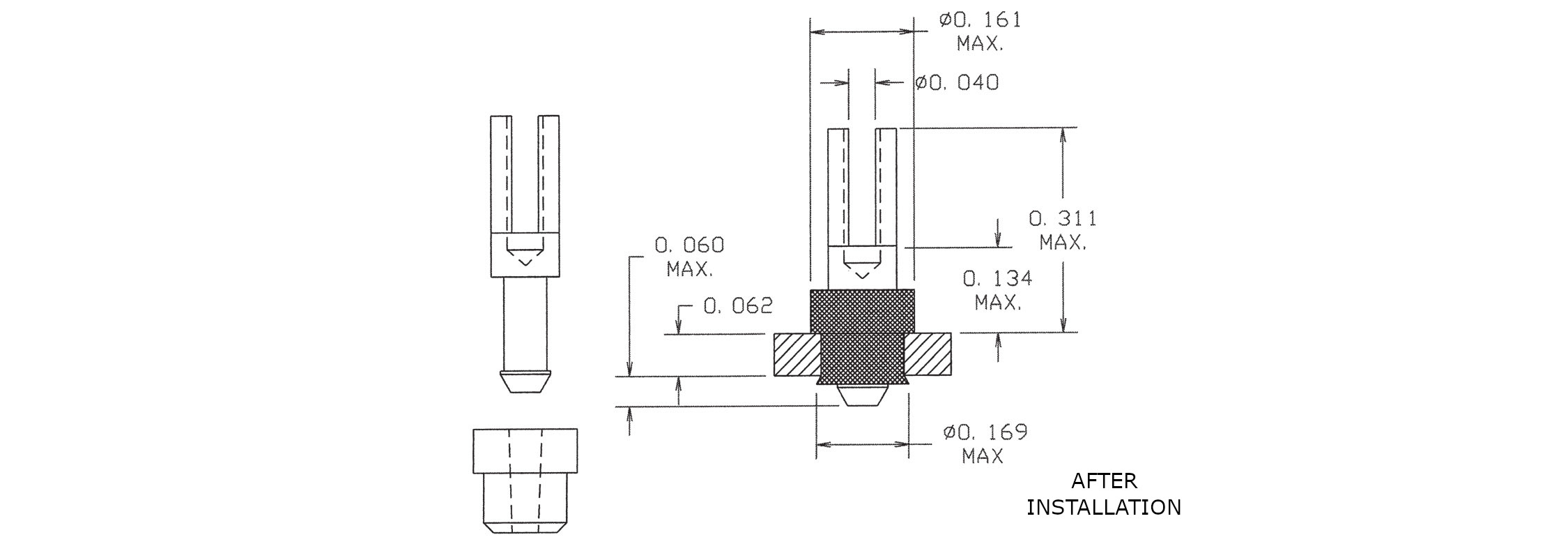

1175-842-04417
1175-842-04417
1175-842-04417
0.433" - - PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Bright Tin - - PTFE Violet YES
1175-872-08813
1175-872-08813
1175-872-08813
0.591" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Orange NO

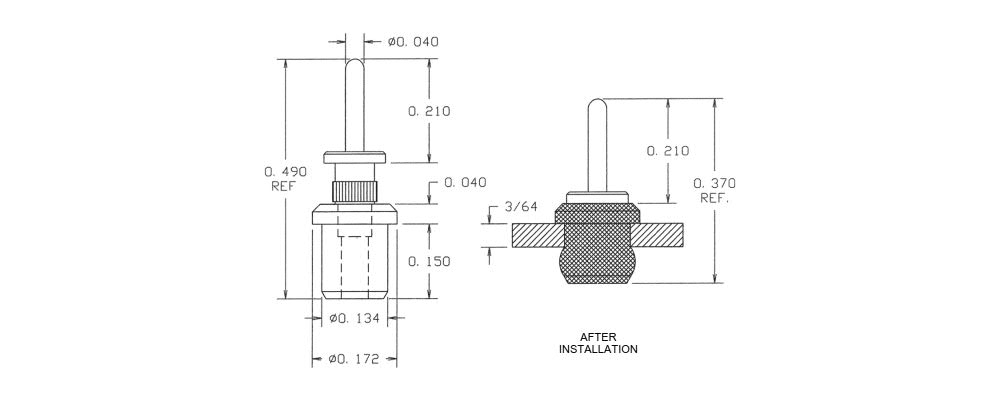

1177-03-0119
1177-03-0119
1177-03-0119
0.370" 0.040 - PRESS LOCK 1/32 - 1/16 0.136 Brass Silver - - PTFE White YES
