Commercial
Insulated
Pin Terminals

Filter
1100R-36-0515
1100R-36-0515
1100R-36-0515
0.390" 0.040 - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Green NO

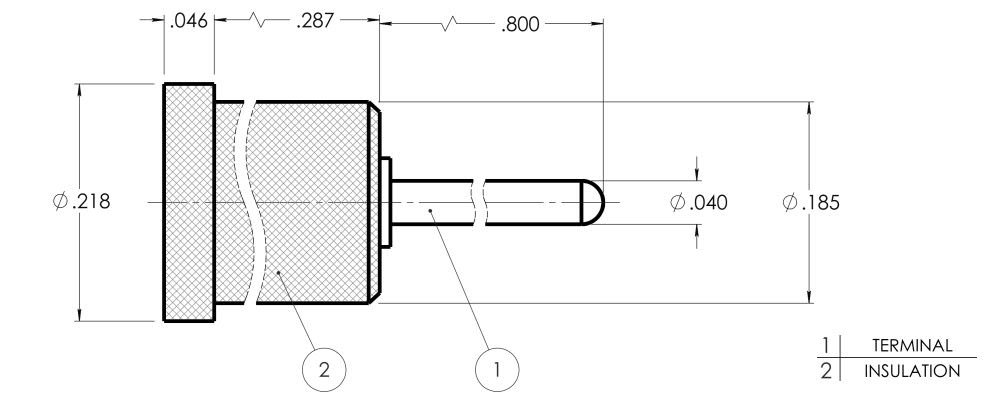

1100R-54-0111
1100R-54-0111
1100R-54-0111
1.133" 0.040 - Press Fit 7/32 0.172 Brass Silver - - PTFE Brown NO

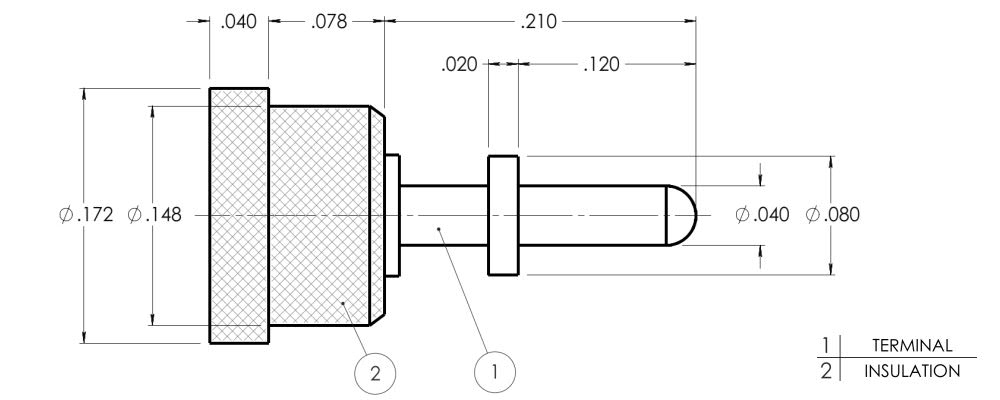

1101R-01-0317
1101R-01-0317
1101R-01-0317
0.328" 0.040 - Press Fit 1/32 0.136 Brass Gold - - PTFE Violet YES
09-2010-1-04418
09-2010-1-04418
09-2010-1-04418
0.436" 0.040 Pin/Tip Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Gray NO
1102-44-04414
1102-44-04414
1102-44-04414
0.750" - - Press Fit 1/16 0.152 Brass Bright Tin - - PTFE Yellow NO
09-2078-1-08814
09-2078-1-08814
09-2078-1-08814
0.856" 0.025 SQ. TURRET/PIN Press Fit 5/64 0.086 Brass Bright Tin-Lead - - PTFE Yellow NO
1110-39-08810
1110-39-08810
1110-39-08810
0.515" 0.040 Pin/Pin Press Fit 1/16 0.144 Brass Bright Tin-Lead - - PTFE Black NO
09-2095-1-0310
09-2095-1-0310
09-2095-1-0310
0.636" 0.060 ± 0.010 Pin/Pin Press Fit 1/8 0.136 Brass Gold - - PTFE Black YES
1111-25-0116
1111-25-0116
1111-25-0116
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.152 Brass Silver - - PTFE Blue YES
09-2104-1-0416
09-2104-1-0416
09-2104-1-0416
0.460" 0.036 Pin/Pin Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Blue YES
1112-07-0412
1112-07-0412
1112-07-0412
0.273" - - Press Fit 1/16 0.113 Brass Electro-Tin - - PTFE Red NO
09-2112-1-0512
09-2112-1-0512
09-2112-1-0512
0.838" - - 6-32 Nut 1/8 0.144 Brass Electro Solder Nickel Brass PTFE Red NO
1113-54-04418
1113-54-04418
1113-54-04418
0.327" 0.030 Pin/Pin Press Fit 1/16 0.070 Brass Bright Tin - - PTFE Gray NO
09-2121-1-08818
09-2121-1-08818
09-2121-1-08818
0.275" - - Press Fit 5/64 0.136 Brass Bright Tin-Lead - - PTFE Gray NO
1114-18-08814
1114-18-08814
1114-18-08814
0.250" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO
1100-05-0314
1100-05-0314
1100-05-0314
0.262" 0.040 - Press Fit 3/64 0.086 Brass Gold - - PTFE Yellow NO

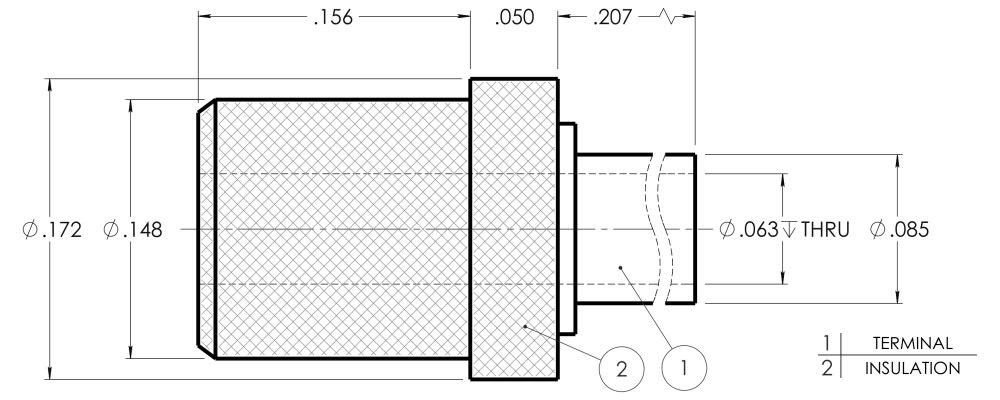

1114-25-0310
1114-25-0310
1114-25-0310
0.413" 0.085 - Press Fit 1/8 0.136 Brass Gold - - PTFE Black YES
1100-09-04410
1100-09-04410
1100-09-04410
0.350" 0.040 - Press Fit 3/32 0.098 Brass Bright Tin - - PTFE Black YES
1114R-16-0416
1114R-16-0416
1114R-16-0416
0.296" 0.040 - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Blue YES
1100-14-0516
1100-14-0516
1100-14-0516
0.280" 0.040 - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Blue NO
