Commercial
Insulated
Pin Terminals

Filter

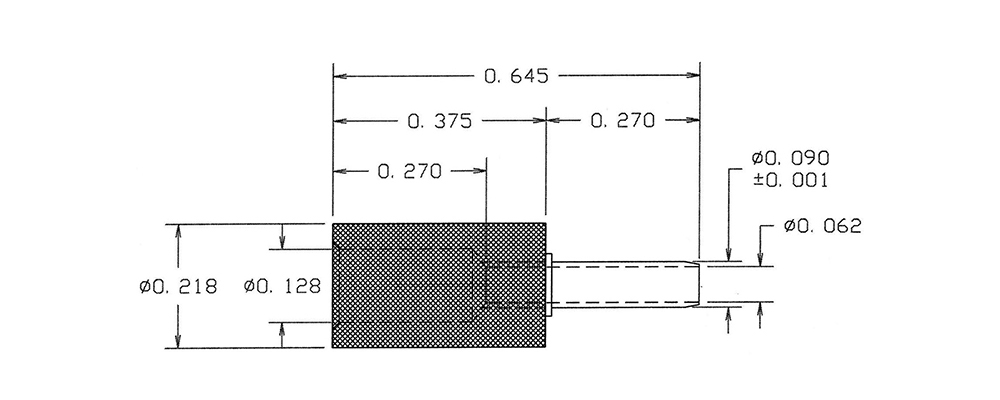

1132-01-0515
1132-01-0515
1132-01-0515
0.645" 0.090 - Solder 7/32 0.0935 Brass Electro Solder - - PTFE Green NO

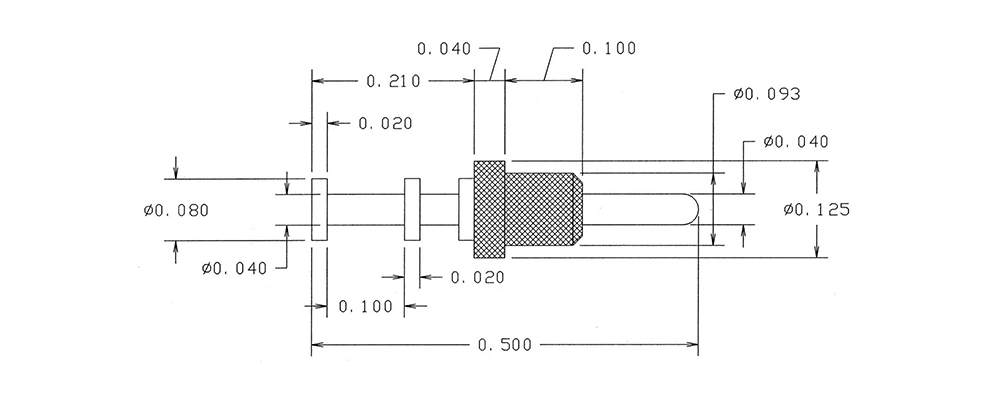

1133-03-0111
1133-03-0111
1133-03-0111
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 1/16 0.086 Brass Silver - - PTFE Brown NO
1135-01-0317
1135-01-0317
1135-01-0317
0.510" 0.030 Pin/Slotted Press Fit 1/32 0.070 Brass Gold - - PTFE Violet YES
1135-05-04413
1135-05-04413
1135-05-04413
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Bright Tin - - PTFE Orange NO

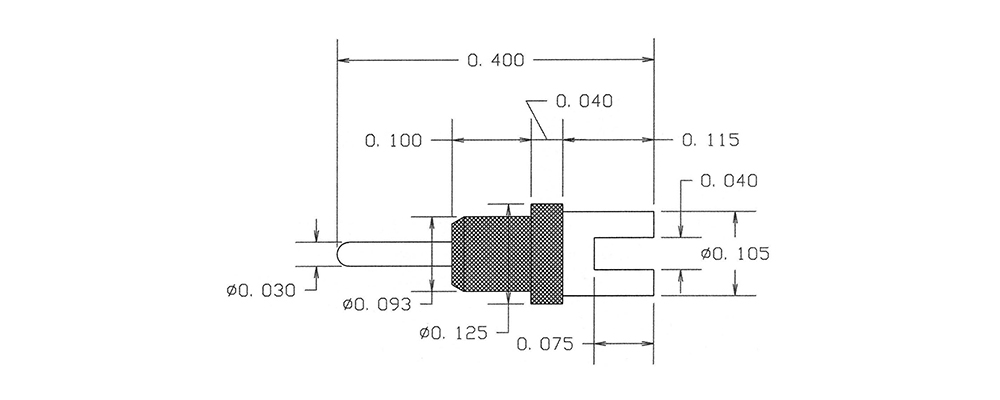

1135-09-0519
1135-09-0519
1135-09-0519
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Electro Solder - - PTFE White NO
1137-03-0115
1137-03-0115
1137-03-0115
0.320" 0.030 Pin/Slotted Press Fit 1/16 0.070 Brass Silver - - PTFE Green YES

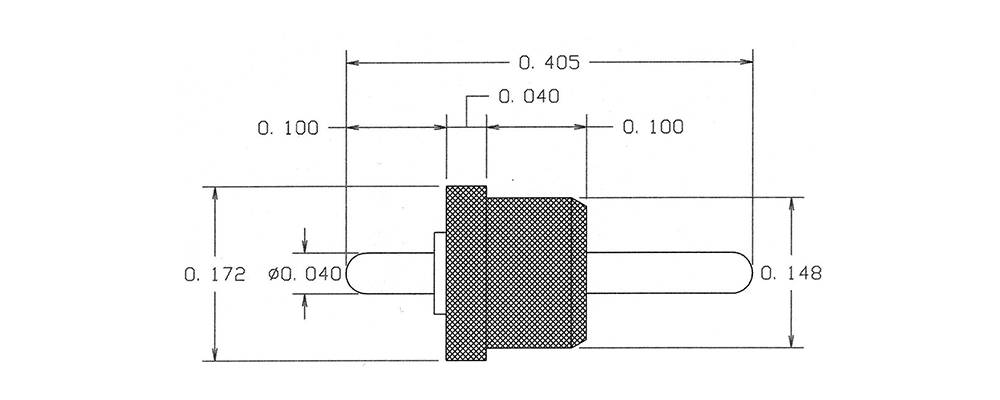

1139-04-0411
1139-04-0411
1139-04-0411
0.405" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Brown NO
1151-05-04417
1151-05-04417
1151-05-04417
0.350" - - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Violet YES
1151-11-08813
1151-11-08813
1151-11-08813
0.455" - - Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Orange NO

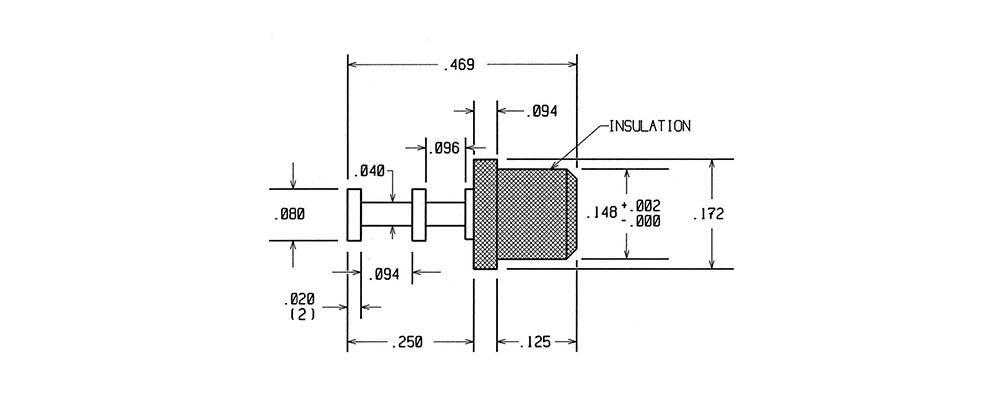

1151-20-0119
1151-20-0119
1151-20-0119
0.469" - - Press Fit 3/32 0.136 Brass Silver - - PTFE White YES

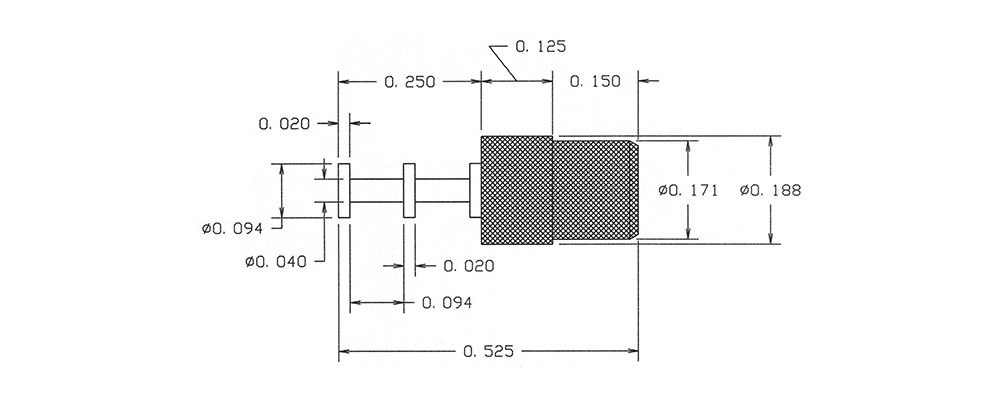

1151-39-0415
1151-39-0415
1151-39-0415
0.525" - - Press Fit 1/8 0.158 Brass Electro-Tin - - PTFE Green YES
1151-51-0511
1151-51-0511
1151-51-0511
1.234" - - Press Fit 5/32 0.203 Brass Electro Solder - - PTFE Brown NO
1151R-09-08817
1151R-09-08817
1151R-09-08817
0.390" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Violet NO
1152-01-0313
1152-01-0313
1152-01-0313
0.350" 0.040 - Press Fit 1/16 0.136 Brass Gold - - PTFE Orange NO
1152-31-0419
1152-31-0419
1152-31-0419
0.750" 0.040 - Press Fit 1/16 0.203 Brass Electro-Tin - - PTFE White YES
1152R-17-0515
1152R-17-0515
1152R-17-0515
0.615" 0.040 - Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Green NO

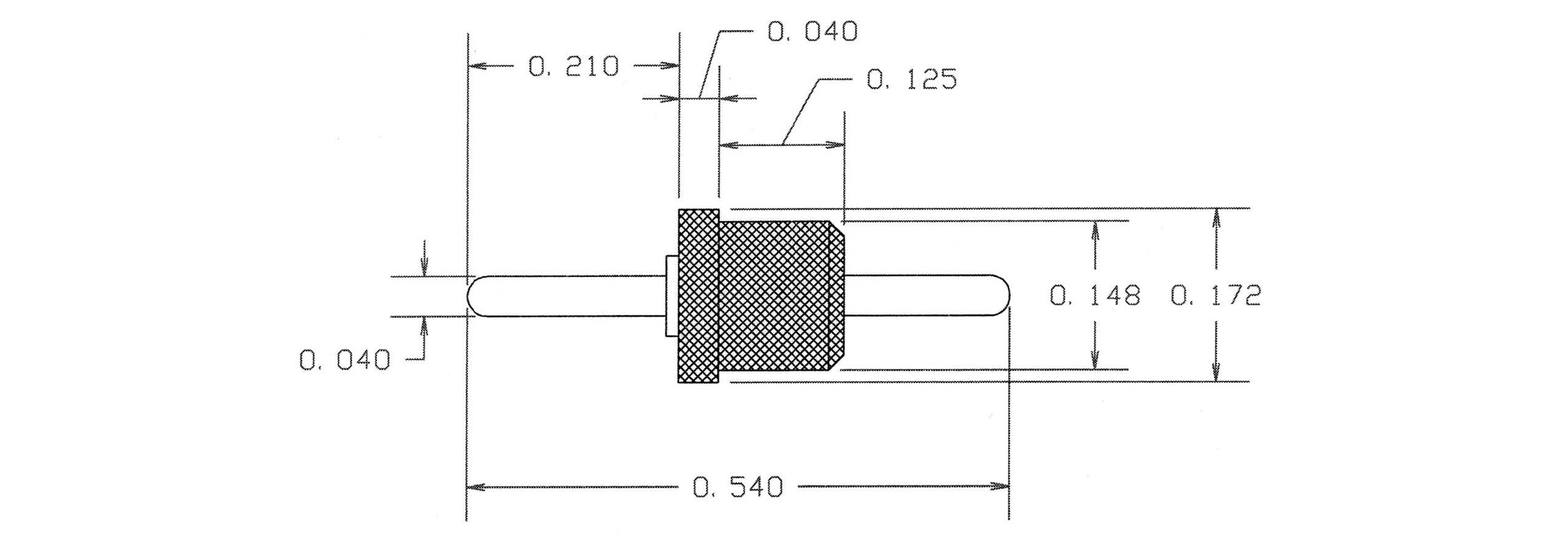

1153-07-0111
1153-07-0111
1153-07-0111
0.540" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Silver - - PTFE Brown NO
1153-32-0317
1153-32-0317
1153-32-0317
0.515" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Gold - - PTFE Violet YES

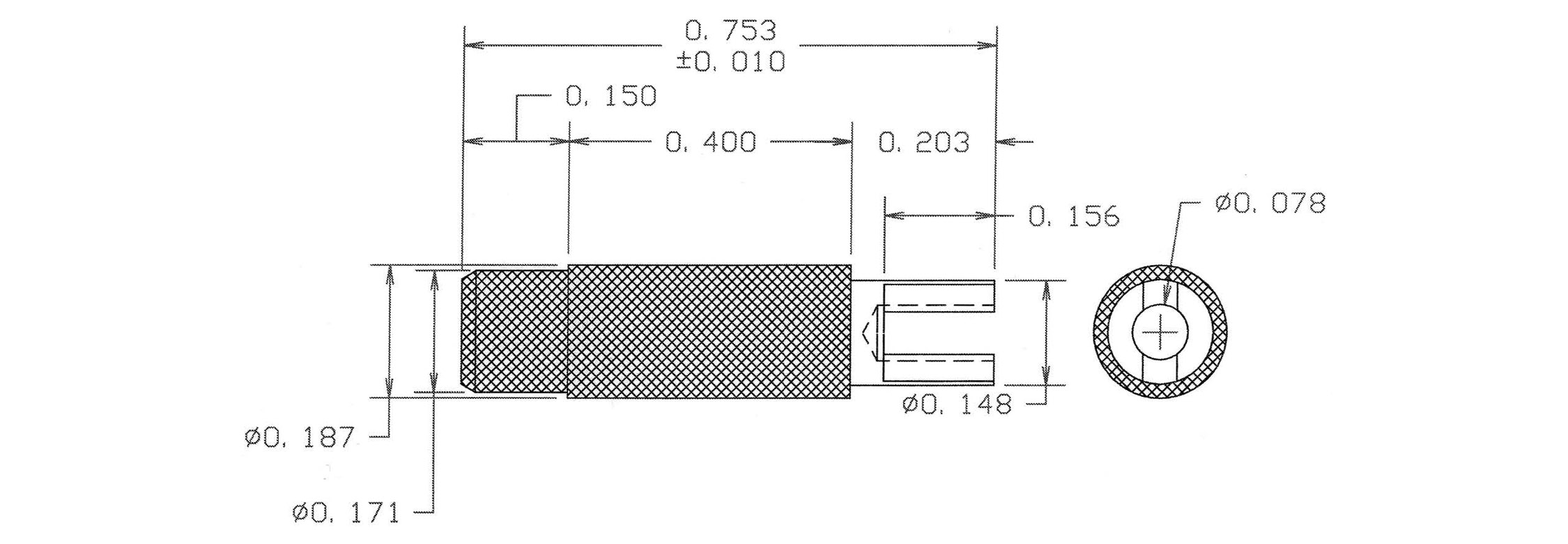

1154-10-04413
1154-10-04413
1154-10-04413
0.753" - - Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Orange NO
1154-44-0519
1154-44-0519
1154-44-0519
0.821" 0.050 Pin/Slotted Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE White NO
