Commercial
Insulated
Pin Terminals

Filter
1103R-08-04418
1103R-08-04418
1103R-08-04418
0.320" - - Press Fit 3/32 0.158 Brass Bright Tin - - PTFE Gray NO
1104-04-08814
1104-04-08814
1104-04-08814
0.392" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO
1105-02-0310
1105-02-0310
1105-02-0310
1.687" - Double Turret/Double Turret Press Fit 9/16 0.205 Brass Gold - - PTFE Black YES
1106-03-0416
1106-03-0416
1106-03-0416
0.478" - - Press Fit 1/8 0.158 Brass Electro-Tin - - PTFE Blue YES
1106-07-0512
1106-07-0512
1106-07-0512
0.602" - - Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Red NO
1106-11-08818
1106-11-08818
1106-11-08818
0.703" - - Press Fit 1/16 0.158 Brass Bright Tin-Lead - - PTFE Gray NO
1106-16-0314
1106-16-0314
1106-16-0314
0.890" - - Press Fit 5/32 0.205 Brass Gold - - PTFE Yellow NO

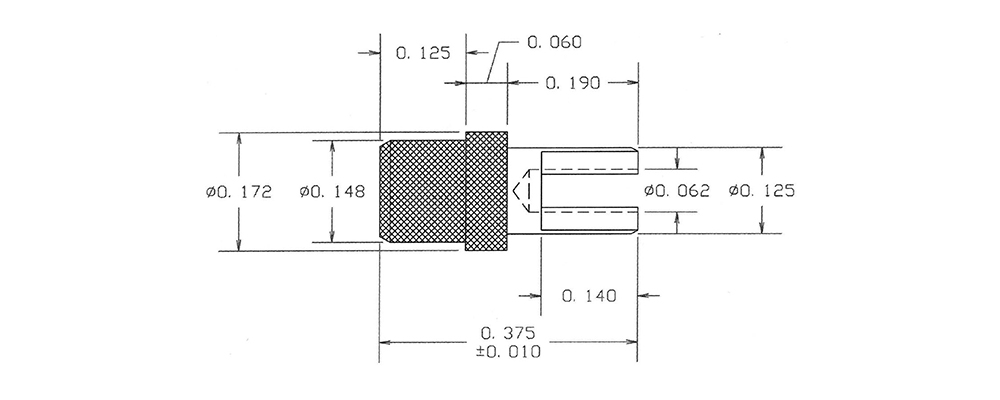

1106-22-04410
1106-22-04410
1106-22-04410
0.375" - - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Black YES
1106-52-0516
1106-52-0516
1106-52-0516
0.276" - - Press Fit 3/32 0.086 Brass Electro Solder - - PTFE Blue NO

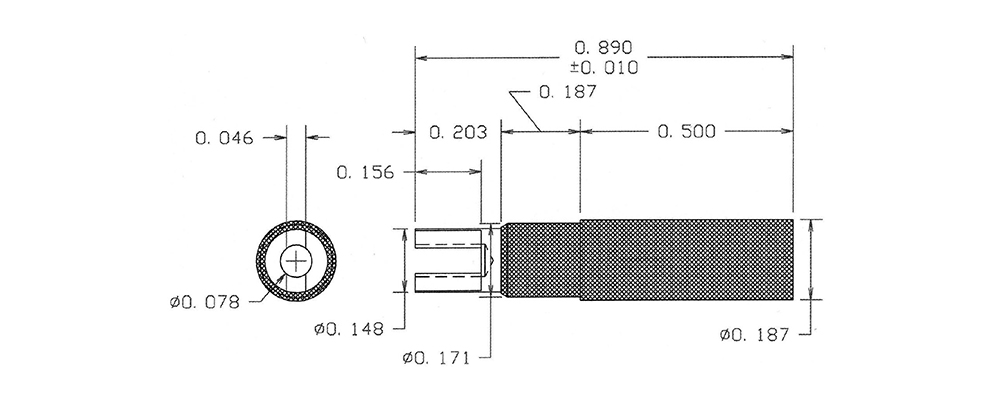

1106R-24-0112
1106R-24-0112
1106R-24-0112
0.890" - - Press Fit 5/32 0.158 Brass Silver - - PTFE Red NO
1106R-51-0318
1106R-51-0318
1106R-51-0318
0.150" - - Press Fit 1/32 0.113 Brass Gold - - PTFE Gray NO
1107-03-04414
1107-03-04414
1107-03-04414
0.819" 0.040 Pin/Pin Press Fit Up to 3/16 0.136 Brass Bright Tin - - PTFE Yellow NO
1107-08-08810
1107-08-08810
1107-08-08810
0.696" 0.040 Pin/Pin Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Black NO

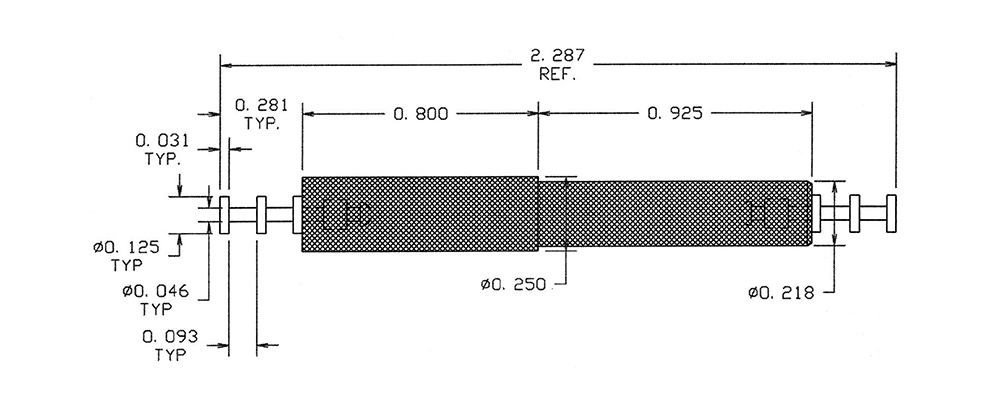

1108-02-0116
1108-02-0116
1108-02-0116
2.287" - Double Turret/Double Turret Press Fit 7/8 0.205 Brass Silver - - PTFE Blue YES

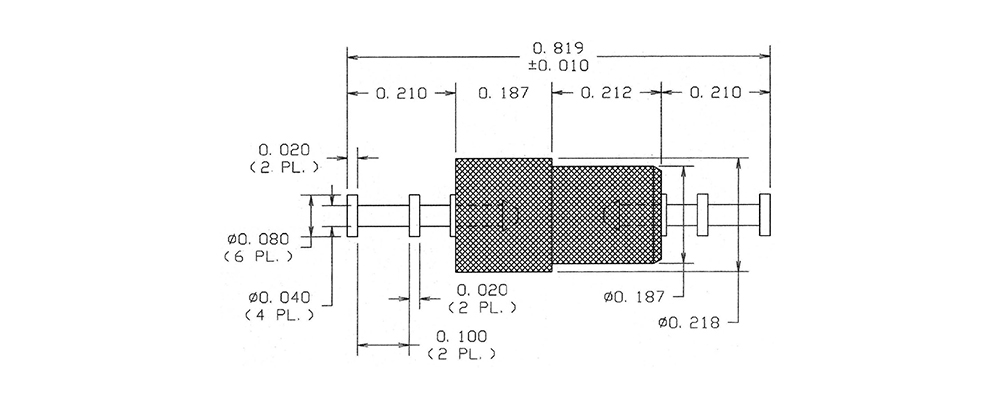

1108-06-0412
1108-06-0412
1108-06-0412
0.819" - Double Turret/Double Turret Press Fit Up to 3/16 0.174 Brass Electro-Tin - - PTFE Red NO
1110-02-04418
1110-02-04418
1110-02-04418
0.438" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Gray NO
1110-06-08814
1110-06-08814
1110-06-08814
0.987" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Yellow NO

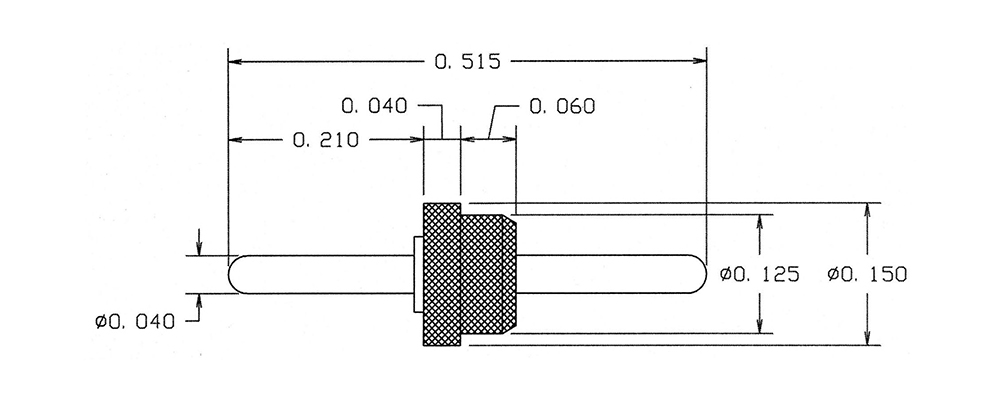

1110-11-0310
1110-11-0310
1110-11-0310
0.515" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Gold - - PTFE Black YES

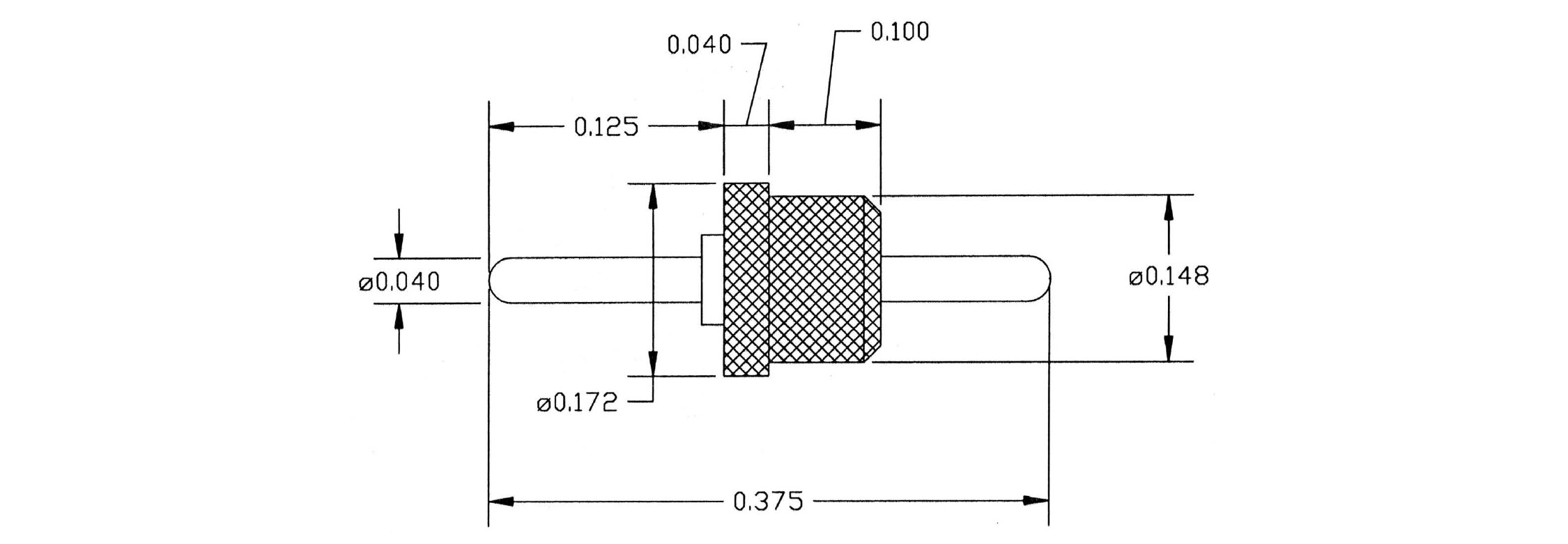

1110-16-0416
1110-16-0416
1110-16-0416
0.375" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Blue YES
1110-20-0512
1110-20-0512
1110-20-0512
0.443" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Red NO
