Commercial
Insulated
Pin Terminals

Filter
1112R-62-0415
1112R-62-0415
1112R-62-0415
0.260" - - Press Fit 3/32 0.086 Brass Electro-Tin - - PTFE Green YES
1113-03-0511
1113-03-0511
1113-03-0511
0.333" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Brown NO
1113-57-08817
1113-57-08817
1113-57-08817
0.407" 0.040 PIN/Solder CUP Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Violet NO

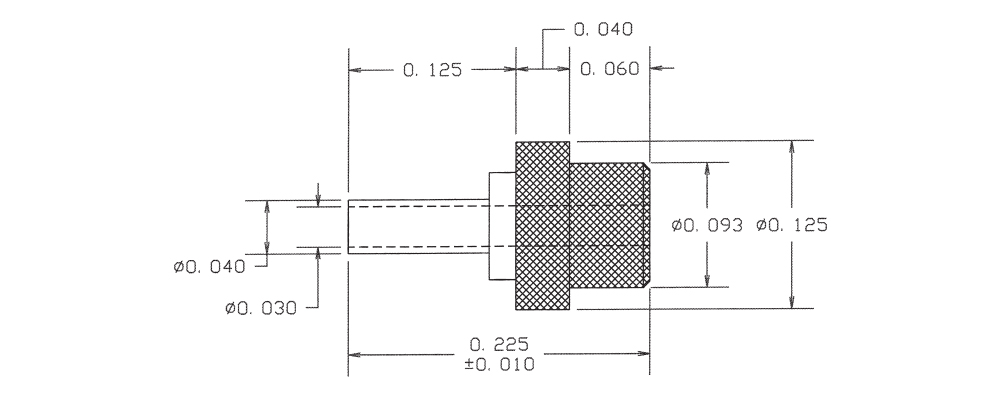

1114-04-0313
1114-04-0313
1114-04-0313
0.225" 0.040 - Press Fit 1/32 0.086 Brass Gold - - PTFE Orange NO
1114-08-0419
1114-08-0419
1114-08-0419
0.310" 0.040 - Press Fit 3/32 0.108 Brass Electro-Tin - - PTFE White YES
1114-50-0515
1114-50-0515
1114-50-0515
0.270" 0.060 - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Green NO

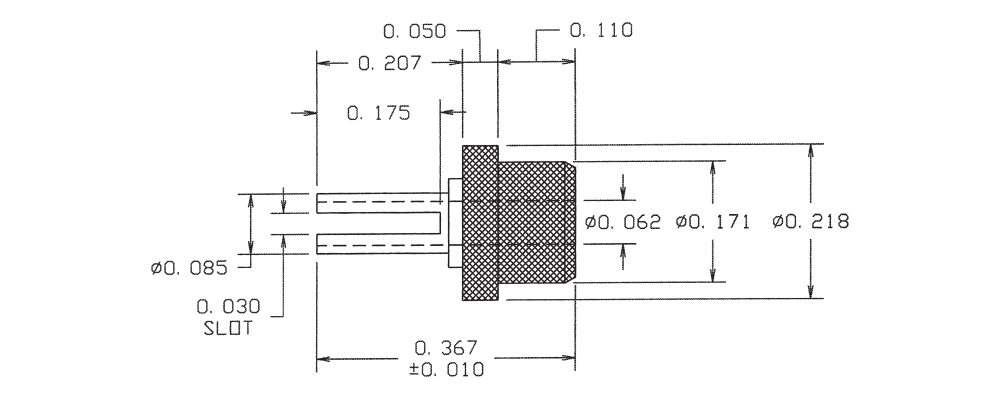

1114-75-0111
1114-75-0111
1114-75-0111
0.367" - - Press Fit 1/16 0.158 Brass Silver - - PTFE Brown NO
1114R-14-0317
1114R-14-0317
1114R-14-0317
0.193" 0.080 - Press Fit 1/32 0.136 Brass Gold - - PTFE Violet YES
1114R-20-04413
1114R-20-04413
1114R-20-04413
0.310" 0.040 - Press Fit 1/64 0.136 Brass Bright Tin - - PTFE Orange NO
1114R-80-0519
1114R-80-0519
1114R-80-0519
0.380" 0.055 - Press Fit 1/32 0.136 Brass Electro Solder - - PTFE White NO
1115-07-0115
1115-07-0115
1115-07-0115
0.287" 0.060 - Press Fit 1/16 0.205 Brass Silver - - PTFE Green YES
1115-51-0411
1115-51-0411
1115-51-0411
0.453" - - Press Fit 1/16 0.187 Brass Electro-Tin - - PTFE Brown NO
1115R-02-04417
1115R-02-04417
1115R-02-04417
0.282" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Violet YES
1116-26-08813
1116-26-08813
1116-26-08813
0.281" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Orange NO

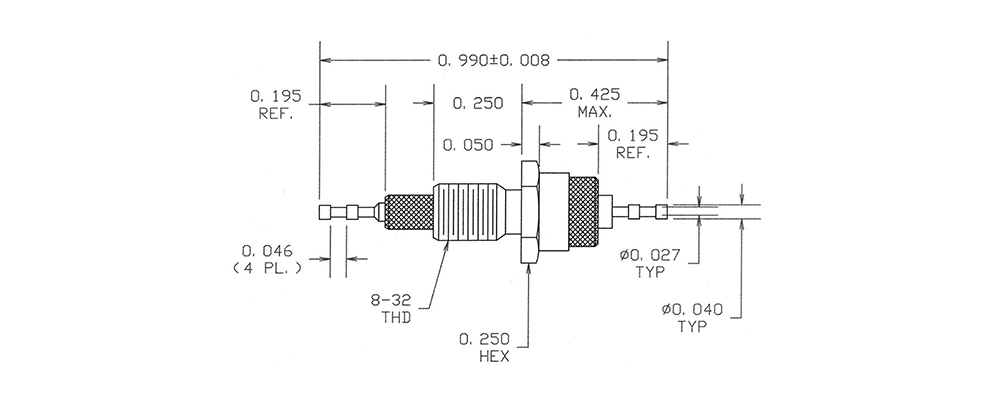

1117-16-0119
1117-16-0119
1117-16-0119
0.990" - Double Turret/Double Turret 8-32 Nut 1/8 0.169 Brass Silver Nickel Brass PTFE White YES
1117-50-0415
1117-50-0415
1117-50-0415
0.640" 0.029 Pin/Pin 4-40 Nut 1/8 0.120 Brass Electro-Tin Nickel Brass PTFE Green YES
1117-54-0511
1117-54-0511
1117-54-0511
0.785" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Electro Solder Nickel Brass PTFE Brown NO
1118-32-08817
1118-32-08817
1118-32-08817
0.346" - TURRET/SLOTTED Press Fit 3/32 0.093 Brass Bright Tin-Lead - - PTFE Violet NO

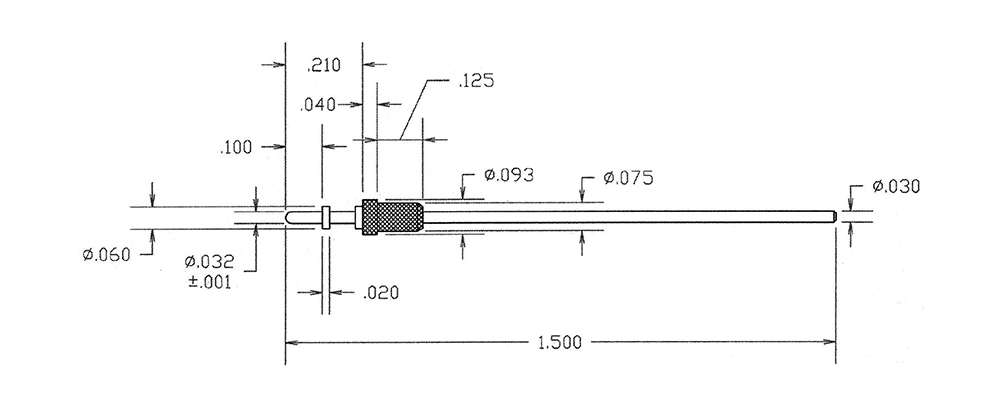

1119-25-0313
1119-25-0313
1119-25-0313
1.500" 0.030 TURRET/PIN Press Fit 3/32 0.070 Brass Gold - - PTFE Orange NO
1119R-20-0419
1119R-20-0419
1119R-20-0419
0.500" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE White YES
