Non-Insulated
PC Jacks

Filter

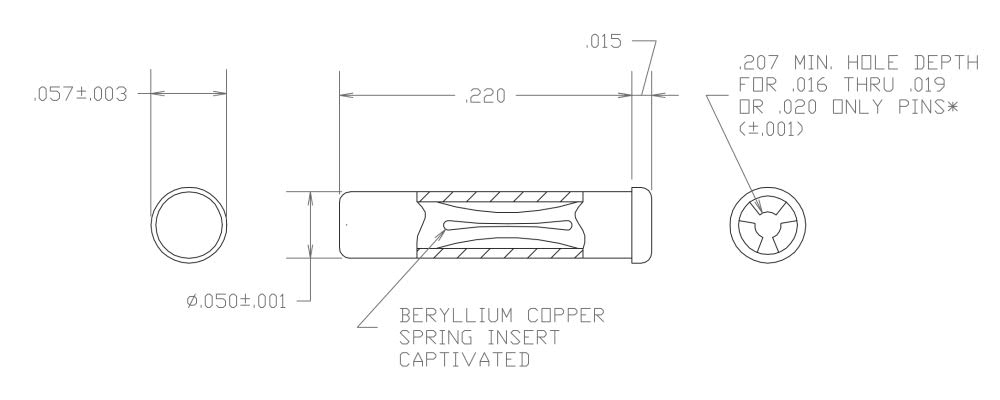

09-9026-1-06
09-9026-1-06
09-9026-1-06
0.016 - 0.019 0.207 " 0.235" - Solder - 1/32 - 3/16 0.052 Brass Electro-Tin Vertical

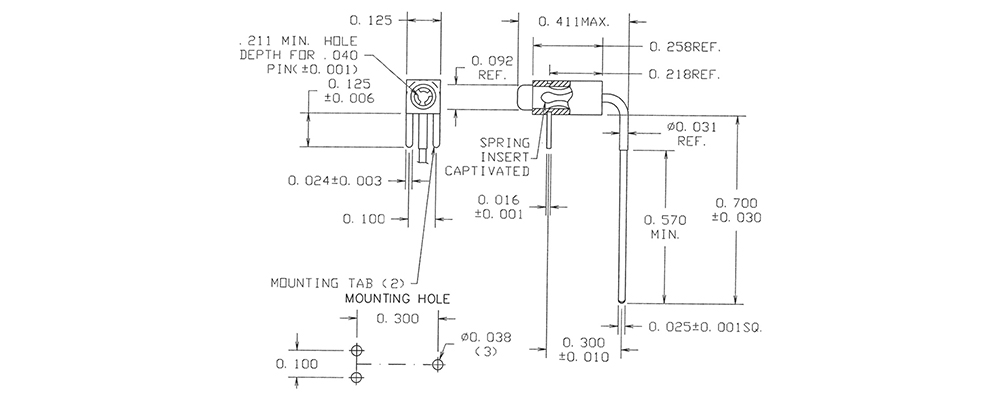

09-9065-1-035
09-9065-1-035
09-9065-1-035
0.040 0.211 " 0.411" Jack/Pin Solder - 1/32 - 1/16 0.038 Brass Gold Horizontal

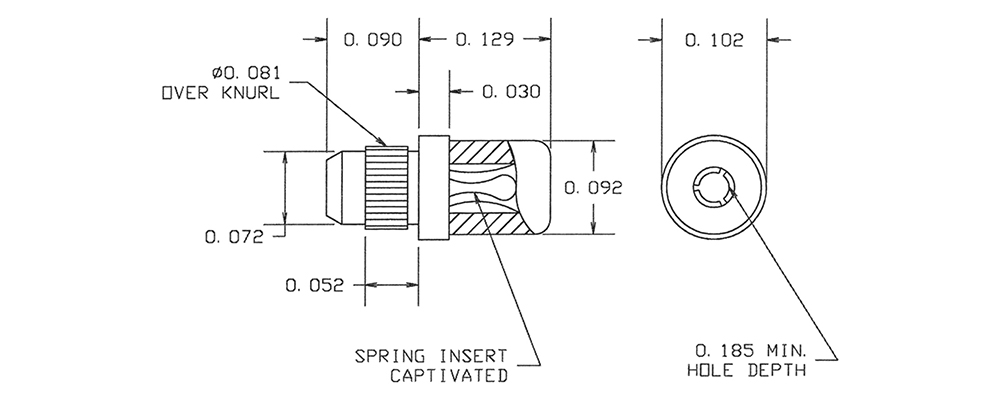

09-9247-1-04
09-9247-1-04
09-9247-1-04
0.040 0.185 " 0.219" - Press Fit/Solder - 1/32 - 1/16 0.076 (+0.002/-0.001) Brass Electro-Tin Vertical

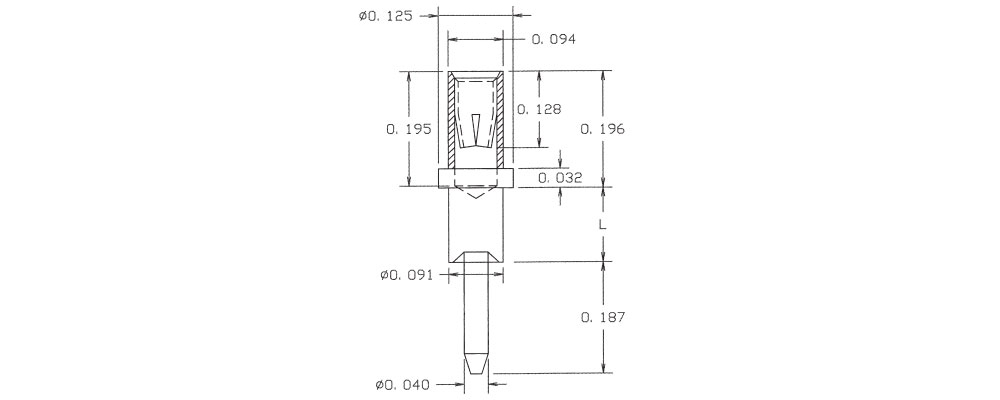

09-9605-4-088
09-9605-4-088
09-9605-4-088
0.032 - 0.046 0.195 " 0.539" Jack/Pin Swage Mount 0.156" 1/8 0.094 Brass Bright Tin-Lead Vertical

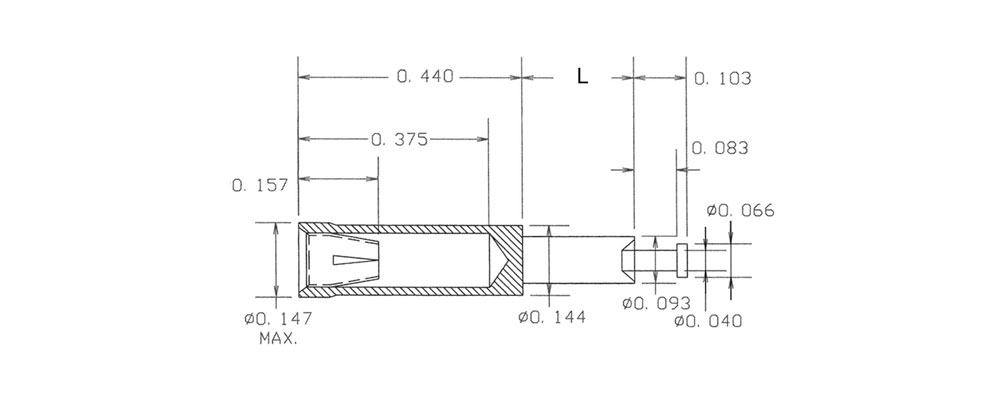

09-9642-4-06
09-9642-4-06
09-9642-4-06
0.065 - 0.082 0.375 " 0.699" Jack/Turret Swage Mount 0.156" 1/8 0.096 Brass Electro-Tin Vertical

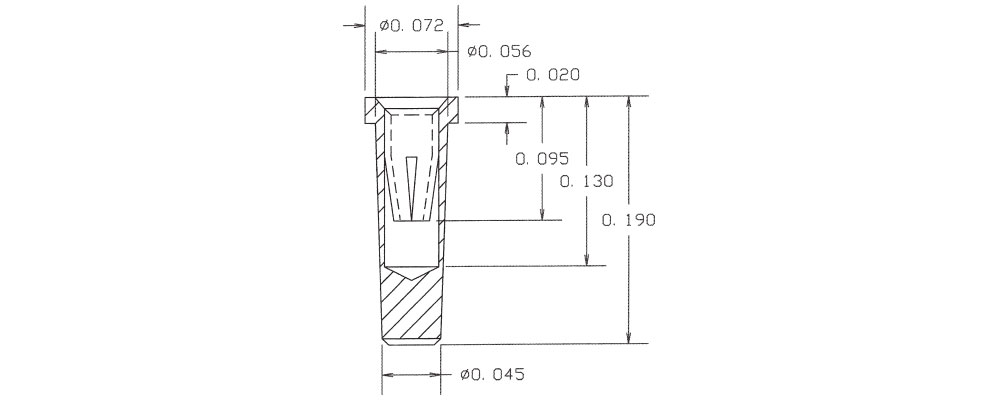

09-9683-1-035
09-9683-1-035
09-9683-1-035
0.015 - 0.025 0.130 " 0.190" - Solder - 1/32 - 1/8 0.056 Brass Gold Vertical

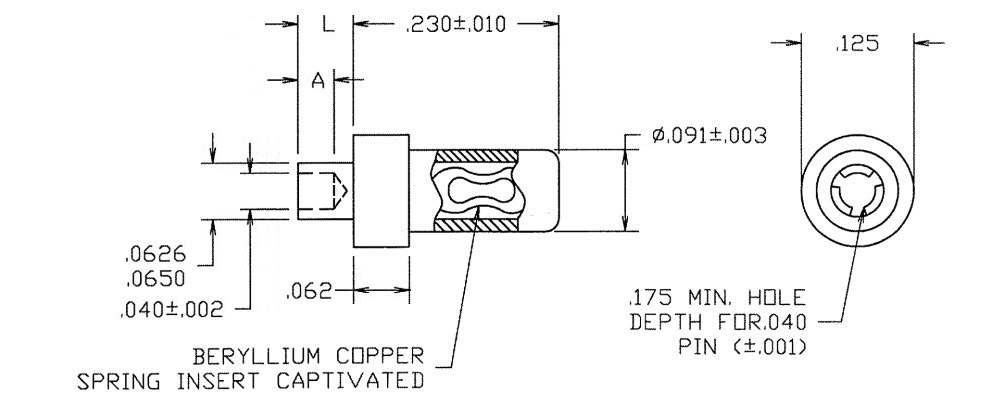

09-9035-2A-088
09-9035-2A-088
09-9035-2A-088
0.040 0.175 " 0.309" - Swage Mount 0.079" 1/16 0.067 Brass Bright Tin-Lead Vertical

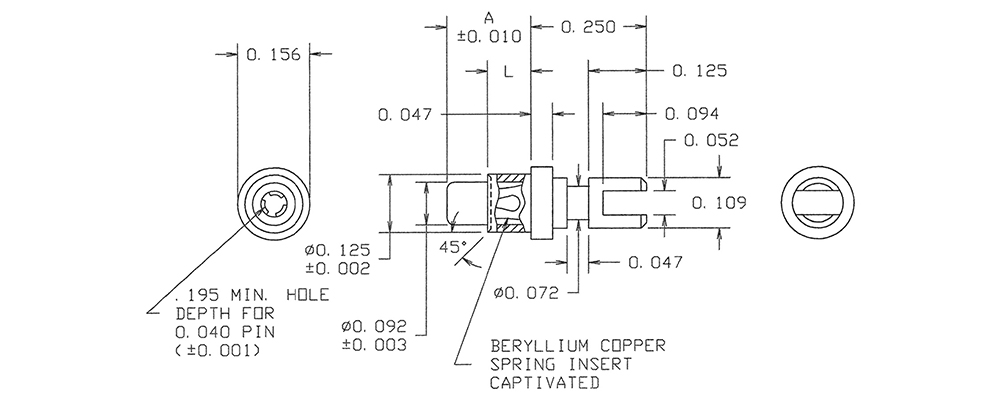

09-9003-2-03
09-9003-2-03
09-9003-2-03
0.040 0.195 " 0.432" Jack/Slotted Swage Mount 0.094" 1/16 0.129 Brass Gold Vertical
09-9026-1-063
09-9026-1-063
09-9026-1-063
0.016 - 0.019 0.207 " 0.235" - Solder - 1/32 - 3/16 0.052 Brass Bright Tin-Lead Vertical
09-9065-1-04
09-9065-1-04
09-9065-1-04
0.040 0.211 " 0.411" Jack/Pin Solder - 1/32 - 1/16 0.038 Brass Electro-Tin Horizontal
09-9247-1-06
09-9247-1-06
09-9247-1-06
0.040 0.185 " 0.219" - Press Fit/Solder - 1/32 - 1/16 0.076 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9605-6-03
09-9605-6-03
09-9605-6-03
0.032 - 0.046 0.195 " 0.602" Jack/Pin Swage Mount 0.219" 3/16 0.094 Brass Gold Vertical
09-9642-4-063
09-9642-4-063
09-9642-4-063
0.065 - 0.082 0.375 " 0.699" Jack/Turret Swage Mount 0.156" 1/8 0.096 Brass Bright Tin-Lead Vertical
09-9683-1-04
09-9683-1-04
09-9683-1-04
0.015 - 0.025 0.130 " 0.190" - Solder - 1/32 - 1/8 0.056 Brass Electro-Tin Vertical
09-9003-2-035
09-9003-2-035
09-9003-2-035
0.040 0.195 " 0.432" Jack/Slotted Swage Mount 0.094" 1/16 0.129 Brass Gold Vertical
09-9026-1-088
09-9026-1-088
09-9026-1-088
0.016 - 0.019 0.207 " 0.235" - Solder - 1/32 - 3/16 0.052 Brass Bright Tin-Lead Vertical
09-9065-1-06
09-9065-1-06
09-9065-1-06
0.040 0.211 " 0.411" Jack/Pin Solder - 1/32 - 1/16 0.038 Brass Electro-Tin Horizontal
09-9247-1-063
09-9247-1-063
09-9247-1-063
0.040 0.185 " 0.219" - Press Fit/Solder - 1/32 - 1/16 0.076 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9605-6-035
09-9605-6-035
09-9605-6-035
0.032 - 0.046 0.195 " 0.602" Jack/Pin Swage Mount 0.219" 3/16 0.094 Brass Gold Vertical
09-9642-4-088
09-9642-4-088
09-9642-4-088
0.065 - 0.082 0.375 " 0.699" Jack/Turret Swage Mount 0.156" 1/8 0.096 Brass Bright Tin-Lead Vertical
