Non-Insulated
PC Jacks

Filter
09-9656-1-035
09-9656-1-035
09-9656-1-035
0.032 - 0.046 0.200 " 0.530" - - - - - Brass Gold -
09-9281-1-03
09-9281-1-03
09-9281-1-03
0.030 - 0.032 0.190 " 0.388" Jack/Turret Solder - 1/32 - 5/32 0.076 (+0.002/-0.001) Brass Gold Vertical
09-9629-1-035
09-9629-1-035
09-9629-1-035
0.025 - 0.037 0.250 " 0.700" Jack/Pin Solder - 1/32 - 9/16 0.044 Brass Gold Vertical
09-9665-1-03
09-9665-1-03
09-9665-1-03
0.015 - 0.025 0.092 " 0.138" - Solder - 1/32 - 3/32 0.067 Brass Gold Vertical
09-9662-2-035
09-9662-2-035
09-9662-2-035
0.015 - 0.021 0.092 " 0.138" - Solder - 1/32 - 3/32 0.041 Brass Gold Vertical
09-9237-1-03
09-9237-1-03
09-9237-1-03
0.030 0.110 " 0.424" Jack/Pin Solder - 1/32 - 3/32 0.072 Brass Gold Vertical
09-9056-1-063
09-9056-1-063
09-9056-1-063
0.040 0.185 " 0.530" - - - - - Brass Bright Tin-Lead -
09-9026-2-03
09-9026-2-03
09-9026-2-03
0.016 - 0.019 0.207 " 0.235" - Solder - 1/32 - 5/32 0.052 Brass Gold Vertical
09-9615-1-03
09-9615-1-03
09-9615-1-03
0.015 - 0.025 0.150 " 0.180" - Solder - 1/32 - 1/16 0.0635 Brass Gold Vertical
09-9120-1-06
09-9120-1-06
09-9120-1-06
0.060 - 0.062 0.109 " 0.530" - - - - - Brass Electro-Tin -
09-9665-1-06
09-9665-1-06
09-9665-1-06
0.015 - 0.025 0.092 " 0.138" - Solder - 1/32 - 3/32 0.067 Brass Electro-Tin Vertical
09-9668-1-03
09-9668-1-03
09-9668-1-03
0.015 - 0.025 0.113 " 0.135" - Solder - 1/32 - 1/16 0.0625 Brass Gold Vertical
09-9034-1-03
09-9034-1-03
09-9034-1-03
0.030 - 0.032 0.190 " 0.206" - Solder - 1/32 - 5/32 0.076 (+0.002/-0.001) Brass Gold Vertical
09-9663-1-035
09-9663-1-035
09-9663-1-035
0.015 - 0.021 0.123 " 0.140" - Solder - 1/32 - 1/16 0.042 Brass Gold Vertical
09-9040-1-063
09-9040-1-063
09-9040-1-063
0.080 0.325 " 0.613" Jack/Pin Solder - 1/32 - 1/8 0.043 Brass Bright Tin-Lead Vertical

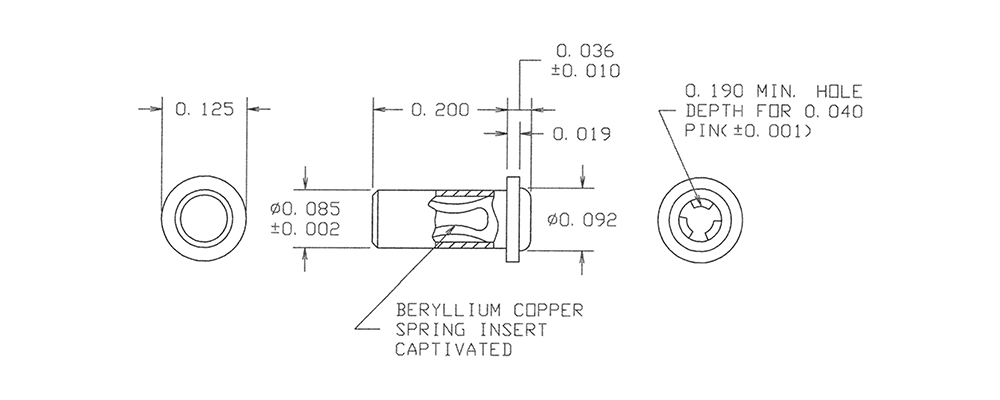

09-9244-1-06
09-9244-1-06
09-9244-1-06
0.040 0.190 " 0.236" - Solder - 1/32 - 5/32 0.089 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9026-1-035
09-9026-1-035
09-9026-1-035
0.016 - 0.019 0.207 " 0.235" - Solder - 1/32 - 3/16 0.052 Brass Gold Vertical
09-9602-1-06
09-9602-1-06
09-9602-1-06
0.032 - 0.046 0.157 " 0.236" - Solder - 1/32 - 5/32 0.087 Brass Electro-Tin Vertical
09-9178-1-03
09-9178-1-03
09-9178-1-03
0.040 0.187 " 0.270" - Solder - 1/32 - 3/16 0.073 Brass Gold Vertical
09-9039-1-04
09-9039-1-04
09-9039-1-04
0.080 0.333 " 0.412" - Solder - 1/32 - 1/4 0.144 Brass Electro-Tin Vertical
