Insulated
PC Jacks

Filter

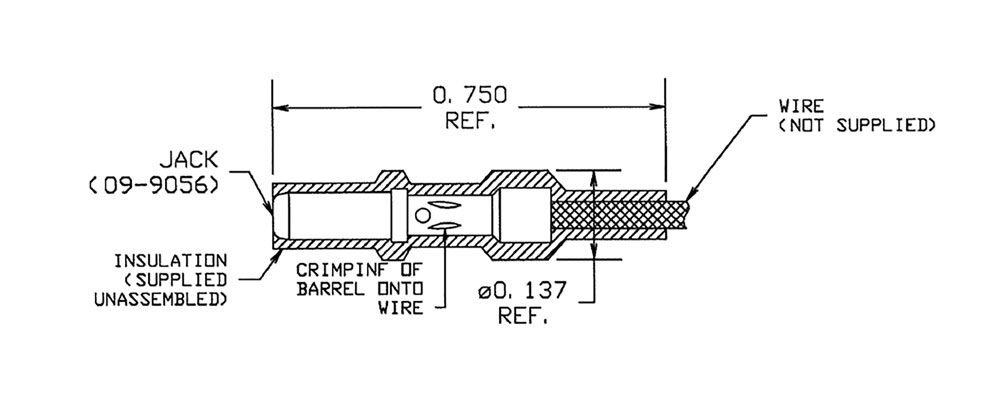

09-9057-1-06316
09-9057-1-06316
09-9057-1-06316
0.040 0.185 " 0.750" - - - - - Brass Bright Tin-Lead Polyolefin Blue -
1128-05-03511
1128-05-03511
1128-05-03511
0.040 0.125 " 0.253" Jack/Turret Press Fit 0.127 1/32 - 3/32 Vertical - - PTFE Brown -

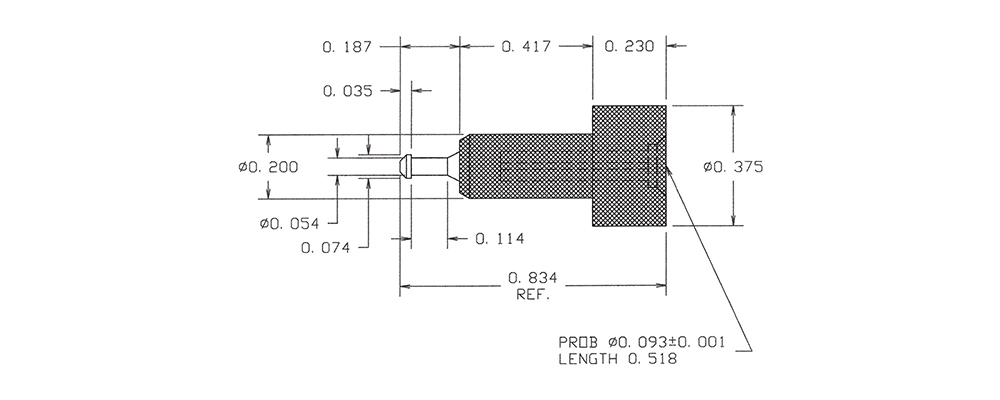

1128-19-03517
1128-19-03517
1128-19-03517
0.093 0.518 " 0.834" Jack/Turret Press Fit 0.187 1/32 - 3/8 Vertical - - PTFE Violet -

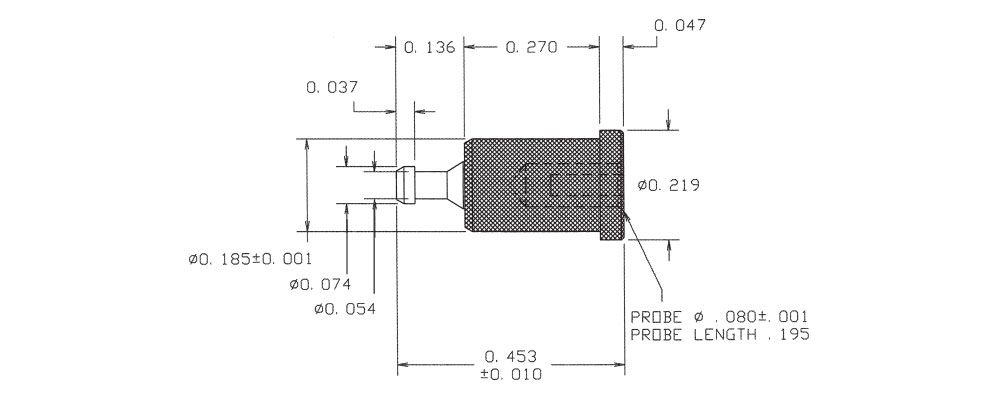

1128-38-03513
1128-38-03513
1128-38-03513
0.080 0.195 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Orange -

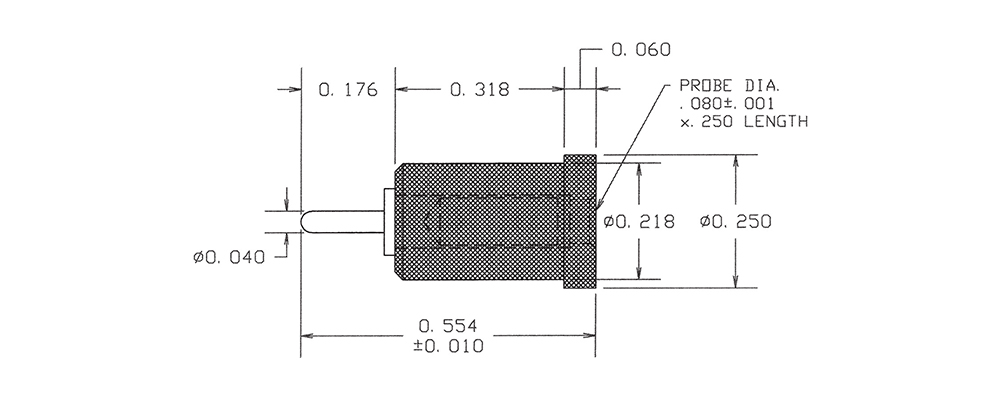

1128-66-0319
1128-66-0319
1128-66-0319
0.080 0.250 " 0.554" Jack/Pin Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE White -

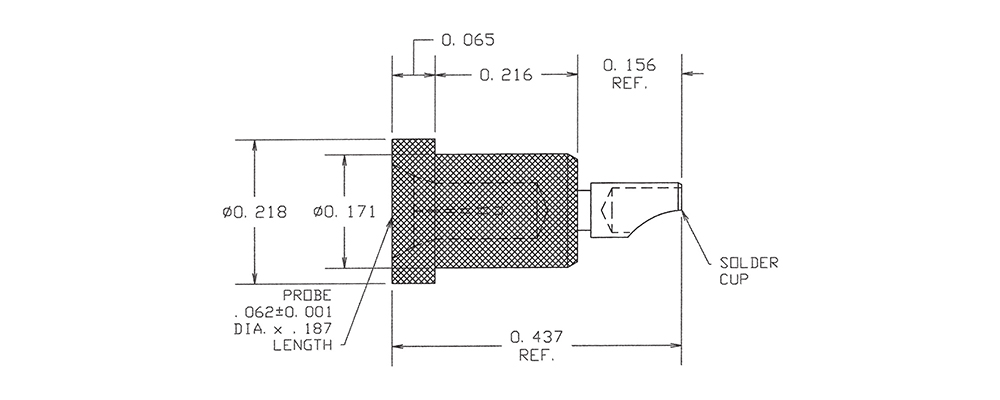

1138-27-0315
1138-27-0315
1138-27-0315
0.062 0.187 " 0.437" Jack/Solder Cup Press Fit 0.158 1/32 - 3/16 Vertical - - PTFE Green -

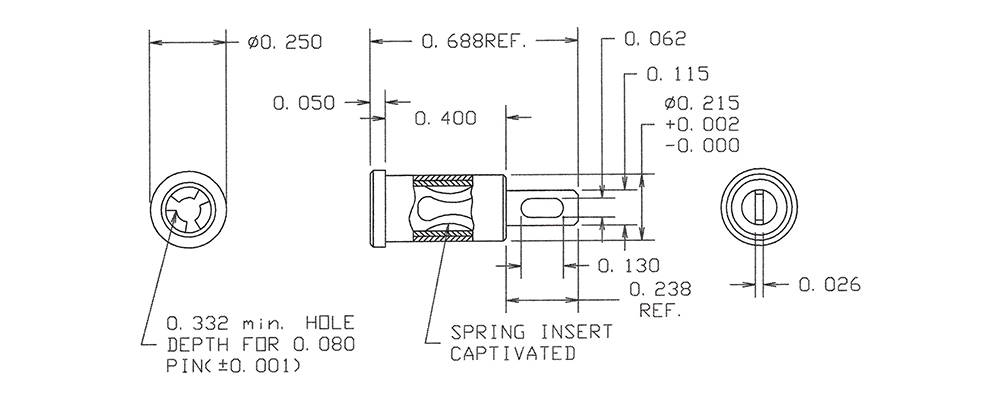

09-9060-1-0316
09-9060-1-0316
09-9060-1-0316
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Gold PTFE Blue -

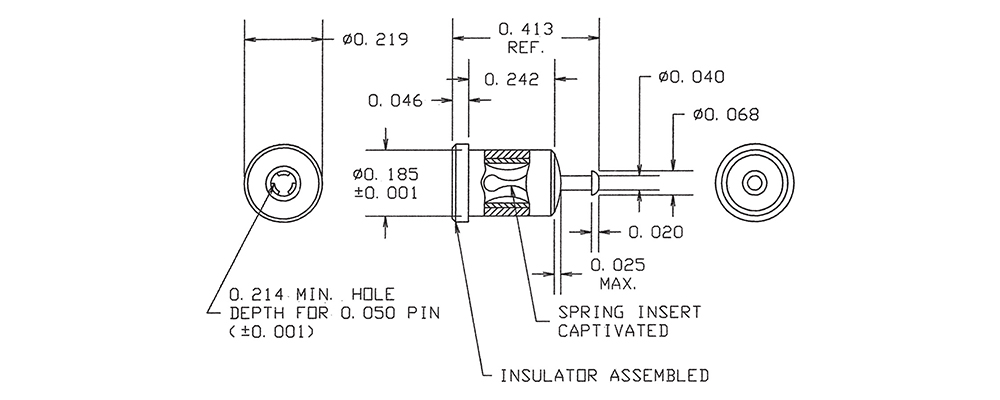

09-9092-1-06314
09-9092-1-06314
09-9092-1-06314
0.050 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Yellow -

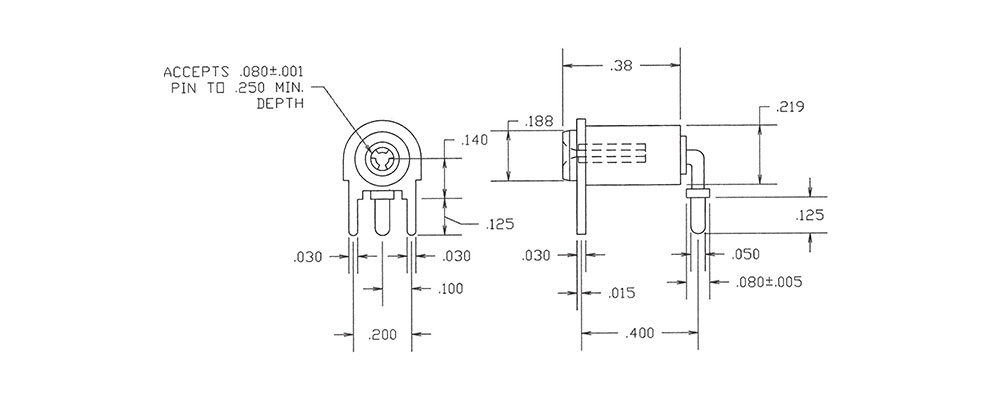

09-9203-1-0310
09-9203-1-0310
09-9203-1-0310
0.080 0.250 " 0.380" - Solder 0.062  1/32 - 1/16 Horizontal Brass Gold PTFE Black -
09-9265-1-08816
09-9265-1-08816
09-9265-1-08816
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Blue -
09-9057-1-06319
09-9057-1-06319
09-9057-1-06319
0.040 0.185 " 0.750" - - - - - Brass Bright Tin-Lead Polyolefin White -

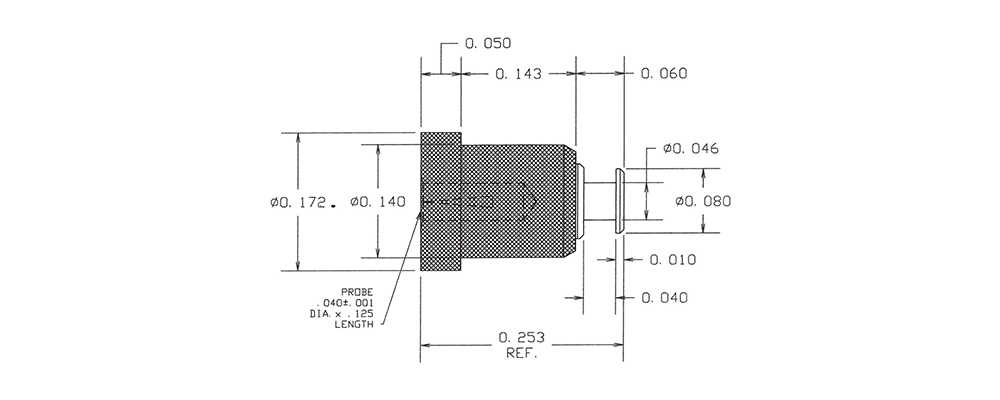

1128-05-03512
1128-05-03512
1128-05-03512
0.040 0.125 " 0.253" Jack/Turret Press Fit 0.127 1/32 - 3/32 Vertical - - PTFE Red -
1128-19-03518
1128-19-03518
1128-19-03518
0.093 0.518 " 0.834" Jack/Turret Press Fit 0.187 1/32 - 3/8 Vertical - - PTFE Gray -
1128-38-03514
1128-38-03514
1128-38-03514
0.080 0.195 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Yellow -
1128-66-03510
1128-66-03510
1128-66-03510
0.080 0.250 " 0.554" Jack/Pin Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Black -
1138-27-0316
1138-27-0316
1138-27-0316
0.062 0.187 " 0.437" Jack/Solder Cup Press Fit 0.158 1/32 - 3/16 Vertical - - PTFE Blue -
09-9060-1-0317
09-9060-1-0317
09-9060-1-0317
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Gold PTFE Violet -
09-9092-1-06315
09-9092-1-06315
09-9092-1-06315
0.050 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Green -
09-9203-1-0311
09-9203-1-0311
09-9203-1-0311
0.080 0.250 " 0.380" - Solder 0.062  1/32 - 1/16 Horizontal Brass Gold PTFE Brown -
09-9265-1-08817
09-9265-1-08817
09-9265-1-08817
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Violet -
