Insulated
PC Jacks

Filter

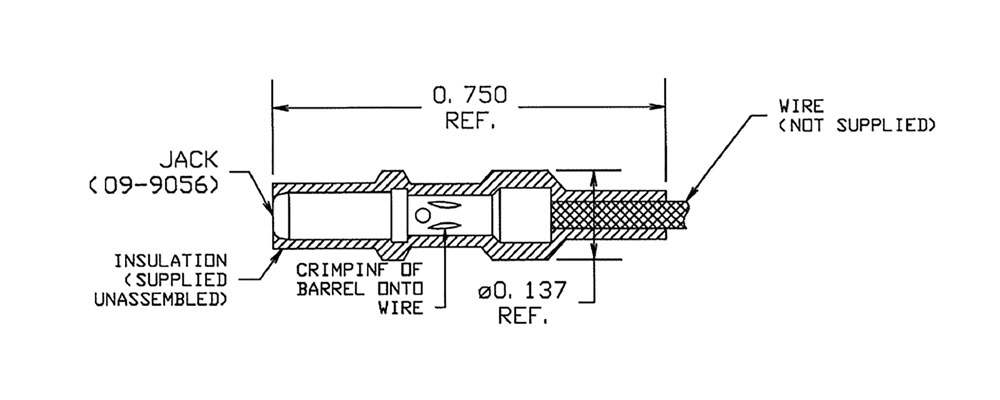

09-9057-1-06314
09-9057-1-06314
09-9057-1-06314
0.040 0.185 " 0.750" - - - - - Brass Bright Tin-Lead Polyolefin Yellow -

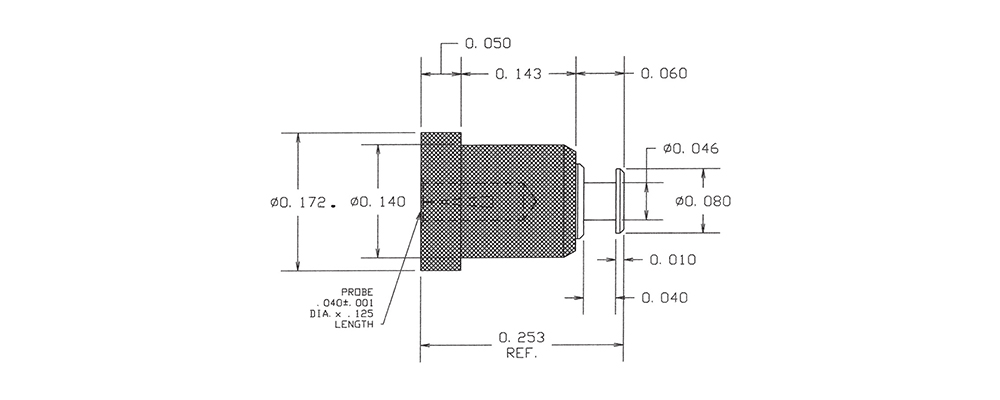

1128-05-0319
1128-05-0319
1128-05-0319
0.040 0.125 " 0.253" Jack/Turret Press Fit 0.127 1/32 - 3/32 Vertical - - PTFE White -

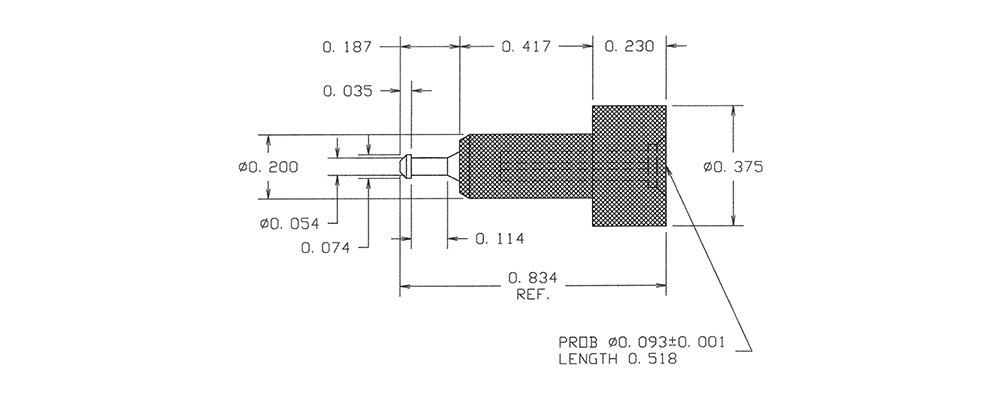

1128-19-03515
1128-19-03515
1128-19-03515
0.093 0.518 " 0.834" Jack/Turret Press Fit 0.187 1/32 - 3/8 Vertical - - PTFE Green -

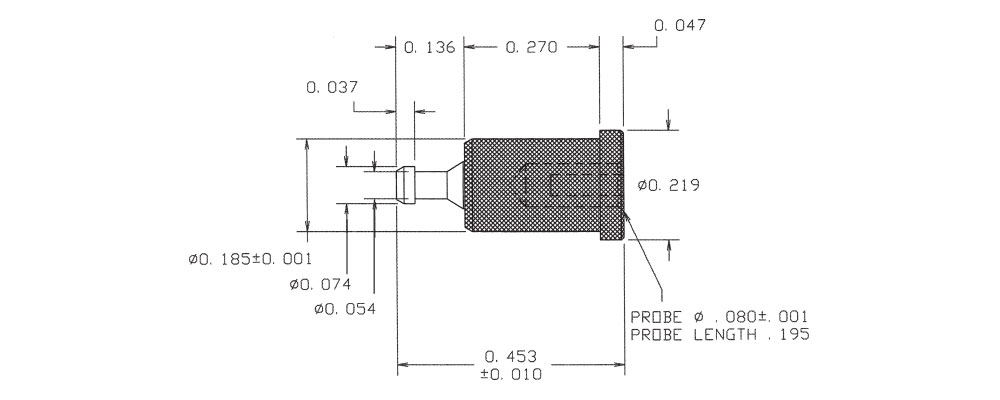

1128-38-03511
1128-38-03511
1128-38-03511
0.080 0.195 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Brown -

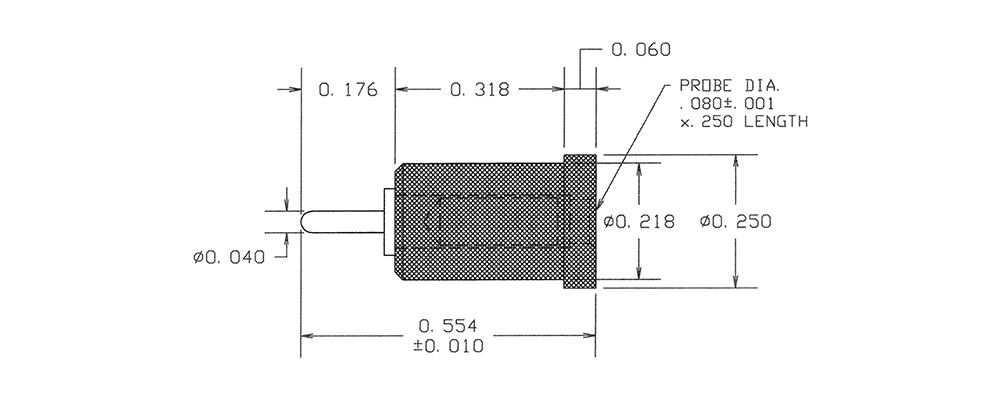

1128-66-0317
1128-66-0317
1128-66-0317
0.080 0.250 " 0.554" Jack/Pin Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Violet -

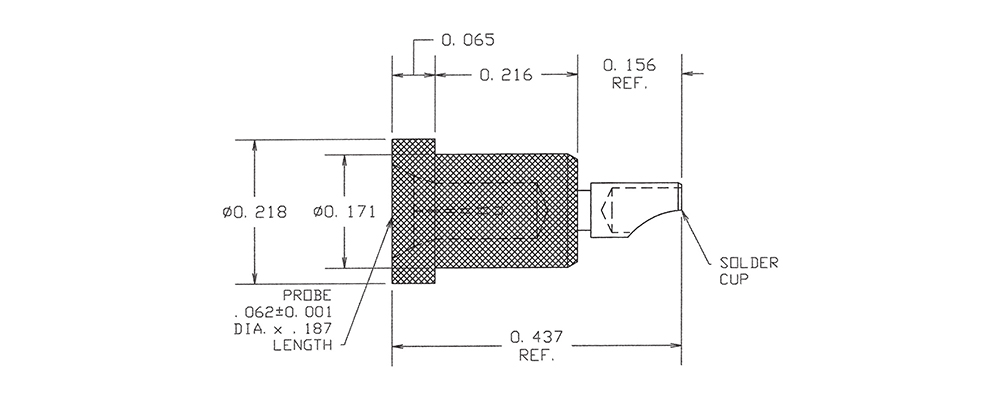

1138-27-0313
1138-27-0313
1138-27-0313
0.062 0.187 " 0.437" Jack/Solder Cup Press Fit 0.158 1/32 - 3/16 Vertical - - PTFE Orange -

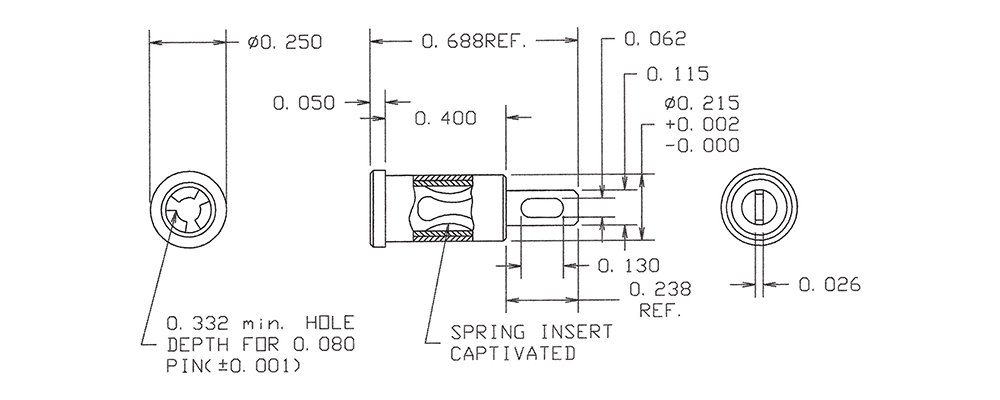

09-9060-1-0314
09-9060-1-0314
09-9060-1-0314
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Gold PTFE Yellow -

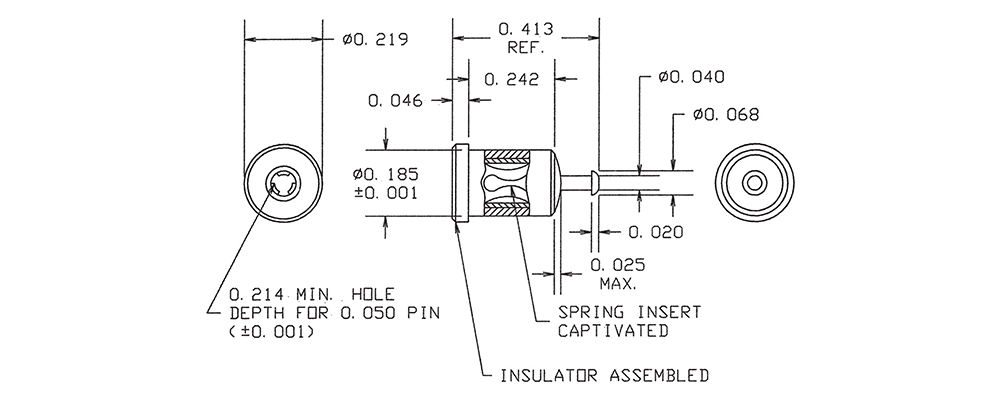

09-9092-1-06312
09-9092-1-06312
09-9092-1-06312
0.050 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Red -

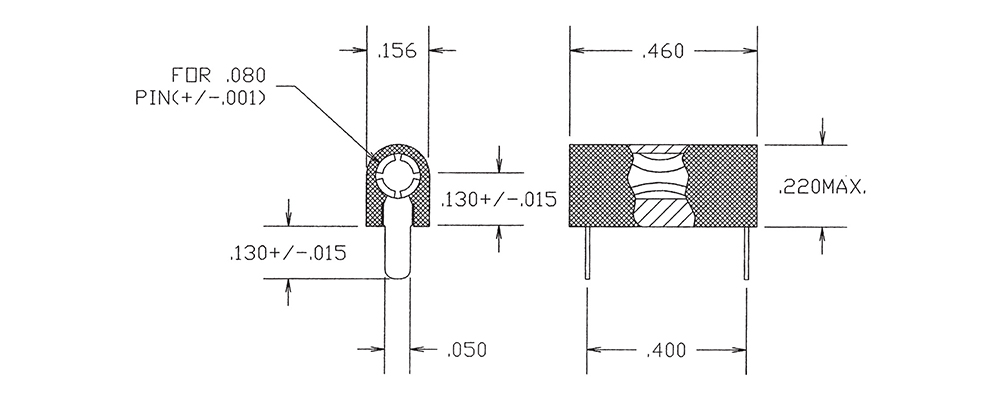

09-9202-1-04418
09-9202-1-04418
09-9202-1-04418
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Gray -
09-9265-1-08814
09-9265-1-08814
09-9265-1-08814
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Yellow -
09-9057-1-06315
09-9057-1-06315
09-9057-1-06315
0.040 0.185 " 0.750" - - - - - Brass Bright Tin-Lead Polyolefin Green -
1128-05-03510
1128-05-03510
1128-05-03510
0.040 0.125 " 0.253" Jack/Turret Press Fit 0.127 1/32 - 3/32 Vertical - - PTFE Black -
1128-19-03516
1128-19-03516
1128-19-03516
0.093 0.518 " 0.834" Jack/Turret Press Fit 0.187 1/32 - 3/8 Vertical - - PTFE Blue -
1128-38-03512
1128-38-03512
1128-38-03512
0.080 0.195 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Red -
1128-66-0318
1128-66-0318
1128-66-0318
0.080 0.250 " 0.554" Jack/Pin Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Gray -
1138-27-0314
1138-27-0314
1138-27-0314
0.062 0.187 " 0.437" Jack/Solder Cup Press Fit 0.158 1/32 - 3/16 Vertical - - PTFE Yellow -
09-9060-1-0315
09-9060-1-0315
09-9060-1-0315
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Gold PTFE Green -
09-9092-1-06313
09-9092-1-06313
09-9092-1-06313
0.050 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Orange -
09-9202-1-04419
09-9202-1-04419
09-9202-1-04419
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon White -
09-9265-1-08815
09-9265-1-08815
09-9265-1-08815
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Green -
