Insulated
PC Jacks

Filter

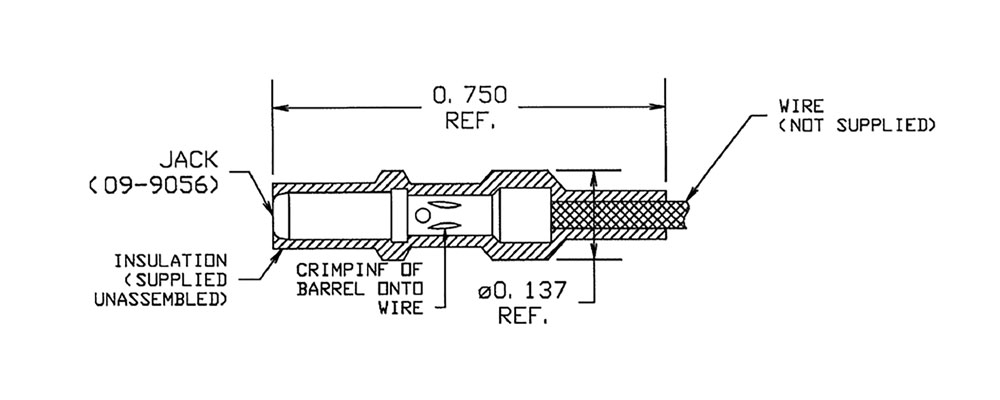

09-9057-1-08810
09-9057-1-08810
09-9057-1-08810
0.040 0.185 " 0.750" - - - - - Brass Bright Tin-Lead Polyolefin Black -

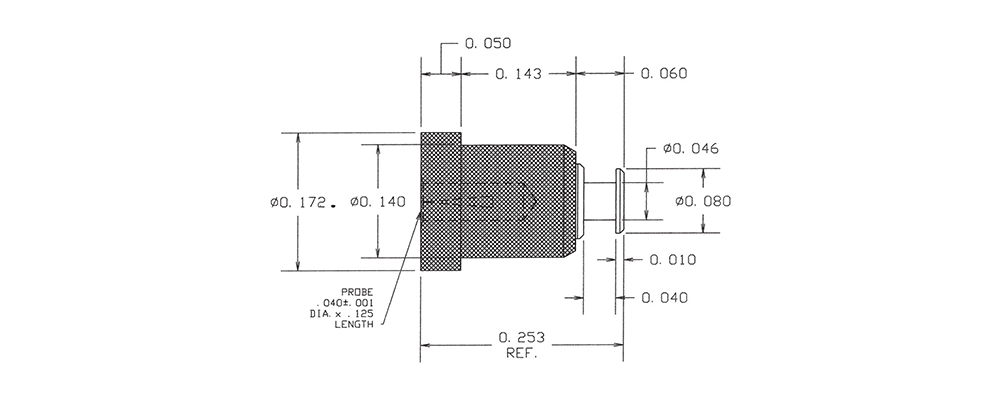

1128-05-03513
1128-05-03513
1128-05-03513
0.040 0.125 " 0.253" Jack/Turret Press Fit 0.127 1/32 - 3/32 Vertical - - PTFE Orange -

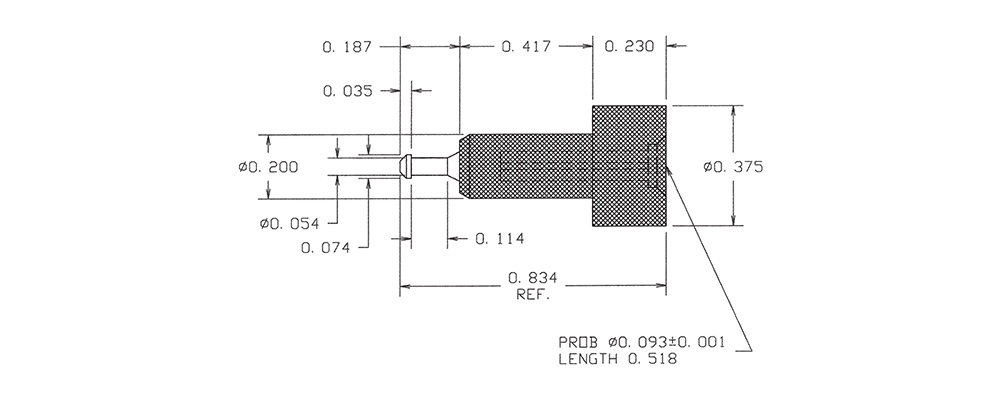

1128-19-03519
1128-19-03519
1128-19-03519
0.093 0.518 " 0.834" Jack/Turret Press Fit 0.187 1/32 - 3/8 Vertical - - PTFE White -

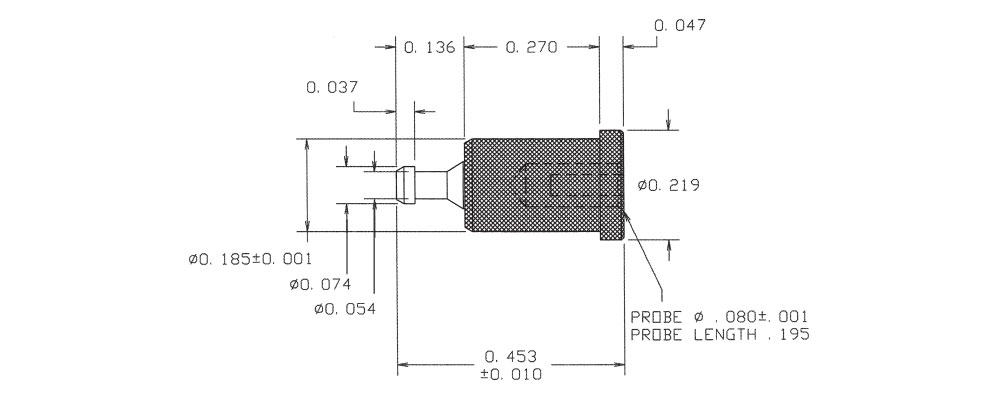

1128-38-03515
1128-38-03515
1128-38-03515
0.080 0.195 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Green -

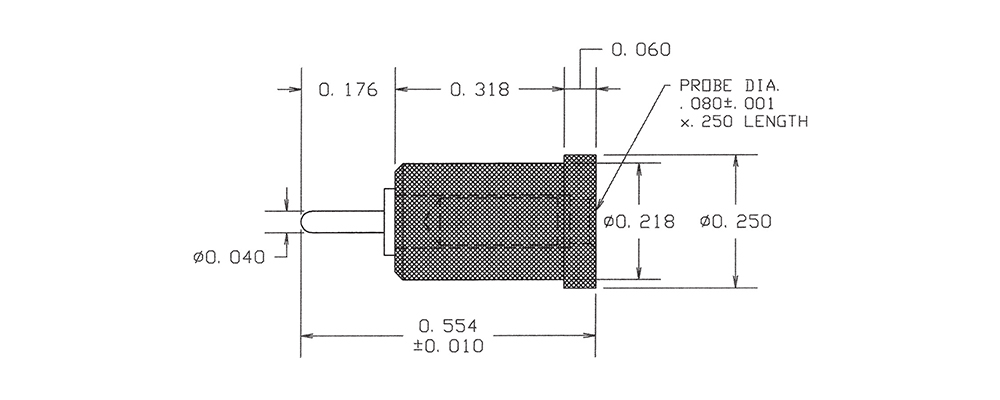

1128-66-03511
1128-66-03511
1128-66-03511
0.080 0.250 " 0.554" Jack/Pin Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Brown -

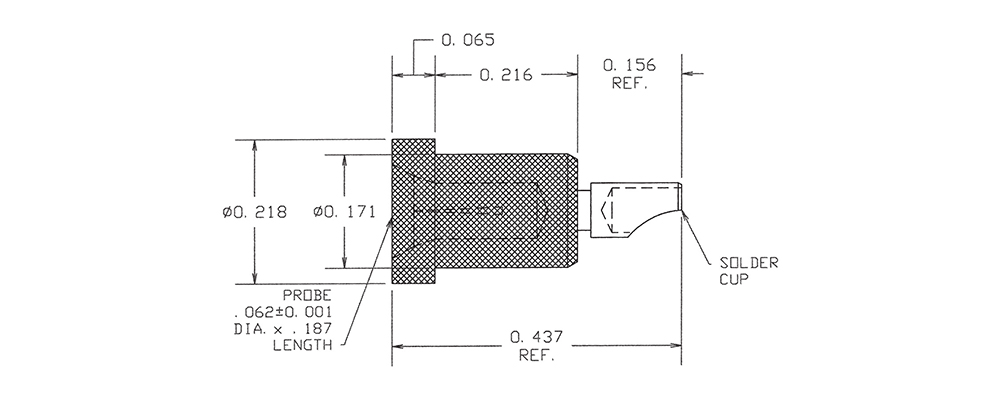

1138-27-0317
1138-27-0317
1138-27-0317
0.062 0.187 " 0.437" Jack/Solder Cup Press Fit 0.158 1/32 - 3/16 Vertical - - PTFE Violet -

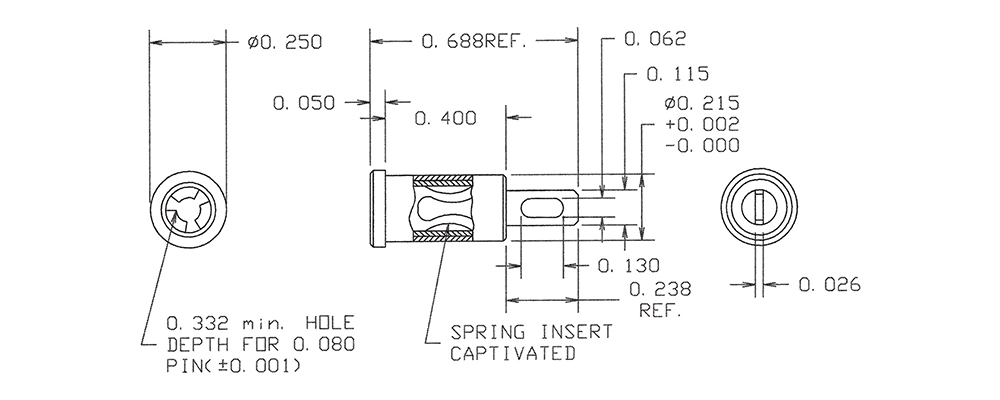

09-9060-1-0318
09-9060-1-0318
09-9060-1-0318
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Gold PTFE Gray -

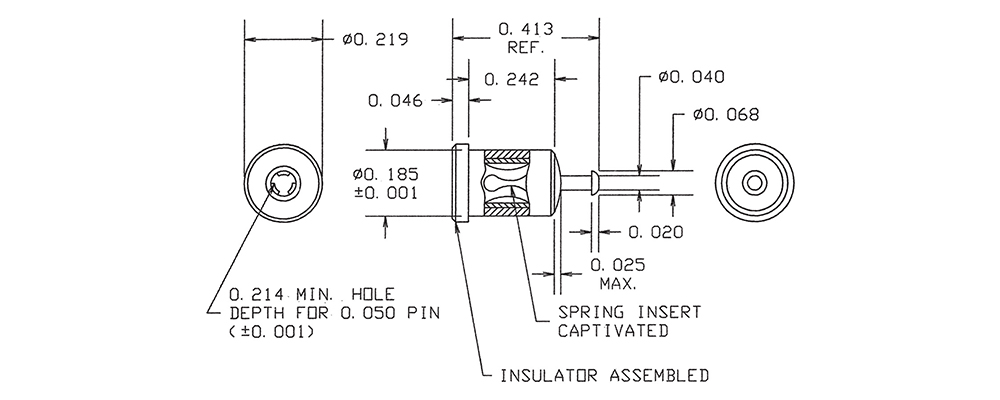

09-9092-1-06316
09-9092-1-06316
09-9092-1-06316
0.050 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Blue -

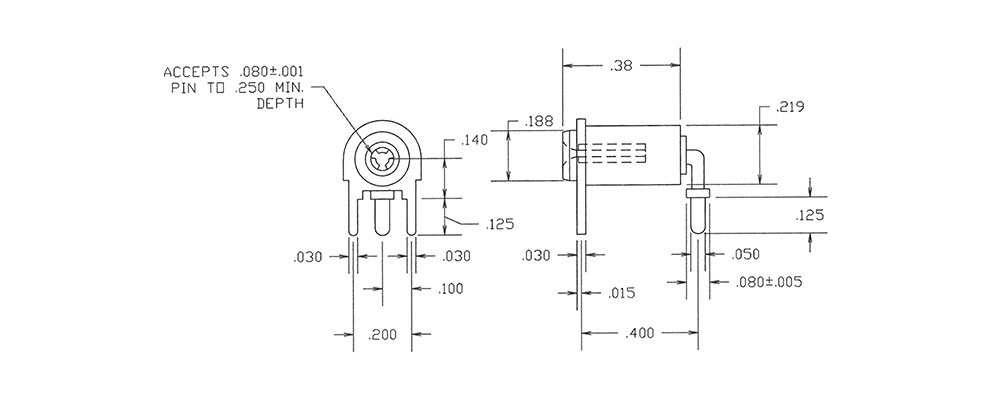

09-9203-1-0312
09-9203-1-0312
09-9203-1-0312
0.080 0.250 " 0.380" - Solder 0.062  1/32 - 1/16 Horizontal Brass Gold PTFE Red -
09-9265-1-08818
09-9265-1-08818
09-9265-1-08818
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Gray -
09-9057-1-08812
09-9057-1-08812
09-9057-1-08812
0.040 0.185 " 0.750" - - - - - Brass Bright Tin-Lead Polyolefin Red -
1128-05-03514
1128-05-03514
1128-05-03514
0.040 0.125 " 0.253" Jack/Turret Press Fit 0.127 1/32 - 3/32 Vertical - - PTFE Yellow -

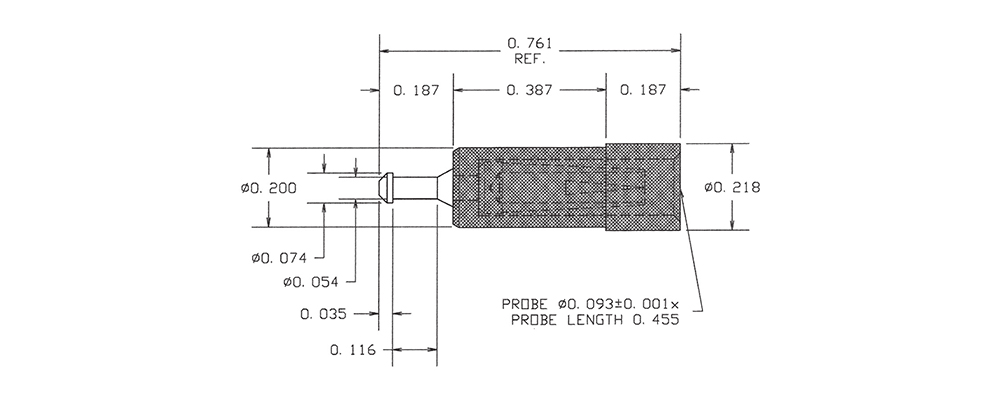

1128-20-0310
1128-20-0310
1128-20-0310
0.093 0.455 " 0.761" Jack/Turret Press Fit 0.187 1/32 - 21/64 Vertical - - PTFE Black -
1128-38-03516
1128-38-03516
1128-38-03516
0.080 0.195 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Blue -
1128-66-03512
1128-66-03512
1128-66-03512
0.080 0.250 " 0.554" Jack/Pin Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Red -
1138-27-0318
1138-27-0318
1138-27-0318
0.062 0.187 " 0.437" Jack/Solder Cup Press Fit 0.158 1/32 - 3/16 Vertical - - PTFE Gray -
09-9060-1-0319
09-9060-1-0319
09-9060-1-0319
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Gold PTFE White -
09-9092-1-06317
09-9092-1-06317
09-9092-1-06317
0.050 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Violet -
09-9203-1-0313
09-9203-1-0313
09-9203-1-0313
0.080 0.250 " 0.380" - Solder 0.062  1/32 - 1/16 Horizontal Brass Gold PTFE Orange -
09-9265-1-08819
09-9265-1-08819
09-9265-1-08819
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE White -
