Insulated
PC Jacks

Filter
1128-83-03511
1128-83-03511
1128-83-03511
0.040 0.125 " 0.379" Jack/Turret Press Fit 0.136 1/32 - 3/32 Vertical - - PTFE Brown -
1128-06-0318
1128-06-0318
1128-06-0318
0.040 0.078 " 0.190" Jack/Turret Press Fit 0.136 1/32 - 1/16 Vertical - - PTFE Gray -
1138-28-03512
1138-28-03512
1138-28-03512
0.040 0.250 " 0.531" Jack/Solder Cup Press Fit 0.136 1/32 - 19/64 Vertical - - PTFE Red -
09-9175-1-03510
09-9175-1-03510
09-9175-1-03510
0.060 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Black -
09-9216-1-04417
09-9216-1-04417
09-9216-1-04417
0.060 0.250 " 0.287" - Solder 0.102  1/32 - 3/32 Vertical Brass Bright Tin-Lead PTFE Violet -
09-9221-1-03510
09-9221-1-03510
09-9221-1-03510
0.080 0.233 " 0.438" Jack/Pin Solder 0.050 1/32 - 1/16 Vertical Brass Gold Nylon Black -
1138-28-0318
1138-28-0318
1138-28-0318
0.040 0.250 " 0.531" Jack/Solder Cup Press Fit 0.136 1/32 - 19/64 Vertical - - PTFE Gray -
09-9012-1-0612
09-9012-1-0612
09-9012-1-0612
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Red -
09-9060-1-03513
09-9060-1-03513
09-9060-1-03513
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Gold PTFE Orange -
09-9265-1-06319
09-9265-1-06319
09-9265-1-06319
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE White -

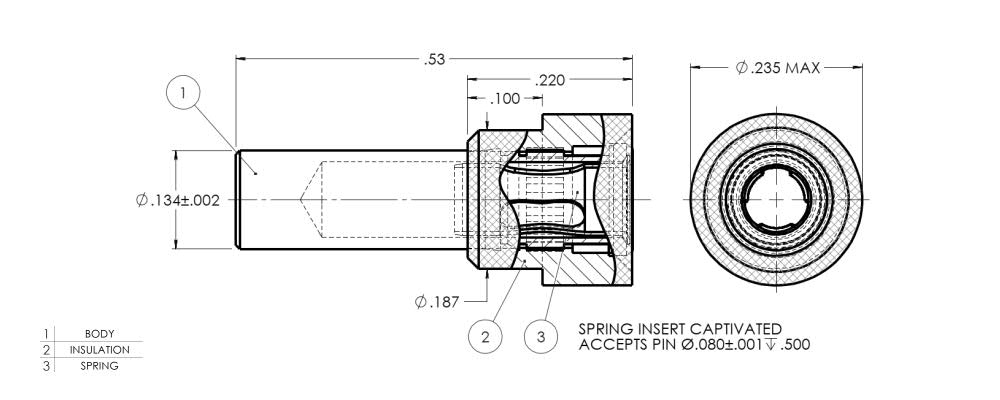

09-9401-1-03512
09-9401-1-03512
09-9401-1-03512
0.080 0.500 " 0.530" Jack/Pin Press Fit 0.177 1/64 - 1/16 Vertical Brass Gold PTFE Red -
09-9012-1-0312
09-9012-1-0312
09-9012-1-0312
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Red -
09-9012-1-0315
09-9012-1-0315
09-9012-1-0315
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Green -
20-9201-1-04417
20-9201-1-04417
20-9201-1-04417
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Violet -
1128-03-03510
1128-03-03510
1128-03-03510
0.040 0.245 " 0.449" Jack/Turret Press Fit 0.108 1/32 - 15/64 Vertical - - PTFE Black -
09-9208-1-03510
09-9208-1-03510
09-9208-1-03510
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Black M39024/11-43G
1128-03-03511
1128-03-03511
1128-03-03511
0.040 0.245 " 0.449" Jack/Turret Press Fit 0.108 1/32 - 15/64 Vertical - - PTFE Brown -
1128-03-03513
1128-03-03513
1128-03-03513
0.040 0.245 " 0.449" Jack/Turret Press Fit 0.108 1/32 - 15/64 Vertical - - PTFE Orange -
1128-03-03515
1128-03-03515
1128-03-03515
0.040 0.245 " 0.449" Jack/Turret Press Fit 0.108 1/32 - 15/64 Vertical - - PTFE Green -
1138-03-0319
1138-03-0319
1138-03-0319
0.080 0.250 " 0.441" - Swage Mount 0.114 1/32 Vertical - - PTFE White -
