Insulated
PC Jacks

Filter
09-9057-1-0410
09-9057-1-0410
09-9057-1-0410
0.040 0.185 " 0.750" - - - - - Brass Electro-Tin Polyolefin Black -
1128-04-08817
1128-04-08817
1128-04-08817
0.040 0.140 " 0.345" Jack/Turret Press Fit 0.127 1/32 - 1/8 Vertical - - PTFE Violet -

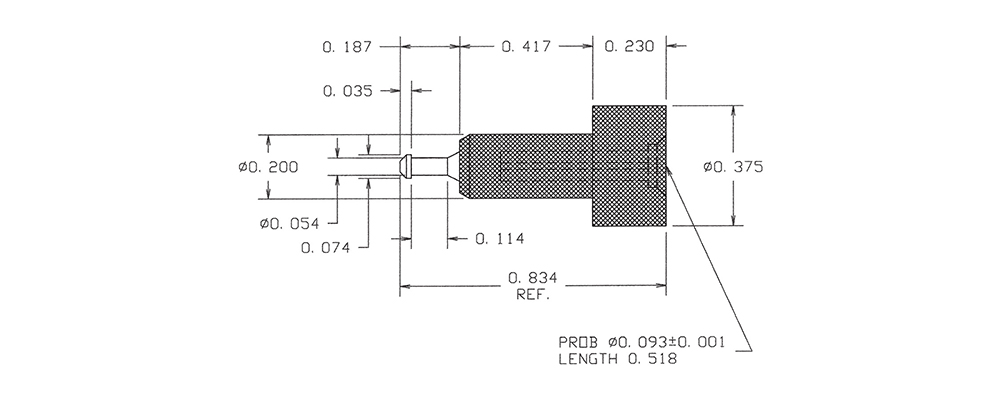

1128-19-0313
1128-19-0313
1128-19-0313
0.093 0.518 " 0.834" Jack/Turret Press Fit 0.187 1/32 - 3/8 Vertical - - PTFE Orange -

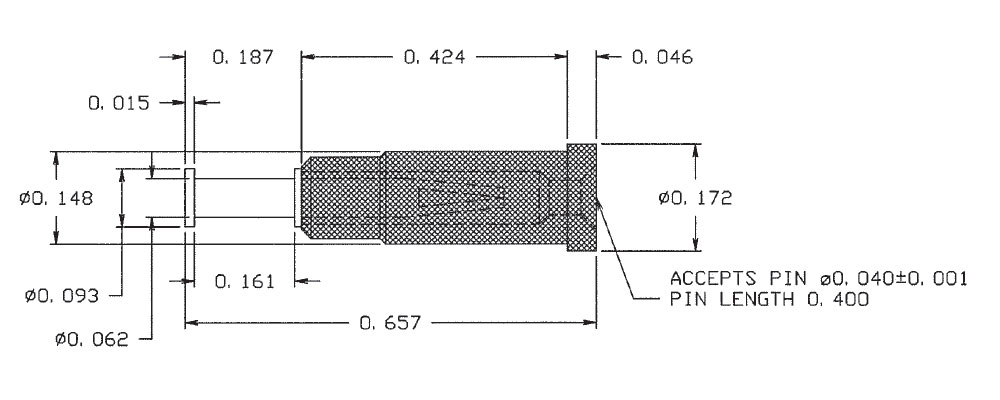

1128-37-03519
1128-37-03519
1128-37-03519
0.040 0.400 " 0.657" Jack/Turret Press Fit 0.136 1/32 - 1/4 Vertical - - PTFE White -

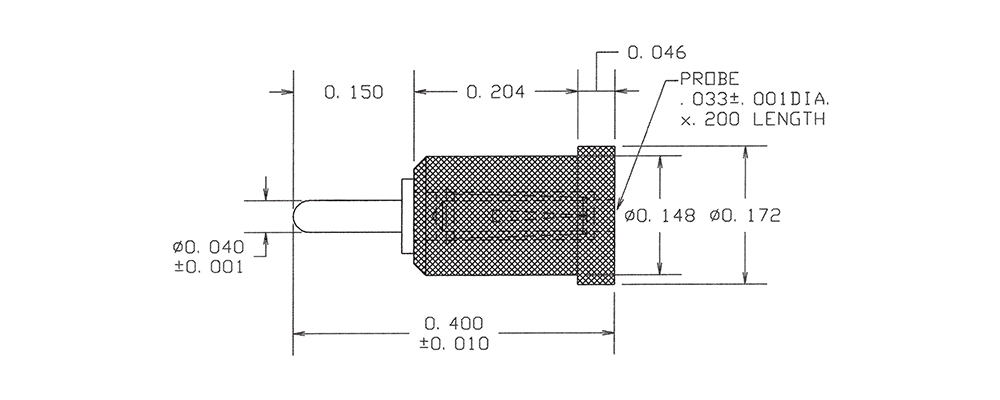

1128-65-03515
1128-65-03515
1128-65-03515
0.033 0.200 " 0.400" Jack/Pin Press Fit 0.136 1/32 - 5/32 Vertical - - PTFE Green -

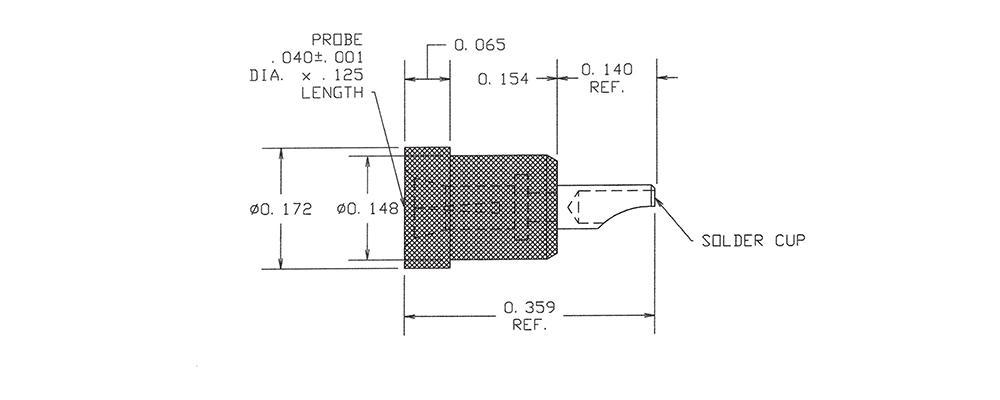

1138-26-03511
1138-26-03511
1138-26-03511
0.040 0.125 " 0.359" Jack/Solder Cup Press Fit 0.136 1/32 - 3/32 Vertical - - PTFE Brown -

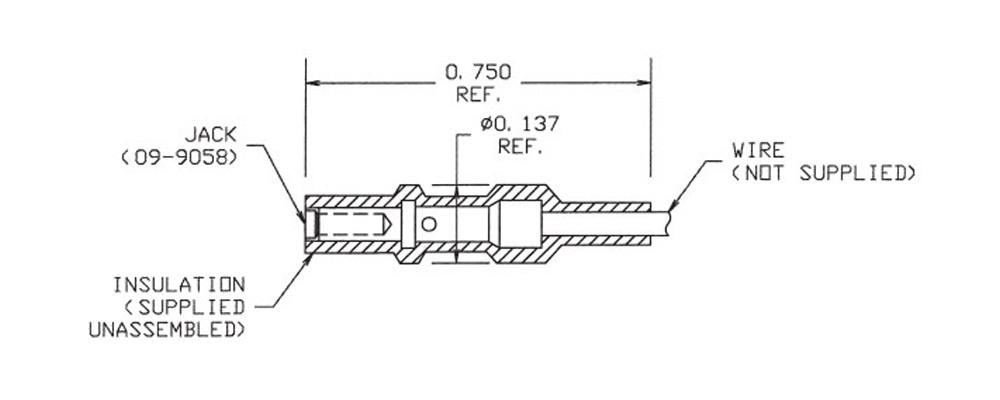

09-9059-1-06314
09-9059-1-06314
09-9059-1-06314
0.025 0.185 " 0.750" - - - - - Brass Bright Tin-Lead Polyolefin Yellow -
09-9092-1-0610
09-9092-1-0610
09-9092-1-0610
0.050 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Black -
09-9202-1-03516
09-9202-1-03516
09-9202-1-03516
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Blue -
09-9265-1-06312
09-9265-1-06312
09-9265-1-06312
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Red -
09-9057-1-0412
09-9057-1-0412
09-9057-1-0412
0.040 0.185 " 0.750" - - - - - Brass Electro-Tin Polyolefin Red -
1128-04-08818
1128-04-08818
1128-04-08818
0.040 0.140 " 0.345" Jack/Turret Press Fit 0.127 1/32 - 1/8 Vertical - - PTFE Gray -
1128-19-0314
1128-19-0314
1128-19-0314
0.093 0.518 " 0.834" Jack/Turret Press Fit 0.187 1/32 - 3/8 Vertical - - PTFE Yellow -

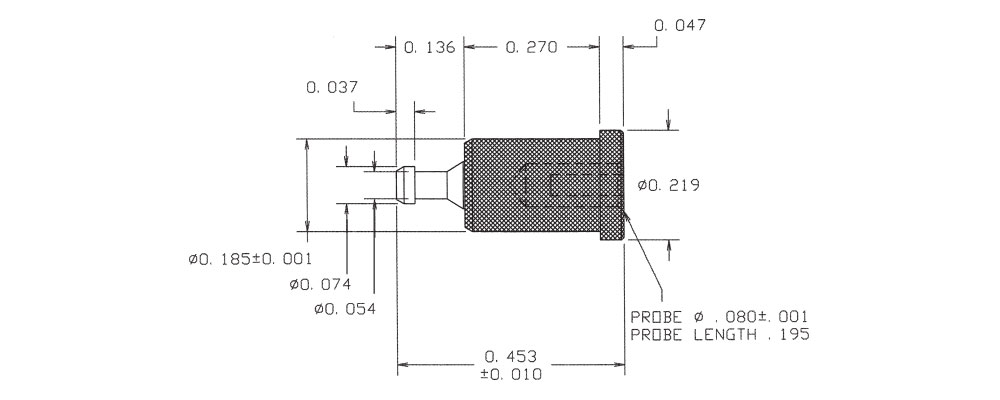

1128-38-0310
1128-38-0310
1128-38-0310
0.080 0.195 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Black -
1128-65-03516
1128-65-03516
1128-65-03516
0.033 0.200 " 0.400" Jack/Pin Press Fit 0.136 1/32 - 5/32 Vertical - - PTFE Blue -
1138-26-03512
1138-26-03512
1138-26-03512
0.040 0.125 " 0.359" Jack/Solder Cup Press Fit 0.136 1/32 - 3/32 Vertical - - PTFE Red -
09-9059-1-06315
09-9059-1-06315
09-9059-1-06315
0.025 0.185 " 0.750" - - - - - Brass Bright Tin-Lead Polyolefin Green -
09-9092-1-0611
09-9092-1-0611
09-9092-1-0611
0.050 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Brown -
09-9202-1-03517
09-9202-1-03517
09-9202-1-03517
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Violet -
09-9265-1-06313
09-9265-1-06313
09-9265-1-06313
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Orange -
