Insulated
PC Jacks

Filter
09-9221-1-0119
09-9221-1-0119
09-9221-1-0119
0.080 0.233 " 0.438" Jack/Pin Solder 0.050 1/32 - 1/16 Vertical Brass Silver Nylon White -
1128-22-0310
1128-22-0310
1128-22-0310
0.040 0.190 " 0.366" Jack/Pin Press Fit 0.205 1/32 - 3/32 Vertical - - PTFE Black -
09-9084-1-06319
09-9084-1-06319
09-9084-1-06319
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Bright Tin-Lead PTFE White -
09-9084-1-08811
09-9084-1-08811
09-9084-1-08811
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Bright Tin-Lead PTFE Brown -
1128-05-03517
1128-05-03517
1128-05-03517
0.040 0.125 " 0.253" Jack/Turret Press Fit 0.127 1/32 - 3/32 Vertical - - PTFE Violet -
09-9012-1-0618
09-9012-1-0618
09-9012-1-0618
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Gray -

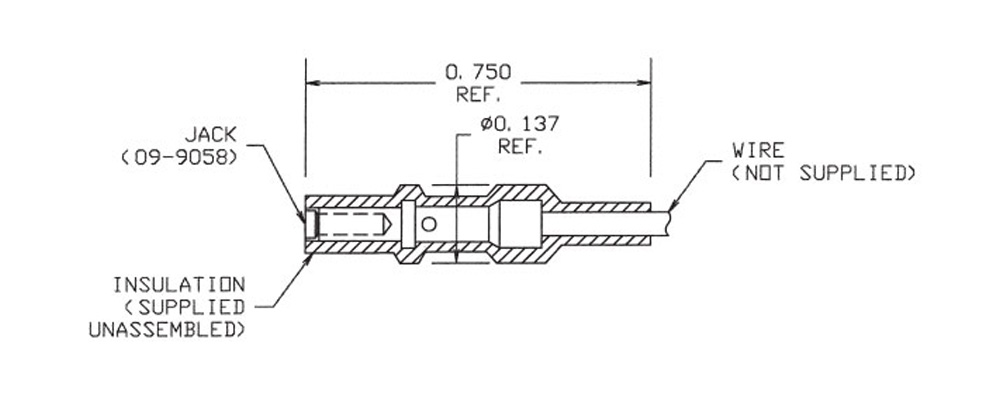

09-9059-1-0414
09-9059-1-0414
09-9059-1-0414
0.025 0.185 " 0.750" - - - - - Brass Electro-Tin Polyolefin Yellow -
09-9059-1-0415
09-9059-1-0415
09-9059-1-0415
0.025 0.185 " 0.750" - - - - - Brass Electro-Tin Polyolefin Green -
09-9060-1-0311
09-9060-1-0311
09-9060-1-0311
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Gold PTFE Brown -
09-9060-1-0315
09-9060-1-0315
09-9060-1-0315
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Gold PTFE Green -
09-9265-1-0413
09-9265-1-0413
09-9265-1-0413
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Orange -
09-9192-1-08813
09-9192-1-08813
09-9192-1-08813
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Orange -
09-9350-1-03514
09-9350-1-03514
09-9350-1-03514
0.080 0.187 " 0.200" - Solder 0.052 1/32 - 1/16 Horizontal - - PTFE Yellow M39024/18-02
1138-29-0315
1138-29-0315
1138-29-0315
0.080 0.187 " 0.437" Jack/Solder Cup Press Fit 0.172 1/32 - 3/16 Vertical - - PTFE Green -
1128-20-03512
1128-20-03512
1128-20-03512
0.093 0.455 " 0.761" Jack/Turret Press Fit 0.187 1/32 - 21/64 Vertical - - PTFE Red -
1128-39-03510
1128-39-03510
1128-39-03510
0.040 0.135 " 0.408" Jack/Solder Cup Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE Black -

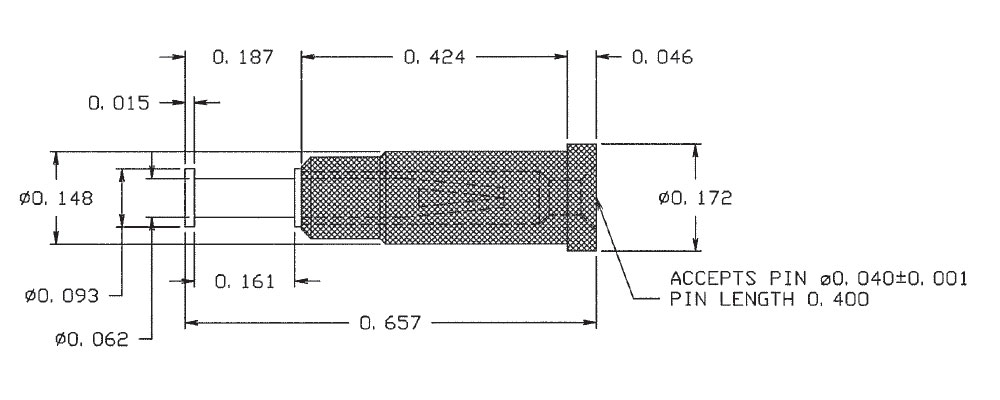

1128-37-03517
1128-37-03517
1128-37-03517
0.040 0.400 " 0.657" Jack/Turret Press Fit 0.136 1/32 - 1/4 Vertical - - PTFE Violet -
09-9305-1-04412
09-9305-1-04412
09-9305-1-04412
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/32 Horizontal - - Nylon Red -
09-9301-1-04410
09-9301-1-04410
09-9301-1-04410
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 3/32 Horizontal - - Nylon Black -
1138-03-0319
1138-03-0319
1138-03-0319
0.080 0.250 " 0.441" - Swage Mount 0.114 1/32 Vertical - - PTFE White -
