Insulated
PC Jacks

Filter

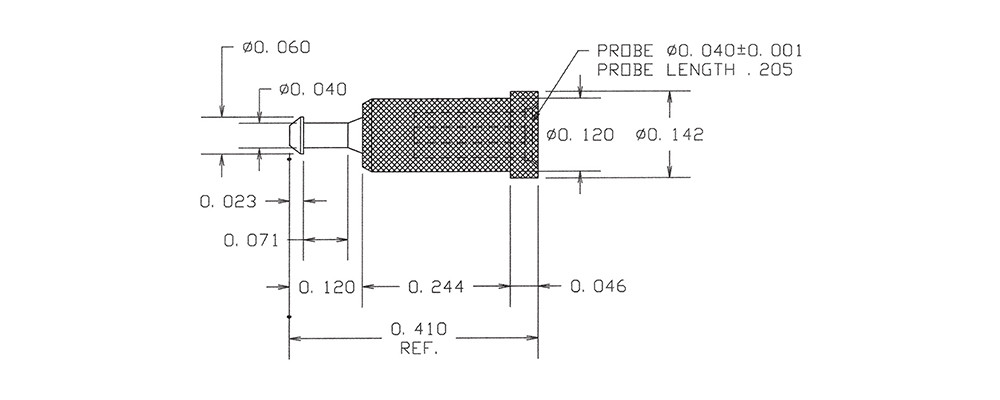

1128-02-03519
1128-02-03519
1128-02-03519
0.040 0.205 " 0.410" Jack/Turret Press Fit 0.108 1/32 - 3/16 Vertical - - PTFE White -

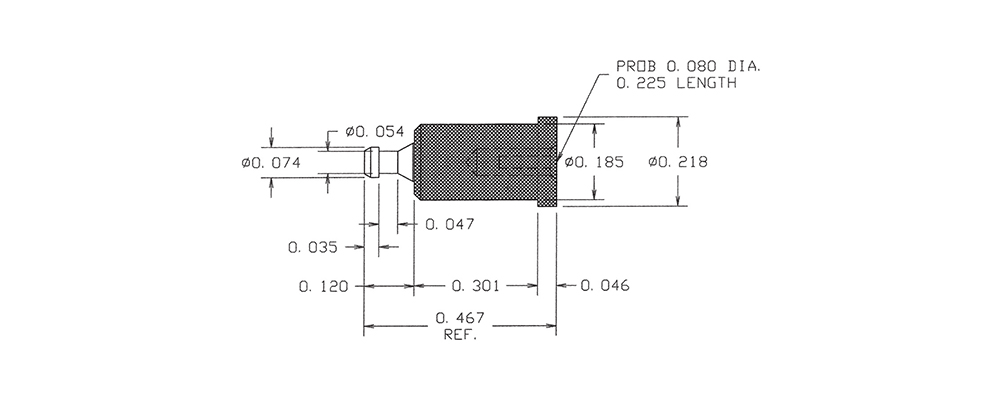

1128-16-03515
1128-16-03515
1128-16-03515
0.080 0.225 " 0.467" Jack/Turret Press Fit 0.172 1/32 - 1/4 Vertical - - PTFE Green -

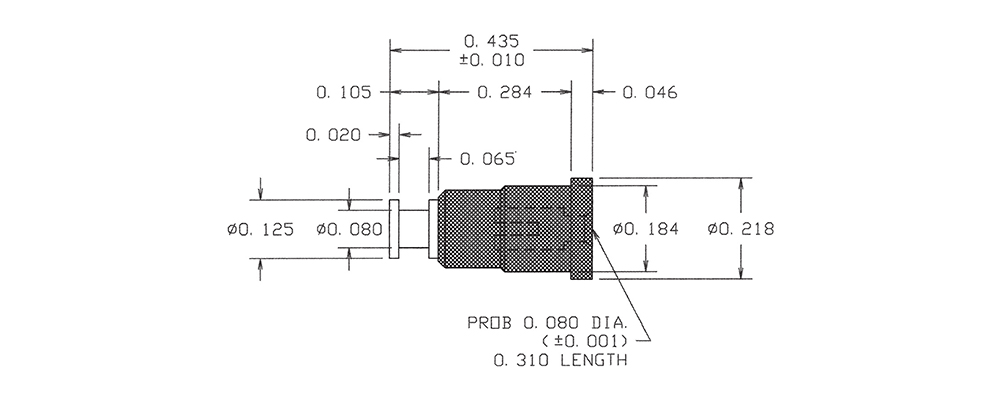

1128-35-0311
1128-35-0311
1128-35-0311
0.080 0.310 " 0.435" Jack/Turret Press Fit 0.171 1/32 - 3/32 Vertical - - PTFE Brown -

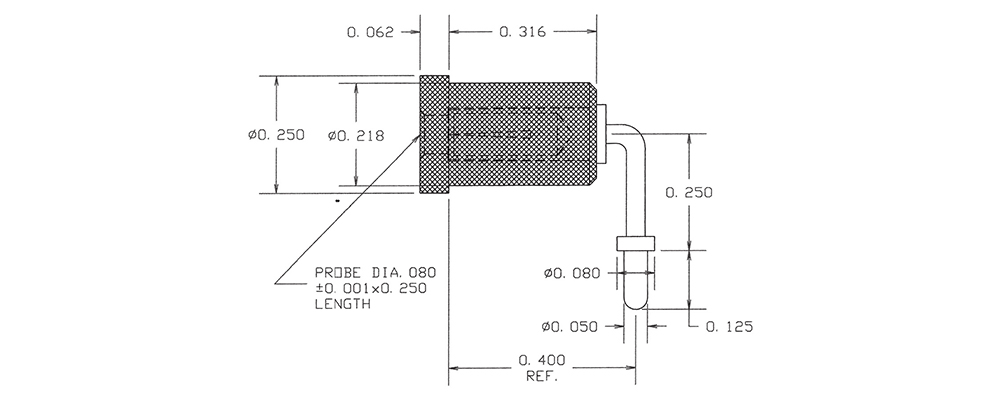

1128-57-03517
1128-57-03517
1128-57-03517
0.080 0.250 " 0.487" - Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Violet -

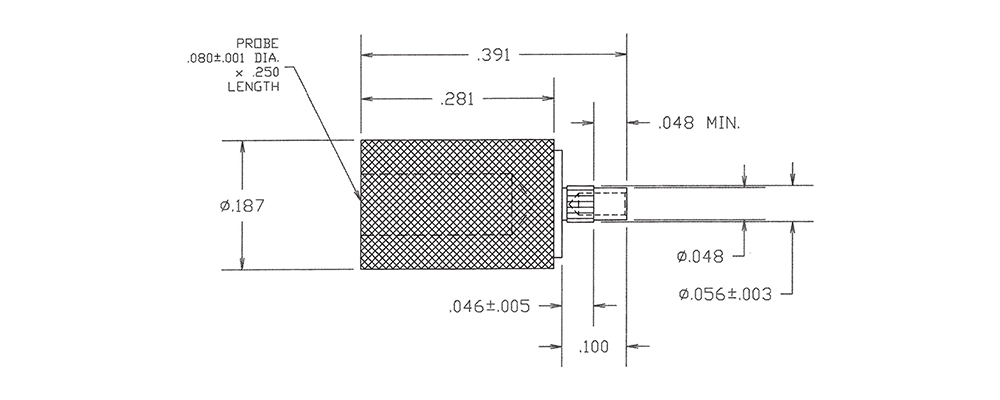

1138-05-03513
1138-05-03513
1138-05-03513
0.080 0.250 " 0.391" - Swage Mount 0.061 1/16 Vertical - - PTFE Orange -

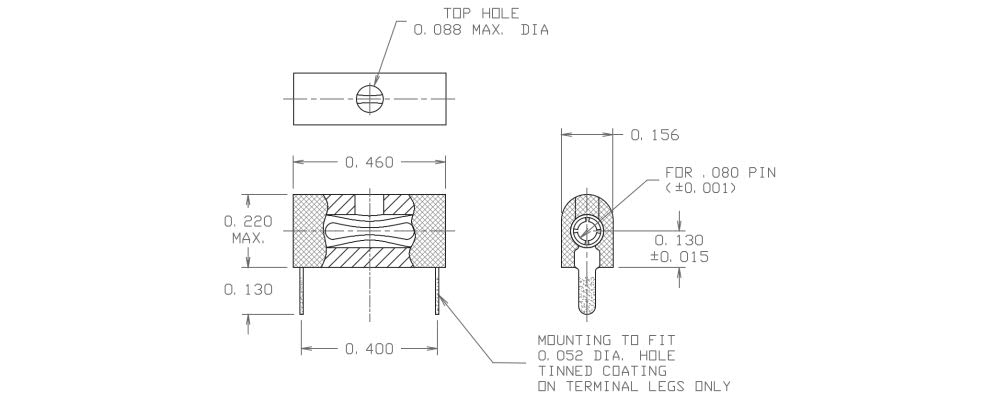

09-9225-1-0319
09-9225-1-0319
09-9225-1-0319
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon White -

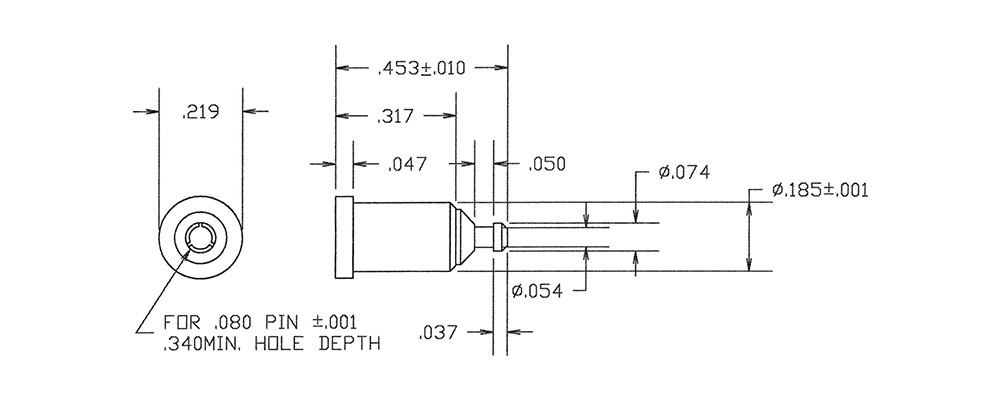

09-9084-1-0612
09-9084-1-0612
09-9084-1-0612
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Electro-Tin PTFE Red -

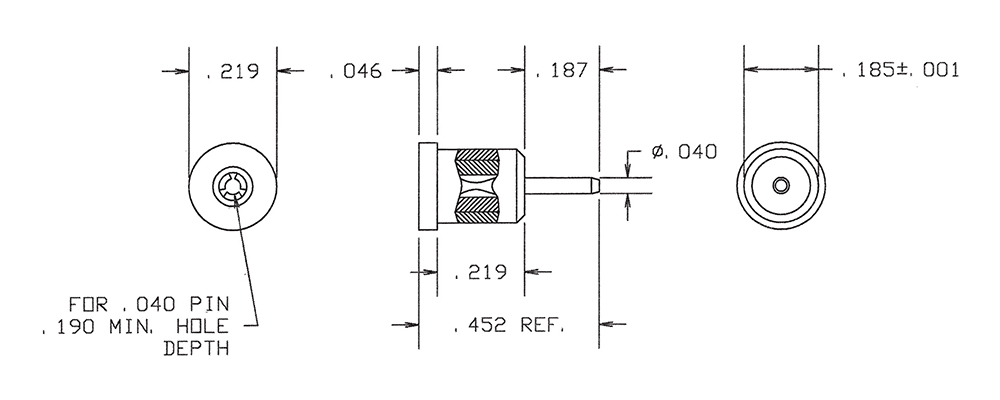

09-9192-1-06318
09-9192-1-06318
09-9192-1-06318
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Gray -

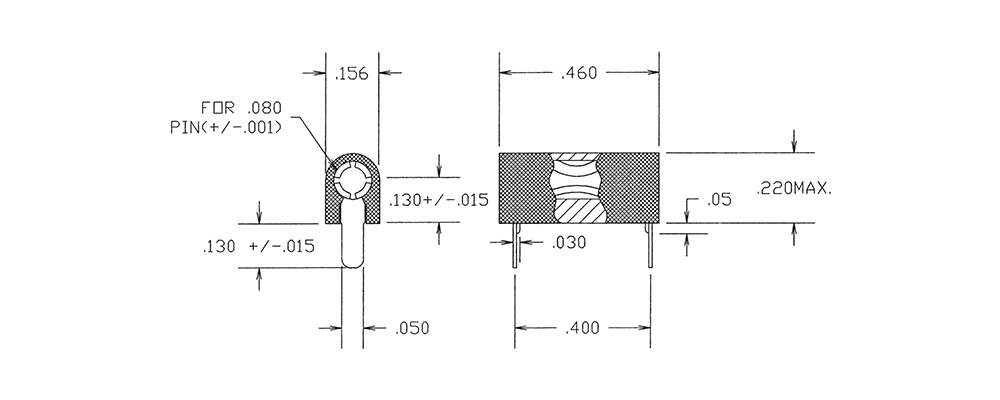

09-9252-1-03514
09-9252-1-03514
09-9252-1-03514
0.080 0.400 " 0.460" - Solder 0.052  1/32 Horizontal - - Nylon Yellow -

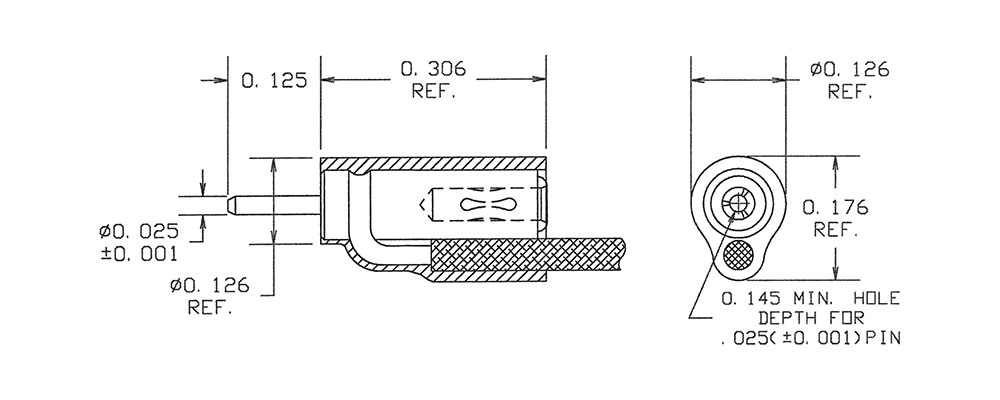

09-9055-1-03512
09-9055-1-03512
09-9055-1-03512
0.025 0.145 " 0.431" Jack/Pin - - - - Brass Gold Polyolefin Red -

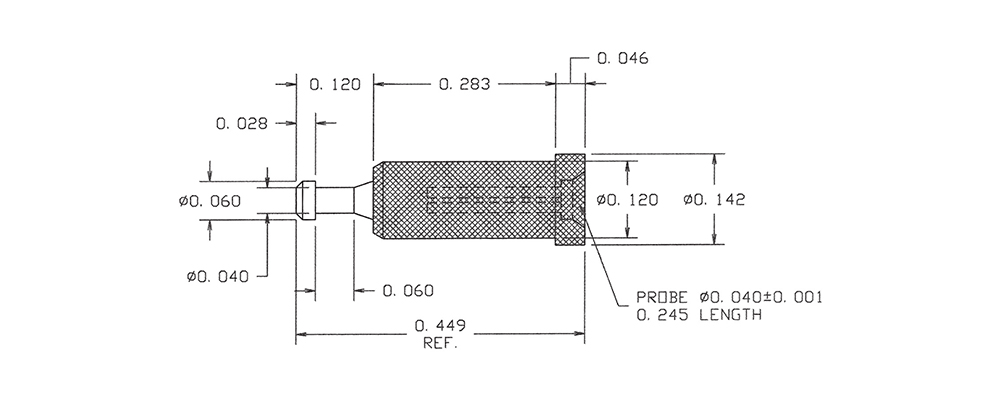

1128-03-0310
1128-03-0310
1128-03-0310
0.040 0.245 " 0.449" Jack/Turret Press Fit 0.108 1/32 - 15/64 Vertical - - PTFE Black -
1128-16-03516
1128-16-03516
1128-16-03516
0.080 0.225 " 0.467" Jack/Turret Press Fit 0.172 1/32 - 1/4 Vertical - - PTFE Blue -
1128-35-0312
1128-35-0312
1128-35-0312
0.080 0.310 " 0.435" Jack/Turret Press Fit 0.171 1/32 - 3/32 Vertical - - PTFE Red -
1128-57-03518
1128-57-03518
1128-57-03518
0.080 0.250 " 0.487" - Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Gray -
1138-05-03514
1138-05-03514
1138-05-03514
0.080 0.250 " 0.391" - Swage Mount 0.061 1/16 Vertical - - PTFE Yellow -
09-9225-1-03510
09-9225-1-03510
09-9225-1-03510
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Black M39024/11-43
09-9084-1-0613
09-9084-1-0613
09-9084-1-0613
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Electro-Tin PTFE Orange -
09-9192-1-06319
09-9192-1-06319
09-9192-1-06319
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE White -
09-9252-1-03515
09-9252-1-03515
09-9252-1-03515
0.080 0.400 " 0.460" - Solder 0.052  1/32 Horizontal - - Nylon Green -
09-9055-1-03514
09-9055-1-03514
09-9055-1-03514
0.025 0.145 " 0.431" Jack/Pin - - - - Brass Gold Polyolefin Yellow -
