Insulated
PC Jacks

Filter
09-9265-1-06312
09-9265-1-06312
09-9265-1-06312
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Red -
09-9265-1-06315
09-9265-1-06315
09-9265-1-06315
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Green -
09-9175-1-0413
09-9175-1-0413
09-9175-1-0413
0.060 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Orange -
09-9060-1-03516
09-9060-1-03516
09-9060-1-03516
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Gold PTFE Blue -
09-9265-1-06317
09-9265-1-06317
09-9265-1-06317
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Violet -
09-9299-1-03519
09-9299-1-03519
09-9299-1-03519
0.080 0.360 " 0.466" - Solder 0.062  1/32 - 5/32 Horizontal Brass Gold PTFE White -
09-9060-1-03510
09-9060-1-03510
09-9060-1-03510
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Gold PTFE Black -
1128-19-0316
1128-19-0316
1128-19-0316
0.093 0.518 " 0.834" Jack/Turret Press Fit 0.187 1/32 - 3/8 Vertical - - PTFE Blue -
09-9060-1-0319
09-9060-1-0319
09-9060-1-0319
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Gold PTFE White -
09-9060-1-0318
09-9060-1-0318
09-9060-1-0318
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Gold PTFE Gray -
09-9060-1-0317
09-9060-1-0317
09-9060-1-0317
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Gold PTFE Violet -
09-9060-1-0316
09-9060-1-0316
09-9060-1-0316
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Gold PTFE Blue -
09-9060-1-0313
09-9060-1-0313
09-9060-1-0313
0.080 0.332 " 0.688" Jack/Eyelet Press Fit 0.203 1/32 - 23/64 Vertical Brass Gold PTFE Orange -
1128-19-03511
1128-19-03511
1128-19-03511
0.093 0.518 " 0.834" Jack/Turret Press Fit 0.187 1/32 - 3/8 Vertical - - PTFE Brown -
09-9306-1-03516
09-9306-1-03516
09-9306-1-03516
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Blue M39024/11-57
1128-56-0314
1128-56-0314
1128-56-0314
0.080 0.250 " 0.587" - Press Fit 0.205 1/32 - 17/64 Vertical - - PTFE Yellow -
1128-59-0314
1128-59-0314
1128-59-0314
0.080 0.280 " 0.650" Jack/Pin Solder 0.052  1/32 - 3/32 Vertical - - PTFE Yellow -
09-9221-1-03512
09-9221-1-03512
09-9221-1-03512
0.080 0.233 " 0.438" Jack/Pin Solder 0.050 1/32 - 1/16 Vertical Brass Gold Nylon Red -
09-9092-1-03511
09-9092-1-03511
09-9092-1-03511
0.050 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Brown -

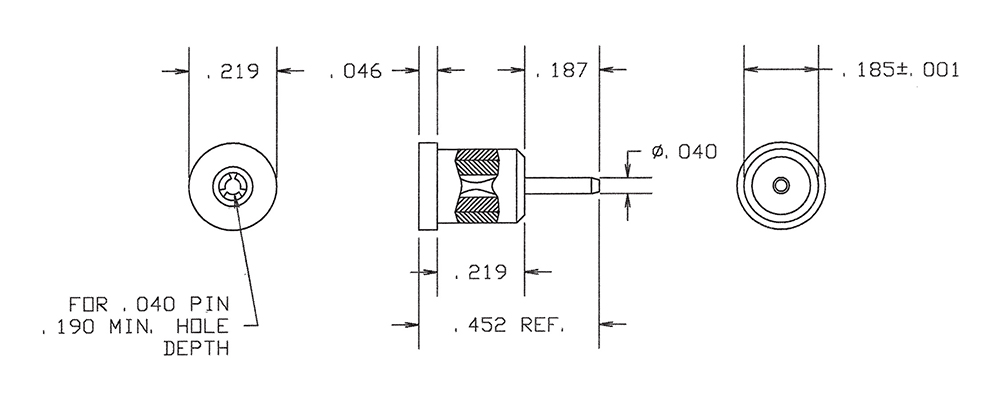

09-9192-1-06310
09-9192-1-06310
09-9192-1-06310
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Black -
