Insulated
PC Jacks

Filter

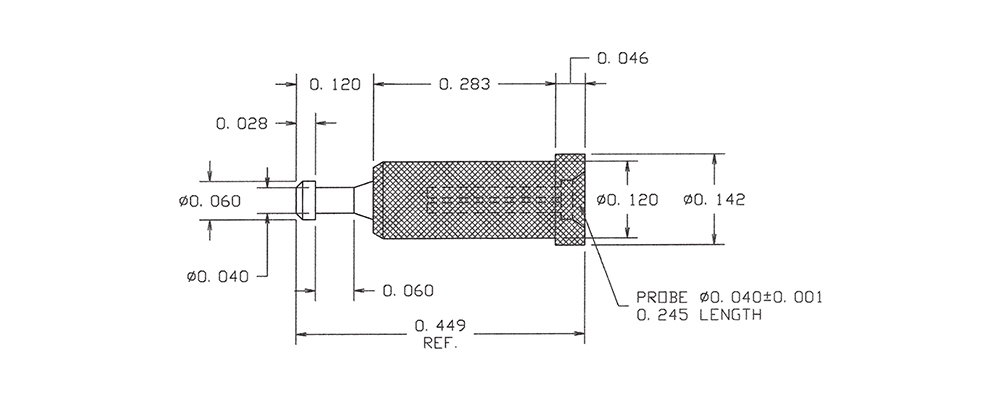

1128-03-0313
1128-03-0313
1128-03-0313
0.040 0.245 " 0.449" Jack/Turret Press Fit 0.108 1/32 - 15/64 Vertical - - PTFE Orange -

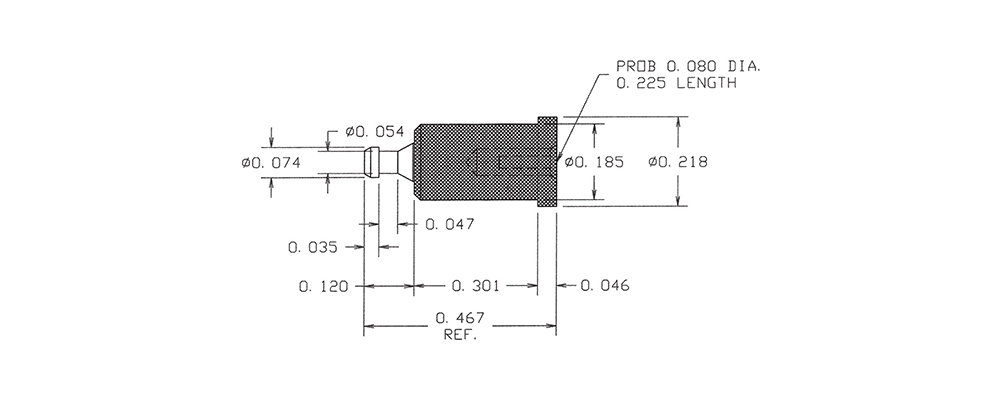

1128-16-03519
1128-16-03519
1128-16-03519
0.080 0.225 " 0.467" Jack/Turret Press Fit 0.172 1/32 - 1/4 Vertical - - PTFE White -

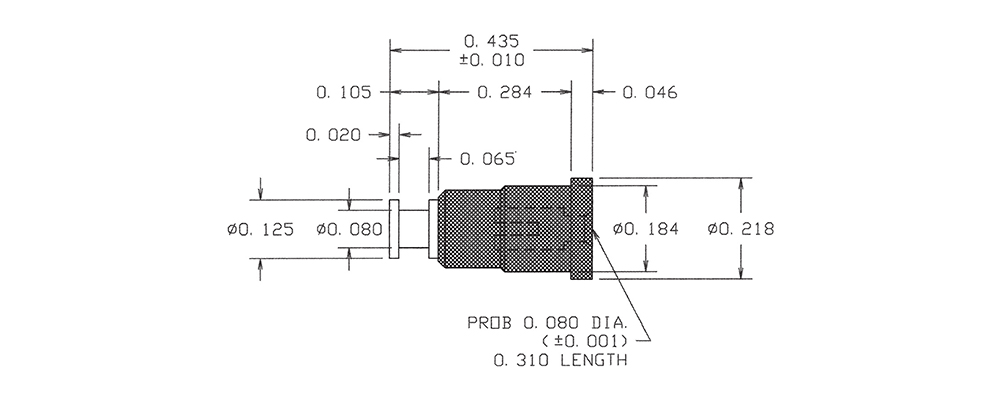

1128-35-0315
1128-35-0315
1128-35-0315
0.080 0.310 " 0.435" Jack/Turret Press Fit 0.171 1/32 - 3/32 Vertical - - PTFE Green -

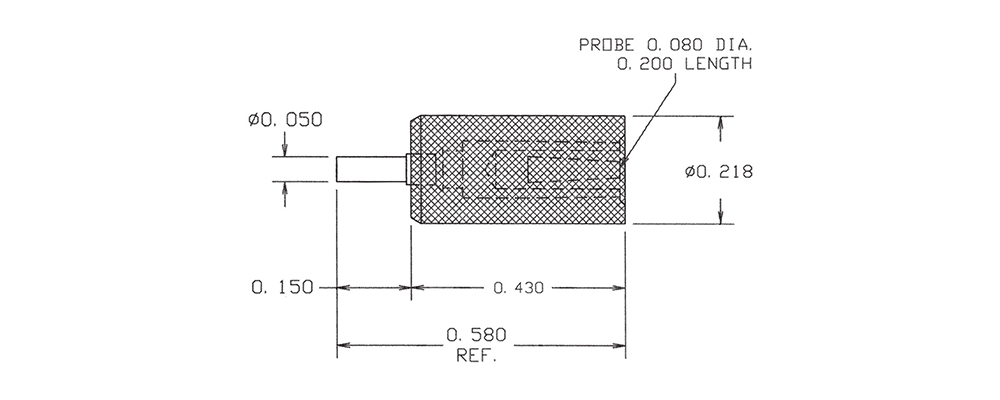

1128-58-0311
1128-58-0311
1128-58-0311
0.080 0.200 " 0.580" Jack/Pin Solder 0.052  1/32 - 3/32 Vertical - - PTFE Brown -

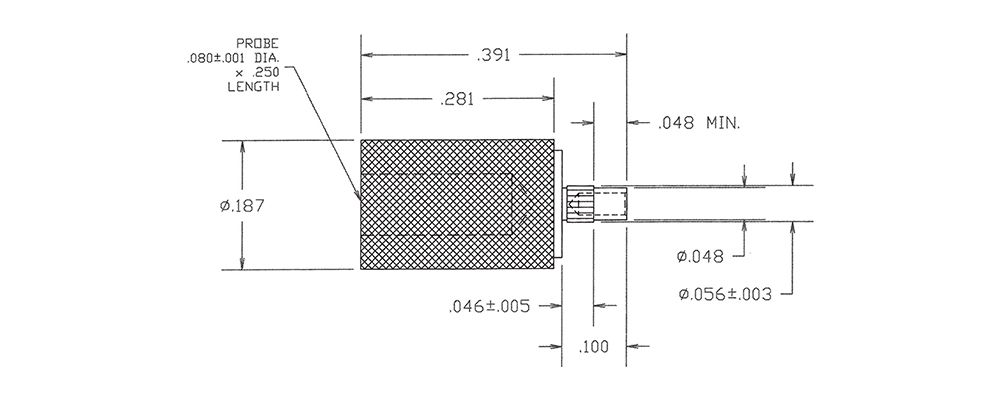

1138-05-03517
1138-05-03517
1138-05-03517
0.080 0.250 " 0.391" - Swage Mount 0.061 1/16 Vertical - - PTFE Violet -

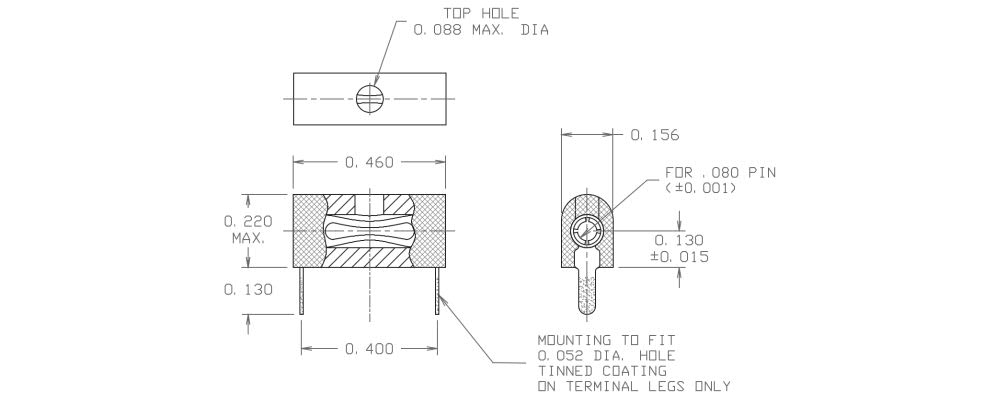

09-9225-1-03513
09-9225-1-03513
09-9225-1-03513
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Orange M39024/11-46
09-9084-1-0616
09-9084-1-0616
09-9084-1-0616
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Electro-Tin PTFE Blue -
09-9192-1-08812
09-9192-1-08812
09-9192-1-08812
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Red -

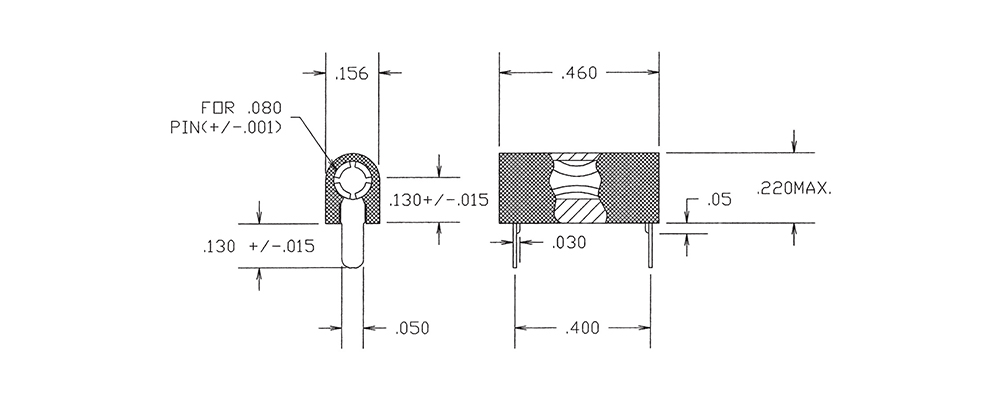

09-9252-1-03518
09-9252-1-03518
09-9252-1-03518
0.080 0.400 " 0.460" - Solder 0.052  1/32 Horizontal - - Nylon Gray -
09-9055-1-03519
09-9055-1-03519
09-9055-1-03519
0.025 0.145 " 0.431" Jack/Pin - - - - Brass Gold Polyolefin White -
1128-03-0314
1128-03-0314
1128-03-0314
0.040 0.245 " 0.449" Jack/Turret Press Fit 0.108 1/32 - 15/64 Vertical - - PTFE Yellow -

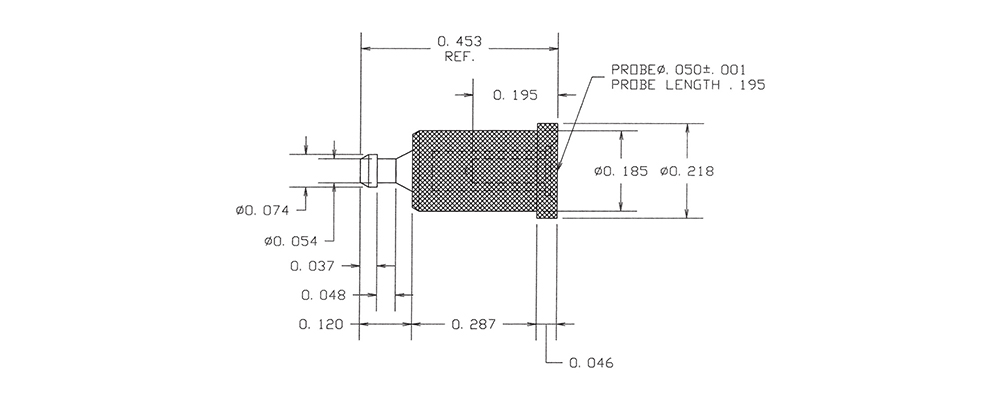

1128-17-0310
1128-17-0310
1128-17-0310
0.050 0.195 " 0.287" Jack/Turret Press Fit 0.172 1/32 - 1/4 Vertical - - PTFE Black -
1128-35-0316
1128-35-0316
1128-35-0316
0.080 0.310 " 0.435" Jack/Turret Press Fit 0.171 1/32 - 3/32 Vertical - - PTFE Blue -
1128-58-0312
1128-58-0312
1128-58-0312
0.080 0.200 " 0.580" Jack/Pin Solder 0.052  1/32 - 3/32 Vertical - - PTFE Red -
1138-05-03518
1138-05-03518
1138-05-03518
0.080 0.250 " 0.391" - Swage Mount 0.061 1/16 Vertical - - PTFE Gray -
09-9225-1-03514
09-9225-1-03514
09-9225-1-03514
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Yellow M39024/11-48
09-9084-1-0617
09-9084-1-0617
09-9084-1-0617
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Electro-Tin PTFE Violet -
09-9192-1-08813
09-9192-1-08813
09-9192-1-08813
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Orange -
09-9252-1-03519
09-9252-1-03519
09-9252-1-03519
0.080 0.400 " 0.460" - Solder 0.052  1/32 Horizontal - - Nylon White -
09-9055-1-0410
09-9055-1-0410
09-9055-1-0410
0.025 0.145 " 0.431" Jack/Pin - - - - Brass Electro-Tin Polyolefin Black -
