Insulated
PC Jacks

Filter
09-9224-1-03513
09-9224-1-03513
09-9224-1-03513
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Orange M39024/11-06

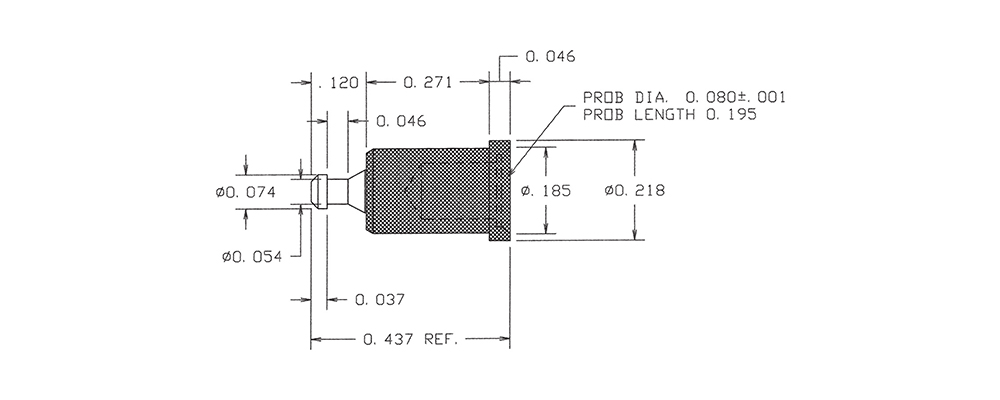

1138-29-0314
1138-29-0314
1138-29-0314
0.080 0.187 " 0.437" Jack/Solder Cup Press Fit 0.172 1/32 - 3/16 Vertical - - PTFE Yellow -
1138-29-0319
1138-29-0319
1138-29-0319
0.080 0.187 " 0.437" Jack/Solder Cup Press Fit 0.172 1/32 - 3/16 Vertical - - PTFE White -
09-9221-1-0416
09-9221-1-0416
09-9221-1-0416
0.080 0.233 " 0.438" Jack/Pin Solder 0.050 1/32 - 1/16 Vertical Brass Electro-Tin Nylon Blue -
21-9205-1-0318
21-9205-1-0318
21-9205-1-0318
0.080 0.400 " 0.410" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Gray -
09-9158-1-0411
09-9158-1-0411
09-9158-1-0411
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Electro-Tin PTFE Brown -

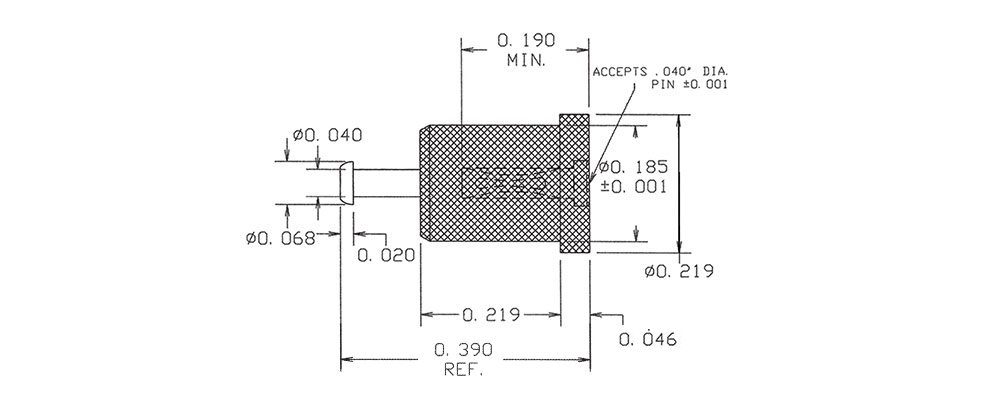

09-9012-1-0415
09-9012-1-0415
09-9012-1-0415
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Green -
09-9012-1-0414
09-9012-1-0414
09-9012-1-0414
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Yellow -
09-9084-1-08813
09-9084-1-08813
09-9084-1-08813
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Bright Tin-Lead PTFE Orange -
09-9084-1-06318
09-9084-1-06318
09-9084-1-06318
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Bright Tin-Lead PTFE Gray -
09-9012-1-0413
09-9012-1-0413
09-9012-1-0413
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Orange -
09-9012-1-0412
09-9012-1-0412
09-9012-1-0412
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Red -
09-9216-1-0318
09-9216-1-0318
09-9216-1-0318
0.060 0.250 " 0.287" - Solder 0.102  1/32 - 3/32 Vertical Brass Gold PTFE Gray -
09-9084-1-0613
09-9084-1-0613
09-9084-1-0613
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Electro-Tin PTFE Orange -
09-9084-1-03515
09-9084-1-03515
09-9084-1-03515
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Gold PTFE Green M39024/12-05
09-9307-1-04411
09-9307-1-04411
09-9307-1-04411
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Brown -

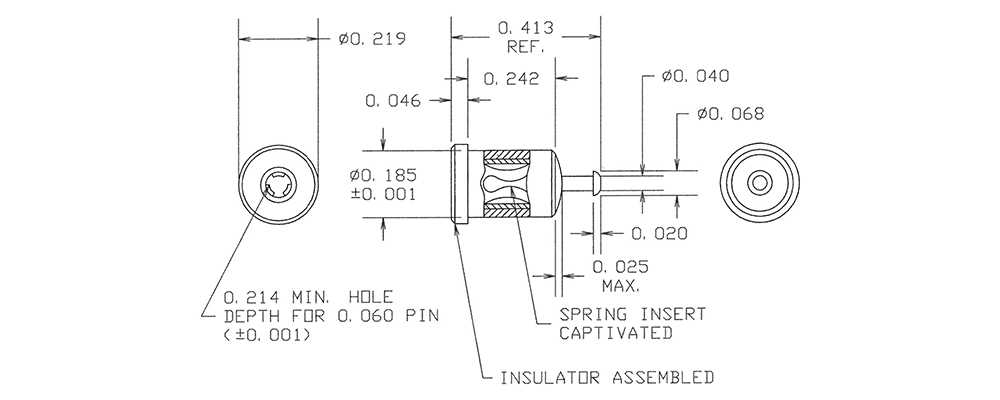

09-9175-1-0418
09-9175-1-0418
09-9175-1-0418
0.060 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Gray -
09-9158-1-0410
09-9158-1-0410
09-9158-1-0410
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Electro-Tin PTFE Black -
09-9224-1-03516
09-9224-1-03516
09-9224-1-03516
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Blue M39024/11-07
09-9202-1-0313
09-9202-1-0313
09-9202-1-0313
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Orange -
