Military
Non-Insulated
Terminals

Filter
15R-216-2-088
15R-216-2-088
15R-216-2-088
0.342" - Swage Mount 0.105" 1/16 0.094 Phosphor Bronze Bright Tin-Lead M55155/12XD04 AA59126/12XD04
15R-216-3-088
15R-216-3-088
15R-216-3-088
0.372" - Swage Mount 0.135" 3/32 0.094 Phosphor Bronze Bright Tin-Lead M55155/12XD05 AA59126/12XD05
15R-216-2-095
15R-216-2-095
15R-216-2-095
0.342" - Swage Mount 0.105" 1/16 0.094 Phosphor Bronze Hot Solder Dip M55155/12XC04 AA59126/12XC04
15R-229-2-095
15R-229-2-095
15R-229-2-095
0.154" - Swage Mount 0.084" 1/16 0.033 Phosphor Bronze Hot Solder Dip M55155/12XC15 AA59126/12XC15
15R-229-3-088
15R-229-3-088
15R-229-3-088
0.185" - Swage Mount 0.115" 3/32 0.033 Phosphor Bronze Bright Tin-Lead M55155/12XD16 AA59126/12XD16
15R-229-1-088
15R-229-1-088
15R-229-1-088
0.123" - Swage Mount 0.053" 1/32 0.033 Phosphor Bronze Bright Tin-Lead M55155/12XD14 AA59126/12XD14
15R-229-2-088
15R-229-2-088
15R-229-2-088
0.154" - Swage Mount 0.084" 1/16 0.033 Phosphor Bronze Bright Tin-Lead M55155/12XD15 AA59126/12XD15
15R-229-3-05
15R-229-3-05
15R-229-3-05
0.185" - Swage Mount 0.115" 3/32 0.033 Phosphor Bronze Electro Solder M55155/12XB16 AA59126/12XB16
15R-229-3-095
15R-229-3-095
15R-229-3-095
0.185" - Swage Mount 0.115" 3/32 0.033 Phosphor Bronze Hot Solder Dip M55155/12XC16 AA59126/12XC16
15R-266-4-05
15R-266-4-05
15R-266-4-05
0.303" - Swage Mount 0.147" 1/8 0.0635 Phosphor Bronze Electro Solder M55155/12XB13 AA59126/12XB13
15R-266-1-05
15R-266-1-05
15R-266-1-05
0.209" - Swage Mount 0.053" 1/32 0.0635 Phosphor Bronze Electro Solder M55155/12XB10 AA59126/12XB10
15R-266-3-088
15R-266-3-088
15R-266-3-088
0.271" - Swage Mount 0.115" 3/32 0.0635 Phosphor Bronze Bright Tin-Lead M55155/12XD12 AA59126/12XD12
15R-266-2-05
15R-266-2-05
15R-266-2-05
0.240" - Swage Mount 0.084" 1/16 0.0635 Phosphor Bronze Electro Solder M55155/12XB11 AA59126/12XB11
15R-266-3-05
15R-266-3-05
15R-266-3-05
0.271" - Swage Mount 0.115" 3/32 0.0635 Phosphor Bronze Electro Solder M55155/12XB12 AA59126/12XB12
15R-266-1-095
15R-266-1-095
15R-266-1-095
0.209" - Swage Mount 0.053" 1/32 0.0635 Phosphor Bronze Hot Solder Dip M55155/12XC10 AA59126/12XC10
15R-270-6-095
15R-270-6-095
15R-270-6-095
0.593" - Swage Mount 0.234" 3/16 0.116 Phosphor Bronze Hot Solder Dip M55155/30XC18 AA59126/30XC18
15R-270-1-095
15R-270-1-095
15R-270-1-095
0.437" - Swage Mount 0.078" 1/32 0.116 Phosphor Bronze Hot Solder Dip M55155/30XC04 AA59126/30XC04
15R-270-6-05
15R-270-6-05
15R-270-6-05
0.593" - Swage Mount 0.234" 3/16 0.116 Phosphor Bronze Electro Solder M55155/30XB18 AA59126/30XB18
15R-270-2-088
15R-270-2-088
15R-270-2-088
0.468" - Swage Mount 0.109" 1/16 0.116 Phosphor Bronze Bright Tin-Lead M55155/30XD07 AA59126/30XD07

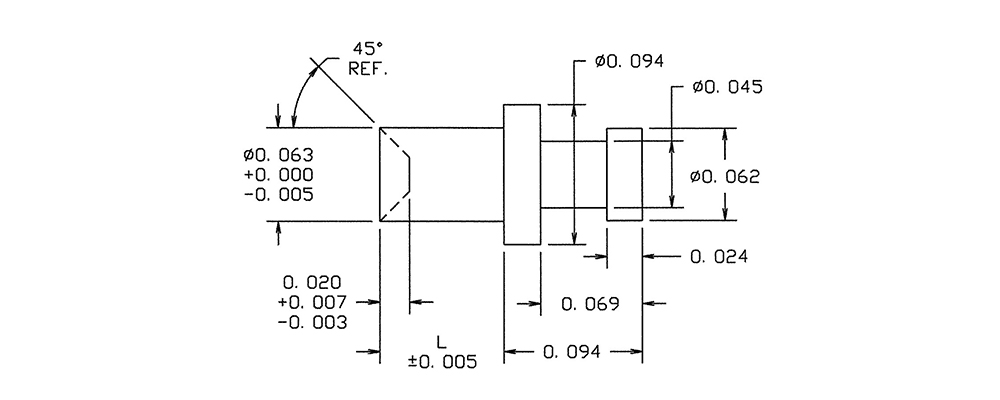

15-141-3-095
15-141-3-095
15-141-3-095
0.209" - Swage Mount 0.115" 3/32 0.067 Brass Hot Solder Dip M55155/11XI06 AA59126/11XI06
