Military
Non-Insulated
Terminals

Filter
15R-576-3-05
15R-576-3-05
15R-576-3-05
0.416" Turret/Turret Swage Mount 0.135" 3/32 0.120 Phosphor Bronze Electro Solder M55155/13XB05 AA59126/13XB05
15R-576-2-05
15R-576-2-05
15R-576-2-05
0.386" Turret/Turret Swage Mount 0.105" 1/16 0.120 Phosphor Bronze Electro Solder M55155/13XB04 AA59126/13XB04

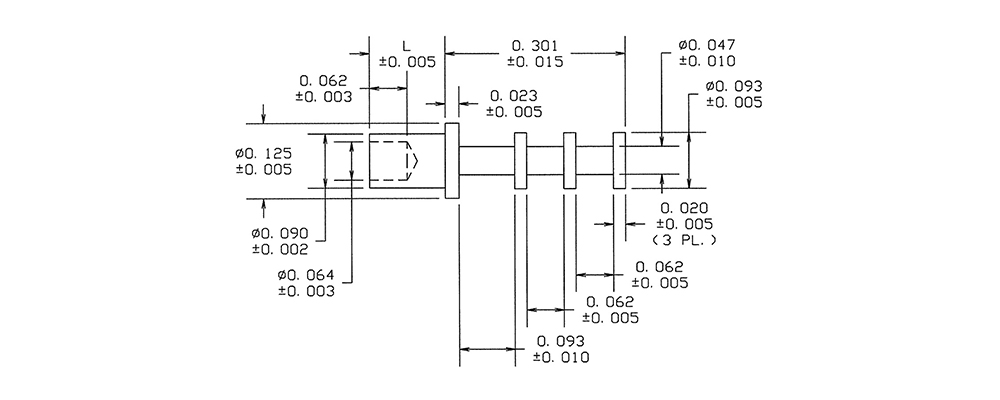

15R-601-1-095
15R-601-1-095
15R-601-1-095
0.363" - Swage Mount 0.062" 1/32 0.094 Phosphor Bronze Hot Solder Dip M55155/31XC01 AA59126/31XC01
15R-601-6-088
15R-601-6-088
15R-601-6-088
0.519" - Swage Mount 0.218" 3/16 0.094 Phosphor Bronze Bright Tin-Lead M55155/31XD10 AA59126/31XD10
15R-601-3-095
15R-601-3-095
15R-601-3-095
0.426" - Swage Mount 0.125" 3/32 0.094 Phosphor Bronze Hot Solder Dip M55155/31XC05 AA59126/31XC05
15R-601-2-088
15R-601-2-088
15R-601-2-088
0.394" - Swage Mount 0.093" 1/16 0.094 Phosphor Bronze Bright Tin-Lead M55155/31XD03 AA59126/31XD03
15R-601-2-095
15R-601-2-095
15R-601-2-095
0.394" - Swage Mount 0.093" 1/16 0.094 Phosphor Bronze Hot Solder Dip M55155/31XC03 AA59126/31XC03
15R-601-3-05
15R-601-3-05
15R-601-3-05
0.426" - Swage Mount 0.125" 3/32 0.094 Phosphor Bronze Electro Solder M55155/31XB05 AA59126/31XB05
15R-601-4-088
15R-601-4-088
15R-601-4-088
0.457" - Swage Mount 0.156" 1/8 0.094 Phosphor Bronze Bright Tin-Lead M55155/31XD07 AA59126/31XD07
15-602-3-095
15-602-3-095
15-602-3-095
0.624" - Swage Mount 0.140" 3/32 0.116 Brass Hot Solder Dip M55155/31XI06 AA59126/31XI06
15R-602-3-05
15R-602-3-05
15R-602-3-05
0.624" - Swage Mount 0.140" 3/32 0.116 Phosphor Bronze Electro Solder M55155/31XB06 AA59126/31XB06
15R-602-3-095
15R-602-3-095
15R-602-3-095
0.624" - Swage Mount 0.140" 3/32 0.116 Phosphor Bronze Hot Solder Dip M55155/31XC06 AA59126/31XC06
15R-602-2-095
15R-602-2-095
15R-602-2-095
0.593" - Swage Mount 0.109" 1/16 0.116 Phosphor Bronze Hot Solder Dip M55155/31XC04 AA59126/31XC04
15-602-2-088
15-602-2-088
15-602-2-088
0.593" - Swage Mount 0.109" 1/16 0.116 Brass Bright Tin-Lead M55155/31XJ04 AA59126/31XJ04
15-602-2-05
15-602-2-05
15-602-2-05
0.593" - Swage Mount 0.109" 1/16 0.116 Brass Electro Solder M55155/31XH04 AA59126/31XH04
15R-903-3-05
15R-903-3-05
15R-903-3-05
0.313" - Swage Mount 0.125" 3/32 0.0635 Phosphor Bronze Electro Solder M55155/24XB03 AA59126/24XB03
15R-903-1-095
15R-903-1-095
15R-903-1-095
0.250" - Swage Mount 0.062" 1/32 0.0635 Phosphor Bronze Hot Solder Dip M55155/24XC01 AA59126/24XC01
15R-903-1-088
15R-903-1-088
15R-903-1-088
0.250" - Swage Mount 0.062" 1/32 0.0635 Phosphor Bronze Bright Tin-Lead M55155/24XD01 AA59126/24XD01
15R-903-4-095
15R-903-4-095
15R-903-4-095
0.344" - Swage Mount 0.156" 1/8 0.0635 Phosphor Bronze Hot Solder Dip M55155/24XC04 AA59126/24XC04
15-141-3-095
15-141-3-095
15-141-3-095
0.209" - Swage Mount 0.115" 3/32 0.067 Brass Hot Solder Dip M55155/11XI06 AA59126/11XI06
