Military
Insulated
Terminals

Filter
1127-06M-09510Z
1127-06M-09510Z
1127-06M-09510Z
0.390" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Black M55155/200C03 AA59126/200C03
1133-02M-08813Z
1133-02M-08813Z
1133-02M-08813Z

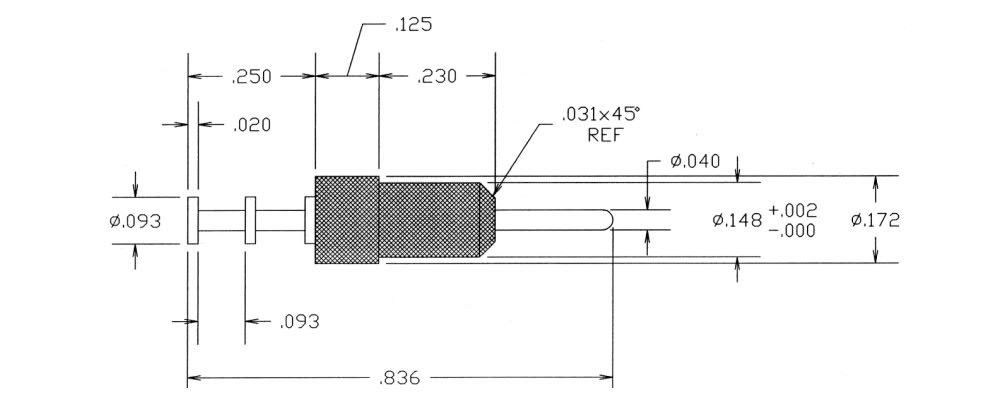

0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Orange M55155/043D02 AA59126/043D02
1100-07M-0516Z
1100-07M-0516Z
1100-07M-0516Z

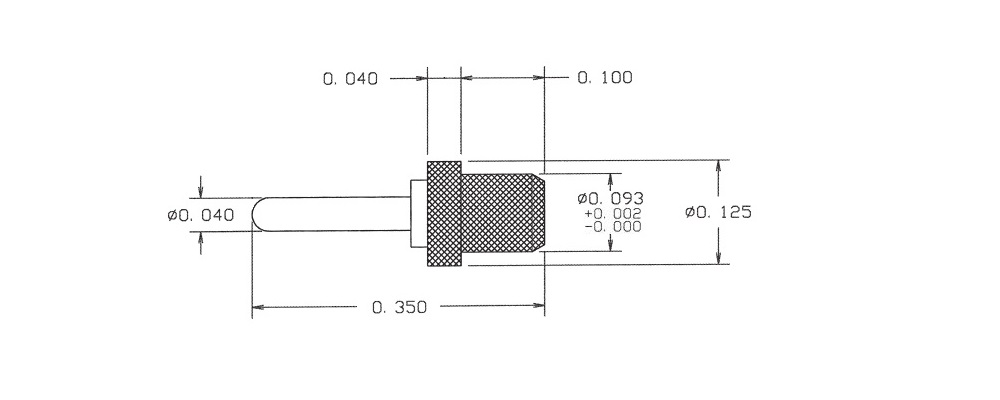

0.350" - Press Fit 1/16 0.086 PTFE Blue M55155/086B02 AA59126/086B02
1114R-09M-08814Z
1114R-09M-08814Z
1114R-09M-08814Z

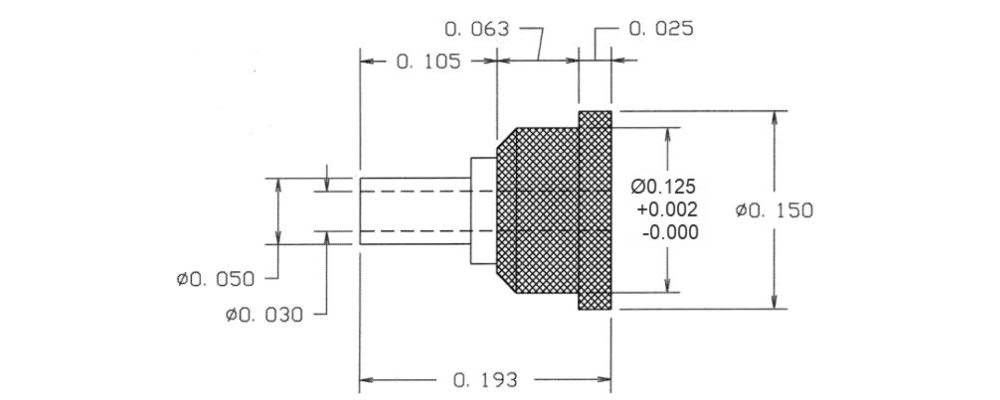

0.193" - Press Fit 1/32 0.113 PTFE Yellow M55155/064D01 AA59126/064D01
1102-03M-0514
1102-03M-0514
1102-03M-0514

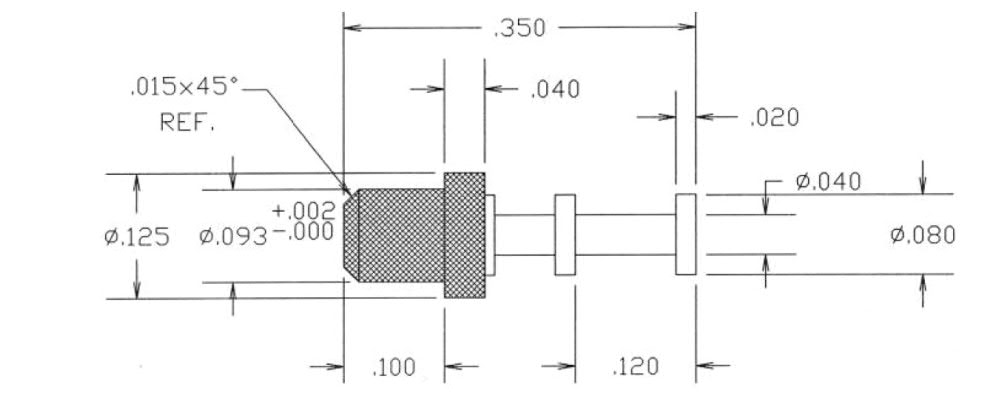

0.350" - Press Fit 1/16 0.086 PTFE Yellow M55155/074H03 AA59126/074H03
1110-16M-08812
1110-16M-08812
1110-16M-08812

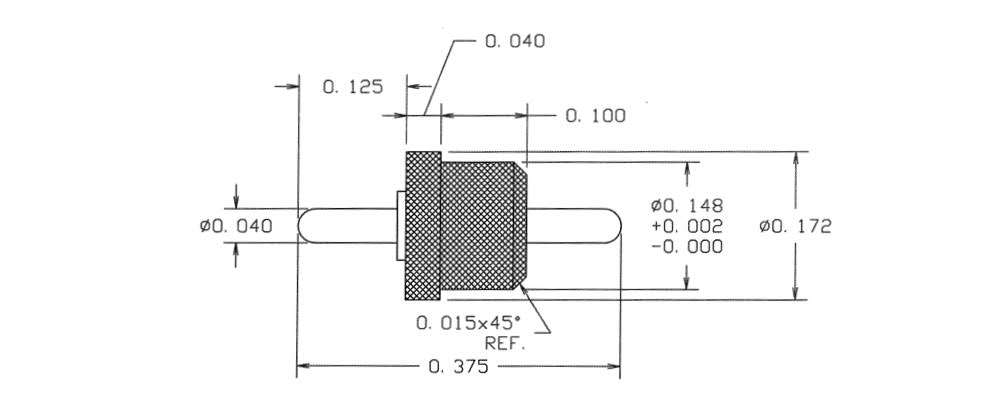

0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Red M55155/032J01 AA59126/032J01
1125-42M-09510
1125-42M-09510
1125-42M-09510

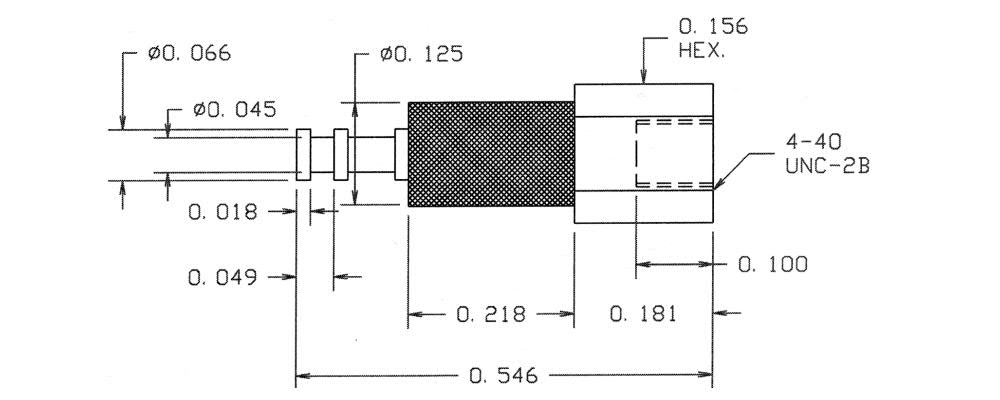

0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Black M55155/100I01 AA59126/100I01
1127-02M-08813
1127-02M-08813
1127-02M-08813

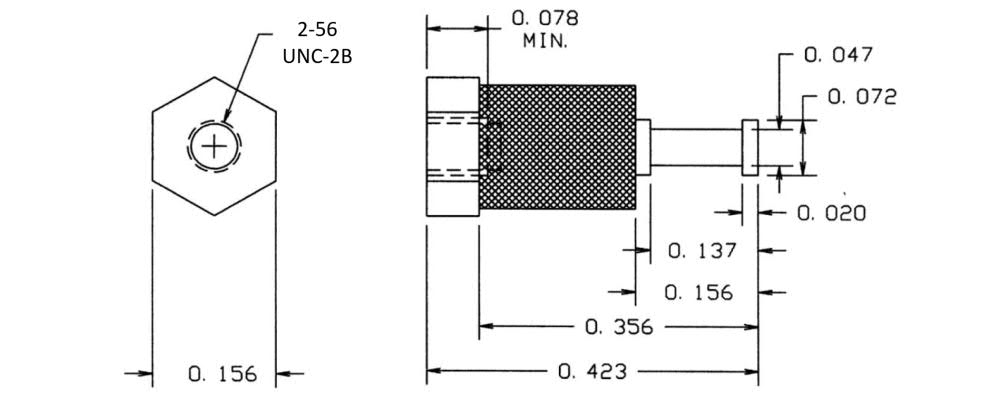

0.423" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Orange M55155/193J02 AA59126/193J02
1127-06M-09511
1127-06M-09511
1127-06M-09511
0.390" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Brown M55155/201I03 AA59126/201I03
1133-02M-08814
1133-02M-08814
1133-02M-08814
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Yellow M55155/044J02 AA59126/044J02
1100-07M-0517
1100-07M-0517
1100-07M-0517
0.350" - Press Fit 1/16 0.086 PTFE Violet M55155/087H02 AA59126/087H02
1114R-09M-08815
1114R-09M-08815
1114R-09M-08815
0.193" - Press Fit 1/32 0.113 PTFE Green M55155/065J01 AA59126/065J01
1102-03M-0514Z
1102-03M-0514Z
1102-03M-0514Z
0.350" - Press Fit 1/16 0.086 PTFE Yellow M55155/074B03 AA59126/074B03
1110-16M-08812Z
1110-16M-08812Z
1110-16M-08812Z
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Red M55155/032D01 AA59126/032D01
1125-42M-09510Z
1125-42M-09510Z
1125-42M-09510Z
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Black M55155/100C01 AA59126/100C01
1127-02M-08813Z
1127-02M-08813Z
1127-02M-08813Z
0.423" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Orange M55155/193D02 AA59126/193D02
1127-06M-09511Z
1127-06M-09511Z
1127-06M-09511Z
0.390" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Brown M55155/201C03 AA59126/201C03
1133-02M-08814Z
1133-02M-08814Z
1133-02M-08814Z
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Yellow M55155/044D02 AA59126/044D02
1100-07M-0517Z
1100-07M-0517Z
1100-07M-0517Z
0.350" - Press Fit 1/16 0.086 PTFE Violet M55155/087B02 AA59126/087B02
1114R-09M-08815Z
1114R-09M-08815Z
1114R-09M-08815Z
0.193" - Press Fit 1/32 0.113 PTFE Green M55155/065D01 AA59126/065D01

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
